Calling the module

Now that you understand how a module is structured internally, the next step is learning how to call and reuse it from a calling configuration (typically the root module). A module sitting in a folder does nothing by itself — Terraform only evaluates a module when a configuration references it with a module block. This guide walks through a concise, practical example of calling a local module, explains the execution flow, and shows how to pass inputs and expose outputs so different modules can interoperate.

Basic example: create a module instance

A simple module call from the root module looks like this:

# main.tf (root)
module "backup_storage" {
  source           = "../storage-module"
  storage_name     = "backupupsa321"
  rg_name          = "my-workshop-rg"
  location         = "East US"
  account_tier     = "Standard"
  replication_type = "ZRS"
}

The left-hand identifier (backup_storage) is a logical name for the module block inside your configuration — it is not the name of any Azure resource.
source tells Terraform where to find the module code. In this example it’s a local path (../storage-module). You can also reference Git repositories, the Terraform Registry, or private registries.
The attributes inside the module block (for example, storage_name, rg_name, location) must match the variable names declared in the module (see its variables.tf). These bind values from the calling configuration into the module.

Think of a module like a function: you define inputs (variables) and the module returns outputs. When Terraform evaluates the configuration, it injects the passed input values into the module and evaluates the resources inside as part of the calling configuration’s graph.

Module block names are local identifiers only. They do not automatically set Azure resource names — pass explicit values through variables for resource naming.

Module sources: local and remote

Common module source formats:

Source type	Description	Example
Local path	Modules kept in your repo.	`./modules/resource_group`
Relative path	Referencing adjacent folders.	`../modules/storage_account`
Git / VCS	Fetch module from a Git repository.	`git::https://github.com/you/terraform-modules.git//storage`
Terraform Registry	Public or private registry modules.	`azure/storage/azurerm`

The Terraform Registry includes curated modules that often follow provider-specific best practices — useful for production.

Example walkthrough — root configuration and module calls

Below is a typical sequence used in a root configuration that consumes multiple local modules (resource group and storage account).

Provider configuration (root/main.tf or provider.tf)

# provider.tf
variable "subscription_id" {
  type = string
}

provider "azurerm" {
  features        = {}
  subscription_id = var.subscription_id
}

You can obtain the subscription ID with az account show and assign it in terraform.tfvars or use environment variables.

Calling the resource group module from the root

# main.tf (root)
module "rg" {
  source = "./modules/resource_group"
  rg     = var.rg_name
  region = var.location
}

Assume the module defines an Azure Resource Group using variables rg and region:

# modules/resource_group/main.tf (module)
resource "azurerm_resource_group" "main" {
  name     = var.rg
  location = var.region

  tags = {
    Created   = "Terraform"
    Location  = var.region
    CreatedBy = "Module"
  }
}

Expose values from the resource group module via outputs so other modules can reference them

# modules/resource_group/outputs.tf
output "rg_id" {
  value = azurerm_resource_group.main.id
}

output "rg_name" {
  value = azurerm_resource_group.main.name
}

output "rg_location" {
  value = azurerm_resource_group.main.location
}

Calling the storage-account module and referencing resource group outputs

# main.tf (root)
module "storage" {
  source  = "./modules/storage_account"
  storage = "stmodstorage56535"
  rg      = module.rg.rg_name
  region  = module.rg.rg_location
  rep     = "LRS"
}

The storage_account module should accept inputs such as storage, rg, region, and rep, and may expose outputs like the storage blob endpoint.

Example storage-account module output (so the root can retrieve the blob endpoint)

# modules/storage_account/outputs.tf
output "endpoint" {
  value = azurerm_storage_account.this.primary_blob_endpoint
}

Declaring the root variables and tfvars

# variables.tf (root)
variable "rg_name" {
  type = string
}

variable "location" {
  type = string
}

# terraform.tfvars
rg_name        = "rg-modules-demo"
location       = "East US"
subscription_id = "1b228746-75fd-46ed-8a6b-6a9066d6d3a"

Practical notes on evaluation and execution flow

terraform init: downloads provider plugins and initializes module source code (including remote module sources).
terraform plan: reads the calling configuration (root), loads referenced modules, injects input values, evaluates resources inside the modules, and produces an execution plan. Modules are evaluated as part of the root dependency graph — they are not separate deployments.
terraform apply: executes the plan and creates/manages resources described across the root and module code.
Reuse: call the same module multiple times with different inputs (e.g., module "rg2" { ... }) to create multiple resource instances without duplicating resource blocks.

Below is a quick reference table for common commands and their purpose:

Command	Purpose
`terraform init`	Initialize working directory, download providers and modules
`terraform validate`	Validate configuration syntax and internal consistency
`terraform plan`	Produce an execution plan showing changes
`terraform apply --auto-approve`	Apply the plan and create/upate resources
`terraform destroy`	Remove managed resources

Visual Studio Code context

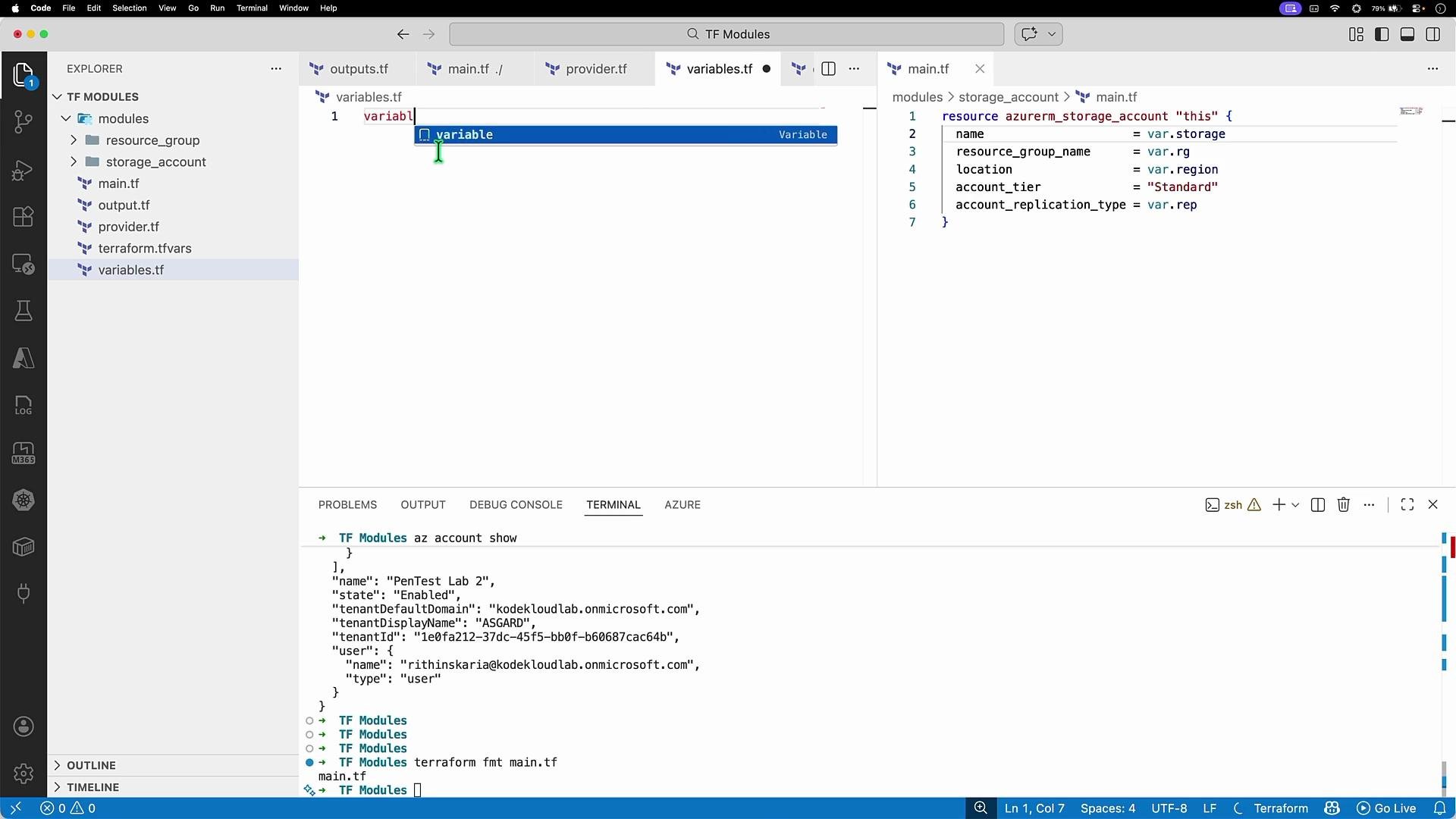

The image shows a Visual Studio Code interface with Terraform configuration files open, displaying code related to Azure storage account resources. The terminal at the bottom has some Azure account information displayed.

Commands and a sample run

Initialize Terraform (this also initializes modules):

terraform init

Typical terraform init output will indicate initialized modules:

Initializing the backend...
Initializing modules...
  - rg in modules/resource_group
  - storage in modules/storage_account

Initializing provider plugins...
- Finding latest version of hashicorp/azurerm...
- Installing hashicorp/azurerm v4.60.0...

Validate, plan, and apply:

terraform validate
terraform plan
terraform apply --auto-approve

A successful apply might show:

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Outputs:

endpoint = "https://stmodstorage56535.blob.core.windows.net/"

You can verify the resource group and its tags using the Azure CLI:

az group show -n rg-modules-demo

A trimmed JSON snippet from az group show might include the tags created by the module:

{
  "id": "/subscriptions/1b228746-75fd-46ed-8a6b-6a9066d6d3a/resourceGroups/rg-modules-demo",
  "location": "eastus",
  "name": "rg-modules-demo",
  "properties": { "provisioningState": "Succeeded" },
  "tags": {
    "Created": "Terraform",
    "CreatedBy": "Module",
    "Location": "East US"
  },
  "type": "Microsoft.Resources/resourceGroups"
}

Reusing the same module to create additional resource groups

To create multiple resource groups using the same module, call it multiple times with different inputs:

module "rg" {
  source = "../modules/resource_group"
  rg     = var.rg_name
  region = var.location
}

module "rg2" {
  source = "../modules/resource_group"
  rg     = var.rg_name2
  region = var.location
}

Then add rg_name2 to variables.tf / terraform.tfvars to provide the second resource group name.

Keep module variable names and the calling attributes aligned. A mismatch (for example, passing rg to a module that expects resource_group_name) will cause validation or planning errors.

Summary

Define reusable resources inside a module directory and expose inputs (variables.tf) and outputs (outputs.tf).
Call that module from the root using a module block and pass inputs that match the module’s variables.
Export values from modules using outputs so other modules or the root can reference them.
Initialize with terraform init, then terraform plan and terraform apply. Modules are evaluated as part of the root execution graph and support scalable, DRY Terraform configurations.
