Remote Provisioners

This lesson covers remote provisioners in Terraform and how to use the remote-exec provisioner to run commands inside newly created virtual machines. Remote provisioners let Terraform connect to a VM over the network and execute commands inside the guest operating system — for Linux VMs Terraform typically uses SSH, and for Windows VMs it uses WinRM. This is distinct from configuring a VM through cloud-provider APIs; remote provisioners log into the machine and run commands directly.

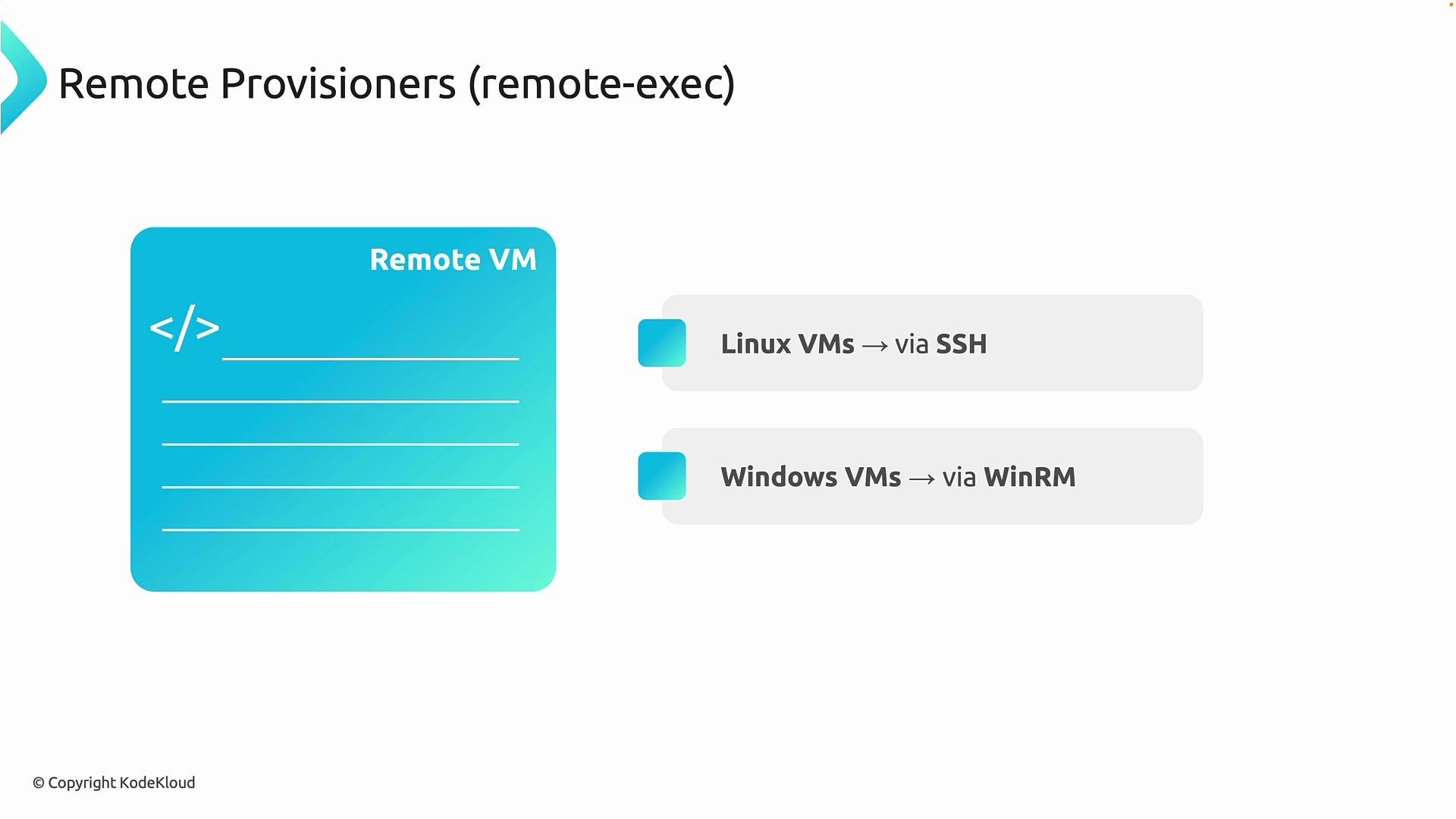

The image is an infographic explaining remote provisioning (remote-exec) methods for virtual machines, showing Linux VMs using SSH and Windows VMs using WinRM.

Typical use cases

Remote provisioners are best for targeted, small-scale bootstrapping tasks that should run immediately after a VM is created:

Install software right after deployment (e.g., Nginx, Docker, or other runtime dependencies).
Run initialization or bootstrap scripts to prepare the system before apps are deployed.
Apply small configuration tweaks after infrastructure creation (e.g., enable a service, update a config file, restart a daemon).

Remote provisioners are useful for quick post-deployment steps when you do not want to introduce a full configuration-management system (Ansible, Chef, Puppet) for minor tasks. They are not designed to replace configuration management for long-term, complex configuration.

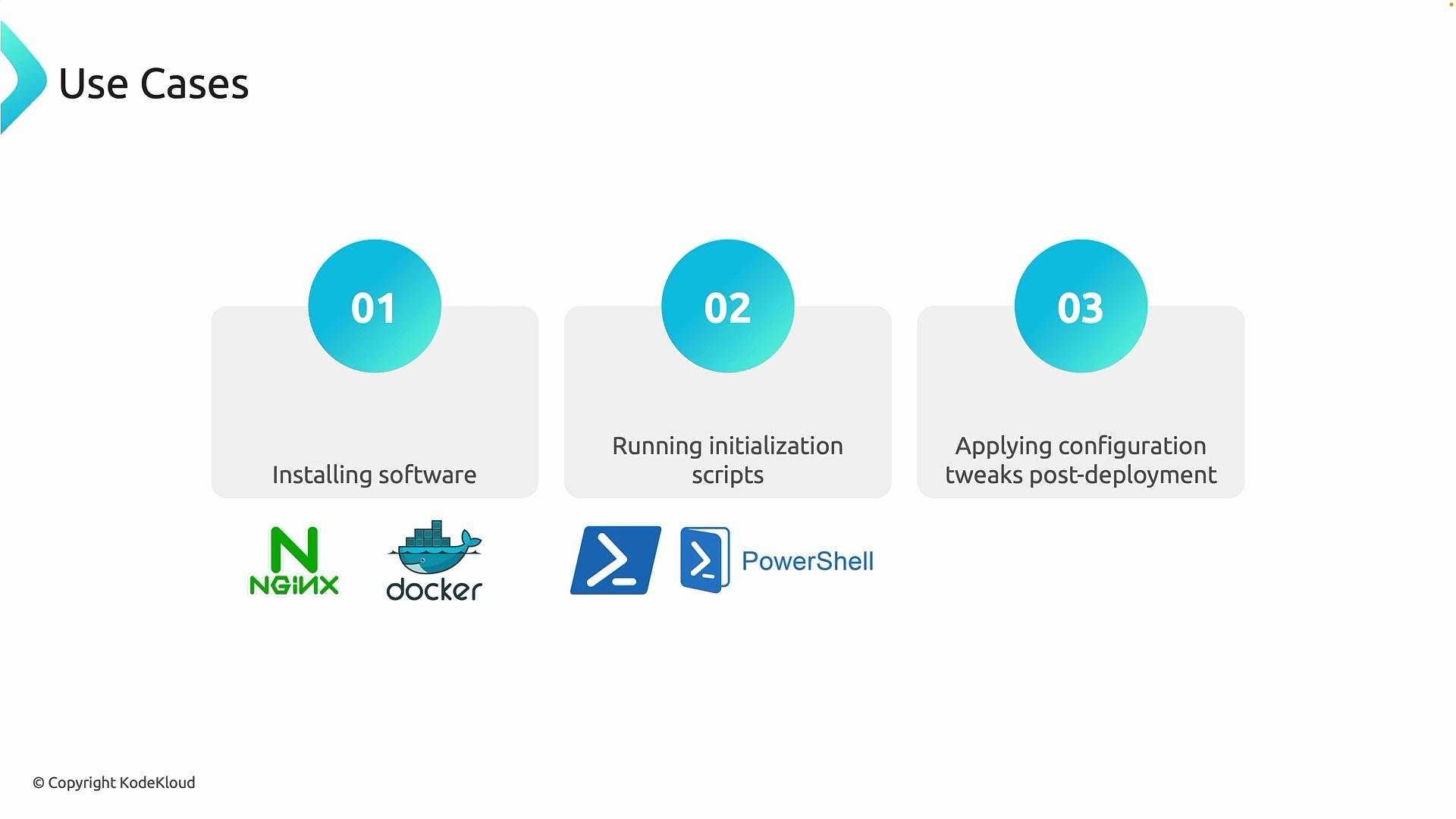

The image lists three use cases: installing software (with logos for NGINX and Docker), running initialization scripts (with PowerShell logos), and applying configuration tweaks post-deployment.

Requirements and constraints

Before using remote provisioners ensure the following:

Requirement	Details
Network reachability	The machine running `terraform apply` must be able to reach the VM over the appropriate port (SSH: `22` for Linux; WinRM: `5985` HTTP or `5986` HTTPS for Windows).
Authentication	Valid credentials are required: SSH username + private key (preferred) or password, or WinRM credentials for Windows.
Reachable endpoint	The VM needs a reachable public IP or a hostname accessible via VPN/peering.
Security groups / NSGs	In cloud environments ensure security rules allow the required inbound traffic; otherwise the provisioner will fail.

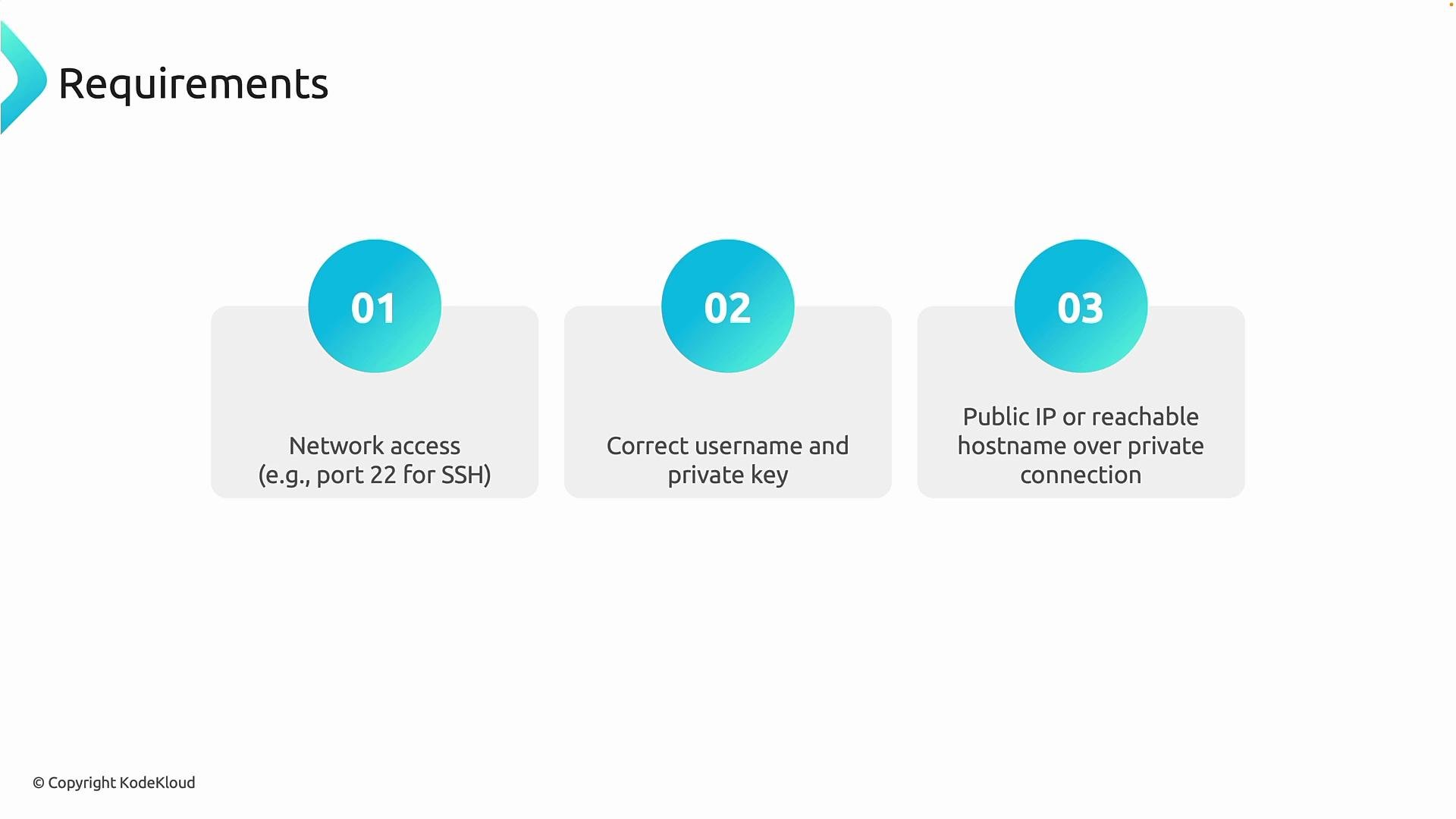

The image displays a list of requirements for network access, including the need for a specific port for SSH, a correct username and private key, and a public IP or reachable hostname.

Prefer SSH key-based authentication for Linux VMs and avoid embedding plaintext secrets in your Terraform files. Use an absolute path or pass keys via variables (Terraform does not expand ~ in file() calls).

Example: remote-exec to install Apache (apache2)

This concise example shows a core Terraform configuration that creates a Linux VM on Azure and uses a remote-exec provisioner to update packages, install Apache, and write a simple index page. Notes on the example:

Add the provisioner "remote-exec" block inside the VM resource.
Use the connection block to tell Terraform how to reach the VM (SSH for Linux).
Prefer SSH key authentication. Never store production secrets inline.

main.tf (core resources and provisioner)

provider "azurerm" {
  features {}
}

resource "azurerm_resource_group" "rg" {
  name     = var.rg
  location = var.location
}

resource "azurerm_virtual_network" "vnet" {
  name                = var.vnet
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
}

resource "azurerm_subnet" "subnet" {
  name                 = var.subnet
  resource_group_name  = azurerm_resource_group.rg.name
  virtual_network_name = azurerm_virtual_network.vnet.name
  address_prefixes     = ["10.0.1.0/24"]
}

resource "azurerm_network_security_group" "nsg" {
  name                = var.nsg
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name

  security_rule {
    name                       = "SSH"
    priority                   = 1001
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "22"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "HTTP"
    priority                   = 1002
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "80"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }
}

resource "azurerm_subnet_network_security_group_association" "nsg_snet" {
  subnet_id                 = azurerm_subnet.subnet.id
  network_security_group_id = azurerm_network_security_group.nsg.id
}

resource "azurerm_public_ip" "pip" {
  name                = var.pip
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
  allocation_method   = "Static"
}

resource "azurerm_network_interface" "nic" {
  name                = var.nic
  resource_group_name = azurerm_resource_group.rg.name
  location            = azurerm_resource_group.rg.location

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.subnet.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.pip.id
  }
}

resource "azurerm_linux_virtual_machine" "vm" {
  name                = var.vm
  resource_group_name = azurerm_resource_group.rg.name
  location            = azurerm_resource_group.rg.location
  size                = "Standard_B1s"

  admin_username = "azureuser"

  # Choose one of these authentication methods.
  # Method A: SSH key (recommended)
  admin_ssh_key {
    username   = "azureuser"
    # Note: Terraform's file() does not expand '~'. Use an absolute path or a variable for portability.
    public_key = file("~/.ssh/id_rsa.pub")
  }

  # Method B: Password (not recommended for production)
  # admin_password = "YourStrongPasswordHere"

  source_image_reference {
    publisher = "Canonical"
    offer     = "ubuntu-25_04"
    sku       = "server"
    version   = "latest"
  }

  network_interface_ids = [azurerm_network_interface.nic.id]

  # Remote provisioner that runs after the VM is created
  provisioner "remote-exec" {
    inline = [
      "sudo apt update -y",
      "sudo apt install apache2 -y",
      "echo '<h1>Welcome to Azure VM</h1>' | sudo tee /var/www/html/index.html"
    ]

    connection {
      type        = "ssh"
      host        = azurerm_public_ip.pip.ip_address
      user        = "azureuser"
      # Note: Terraform's file() does not expand '~'. Use an absolute path or a variable for the private key.
      private_key = file("~/.ssh/id_rsa")
      # Alternatively, if using password authentication:
      # password = var.vm_password
    }
  }
}

output "vm_public_ip" {
  value = azurerm_public_ip.pip.ip_address
}

variables.tf

variable "rg" {}
variable "location" {}
variable "vnet" {}
variable "subnet" {}
variable "nsg" {}
variable "pip" {}
variable "nic" {}
variable "vm" {}
# If you use password auth (not recommended), declare:
# variable "vm_password" {}

terraform.tfvars (example values)

rg       = "rg-remote-exec-01"
location = "canadacentral"
vnet     = "vnet-remote-exec-01"
subnet   = "subnet-remote-exec-01"
nsg      = "nsg-remote-exec-01"
pip      = "pip-remote-exec-01"
nic      = "nic-remote-exec-01"
vm       = "vm-remote-exec-01"
# vm_password = "XyZaBc@1234" # only if you used password auth

Run and validate

Typical workflow commands:

Step	Command
Initialize providers	`terraform init`
Validate configuration	`terraform validate`
See plan	`terraform plan`
Apply changes	`terraform apply -auto-approve`

Example terminal sequence:

terraform init
terraform validate
terraform plan
terraform apply -auto-approve

Troubleshooting: platform image errors

If you see an error such as:

Error: PlatformImageNotFound: The platform image 'Canonical:ubuntu-20.04:server:24.10.20240100' is not available.

This indicates the chosen publisher/offer/sku/version is not available in the selected region. Use the Azure CLI to list offers, SKUs, and images available in your target region and then update source_image_reference. Helpful Azure CLI commands (example using Canada Central and publisher Canonical):

# List offers for Canonical in canadacentral
az vm image list-offers -l canadacentral --publisher Canonical -o table

# List SKUs for a given offer (example: ubuntu-25_04)
az vm image list-skus -l canadacentral --publisher Canonical --offer ubuntu-25_04 -o table

# List all images for a publisher/offer/sku
az vm image list -l canadacentral --publisher Canonical --offer ubuntu-25_04 --sku server --all -o table

You can filter JSON output with --query to find a non-deprecated version.

Example apply output (successful)

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.

Enter a value: yes

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Outputs:

vm_public_ip = "52.138.2.248"

When the apply completes and the provisioner runs successfully, the Apache index page will be available at the VM public IP in a browser.

Avoid embedding plaintext passwords or secrets in your Terraform code. Prefer SSH keys or use a secrets manager. Also be cautious when exposing SSH or HTTP ports on public IP addresses.

Summary

Remote provisioners (especially remote-exec) let Terraform execute commands inside VMs after provisioning and are ideal for quick bootstrapping and minor post-deploy adjustments. Use them sparingly — they are not a substitute for full configuration-management tooling. Ensure proper network reachability, authentication, and secure handling of credentials so your provisioners can run reliably.

Links and references

Terraform: remote-exec provisioner — https://developer.hashicorp.com/terraform/language/resources/provisioners/remote-exec
Azure CLI — https://learn.microsoft.com/cli/azure/
Azure VM images documentation — https://learn.microsoft.com/azure/virtual-machines/linux/cli-ps-findimage
