In this tutorial you’ll deploy the multi-tier voting application to a Minikube cluster. The app consists of five components: voting frontend, result frontend, redis, postgres, and a worker. We’ll create one Pod manifest per component and Services to expose them. The project directory is named voting-app.
Prerequisites:
Minikube or a Kubernetes cluster
kubectl configured to target your cluster
Files saved under the voting-app directory
Quick reference:
Pod manifests Create the following Pod YAML files inside the voting-app directory.
Voting app Pod (voting-app-pod.yaml)
apiVersion : v1 kind : Pod metadata : name : voting-app-pod labels : name : voting-app-pod app : demo-voting-app spec : containers : - name : voting-app image : kodekloud/examplevotingapp_vote:v1 ports : - containerPort : 80

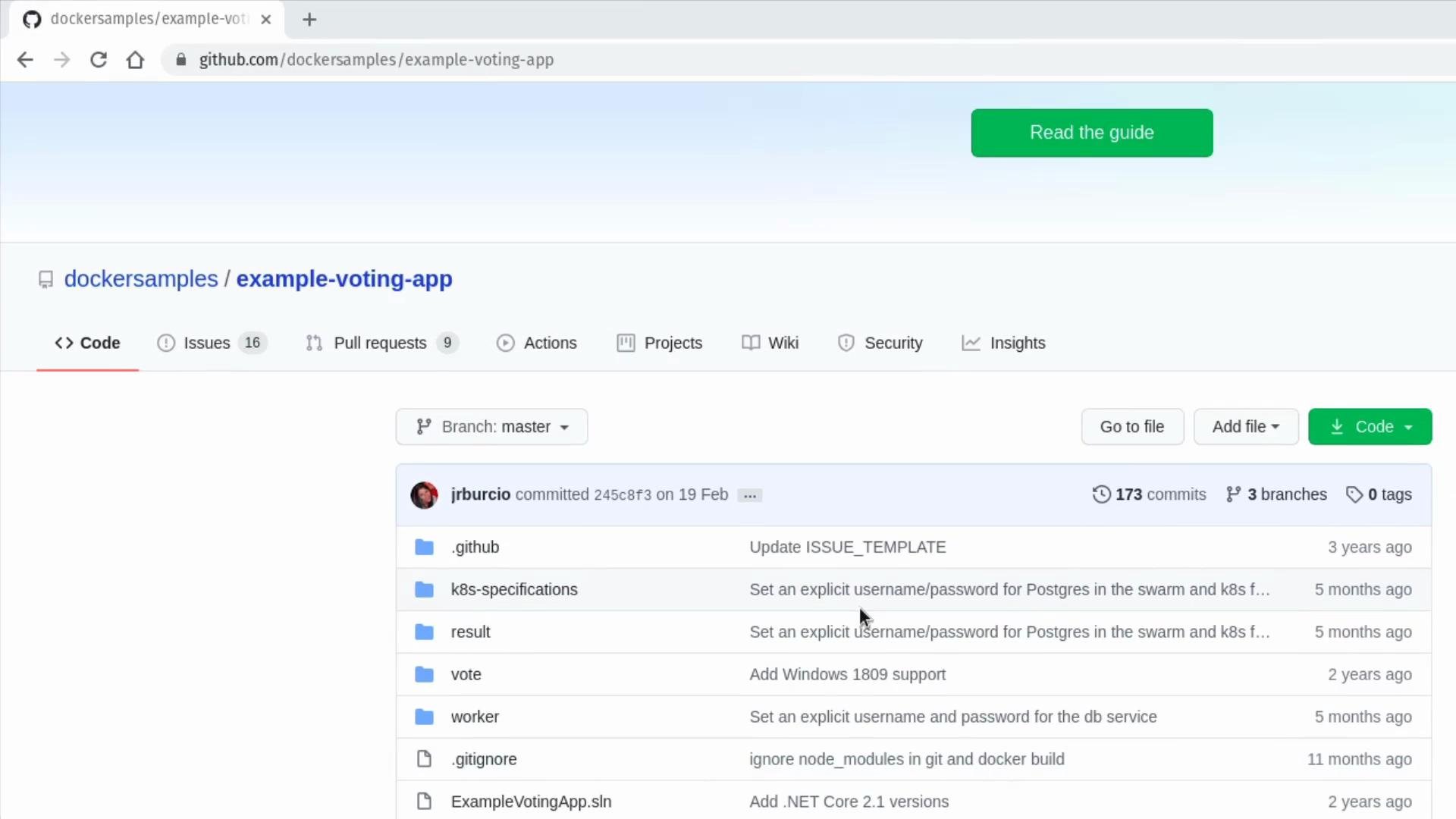

The voting app image referenced above comes from a sample repository similar to the one below: dockersamples/example-voting-app
Result app Pod (result-app-pod.yaml)
apiVersion : v1 kind : Pod metadata : name : result-app-pod labels : name : result-app-pod app : demo-voting-app spec : containers : - name : result-app image : kodekloud/examplevotingapp_result:v1 ports : - containerPort : 80
Redis Pod (redis-pod.yaml)
apiVersion : v1 kind : Pod metadata : name : redis-pod labels : name : redis-pod app : demo-voting-app spec : containers : - name : redis image : redis ports : - containerPort : 6379
Postgres Pod (postgres-pod.yaml)
The worker and result components require a PostgreSQL database. For this demo we inject credentials via plain environment variables in the Pod manifest. In production, store credentials securely using Kubernetes Secrets or an external vault.
apiVersion : v1 kind : Pod metadata : name : postgres-pod labels : name : postgres-pod app : demo-voting-app spec : containers : - name : postgres image : postgres ports : - containerPort : 5432 env : - name : POSTGRES_USER value : "postgres" - name : POSTGRES_PASSWORD value : "postgres"
Using plain text environment variables for database credentials is convenient for demos, but in production you should store credentials in Kubernetes Secrets or a vault solution.
Worker Pod (worker-app-pod.yaml)
The worker is an internal background process and does not expose network ports, so we omit the ports section.
apiVersion : v1 kind : Pod metadata : name : worker-app-pod labels : name : worker-app-pod app : demo-voting-app spec : containers : - name : worker-app image : kodekloud/examplevotingapp_worker:v1
Service manifests Create Services to expose the Pods. Redis and Postgres use internal ClusterIP Services. The frontends are exposed via NodePort so they are accessible from your host/Minikube.
Redis Service (redis-service.yaml)
apiVersion : v1 kind : Service metadata : name : redis labels : name : redis-service app : demo-voting-app spec : ports : - port : 6379 targetPort : 6379 selector : name : redis-pod app : demo-voting-app
Postgres Service (postgres-service.yaml / named db)
apiVersion : v1 kind : Service metadata : name : db labels : name : postgres-service app : demo-voting-app spec : ports : - port : 5432 targetPort : 5432 selector : name : postgres-pod app : demo-voting-app
Voting Service (voting-app-service.yaml) — NodePort on 30004
apiVersion : v1 kind : Service metadata : name : voting-service labels : name : voting-service app : demo-voting-app spec : type : NodePort ports : - port : 80 targetPort : 80 nodePort : 30004 selector : name : voting-app-pod app : demo-voting-app
Result Service (result-app-service.yaml) — NodePort on 30005
apiVersion : v1 kind : Service metadata : name : result-service labels : name : result-service app : demo-voting-app spec : type : NodePort ports : - port : 80 targetPort : 80 nodePort : 30005 selector : name : result-app-pod app : demo-voting-app
Resources summary Resource Purpose Service Type / Port voting-app-pod (voting-app) Frontend to submit votes NodePort — 80 -> 30004 result-app-pod (result-app) Shows aggregated results NodePort — 80 -> 30005 redis-pod (redis) Queue/storage for votes ClusterIP — 6379 postgres-pod (postgres) Persistent storage for aggregated results ClusterIP — 5432 (service name: db) worker-app-pod (worker) Background worker to move data from Redis -> Postgres Internal, no service
Apply manifests and verify From the voting-app directory (where all YAML files are saved), apply the manifests in the following recommended order (frontend first, then datastore services, then worker, then result frontend):
Example file listing
admin@ubuntu-server voting-app# ls postgres-pod.yaml postgres-service.yaml redis-pod.yaml redis-service.yaml result-app-pod.yaml result-app-service.yaml voting-app-pod.yaml voting-app-service.yaml worker-app-pod.yaml
Create resources
# Create voting frontend kubectl create -f voting-app-pod.yaml kubectl create -f voting-app-service.yaml # Create Redis and its Service kubectl create -f redis-pod.yaml kubectl create -f redis-service.yaml # Create Postgres and its Service kubectl create -f postgres-pod.yaml kubectl create -f postgres-service.yaml # Create worker (no service) kubectl create -f worker-app-pod.yaml # Create result frontend and its Service kubectl create -f result-app-pod.yaml kubectl create -f result-app-service.yaml
Check status of Pods and Services
Sample expected output (condensed)
NAME READY STATUS RESTARTS AGE pod/postgres-pod 1/1 Running 0 2m20s pod/redis-pod 1/1 Running 0 2m52s pod/result-app-pod 1/1 Running 0 32s pod/voting-app-pod 1/1 Running 0 6m44s pod/worker-app-pod 1/1 Running 0 60s NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/db ClusterIP 10.105.81.36 <none> 5432/TCP 2m12s service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 2d4h service/redis ClusterIP 10.110.47.42 <none> 6379/TCP 2m48s service/result-service NodePort 10.101.220.79 <none> 80:30005/TCP 25s service/voting-service NodePort 10.109.194.132 <none> 80:30004/TCP 4m31s
Access the frontends (Minikube) If using Minikube, get accessible URLs:
minikube service voting-service --url minikube service result-service --url
Example:
http://192.168.99.101:30004 http://192.168.99.101:30005
Open the voting service URL in a browser and cast votes.
Flow summary:
Voting frontend records votes in Redis.
Worker reads votes from Redis and writes aggregates into Postgres.
Result frontend reads aggregated totals from Postgres and displays them.
If vote counts do not update:
Verify Postgres env variables (POSTGRES_USER, POSTGRES_PASSWORD) match what worker/result expect.
Ensure Service selectors match Pod labels exactly.
Conclusion You have successfully deployed the multi-tier voting application to Kubernetes:
Created Pods for voting, result, redis, postgres, and worker.
Provided ClusterIP services for internal components (redis, db).
Exposed frontends via NodePort services (voting and result).
Verified end-to-end behavior by casting votes and viewing results.
