In this section, we’re going to be discussing PromQL. So what is PromQL? Well, it’s short for Prometheus Query Language, and it’s the main way to query metrics within Prometheus. So you’ll send a request to the Prometheus server, provide your specific PromQL expression, and it’s going to return the data for that expression. And the data that you get returned can be visualized in dashboards, whether that’s through Grafana or some of the built-in dashboarding tools within Prometheus.

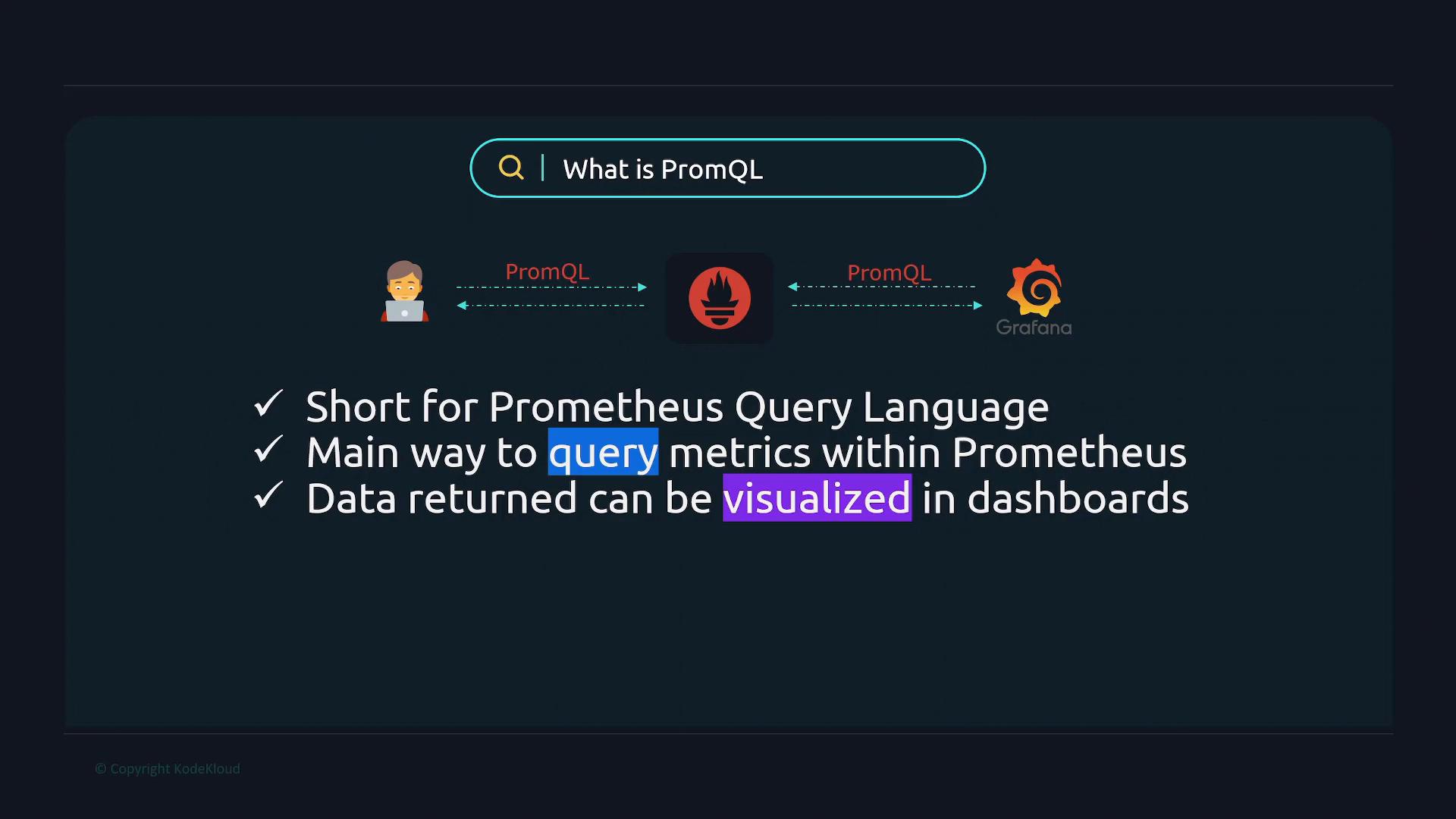

The image explains PromQL as the query language for Prometheus, highlighting its use for querying metrics and visualizing data in dashboards.
And you can also use PromQL to build alerting rules to notify administrators when certain thresholds have been crossed. And so in this section, we’re going to cover a lot of different things. This is going to be one of the larger sections. We’re going to go over the different expression data structures and what they can return. We’re going to cover different selectors and modifiers so that we can get the exact data that we’re interested in. We’re going to go over different operators and functions. And I’m going to discuss vector matching. We’ll go over the various aggregators that’s built in with Prometheus. We’ll cover subqueries, and then I’ll do a little bit of a deep dive into what we can do with histogram and summary metrics.

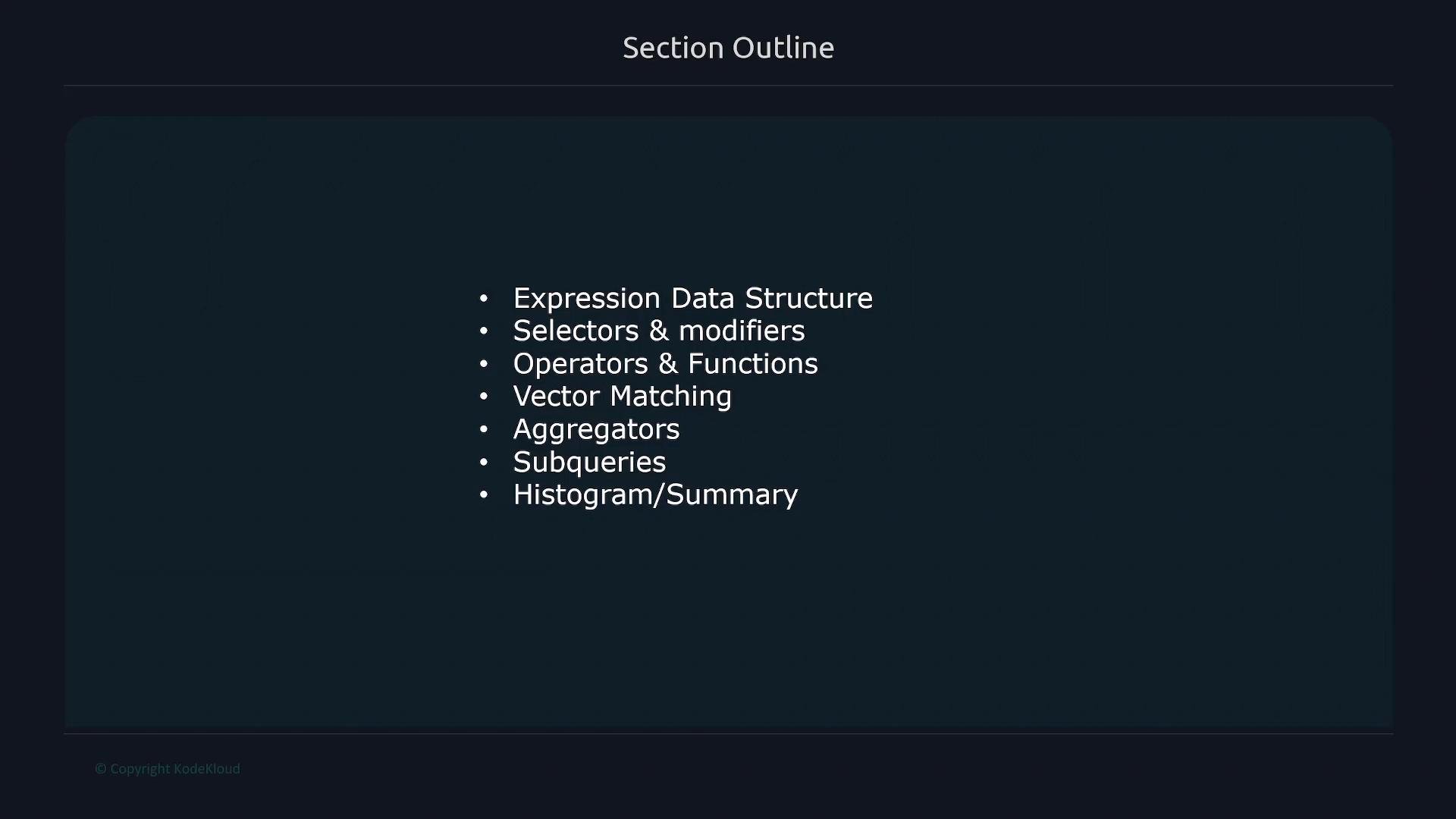

The image displays a section outline with topics like expression data structure, selectors, operators, vector matching, aggregators, subqueries, and histograms. It is attributed to KodeKloud.
So when you run a PromQL expression, what gets returned from the Prometheus server can be one of four types. The first one is a string, which is a simple string value, which is currently unused. You have a scalar, which is a numeric value, so some floating-point value. You have an instant vector, which is a set of time series containing a single sample for each time series, all sharing the same timestamp.
The image contains information about PromQL data types, describing string, scalar, and instant vector types. Some words are highlighted in different colors for emphasis.
And a range vector is a set of time series containing a range of data points over time for each time series. So let’s go over a scalar. Now, as I mentioned, a string is just a simple string value, and it’s currently unused, but it would just be some random text like that. A scalar is going to be a simple numeric floating-point value. So something like fifty-four point seven four three or one hundred twenty-seven point four three. So it’s just some number. An instant vector is going to return a set of time series containing just one single sample for each time series, all sharing the same exact timestamp. So if we perform this query, which is just taking the name of a metric we’re interested in and then just querying it using that, Prometheus is going to return the following data. So what it does is it finds this specific metric with all of its unique labels. And remember, every combination of metric and unique labels is
going to be one time series. So we have four total time series. And we’re going to get the specific value for each one of these time series. Now, the specific or the most important thing
about instant vectors is the timestamp. So it’s going to return one single sample for each time series. And they’re all going to be at the same exact timestamp. So for each time series, we’re going to get the data at one specific point in time, which is at March 3rd, eleven oh five a.m., the same timestamp. And so it’s going to just return a single point in time, whatever the value of the metric is. Now, range vector is going to be a little bit different. Range vector is going to return a set of time series containing a range of different data points over time for each time series. So if we run the same query for the same metric, but this time we do this bracket and then three M and then close bracket, what this means is I want to get this metric data not just for a single point in time, but for the past three minutes. And that’s what this means, the three M. So what it’s going to return is something like this. So you’re going to get the metric, and you’re going to get the unique combination of labels. And remember, every metric with a combination of unique labels is a time series. So in this example, there are two time series it returned. you’re gonna get the value and a timestamp. Now where it differs is you’re gonna get more than one timestamp and value. So it’s actually going to return all of the values and timestamps that it got for the past three minutes. So it looks like it scraped this specific server three times in the past three minutes. It just so happened, I just used three as an example. It can be more than that, it can be less than that. And for the other time series, we’re going to get the values at the same exact time. So we got it at eight oh five, eight oh six, eight oh seven, and you can see the same thing at eight oh five, eight oh six, eight oh seven. So we get the value for this metric at those three data points. And so it’s going to contain all the data during that three-minute window. And that’s really the main difference between a range vector and an instant vector. A range vector is going to return metrics over the course of
