This lesson explains Prometheus subqueries and when to use them — specifically, how to apply range-vector functions (for example, max_over_time) to the output of instant-vector expressions (for example, rate). Subqueries let you evaluate an instant-vector expression repeatedly over a time window and produce a range vector that range functions can consume. Why this matters: rate(...) and other instant-vector functions return a single sample per series at each evaluation time. Range-vector functions such as max_over_time(...) require a range vector (multiple samples across time). Subqueries bridge the gap.
Subqueries let you take any expression and evaluate it over a range with a given sampling step, producing a range vector that can be consumed by range-vector functions like max_over_time.

​
Quick motivating examples

  • For a gauge metric, you can get the maximum over the last 10 minutes directly:
  • For a counter metric where you want the maximum of the rate, the following is incorrect and will fail:
Why it fails: rate(...) is an instant vector; max_over_time(...) expects a range vector. The 10m inside rate(...) is the per-sample lookback window used to compute the rate, not the range for max_over_time.

​
Subquery syntax and semantics

General form:
  • The inner expression (for example rate(http_requests_total[1m])) is evaluated to produce a time series.
  • The [...] after that turns the evaluated expression into a range vector by specifying:
    • <range> — how far back each subquery sample’s range should extend (e.g. 5m, 1h).
    • <resolution> — the time step between subquery samples (e.g. 30s, 10s).
  • Optionally, offset <duration> shifts the whole subquery back in time.
Example:
Interpretation:
  • rate(http_requests_total[1m]) — compute a per-second rate at each evaluation point using a 1-minute lookback.
  • [5m:30s] — for each output time of the subquery, collect the previous 5 minutes of those rate samples, sampled every 30 seconds, producing a range vector per series.
You can then pass the resulting range vector into range functions:
This returns the maximum rate observed during the last 5 minutes, using samples spaced 30 seconds apart where each sample was computed using a 1-minute rate window.
Remember: the inner duration (e.g. 1m in rate(...)) is the per-sample lookback used to compute that instant value. The subquery range (e.g. 5m) is how far back each range vector spans. These are independent parameters and serve different purposes.

​
Subquery components — quick reference

​
Visualizing what a subquery returns

A subquery produces multiple sampled values per series (a range vector). For example:
Might yield output like:
  • 2m is the range window for each sampled range vector (the subquery range).
  • 10s is the resolution (the spacing between subquery samples).
  • 1m inside rate(...) is the per-sample lookback window used when computing each rate sample.

​

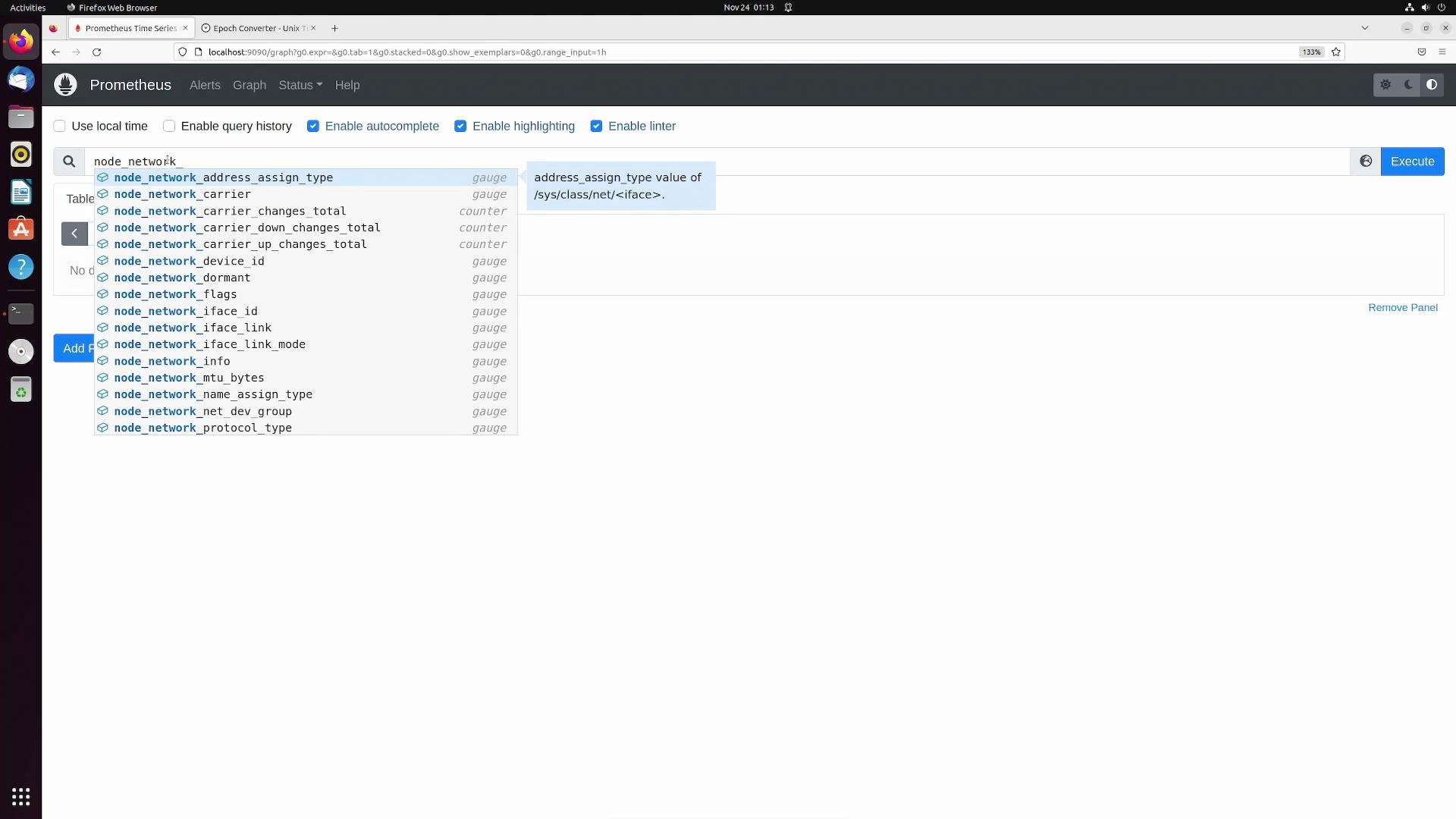

Practical example: maximum network transmit rate

Attempting this will error because rate(...) yields an instant vector:
Instead, use a subquery to create a range vector that max_over_time can consume:
Breakdown:
  • rate(node_network_transmit_bytes_total[1m]) — compute per-second transmit rate with a 1-minute lookback.
  • [5h:30s] — collect 5 hours of those rate samples, sampled every 30 seconds.
  • max_over_time(...) — compute the maximum per-series rate across that 5-hour window.
Running only the subquery (without max_over_time) evaluates the current rates sampled across the specified range. For example:
Might present series current rates such as:
Shortening the subquery range focuses the result on a smaller time window:
Example output:

​
Summary and best practices

  • Use range-vector functions like max_over_time directly for gauge metrics (they accept range vectors).
  • For counters where you want to aggregate over the values produced by rate(...) (or other instant-vector expressions), wrap the inner expression in a subquery so the outer function receives a proper range vector:
    • Pattern: max_over_time(rate(metric[rate_window])[query_range:query_step])
  • Choose the inner window (e.g. 1m in rate(...)) to match the resolution and noise tolerance you need for per-sample calculations.
  • Choose the subquery range and resolution ([range:step]) to capture the retention and sampling granularity required for the outer aggregation.
  • Subqueries are a compact and powerful way to combine per-sample computations with range-based aggregations in PromQL.
