Re Labeling

In this lesson we cover Prometheus relabeling: how to rewrite label sets for discovered targets and scraped metrics. Relabeling is essential for classifying, filtering, and normalizing targets and metrics before ingestion or during metric processing. Common use cases

Filter discovered targets you don’t want to scrape (e.g., non-production instances).
Rename or extract parts of labels (for example, remove ports from addresses).
Drop unwanted labels or specific metrics to reduce cardinality.

Two relabeling phases

Phase	Where it runs	Available labels	Typical use cases
Pre-scrape	`relabel_configs` under a `scrape_configs` entry	Service discovery metadata (e.g., `__meta_ec2_*`) and target labels	Filter discovered targets, map discovery metadata into target labels, normalize target labels before scraping
Post-scrape	`metric_relabel_configs` under a `scrape_configs` entry	Scraped metrics and their labels (including `__name__`)	Drop or rename metrics, remove metric labels, create metric-level labels

Example showing both sections (placeholders wrapped in backticks to avoid MDX/JSX parsing):

scrape_configs:
  - job_name: ec2
    relabel_configs:
      # relabeling before scraping (has access to discovery labels)
    metric_relabel_configs:
      # relabeling after scraping (has access to scraped metrics)
    ec2_sd_configs:
      - region: `<region>`
        access_key: `<access key>`
        secret_key: `<secret key>`

Service discovery (for example, Amazon EC2) exposes many __meta_* labels. Example:

__meta_ec2_tag_env = dev | prod

These __meta_* labels are available during pre-scrape relabeling but are discarded after the relabeling pipeline unless you explicitly map them to target labels. If you inspect scraped series you might see entries such as:

up{instance="172.31.1.156:80", job="ec2"}
up{instance="172.31.1.34:80", job="ec2"}

The instance and job labels are examples of target labels that will appear on scraped time series. Discovery-specific labels beginning with __ are metadata only and will not be preserved unless mapped.

Relabeling rules are evaluated sequentially. A common pitfall is using action: keep without care — any target not matched by a keep rule is implicitly dropped. Validate your rules to avoid unintentionally excluding targets.

Basic relabeling (pre-scrape)

A relabeling rule typically reads one or more source_labels, joins them (with a separator), applies a regex, and performs an action such as keep, drop, or replace. Example: keep only targets discovered with env=prod:

scrape_configs:
  - job_name: example
    relabel_configs:
      - source_labels: [__meta_ec2_tag_env]
        regex: prod
        action: keep

Fields explained

source_labels: array of label names to concatenate and match.
regex: applied to the joined source_labels values.
action: the operation to perform when the regex matches.

Action semantics (common)

Action	Effect	Example use
`keep`	Retains targets that match; non-matching targets are dropped immediately	Keep production targets
`drop`	Drops targets that match	Exclude `env=dev` hosts from scraping
`replace`	Set or overwrite a `target_label` with a `replacement` (optionally using capture groups)	Extract IP from `__address__`

Example: drop any target tagged with env=dev:

scrape_configs:
  - job_name: example
    relabel_configs:
      - source_labels: [__meta_ec2_tag_env]
        regex: dev
        action: drop

Matching multiple source labels

When multiple source_labels are specified, Prometheus concatenates their values using a delimiter (default ;) before applying regex. Example: keep only targets where env=dev and team=marketing:

scrape_configs:
  - job_name: example
    relabel_configs:
      - source_labels: [env, team]
        regex: dev;marketing
        action: keep

Change the join delimiter with separator:

scrape_configs:
  - job_name: example
    relabel_configs:
      - source_labels: [env, team]
        regex: dev-marketing
        action: keep
        separator: "-"

Turning discovery metadata into target labels

Discovery labels that begin with __ (for example, __meta_ec2_*) are metadata and are discarded after relabeling unless you explicitly map them to target labels. Example: extract the IP from __address__ (e.g., 172.31.1.156:80) and save it to a target label named ip:

scrape_configs:
  - job_name: example
    relabel_configs:
      - source_labels: [__address__]
        regex: '(.*):.*'
        target_label: ip
        action: replace
        replacement: '$1'

Explanation:

regex captures the portion before the colon in group 1.
replacement: '$1' places the captured value into the new ip label.

You can also drop or retain labels by name using labeldrop and labelkeep. Example: drop a discovery label named __meta_ec2_owner_id:

scrape_configs:
  - job_name: example
    relabel_configs:
      - regex: __meta_ec2_owner_id
        action: labeldrop

Example: keep only instance and job labels and drop all others:

scrape_configs:
  - job_name: example
    relabel_configs:
      - regex: instance|job
        action: labelkeep

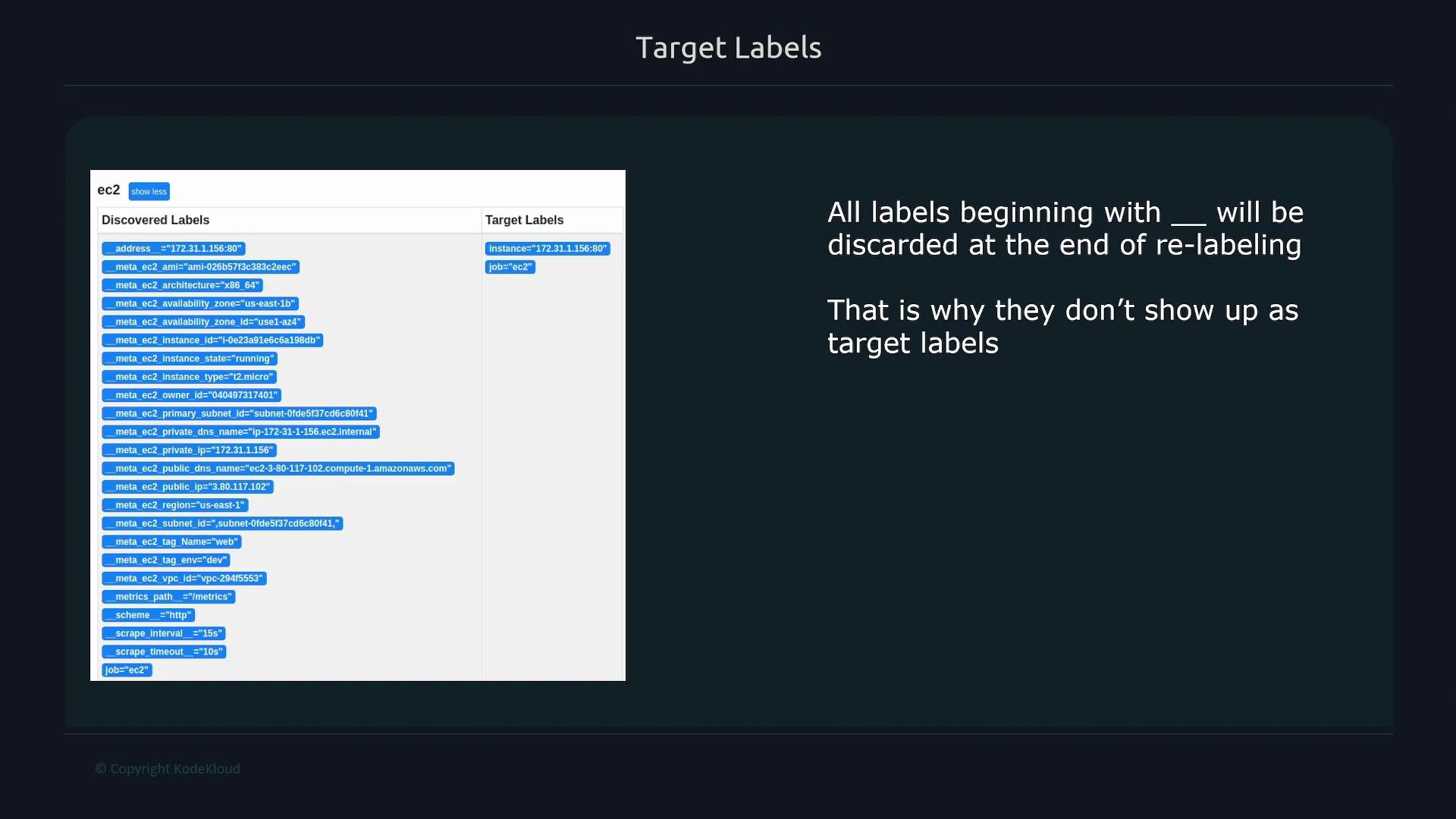

The image shows a table of discovered labels and target labels for an EC2 instance, with a note explaining that labels beginning with "__" will be discarded after re-labeling.

Mapping discovery keys into target label names: `labelmap`

labelmap renames label keys (not values). A common use is to convert discovery keys like __meta_ec2_AMI into readable target labels like ec2_AMI. Example: map all __meta_ec2_* keys to ec2_* target labels:

scrape_configs:
  - job_name: example
    relabel_configs:
      - regex: '__meta_ec2_(.*)'
        action: labelmap
        replacement: 'ec2_$1'

This preserves the values but makes the keys normal target label names visible on scraped series.

Metric relabeling (post-scrape)

metric_relabel_configs runs after a scrape and operates on each metric and its labels. The fields are the same as relabel_configs, but now __name__ refers to the metric name. Example: drop an entire metric called http_errors_total:

scrape_configs:
  - job_name: example
    metric_relabel_configs:
      - source_labels: [__name__]
        regex: http_errors_total
        action: drop

Rename a metric (change the metric name):

scrape_configs:
  - job_name: example
    metric_relabel_configs:
      - source_labels: [__name__]
        regex: http_errors_total
        action: replace
        target_label: __name__
        replacement: http_failures_total

Drop a metric label (remove code from all metrics):

scrape_configs:
  - job_name: example
    metric_relabel_configs:
      - regex: code
        action: labeldrop

Create a new metric label by transforming an existing label. Example: turn path="/api/v1" into endpoint="api/v1" by stripping the leading slash:

scrape_configs:
  - job_name: example
    metric_relabel_configs:
      - source_labels: [path]
        regex: '/(.*)'
        action: replace
        target_label: endpoint
        replacement: '$1'

Notes:

Use capture groups (...) in regex and reference them as $1, $2, etc. in replacement.
relabel_configs has access to service-discovery metadata (the __meta_* labels); metric_relabel_configs has access to scraped metric names and labels (__name__ and metric labels).

All relabeling rules are applied in order. Test and verify your relabeling pipeline in a staging environment, and use the Prometheus web UI service discovery pages and target pages to inspect label lifecycles and debug rules.

Quick reference: common actions and examples

Action	Purpose	Example snippet
`keep`	Only retain targets/metrics that match	`action: keep`
`drop`	Exclude targets/metrics that match	`action: drop`
`replace`	Set or overwrite a label value (or metric name)	`action: replace`, `target_label: ip`, `replacement: '$1'`
`labeldrop`	Remove label(s) by regex	`action: labeldrop`, `regex: code`
`labelkeep`	Keep only matching label(s)	`action: labelkeep`, `regex: instance	job`
`labelmap`	Rename label keys using regex/replacement	`action: labelmap`, `regex: '__meta_ec2_(.*)'`, `replacement: 'ec2_$1'`

Links and references

Use these references to deepen your understanding and validate edge cases for complex relabeling pipelines.
