Re Labeling Demo

This guide demonstrates how to use Prometheus relabeling to control which targets are scraped and how metrics and labels are transformed. It covers:

Service Discovery: discovered labels
relabel_configs (pre-scrape): limit/drop/keep targets, create new labels
metric_relabel_configs (post-scrape): rename metrics, drop/keep metrics, rename metric labels

Use the examples below as templates for any service discovery mechanism (file, DNS, Consul, EC2, Kubernetes, etc.) — the relabeling principles are the same. Service Discovery: discovered labels

Typical discovered labels you will see: env (dev/staging/prod), size, team (web/database), type, plus instance and job metadata.
With these labels you can decide which targets to scrape and which labels to keep or transform.

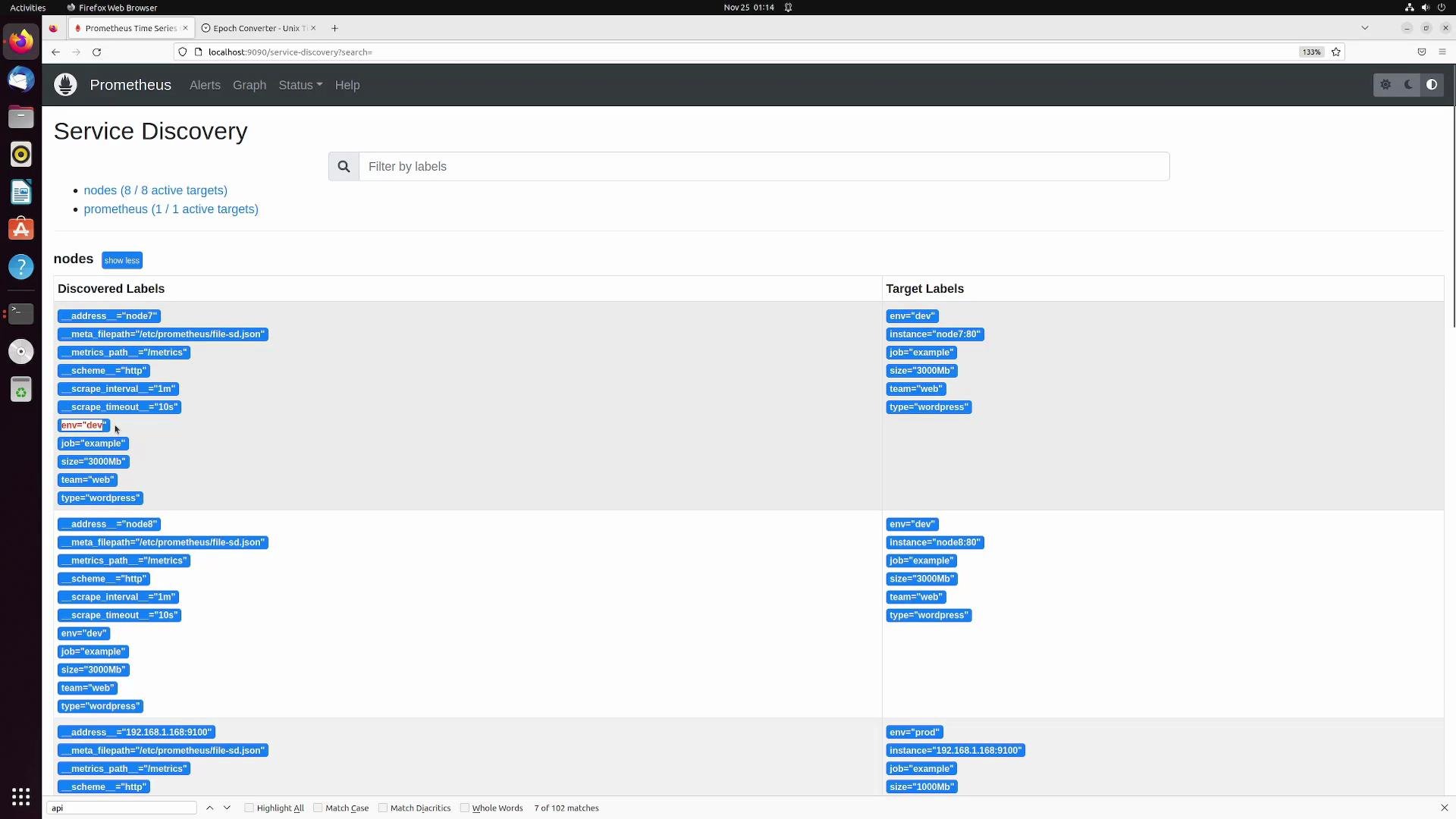

The image shows a Firefox web browser displaying the Prometheus Service Discovery page. It lists nodes with their discovered labels and target labels for monitoring.

Relabeling is applied at two distinct times:

relabel_configs are applied during target discovery (before scraping).
metric_relabel_configs are applied after scraping (on the collected metrics). Use relabel_configs to filter targets and adjust target labels. Use metric_relabel_configs to rename metrics or manipulate metric labels.

1) relabel_configs (pre-scrape): filter targets and modify discovered labels

Example goal: only scrape targets where env=prod. YAML example (add to the nodes job in prometheus.yml):

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

  - job_name: "nodes"
    relabel_configs:
      - source_labels: [env]
        regex: prod
        action: keep
    file_sd_configs:
      - files:
        - file-sd.json

source_labels: list of discovered label keys to use for matching.
regex: regular expression to match against the concatenated source_labels.
action: keep will keep matching targets and drop everything else.

After reloading Prometheus and refreshing the Service Discovery view, you should only see targets where env=prod.

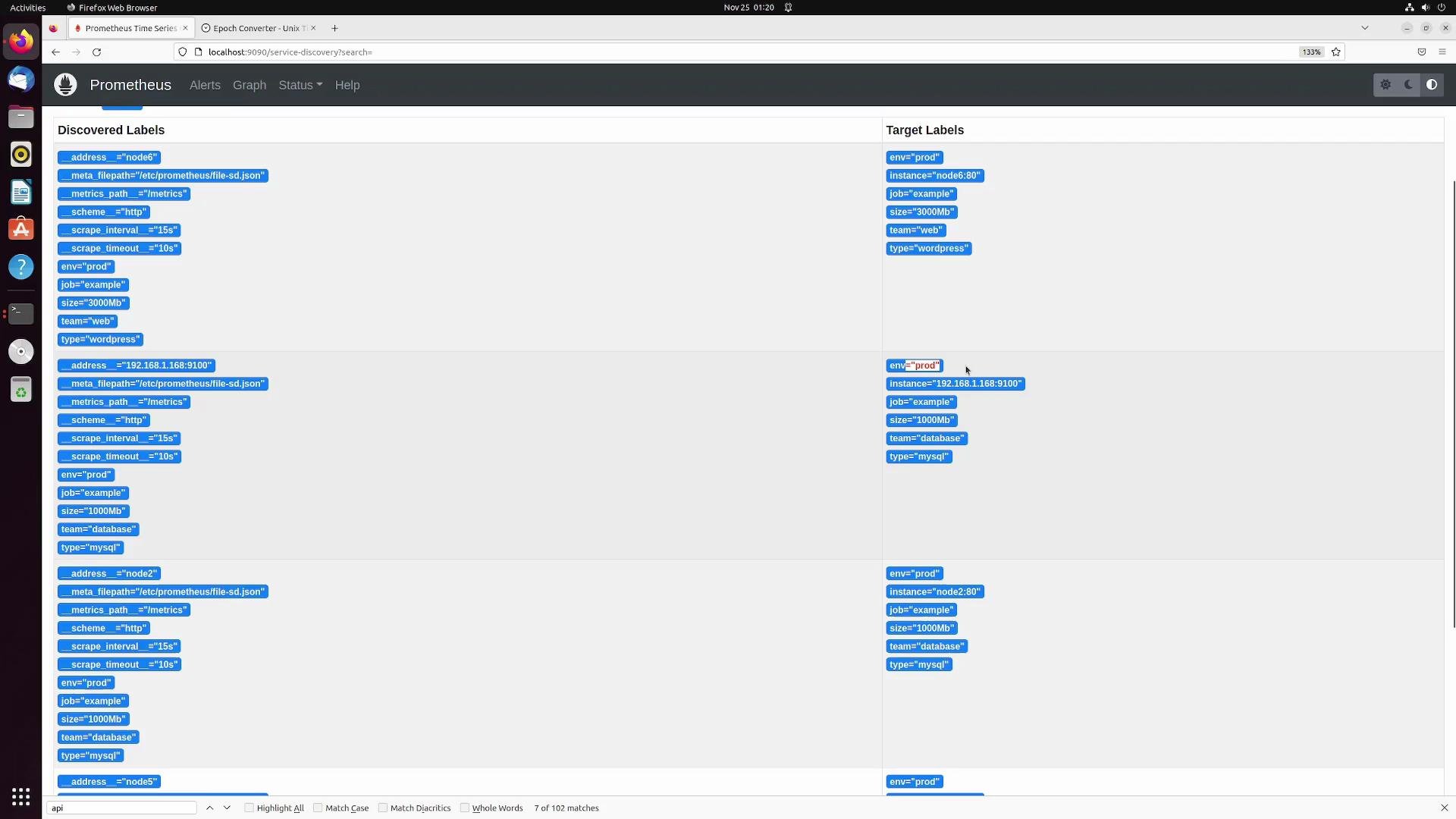

The image shows a Prometheus web interface displaying a list of discovered labels and target labels for different nodes, indicating configurations for monitoring systems.

Example target metadata from a file-based service discovery (for reference):

address = "192.168.1.168:9100"
_meta_filepath="/etc/prometheus/file-sd.json"
metrics_path = "/metrics"
scheme = "http"
scrape_interval = "15s"
scrape_timeout = "10s"
env="prod"
job="example"
size="1000Mb"
team="database"
type="mysql"

address = "node2"
_meta_filepath="/etc/prometheus/file-sd.json"
metrics_path = "/metrics"
scheme = "http"
scrape_interval = "15s"
scrape_timeout = "10s"
env="prod"
job="example"
size="1000Mb"
team="database"
type="mysql"

address = "node5"
_meta_filepath="/etc/prometheus/file-sd.json"
metrics_path = "/metrics"
scheme = "http"
scrape_interval = "15s"
scrape_timeout = "10s"
env="prod"
job="example"
size="3000Mb"
team="web"
type="wordpress"

Tip: action: drop behaves as the inverse of keep — drop all matched targets and keep the rest. Example:

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

  - job_name: "nodes"
    relabel_configs:
      - source_labels: [env]
        regex: prod
        action: drop
    file_sd_configs:
      - files:
        - file-sd.json

After reloading with action: drop, targets with env=prod are removed and other targets remain.

Combine labels into a new target label (replace)

Create a new target label info that concatenates team and env (e.g. database-prod):

scrape_configs:
  - job_name: "nodes"
    relabel_configs:
      - source_labels: [team, env]
        regex: (.*);(.*)
        action: replace
        target_label: info
        replacement: $1-$2
    file_sd_configs:
      - files:
        - file-sd.json

Notes:

When multiple source_labels are provided, Prometheus joins them with semicolons before matching the regex.
$1, $2 refer to the first and second captured groups from the regex.

Remove a discovered label (labeldrop / labelkeep)

To drop a discovered label such as size, use labeldrop:

scrape_configs:
  - job_name: "nodes"
    relabel_configs:
      - regex: size
        action: labeldrop
    file_sd_configs:
      - files:
        - file-sd.json

Use labelkeep if you want to keep only specific labels and drop the rest. Table: Common relabel actions

Action	Purpose	Example
`keep`	Keep only matched targets	`action: keep` with `source_labels: [env]` `regex: prod`
`drop`	Drop matched targets	`action: drop` with `source_labels: [env]` `regex: prod`
`replace`	Create/replace a label value	Use `replacement` and `target_label`
`labeldrop`	Remove matching labels from target metadata	`action: labeldrop` `regex: size`
`labelkeep`	Keep matching labels only	`action: labelkeep` `regex: env	team`

Careful with keep/drop rules: a single keep can unintentionally drop many targets. When filtering, verify with the Service Discovery UI and reload Prometheus to confirm the effect.

2) metric_relabel_configs (post-scrape): modify metrics and metric labels

Use metric_relabel_configs to transform metrics after they are scraped. This is useful to:

Rename metric names
Drop or keep specific metrics
Rename metric labels or copy label values

Remember: metric names are represented as a label whose key is __name__. To match/rename a metric use source_labels: [__name__] and target_label: __name__.

Rename a metric (change metric name)

Rename node_cpu_seconds_total to host_cpu_seconds_total:

scrape_configs:
  - job_name: "nodes"
    metric_relabel_configs:
      - source_labels: [__name__]
        regex: node_cpu_seconds_total
        action: replace
        replacement: host_cpu_seconds_total
        target_label: __name__
    file_sd_configs:
      - files:
        - file-sd.json

After reloading Prometheus and querying the new name you should see host_cpu_seconds_total in the expression browser.

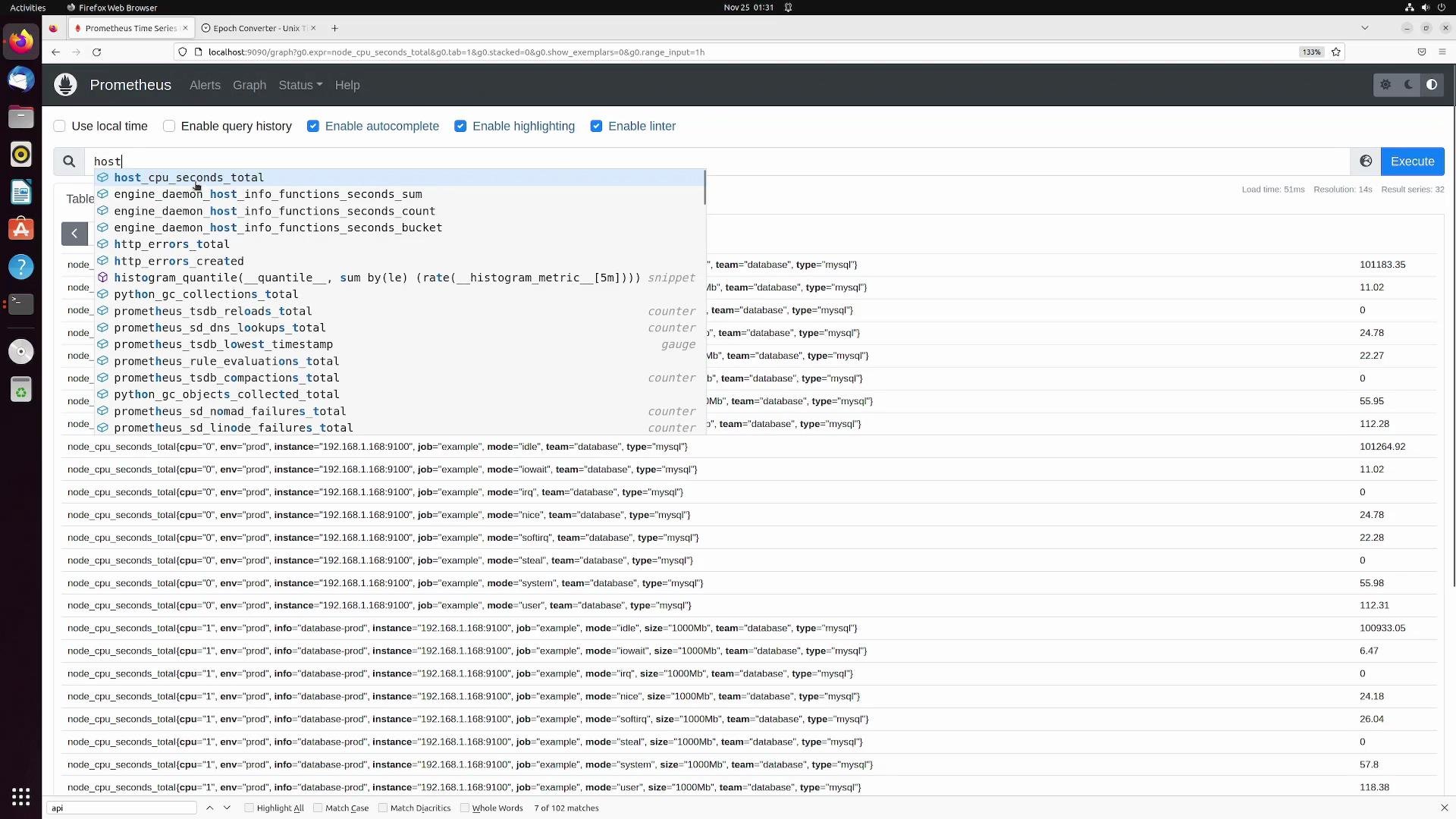

The image shows the Prometheus web interface with a query related to "host" metrics being executed, displaying a list of metric data entries and their corresponding values.

Keep or drop entire metrics

Keep only node_arp_entries (drop all other metrics for the job/instance):

scrape_configs:
  - job_name: "nodes"
    metric_relabel_configs:
      - source_labels: [__name__]
        regex: node_arp_entries
        action: keep
    file_sd_configs:
      - files:
        - file-sd.json

If you instead use action: drop, the matched metrics will be removed and all others will be retained. Example metric (for reference):

node_arp_entries{device="enp03", env="prod", instance="192.168.1.168:9100", job="example", size="1000MB", team="database", type="mysql"}

You will often see a few default Prometheus metrics retained (like scrape_duration_seconds, scrape_samples_*) depending on your rules.

Rename a metric label (e.g., mountpoint → path)

To rename a metric label key such as mountpoint to path for metrics like node_filesystem_avail_bytes:

scrape_configs:
  - job_name: "nodes"
    metric_relabel_configs:
      - source_labels: [mountpoint]
        regex: (.*)
        action: replace
        target_label: path
        replacement: $1
    file_sd_configs:
      - files:
        - file-sd.json

This creates a new label path with the value of mountpoint.
The original mountpoint label still exists after this operation. To remove it, add another metric relabel rule using action: labeldrop to drop mountpoint.

After applying and reloading, the path label will appear in metric output:

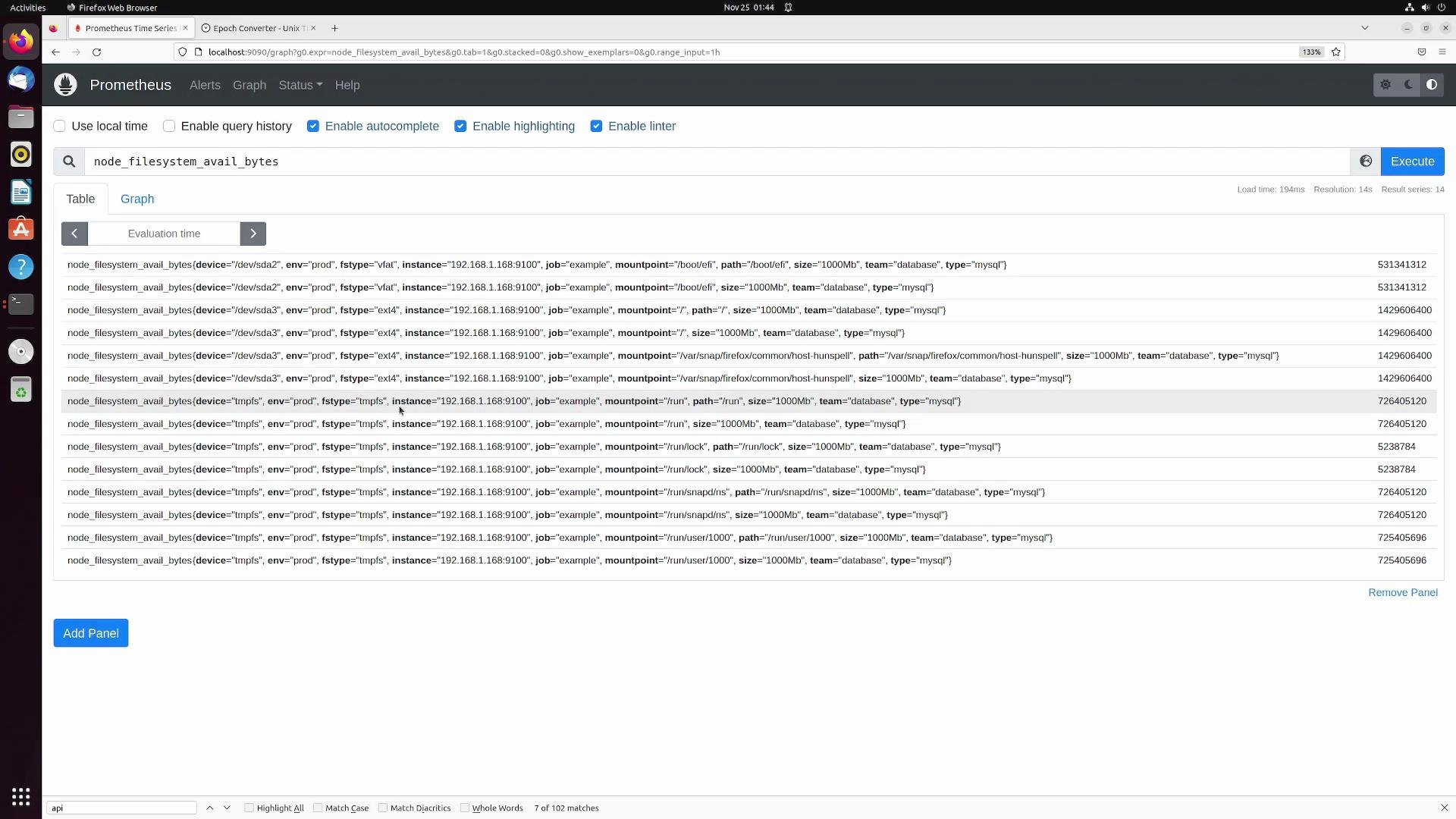

The image shows a Prometheus web interface displaying query results for node filesystem available bytes, listing various metrics and their details. The interface appears to be running on a Firefox web browser.

Summary

Use relabel_configs to control which targets Prometheus scrapes and to manipulate target labels before scraping.
Use metric_relabel_configs to transform metric names and metric labels after scraping, and to drop unneeded metrics to reduce storage and cardinality.
Always test relabel rules in a controlled environment and verify results using the Service Discovery and Expression Browser UI.

Useful references

Prometheus relabeling documentation: https://prometheus.io/docs/prometheus/latest/configuration/relabeling/
Prometheus scrape configuration: https://prometheus.io/docs/prometheus/latest/configuration/configuration/#scrape_configurations
