Prometheus Configuration

Once Prometheus is installed and one or more hosts are exposing metrics, you must configure Prometheus so it knows which targets to scrape. Prometheus uses a pull model: the server is explicitly configured to retrieve metrics from targets. These settings live in the Prometheus YAML configuration file (commonly /etc/prometheus/prometheus.yml). Example minimal Prometheus config:

# my global config
global:
  scrape_interval: 1m
  scrape_timeout: 10s

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

Overview of important sections

global: Default parameters that apply to all scrape jobs. Individual scrape_configs can override these defaults.
scrape_configs: Defines jobs (logical groups of targets) and how Prometheus should scrape them. Each job may define its own scrape_interval, scrape_timeout, metrics_path, scheme, authentication, discovery mechanism, and static targets.

A more detailed example showing per-job overrides and a node metrics job:

Note: the example below demonstrates overriding defaults for a job; scheme and metrics_path are illustrative. Most exporters use http and the default metrics_path (/metrics).

global:
  scrape_interval: 1m       # default scrape interval for jobs that don't override it
  scrape_timeout: 10s       # default scrape timeout

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

  - job_name: "nodes"
    scrape_interval: 15s     # overrides global scrape_interval for this job
    scrape_timeout: 5s       # per-job scrape timeout
    scheme: https            # defaults to http if not set
    metrics_path: /stats/metrics
    static_configs:
      - targets: ["192.168.1.168:9100"]

Common fields and what they do

job_name: Logical name for the job — added as a job label to all scraped metrics.
scrape_interval: How often Prometheus pulls metrics from targets in this job.
scrape_timeout: How long Prometheus will wait for a scrape before it times out.
metrics_path: HTTP path where metrics are exposed (defaults to /metrics).
scheme: http or https (defaults to http).
static_configs.targets: List of host:port targets to scrape (Node Exporter commonly uses port 9100).
basic_auth: If targets require basic auth, set username and either password or password_file (mutually exclusive).

Table: Common scrape config fields

Field	Purpose	Example
`job_name`	Logical name added to scraped metrics as the `job` label	`job_name: "node"`
`scrape_interval`	How frequently to scrape targets	`scrape_interval: 15s`
`scrape_timeout`	Per-scrape timeout	`scrape_timeout: 5s`
`metrics_path`	Path where metrics are exposed	`metrics_path: /metrics`
`scheme`	Protocol used for scrapes	`scheme: https`
`static_configs.targets`	Explicit list of `host:port` targets	`- targets: ["192.168.1.168:9100"]`
`basic_auth`	Basic authentication for scrapes	`basic_auth: { username: "user", password_file: "/etc/secrets/pass" }`

Reference-style documented options:

scrape_configs:
  # How frequently to scrape targets from this job.
  # [ scrape_interval: <duration> | default = <global.scrape_interval> ]

  # Per-scrape timeout when scraping this job.
  # [ scrape_timeout: <duration> | default = <global.scrape_timeout> ]

  # The HTTP resource path on which to fetch metrics from targets.
  # [ metrics_path: <path> | default = /metrics ]

  # Configures the protocol scheme used for requests.
  # [ scheme: <scheme> | default = http ]

  # Sets the ‘Authorization’ header on every scrape request with the configured username and password.
  # password and password_file are mutually exclusive.
  basic_auth:
    # [ username: <string> ]
    # [ password: <secret> ]
    # [ password_file: <string> ]

Editing the configuration and reloading Prometheus

Edit the config file (example path):

sudo vi /etc/prometheus/prometheus.yml

After saving changes, Prometheus does not automatically pick them up. You have several options to apply the new config:

If you started Prometheus manually (for example with ./prometheus --config.file=/etc/prometheus/prometheus.yml), stop it with Ctrl+C and start it again the same way.
Send a SIGHUP to the Prometheus process to request a config reload:

# find the pid (example)
pidof prometheus
# then:
kill -HUP <pid>

If Prometheus is managed via systemd, restart it:

sudo systemctl restart prometheus

After updating prometheus.yml, restart Prometheus, send a SIGHUP, or use the /-/reload HTTP endpoint (if available) so new scrape jobs take effect.

Verifying targets in the Prometheus UI

Open the Prometheus UI at http://<prometheus-host>:9090/.
Navigate to Status -> Targets to view all configured targets and their scrape status. A green “UP” indicates a successful scrape.

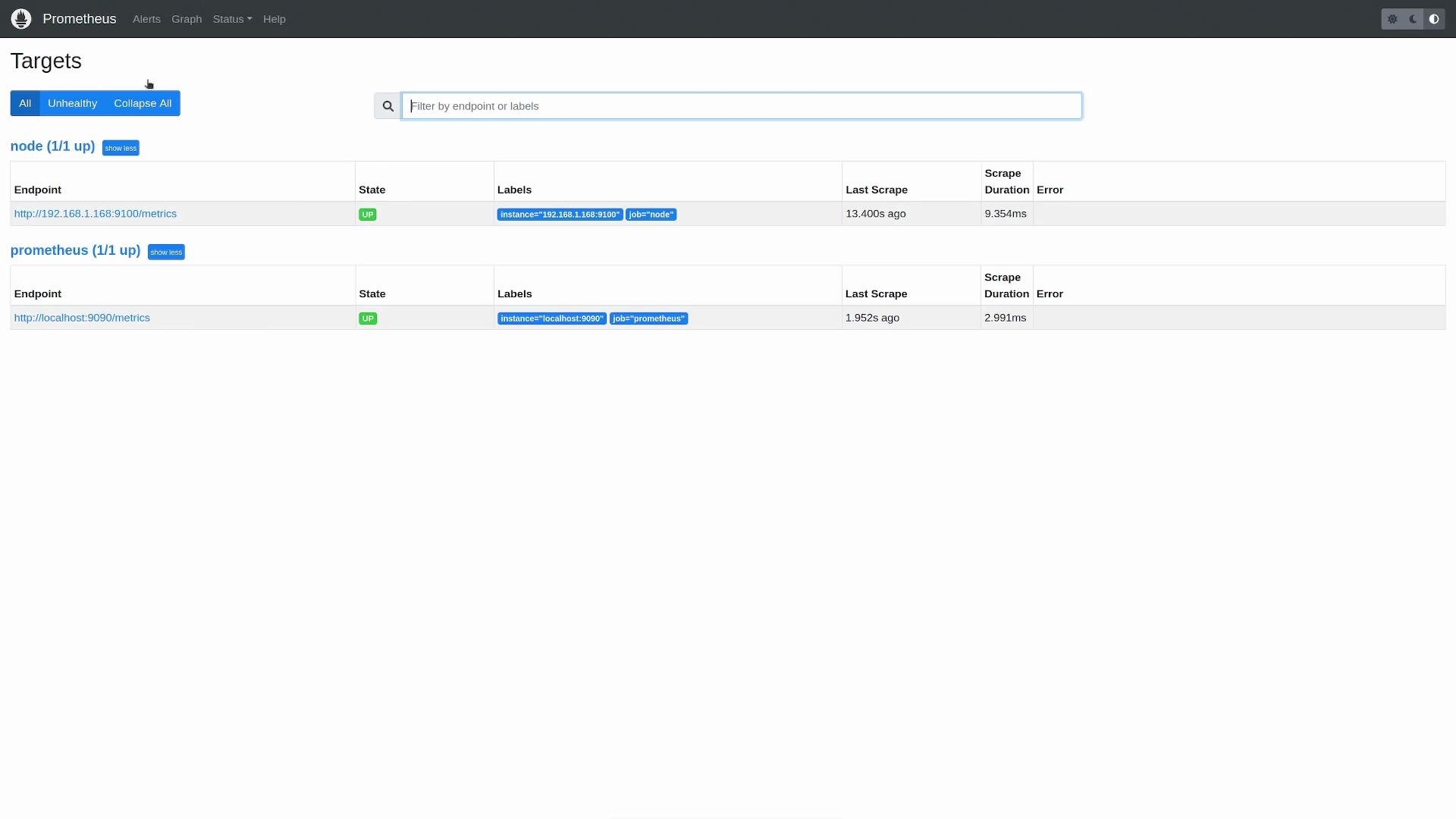

Example output showing two targets appears in the Prometheus Targets view:

The image shows a Prometheus monitoring dashboard with two targets labeled "node" and "prometheus." Both targets are in an "UP" state, indicating successful data scraping.

You can also confirm target status by querying the up metric in the Prometheus expression browser:

up{instance="192.168.1.168:9100",job="node"}
up{instance="localhost:9090",job="prometheus"}

Putting it together — a common /etc/prometheus/prometheus.yml example

# my global config
global:
  scrape_interval: 15s         # scrape targets every 15s
  evaluation_interval: 15s     # evaluate rules every 15s

alerting:
  alertmanagers:
    - static_configs:
        - targets: ["alertmanager:9093"]

rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]

  - job_name: "node"
    scrape_interval: 15s
    static_configs:
      - targets: ["192.168.1.168:9100"]

This minimal configuration allows Prometheus to scrape itself and a Node Exporter instance. From here you can extend jobs with service discovery, relabeling, authentication, TLS settings, alerting, and rule files as required. Links and references

Prometheus official docs: https://prometheus.io/docs/
Prometheus configuration reference: https://prometheus.io/docs/prometheus/latest/configuration/configuration/
Node Exporter: https://github.com/prometheus/node_exporter
