An event source is the component that watches the outside world — the eyes and ears of your event-driven system. It listens for events from external services (S3, GitHub, webhooks, etc.), normalizes them into the CloudEvents format, and publishes them to the event bus. You can declare multiple event source objects, each listening for a specific kind of event, enabling scalable, decoupled architectures and clear separation of concerns.

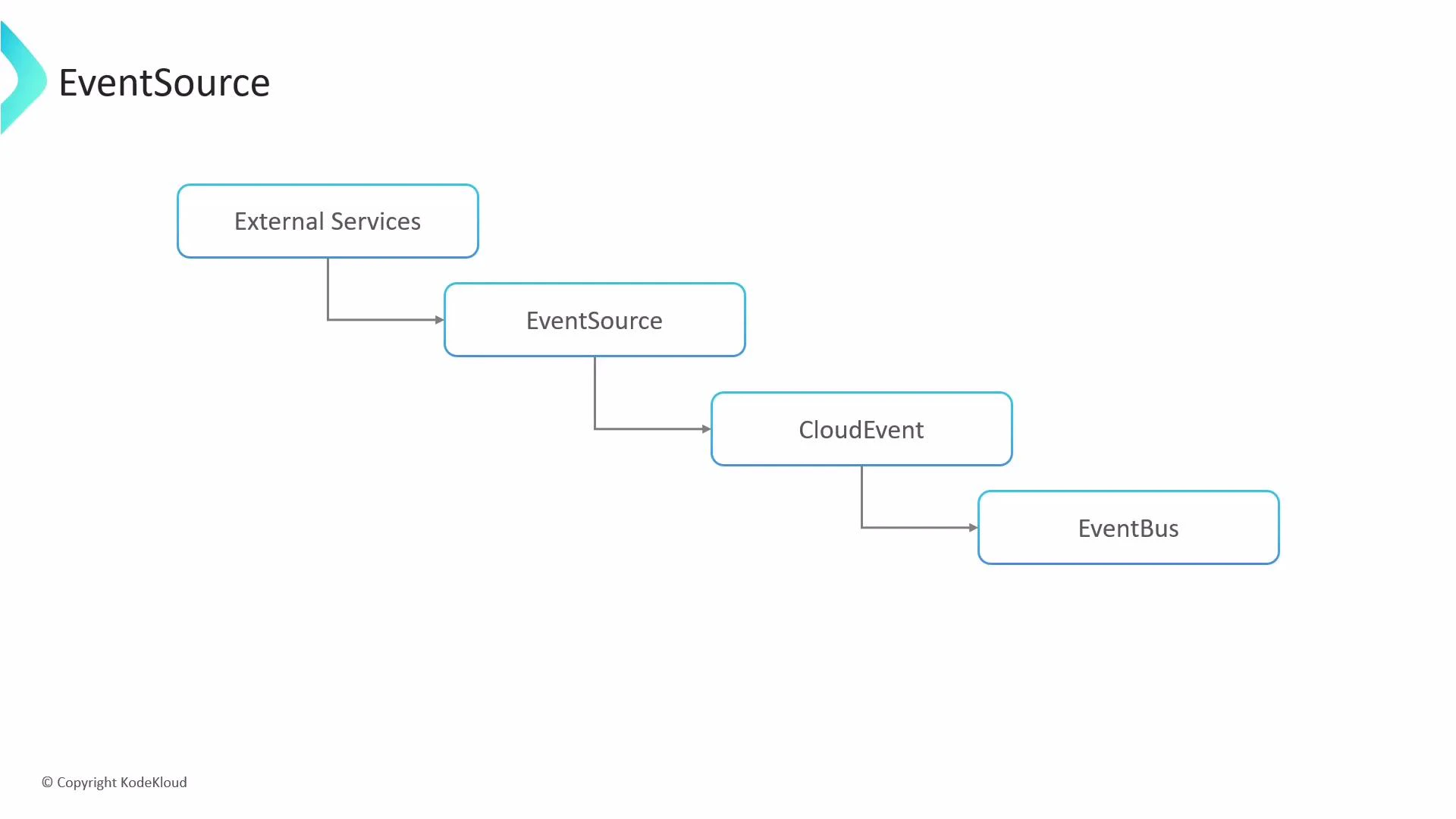

A simple flow diagram titled "EventSource" showing boxes and arrows: External Services -> EventSource -> CloudEvent -> EventBus. The slide also shows a small "© Copyright KodeKloud" in the corner.
Event sources are declared as Kubernetes custom resources (CRDs) with a spec that lists different listener types. Each key under spec defines a listener (for example: webhook, calendar, s3, github, kafka, etc.). Below are concise, searchable examples showing common configurations and how they behave. Quick reference: common listener types and use cases
Resource typeTypical use caseWhen to use
webhookReceive generic HTTP eventsIntegrate third-party webhooks or custom services
calendarScheduled events (cron/interval)Periodic tasks, polling triggers
s3Object storage eventsReact to uploads or deletes in S3-compatible stores
github/gitlabSCM push/pull/PR eventsCI/CD triggers, automation on repo events
kafkaStreaming eventsHigh-throughput pub/sub pipelines
Relevant links:

​
Webhook example

A webhook event source declares a logical listener name and the HTTP details to use (port, endpoint, method). Use webhooks to accept HTTP POST/GET notifications from external services.
apiVersion: argoproj.io/v1alpha1
kind: EventSource
metadata:
  name: webhook-eventsource
spec:
  webhook:
    example-webhook:
      port: 12000
      endpoint: /example
      method: POST
      # Optional: create a ClusterIP Service for testing
      service:
        ports:
          - port: 12000
Key points:
  • example-webhook is the logical listener name.
  • This listener accepts POST requests on port 12000 at the /example path.
  • The service block can auto-generate a ClusterIP service for internal testing; it is not intended for production exposure.

​
Calendar (scheduler) example

Calendar (or scheduler) event sources support simple intervals and cron-style schedules. Use intervals for frequent, simple triggers and cron schedules for precise timing.
apiVersion: argoproj.io/v1alpha1
kind: EventSource
metadata:
  name: calendar-eventsource
spec:
  calendar:
    every-10-seconds:
      interval: 10s
      timezone: "UTC"
    hourly-cron:
      schedule: "0 * * * *"
      timezone: "America/Los_Angeles"
Notes:
  • interval uses simple durations such as 10s, 5m, 1h.
  • schedule accepts cron expressions for more complex timing.
  • timezone is optional; specify it to ensure scheduling aligns with the intended zone.

​
S3 example

When watching S3 (or S3-compatible) buckets, declare the bucket, events to monitor, optional filters for object keys, and credentials (via Kubernetes Secrets).
apiVersion: argoproj.io/v1alpha1
kind: EventSource
metadata:
  name: s3-eventsource
spec:
  s3:
    watch-bucket:
      bucket: my-bucket-name
      event: s3:ObjectCreated:*
      # Optional prefix/suffix filters to limit matching objects
      filter:
        prefix: uploads/
        suffix: .csv
      accessKey:
        key: accesskey
        name: aws-creds
      secretKey:
        key: secretkey
        name: aws-creds
Highlights:
  • bucket names the S3 bucket to watch.
  • event specifies which S3 events to react to (for example: object created or deleted).
  • filter restricts matches to object keys with a prefix and/or suffix.
  • accessKey and secretKey reference a Kubernetes Secret (aws-creds) containing the AWS credentials.
The generated ClusterIP Service (via the service field) is intended for internal/testing use only. If you need external exposure, use Kubernetes-native objects (Ingress, LoadBalancer) or an API gateway rather than relying on the testing service.
Never store plain-text credentials in your YAML. Always reference credentials via Kubernetes Secrets and follow least-privilege principles for IAM keys. Rotate and audit credentials regularly.
Some event sources (Webhooks, GitHub, GitLab, SNS, etc.) require a reachable HTTP endpoint to receive events. The service field in an EventSource spec provides a convenience ClusterIP service for internal testing, but it isn’t a replacement for a production-grade exposure strategy. Using these patterns, you can declaratively add multiple listeners to an EventSource resource. Each listener converts incoming external events into CloudEvents and publishes them to the event bus for downstream consumers to process. References and further reading:
