Output parameters let one step expose a value that later steps can consume as arguments. This is useful for passing a script’s stdout, results from a task, or any computed string into conditional logic, loops, or downstream templates. In this concise example we’ll walk through a simple workflow that generates a message in one step (the producer) and consumes that message in a subsequent step (the consumer).

​
Workflow YAML (example)

The entrypoint main contains two sequential steps: generate (runs the producer template) and consume (runs the consumer template). The producer template uses a script that writes to stdout; Argo Workflows captures that stdout as the step result. The consume step receives that result via an argument.
apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: simple-output-example-
spec:
  entrypoint: main
  templates:
  - name: main
    steps:
      # The 'generate' step runs first
      - name: generate
        template: producer
      # The 'consume' step runs after 'generate' completes
      - name: consume
        template: consumer
        arguments:
          parameters:
          - name: message
            value: "{{steps.generate.outputs.result}}"

  - name: producer
    script:
      image: busybox:1.28
      command: ["sh", "-c"]
      source: |
        echo "hello from the producer step"

  - name: consumer
    inputs:
      parameters:
      - name: message
    container:
      image: busybox:1.28
      command: ["sh", "-c"]
      args: ["echo Received: '{{inputs.parameters.message}}'"]

​
How it works (key points)

  • The producer step runs first and prints a message to stdout.
  • Argo captures the script template’s stdout automatically and exposes it as outputs.result for the step.
  • The consume step uses an argument with value: "{{steps.generate.outputs.result}}" to receive the message.
  • Inside the consumer template, you access the passed parameter as {{inputs.parameters.message}}.
ExpressionWhat it returnsExample
{{steps.<step>.outputs.result}}The stdout result captured from a previous step (script templates){{steps.generate.outputs.result}}
{{inputs.parameters.<name>}}The value of an input parameter inside the template{{inputs.parameters.message}}
When a template uses script, Argo Workflows automatically captures the script’s stdout as outputs.result. For container templates, echo or write to a defined output path and map it explicitly to expose outputs, or wrap the container output so it becomes available as outputs.result.
Output parameters are only available after the producing step has completed. If a downstream step references an output from a still-running or failed step, it will not receive a valid value.

​
What you will see in the UI

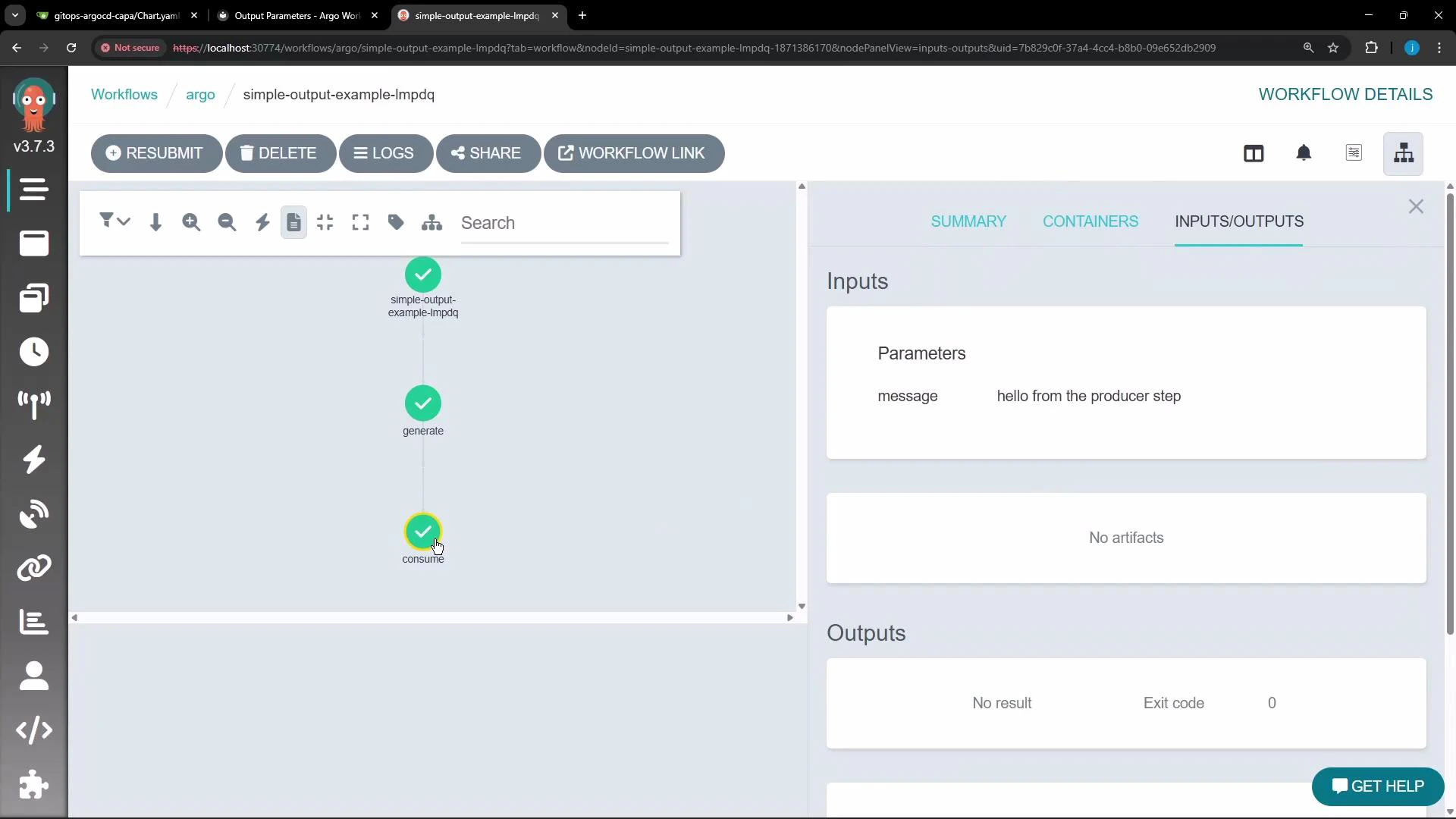

In the Argo Workflows UI you can inspect the workflow graph and the Inputs/Outputs pane for a node. The following screenshot shows the vertical graph and the Inputs/Outputs pane listing the message parameter with the value produced by the generate step.
A screenshot of an Argo Workflows UI showing a vertical workflow graph with three completed nodes (simple-output-example-..., generate, consume) on the left and toolbar buttons like RESUBMIT, DELETE, LOGS across the top. The right pane shows Inputs/Outputs with a parameter "message" set to "hello from the producer step" and an output Exit code of 0.

​
Inspecting logs

You can verify the flow by viewing logs from each step:
  • generate step (producer) stdout:
hello from the producer step
  • consume step (consumer) stdout:
Received: hello from the producer step
This confirms that the producer script output was captured as steps.generate.outputs.result and passed into the consumer step as the message parameter.

​
When to use output parameters

  • When you need to pass small text values (IDs, messages, JSON snippets) produced by one step into another.
  • For larger binary blobs or files, consider using artifacts instead of output parameters.
