Demo Canary Deployment

In this guide you’ll learn how to perform a gradual release with Argo Rollouts using the Canary deployment strategy. Canary releases route a small percentage of production traffic to a new application revision, then incrementally increase that percentage while you monitor behaviour and optionally run automated checks. Argo Rollouts supports multiple strategies — Canary, Blue/Green, and Progressive Delivery. This article focuses on Canary, with concise examples, commands, and tips to run a canary rollout locally or in a cluster.

High-level overview: what a Rollout looks like

A Rollout is similar to a Kubernetes Deployment manifest but uses the Rollout kind and extra strategy fields.
Strategy steps let you incrementally shift traffic (weights) and pause at steps either for a duration or indefinitely for manual promotion.
A Rollout will create ReplicaSets and Pods — you will not see a Deployment object for that app.

Resource	Purpose	Example use
Rollout	Declarative progressive delivery resource	`kind: Rollout` with `strategy.canary`
ReplicaSet	Managed by Rollout per revision	Created for each revision
Service	Routes traffic between revisions when using weight-based canary	`Service` referenced by the Rollout traffic routing logic

Useful links:

Canary rollout — simple example

A basic Canary Rollout that controls traffic by weight and pauses between steps:

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: example-rollout
spec:
  replicas: 10
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:1.15.4
          ports:
            - containerPort: 80
  minReadySeconds: 30
  revisionHistoryLimit: 3
  strategy:
    canary: # Use the Canary strategy
      maxSurge: "25%"
      maxUnavailable: 0
      steps:
        - setWeight: 10
        - pause:
            duration: "1h"   # pause for 1 hour
        - setWeight: 20
        - pause: {}         # pause indefinitely until manually promoted

Blue/Green (excerpt)

For comparison, here is an excerpt showing Blue/Green-related fields supported by Rollouts:

revisionHistoryLimit: 3

strategy:
  blueGreen:
    # Required: service that Rollout modifies as the active service
    activeService: active-service

    # Optional pre-promotion analysis
    prePromotionAnalysis:
      templates:
        - templateName: success-rate
      args:
        - name: service-name
          value: guestbook-svc.default.svc.cluster.local

    postPromotionAnalysis:
      templates:
        - templateName: success-rate
      args:
        - name: service-name
          value: guestbook-svc.default.svc.cluster.local

    previewService: preview-service
    previewReplicaCount: 1
    autoPromotionEnabled: false
    # When autoPromotionEnabled is false, Rollout remains paused until manually resumed.

Walkthrough: applying a Canary rollout

Repository layout (example)

patterns/canary contains rollout.yml and service.yml.

Example canary Rollout manifest for an application (app-rollout)

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: app-rollout
  namespace: canary
spec:
  replicas: 10
  selector:
    matchLabels:
      app: app-rollout
  template:
    metadata:
      labels:
        app: app-rollout
    spec:
      containers:
        - name: app
          image: siddharth67/app:v1
  strategy:
    canary:
      steps:
        - setWeight: 20
        - pause: {}               # pause indefinitely (manual promotion required)
        - setWeight: 40
        - pause:
            duration: "1m"
        - setWeight: 60
        - pause:
            duration: "1m"
        - setWeight: 80
        - pause:
            duration: "1m"

Shorter demo pauses (use seconds) If you prefer fast demos, shorten pauses to seconds:

strategy:
  canary:
    steps:
      - setWeight: 20
      - pause: {}
      - setWeight: 40
      - pause:
          duration: "10s"
      - setWeight: 60
      - pause:
          duration: "10s"
      - setWeight: 80
      - pause:
          duration: "10s"

Pause duration examples (note valid formats — include a suffix):

strategy:
  canary:
    steps:
      - pause: { duration: "10" }   # invalid — missing a unit; use "10s", "10m", or "10h"
      - pause: { duration: "10s" }  # 10 seconds
      - pause: { duration: "10m" }  # 10 minutes
      - pause: { duration: "10h" }  # 10 hours
      - pause: {}                   # pause indefinitely (manual promotion)

Create namespace, apply manifests, and verify

Run these commands from the patterns/canary directory (where rollout.yml and service.yml are located):

# ensure the kubectl argo rollouts plugin is available
kubectl argo rollouts version

# create namespace
kubectl create ns canary

# apply manifests
kubectl -n canary apply -f .

# verify resources
kubectl -n canary get all
kubectl get rollouts -n canary

Example outputs (trimmed):

# kubectl argo rollouts version
kubectl-argo-rollouts: v1.8.3+49fa151
BuildDate: 2025-06-04T22:15:54Z
GitCommit: 49fa1516cf71672b69e265267da4e1d16e1fe114
GoVersion: go1.23.9
Platform: linux/amd64

# applying manifests
rollout.argoproj.io/app-rollout created
service/app-rollout-service created

# checking resources
kubectl -n canary get all
NAME                                   READY   STATUS    RESTARTS   AGE
pod/app-rollout-76f479c6bf-251lrz      1/1     Running   0          8s
... (other pods) ...

NAME                         TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE
service/app-rollout-service  NodePort   10.109.7.217   <none>        80:30797/TCP    8s

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/app-rollout-76f479c6bf      10        10        10      8s

Note: a Rollout is not a Deployment. You will see ReplicaSets and Pods, but not a Deployment object when using kind: Rollout.

Access the application and observe versions

In the example the NodePort is 30797. Poll the /app endpoint to observe which version responds as the canary progresses. Polling script (bash) — polls every second and prints the version returned:

while true; do
  echo -n "$(date '+%H:%M:%S') - ";
  response=$(curl -s --max-time 1 http://localhost:30797/app 2>/dev/null)
  if [ -z "$response" ]; then
    echo "ERROR: Service unreachable"
  else
    echo "$response"
  fi
  sleep 1
done

Promote a rollout to the next step

Promote manually either from the Argo Rollouts web UI (click Promote) or from the CLI using the kubectl plugin. Promote examples:

# Promote the named rollout to the next step (include -n <namespace> if not default)
kubectl argo rollouts promote app-rollout -n canary

# Promote repeatedly until the rollout reaches 100% or update the image to finish the rollout.

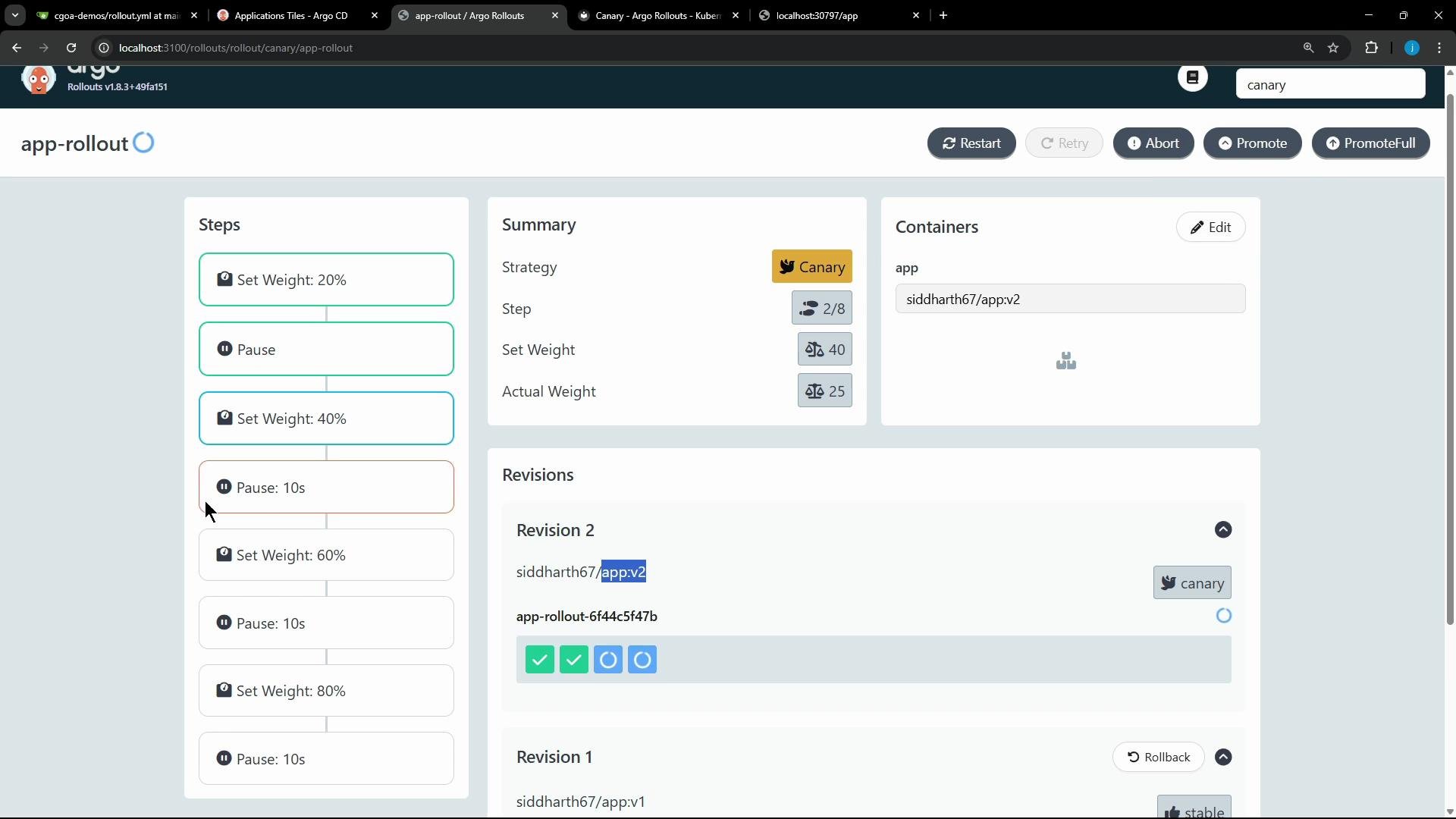

A screenshot of the Argo Rollouts web UI for an "app-rollout" canary deployment, showing a left-hand step timeline with "Set Weight" and "Pause" steps. The center/right panels display the strategy summary (set vs actual weight), container info, and revision details.

What happens during promotion

If a canary step sets weight to 20% and you have 10 replicas, Argo Rollouts will direct ~2 replicas (20% of 10) to the new ReplicaSet.
Subsequent promotions increase the percentage according to configured weights (40%, 60%, 80%, etc.).
Pauses are opportunities to run tests, observe metrics, or require manual approval before advancing.

Observing traffic during the rollout

While partially promoted, traffic is split based on weights. Your polling script should show intermittent responses from the new version (e.g., v2) until the rollout reaches 100% and all traffic flows to the new revision.

Rollback and automation

Argo Rollouts supports automated analysis and rollbacks via pre/post-promotion analysis templates.
Combine Rollouts with GitOps (for example, Argo CD) to let manifests in a Git repo drive the rollout state and history.
See the Argo Rollouts docs for configuring analysis templates and automated rollbacks.

Quick reference: common commands

Action	Command
Check plugin version	`kubectl argo rollouts version`
Apply manifests	`kubectl -n canary apply -f .`
List rollouts	`kubectl get rollouts -n canary`
Promote rollout	`kubectl argo rollouts promote app-rollout -n canary`

To promote a rollout from the CLI, use: kubectl argo rollouts promote <rollout-name> -n <namespace>. If a step is paused indefinitely (pause: ), you must promote it manually.

Pause durations must include a time unit suffix (for example ”10s”, “1m”, “1h”) or be specified as an empty object (pause: ) to pause indefinitely.

That’s it — a compact walkthrough showing how to incrementally release a new application version using Argo Rollouts’ Canary strategy.
