This guide explains the Blue-Green deployment strategy as implemented by Argo Rollouts. Blue-Green deployments use two identical production environments—Blue (current live) and Green (standby). At any time, only one environment receives user traffic. When a new version is ready, deploy it to Green, verify it, and then switch traffic from Blue to Green. This enables zero-downtime releases and instant rollbacks by routing traffic back to the previous environment if issues occur.

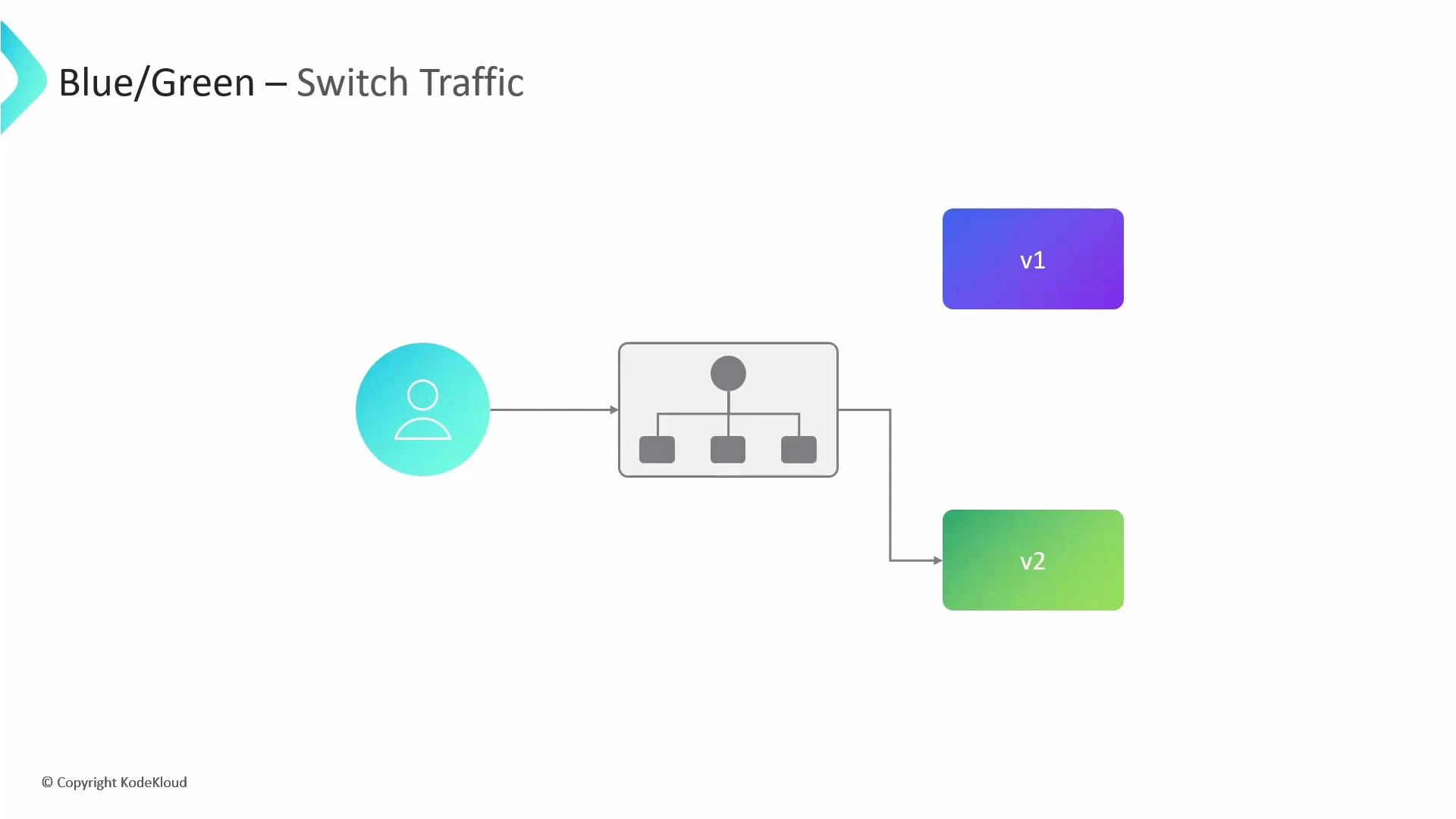

A slide titled "Blue/Green — Switch Traffic" showing a user sending requests to a load balancer/router that can route to two service versions. The diagram shows v1 (blue/purple) and v2 (green) with the router currently directing traffic to v2.
Benefits
  • Zero-downtime deployments: the live environment remains unchanged until verification completes.
  • Fast, safe rollbacks: switch traffic back to the previous environment instantly.
  • Safe testing surface: preview endpoints enable QA and automated checks without affecting users.
High-level Blue-Green rollout configuration
ParameterPurposeExample / Notes
activeServiceKubernetes Service that routes live production traffic to the currently active ReplicaSet.Required.
previewServiceOptional internal Service that points to the Green ReplicaSet during preview. Useful for tests and QA.web-api-preview-svc
previewReplicaCountNumber of replicas the Green ReplicaSet runs during the preview phase to conserve resources while allowing verification.1 or small number.
autoPromotionEnabledIf true, the rollout auto-promotes Green to receive live traffic when health checks pass. If false, manual promotion is required.Defaults to true if not specified.
postPromotionAnalysisAutomated analysis to run after Green receives 100% traffic (e.g., Prometheus queries to validate SLOs).Can reference analysis templates.
scaleDownDelaySecondsDelay before scaling down old Blue pods after traffic is switched to Green; provides a rollback window.e.g., 30
abortScaleDownDelaySecondsDelay before terminating faulty Green pods after a manual abort so you can collect diagnostics.e.g., 10
Example Rollout manifest
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: web-api-rollout
spec:
  replicas: 4
  selector:
    matchLabels:
      app: web-api
  template:
    metadata:
      labels:
        app: web-api
    spec:
      containers:
        - name: web-api-container
          image: my-repo/web-api:v1
          ports:
            - containerPort: 8080
  strategy:
    blueGreen:
      activeService: web-api-active-svc
      previewService: web-api-preview-svc
      previewReplicaCount: 1
      autoPromotionEnabled: false
      postPromotionAnalysis:
        templates:
          - templateName: check-error-rate
      scaleDownDelaySeconds: 30
      abortScaleDownDelaySeconds: 10
When autoPromotionEnabled is set to false, you must manually promote the rollout once verification succeeds:
kubectl argo rollouts promote web-api-rollout
Note: If autoPromotionEnabled is omitted, Argo Rollouts defaults it to true (automatic promotion). For controlled releases or manual QA gates, explicitly set it to false.
Post-promotion analysis
  • Runs after the Green ReplicaSet receives 100% of traffic.
  • Use it to validate error rates, latency, throughput, and other SLOs.
  • Common integrations: Prometheus queries, synthetic checks, or custom analysis templates.
Best practices and operational tips
  • Use a small previewReplicaCount (1–2) to save resources while allowing meaningful verification.
  • Set scaleDownDelaySeconds long enough to allow rollback but short enough to avoid resource waste.
  • Configure abortScaleDownDelaySeconds to give developers time to fetch logs and metrics if you abort a rollout.
  • Automate post-promotion checks to catch regressions quickly and reduce manual intervention.
Warning: If you set scaleDownDelaySeconds or abortScaleDownDelaySeconds too low, you may not have sufficient time to collect logs or metrics for debugging. Choose values that balance fast cleanup with operational troubleshooting needs.
