In this lesson you’ll learn how to convert a standard Kubernetes Deployment into an Argo Rollout so you can adopt advanced deployment strategies (blue/green, canary, etc.) while keeping your existing pod template and replica settings. Below is a simple Kubernetes Deployment manifest that defines the application template and runs three replicas:
apiVersion: apps/v1
kind: Deployment
metadata:
  name: blue-green-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: blue-green
  template:
    metadata:
      labels:
        app: blue-green
    spec:
      containers:
        - name: blue-green-container
          image: siddharth67/app:blue
Direct conversion method (in-place conversion)
  • The most common migration approach is a direct conversion of your existing Deployment manifest into a Rollout resource.
  • Keep the pod template (spec.template), replicas, and selector unchanged to preserve runtime characteristics and labels.
  • Key manifest changes:
    • Change kind: Deployment to kind: Rollout.
    • Set apiVersion to Argo Rollouts API: argoproj.io/v1alpha1.
    • Add a strategy block to define update behavior (e.g., blueGreen or canary).
Example Rollout using the same pod template and replica settings with a blue/green strategy:
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: blue-green-rollout
spec:
  replicas: 3
  selector:
    matchLabels:
      app: blue-green
  template:
    metadata:
      labels:
        app: blue-green
    spec:
      containers:
        - name: blue-green-container
          image: siddharth67/app:blue
  strategy:
    blueGreen:
      activeService: blue-green-active-svc
      previewService: blue-green-preview-svc
      autoPromotionEnabled: false
Strategy block details
  • blueGreen.activeService: Kubernetes Service name that routes production traffic to the active ReplicaSet.
  • blueGreen.previewService: Service name used to preview the new ReplicaSet/version before promotion.
  • autoPromotionEnabled: false: Requires manual promotion of the preview ReplicaSet to active. Set to true to enable automatic promotion after successful health checks.
The Argo Rollouts controller only watches Rollout custom resources. It does not manage standard Kubernetes Deployments. When you convert a Deployment into a Rollout (direct conversion), the Rollout becomes the primary controller for future updates.
Conversion checklist
  • Ensure label selectors match between old Deployment and new Rollout.
  • Confirm Services (active/preview) names are correct and target appropriate selectors.
  • Validate health checks and analysis templates (if used) before enabling auto-promotion.
  • Test promotion/rollback flows in a non-production environment.
WorkloadRef method (decoupled approach)
  • Use this approach to keep your existing Deployment as the source of truth for the pod template while adding a lightweight Rollout resource that references that Deployment.
  • Benefits:
    • Integrates with existing tooling that patches Deployments (CI/CD, automation).
    • Enables separation of responsibilities: infra can keep managing the Deployment while app teams adopt Rollouts.
    • Supports gradual adoption without deleting or recreating current Deployments.
Example: keep the existing Deployment as-is, and create a lightweight Rollout that points to it:
apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: blue-green-rollout
spec:
  workloadRef:
    apiVersion: apps/v1
    kind: Deployment
    name: blue-green-deployment
    # scaleDown can be set to one of: "never", "onSuccess", "progressive"
    scaleDown: never
  strategy:
    blueGreen:
      activeService: my-app-active
      previewService: my-app-preview
      autoPromotionEnabled: false
How it works
  • The Rollout watches the referenced Deployment. When the Deployment is updated (for example, the container image is changed), the Rollout controller detects the change and executes the update process using the strategy defined in the Rollout.
  • Because the pod template stays in the Deployment, existing CI/CD pipelines that patch Deployments continue to operate without modification.
scaleDown options explained
  • never: The original Deployment is left running (not scaled down).
  • onSuccess: The Deployment is scaled down only after the Rollout successfully promotes and becomes healthy.
  • progressive: The Rollout progressively scales up while scaling the original Deployment down during migration. If the Rollout fails, the original Deployment is scaled back up.
Use the workloadRef approach when you need to integrate with existing CI/CD tooling, separate responsibilities between teams (infra owns Deployment, app team owns Rollout), or adopt Argo Rollouts gradually without recreating resources.

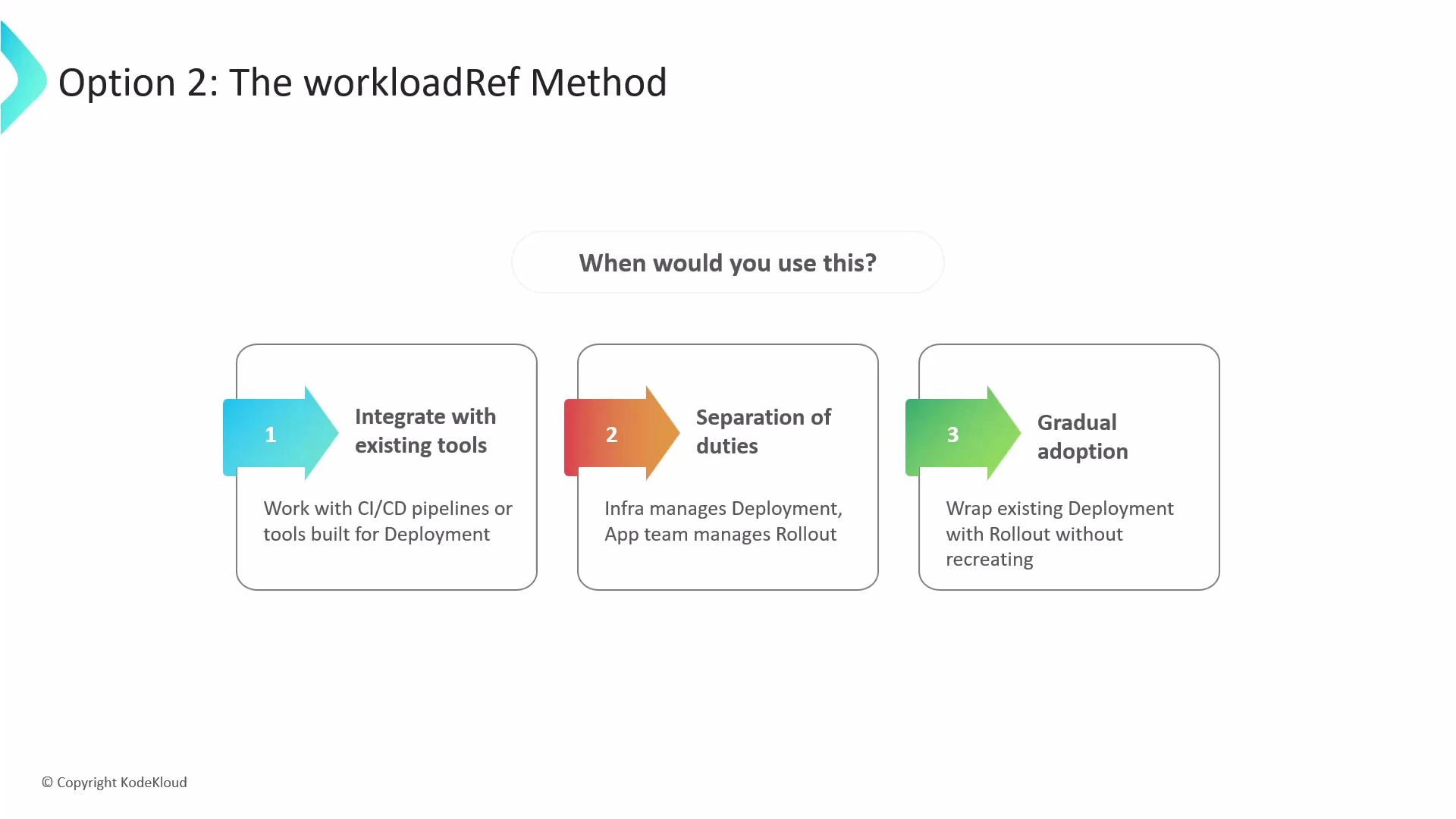

A presentation slide titled "Option 2: The workloadRef Method" with three numbered boxes under "When would you use this?" outlining: integrate with existing tools (CI/CD), separation of duties (infra manages Deployment, app team manages Rollout), and gradual adoption (wrap existing Deployment without recreating).
Compare methods: direct conversion vs workloadRef
Resource ModelPrimary ControllerWhen to usePros
Direct conversion (Rollout replaces Deployment)Rollout CRYou want Argo Rollouts to be the single source of truth for updatesFull Rollout features; simpler resource topology
workloadRef (Rollout references existing Deployment)Deployment (pod template) + Rollout (strategy)You need to keep existing Deployment management workflowsIncremental adoption; existing CI/CD continues to work
