Demo AnalysisRun

In this lesson we trigger an AnalysisRun using the AnalysisTemplate we defined earlier. AnalysisRuns verify application health during rollouts and can be integrated with Argo Rollouts in several ways depending on strategy (Canary or Blue-Green) and whether the analysis should block the rollout or run concurrently. Key concepts:

AnalysisTemplate: reusable template that defines metrics and success conditions.
AnalysisRun: an execution of an AnalysisTemplate.
Placement: where the AnalysisRun is started (background, inline, pre-promotion, post-promotion).
Blocking vs non-blocking: whether the rollout waits for the AnalysisRun to finish.

If you’re using a canary strategy, analysis can run in the background while the canary advances through its steps, or it can be run inline and block the rollout at a particular step.

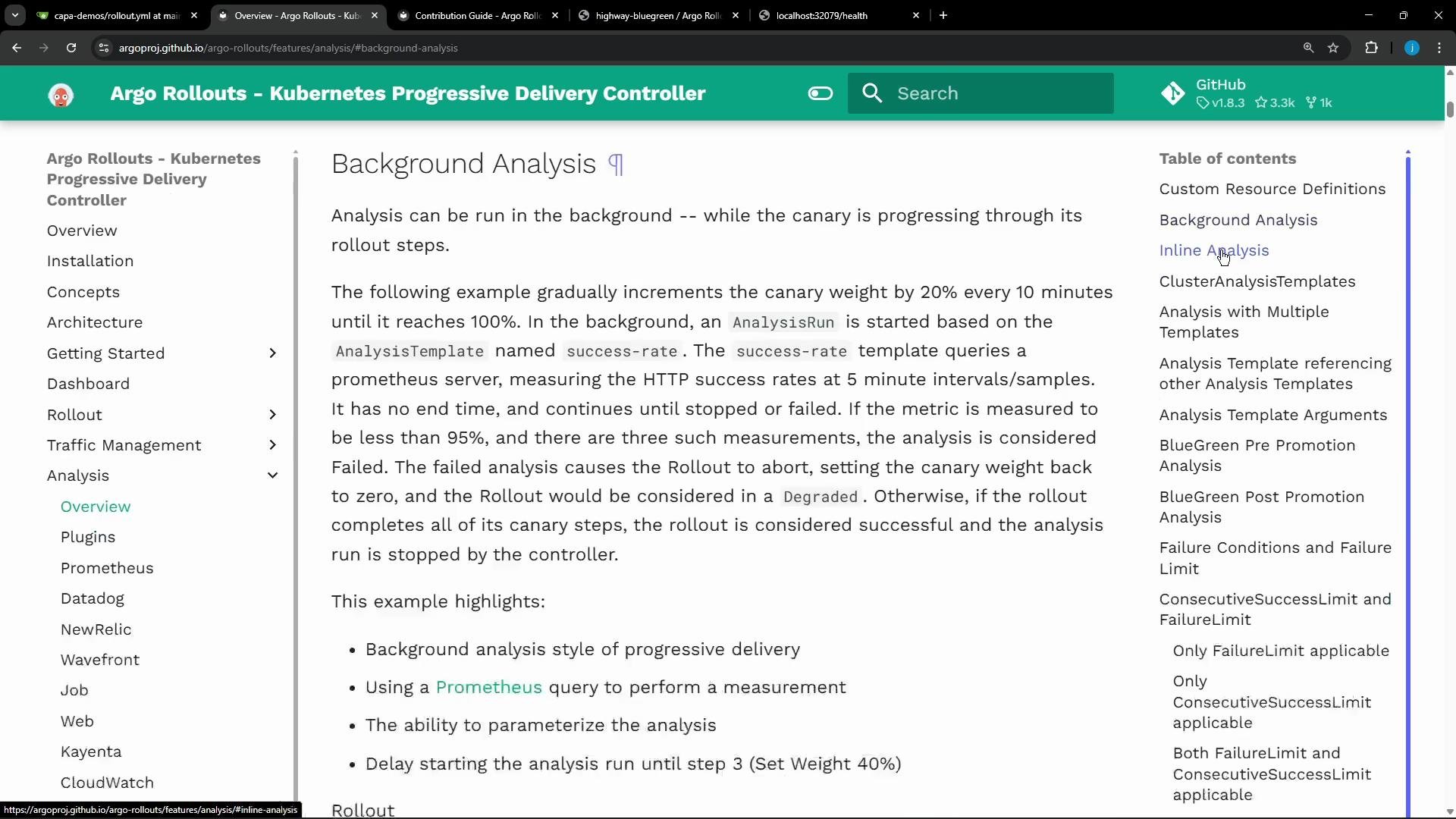

A screenshot of the Argo Rollouts documentation webpage showing the "Background Analysis" section, explaining how analysis runs during canary rollouts. The page includes a left navigation menu and a right-side table of contents.

Background analysis: declared at the top-level of the canary block so it runs independently while steps execute.
Inline analysis: tied to a specific step and blocks progression until the AnalysisRun completes.

Example — inline analysis as a canary step:

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: guestbook
spec:
  ...
  strategy:
    canary:
      steps:
      - setWeight: 20
      - pause: {duration: 5m}
      - analysis:
          templates:
          - templateName: success-rate
            args:
            - name: service-name
              value: guestbook-svc.default.svc.cluster.local

Example — delay analysis until a later step (start at higher traffic percentage):

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: guestbook
spec:
  ...
  strategy:
    canary:
      analysis:
        templates:
        - templateName: success-rate
          startingStep: 2 # delay starting analysis run until setWeight: 40%
          args:
          - name: service-name
            value: guestbook-svc.default.svc.cluster.local
      steps:
      - setWeight: 20
      - pause: {duration: 10m}
      - setWeight: 40
      - pause: {duration: 10m}
      - setWeight: 60
      - pause: {duration: 10m}
      - setWeight: 80
      - pause: {duration: 10m}

For blue-green deployments you typically place analysis in pre-promotion and/or post-promotion hooks:

Pre-promotion analysis: runs while the preview service is available and blocks promotion until it succeeds.
Post-promotion analysis: runs after traffic is switched to the new version; can block or gate additional work depending on configuration.

Example — post-promotion analysis:

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: guestbook
spec:
  ...
  strategy:
    blueGreen:
      activeService: active-svc
      previewService: preview-svc
      scaleDownDelaySeconds: 600 # 10 minutes
      postPromotionAnalysis:
        templates:
        - templateName: smoke-tests
          args:
          - name: service-name
            value: preview-svc.default.svc.cluster.local

Example — pre-promotion analysis (blocks promotion until successful):

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: guestbook
spec:
  ...
  strategy:
    blueGreen:
      activeService: active-svc
      previewService: preview-svc
      prePromotionAnalysis:
        templates:
        - templateName: smoke-tests
          args:
          - name: service-name
            value: preview-svc.default.svc.cluster.local

You reference the AnalysisTemplate by name and pass any required args. Below is the AnalysisTemplate used in this lesson: it performs HTTP GETs against a service-health endpoint and treats HTTP 2xx responses as success. kubectl describe output for the AnalysisTemplate (trimmed for clarity):

$ kubectl -n argo-analysis-lab describe analysistemplate http-health-check
Name:         http-health-check
Namespace:    argo-analysis-lab
API Version:  argoproj.io/v1alpha1
Kind:         AnalysisTemplate
Spec:
  Args:
    Name: service-name
  Metrics:
    Count:    3
    Interval: 5s
    Name:     health-check
    Provider:
      Web:
        Method: GET
        URL:    http://{{args.service-name}}.argo-analysis-lab.svc.cluster.local/health
    Success Condition: result.code >= 200 && result.code < 300

In this lesson we configured the highway-bluegreen Rollout to use prePromotionAnalysis against the preview service. Relevant portion of the Rollout spec we applied (trimmed):

spec:
  replicas: 5
  selector:
    matchLabels:
      app: highway-bluegreen
  strategy:
    blueGreen:
      activeService: highway-bluegreen-active
      autoPromotionEnabled: false
      previewService: highway-bluegreen-preview
      prePromotionAnalysis:
        templates:
        - templateName: http-health-check
          args:
          - name: service-name
            value: highway-bluegreen-preview
template:
  metadata:
    labels:
      app: highway-bluegreen
  spec:
    containers:
    - image: siddharth67/highway-animation:blue
      name: highway-bluegreen
      ports:
      - containerPort: 3000

Note: Setting autoPromotionEnabled: false prevents automatic promotion even after a successful pre-promotion analysis. The Rollout will pause and require a manual promotion action (via UI or kubectl argo rollouts promote).

When we deployed the new (green) version, the Rollout created the preview ReplicaSet and automatically triggered a pre-promotion AnalysisRun. The template ran the health-check metric three times (Count: 3) and recorded three successful measurements.

A screenshot of a "health-check" analysis dialog showing "Analysis passed" with 3 successes and a table listing three "[object Object]" entries and timestamps. The panel also shows pass requirement checks (no measurement failures, fewer than 5 consecutive errors, no inconclusive measurements).

Because the health checks passed, the AnalysisRun succeeded. Because autoPromotionEnabled was set to false, the Rollout remained paused awaiting a manual promotion.

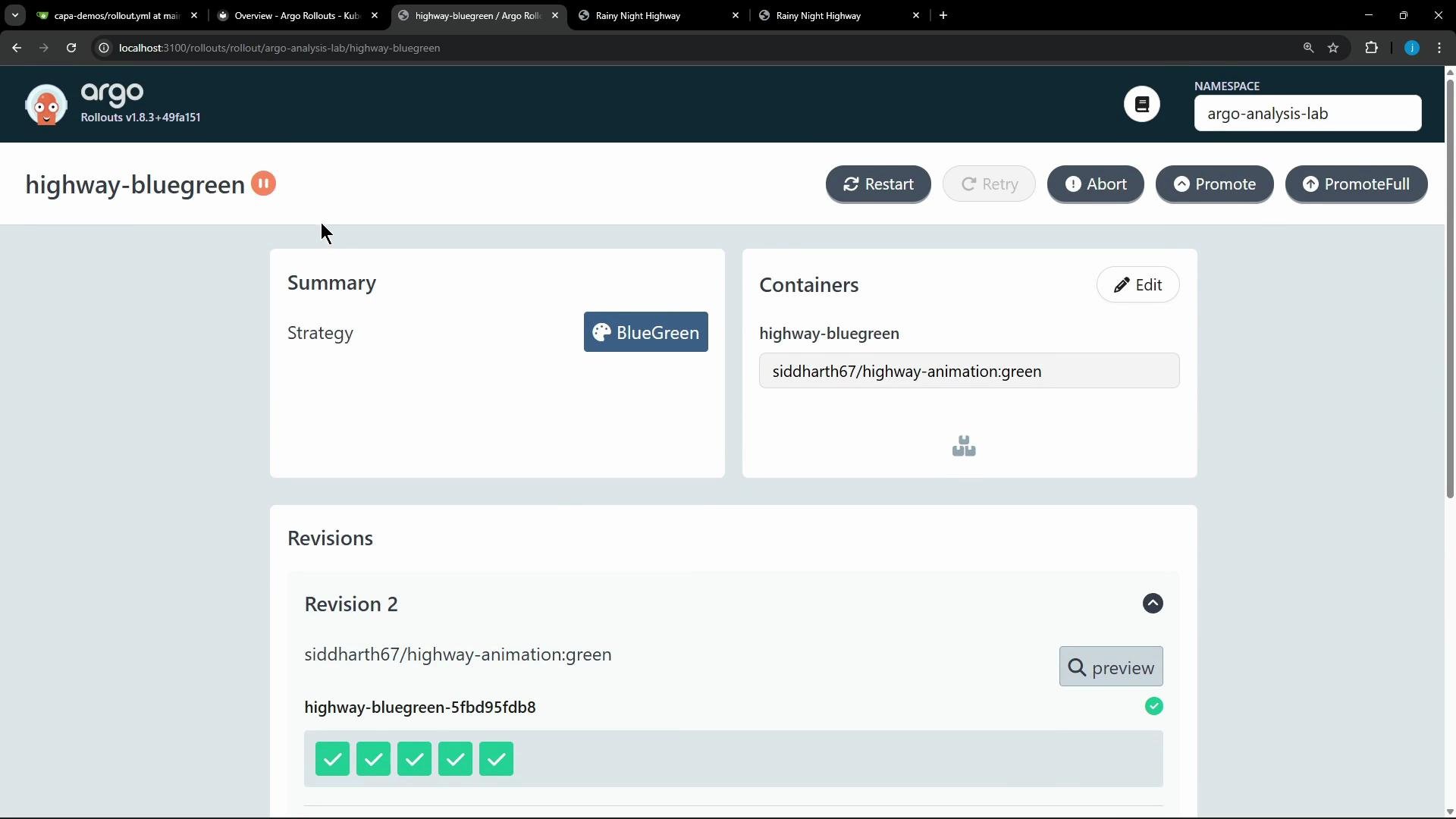

A screenshot of the Argo Rollouts web UI showing the "highway-bluegreen" rollout page with Summary, Containers (siddharth67/highway-animation:green) and Revisions sections. Top controls like Restart, Abort, Promote and PromoteFull are visible.

You can inspect the Rollout and see the paused state, the revisions (stable/active and preview), and the successful AnalysisRun:

$ kubectl argo rollouts get rollout highway-bluegreen -n argo-analysis-lab
Name:                highway-bluegreen
Namespace:           argo-analysis-lab
Status:              || Paused
Message:             BlueGreenPause
Strategy:            BlueGreen
Images:              siddharth67/highway-animation:blue (stable, active)
                     siddharth67/highway-animation:green (preview)

Replicas:
  Desired:           5
  Current:           10
  Updated:           5
  Ready:             5
  Available:         5

NAME                          KIND        STATUS        INFO
◎ highway-bluegreen           Rollout     || Paused     30m
├─ # revision:2
│  └─ highway-bluegreen-5fbd95fdb8     ReplicaSet   ✓ Healthy   preview
│     ├─ (5) Pods                      ✓ Running    ready:1/1
│     └─ highway-bluegreen-5fbd95fdb8-2-pre    AnalysisRun  ✓ Successful
├─ # revision:1
│  └─ highway-bluegreen-f84596cdc     ReplicaSet   ✓ Healthy   stable,active
│     ├─ (5) Pods                      ✓ Running    ready:1/1

After reviewing the AnalysisRun results, an administrator can manually promote the preview to active (UI or kubectl argo rollouts promote). Promotion switches the active service to route production traffic to the new revision (green) only when the analysis has validated health. This workflow enables progressive and safe promotion: only when an AnalysisRun passes do you promote the preview into production. Error handling (abort/rollback) is out of scope for this lesson but is supported by Argo Rollouts and should be part of production policies.

Blocking analyses (inline or pre-promotion) will pause rollouts until the AnalysisRun completes. Use background analysis when you want non-blocking monitoring, and use pre/post-promotion for stricter gates.

Summary table — Analysis placements and behavior

Placement	Strategy	Blocks rollout?	Typical use case
background	Canary	No	Continuous monitoring during phased traffic shifts
inline (step)	Canary	Yes	Gate a specific step until checks pass
delayed start	Canary	Depends on step	Start analysis at higher traffic percentages
pre-promotion	Blue-Green	Yes	Validate preview before switching active service
post-promotion	Blue-Green	Optional	Validate new active after promotion

Useful links and references

Success condition used by the AnalysisTemplate:

result.code >= 200 && result.code < 300
