Working with HashiCorp Vault Patterns and Approaches

In this lesson we’ll wrap up the Vault section and show how HashiCorp Vault fits into secure Terraform workflows. This article builds on concepts you may already know — sensitive variables, encrypted state, ephemeral values, and write‑only arguments — and focuses on a common enterprise pattern: using Vault to generate dynamic credentials for Terraform. This is a conceptual, high‑level overview so you understand how Terraform integrates with Vault. You don’t need to be a Vault expert for the Terraform Associate exam, but you should understand the pattern and its benefits.

The problem with static credentials

When Terraform provisions infrastructure, it requires valid credentials for the target platform (AWS access keys, Azure service principals, GCP service account keys, Kubernetes tokens, etc.). A common approach issues long‑lived credentials to each Terraform user or CI runner. These credentials are often:

Stored locally on developers’ machines or in CI secrets stores.
Difficult to rotate or revoke quickly.
Hard to audit and manage when team members change or leave.
Over‑privileged, increasing the attack surface.

This flow often looks like: local credentials → Terraform → cloud provider (AWS/Azure/GCP/Kubernetes). Those credentials can remain valid for months or even years if not actively rotated.

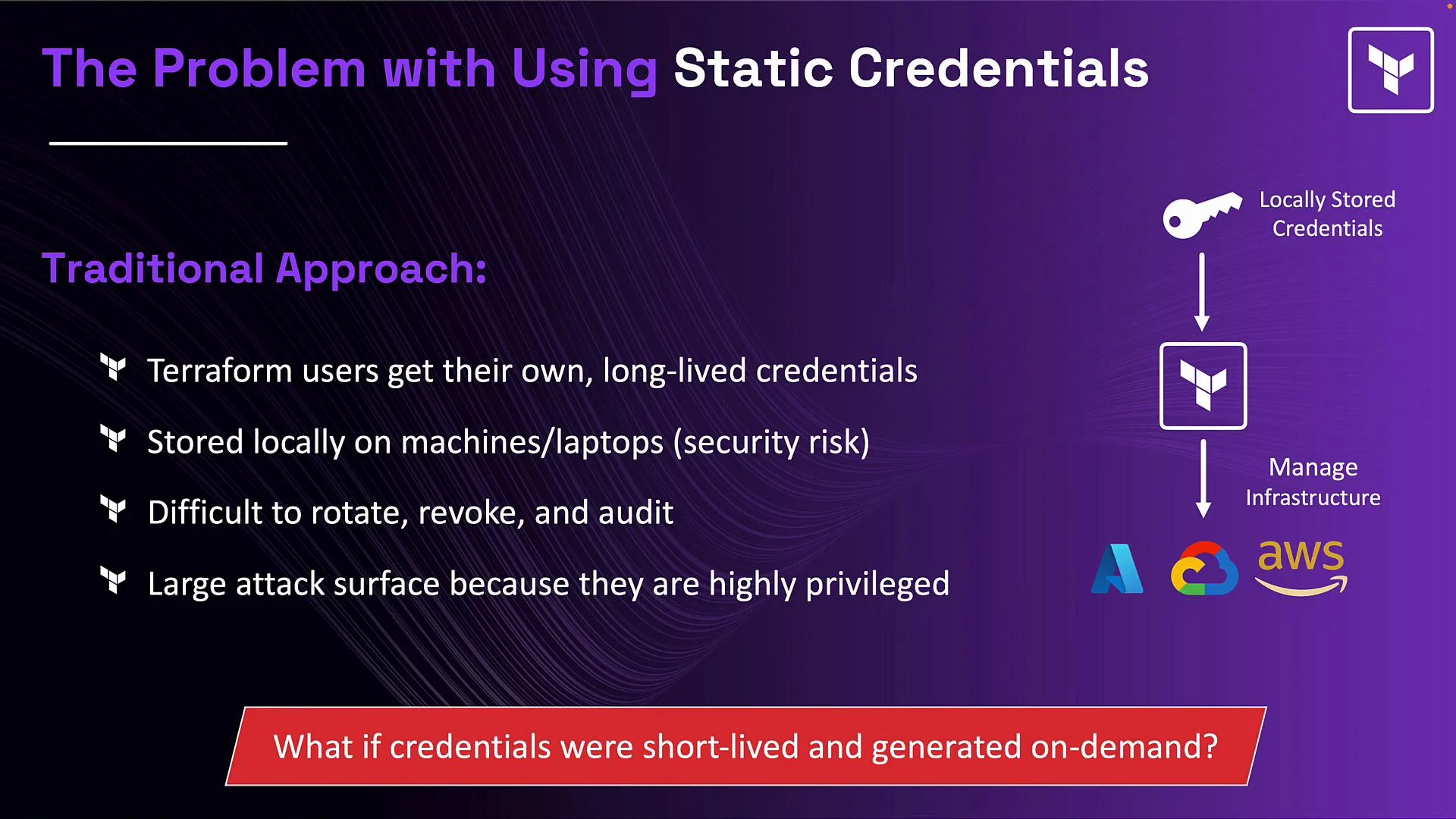

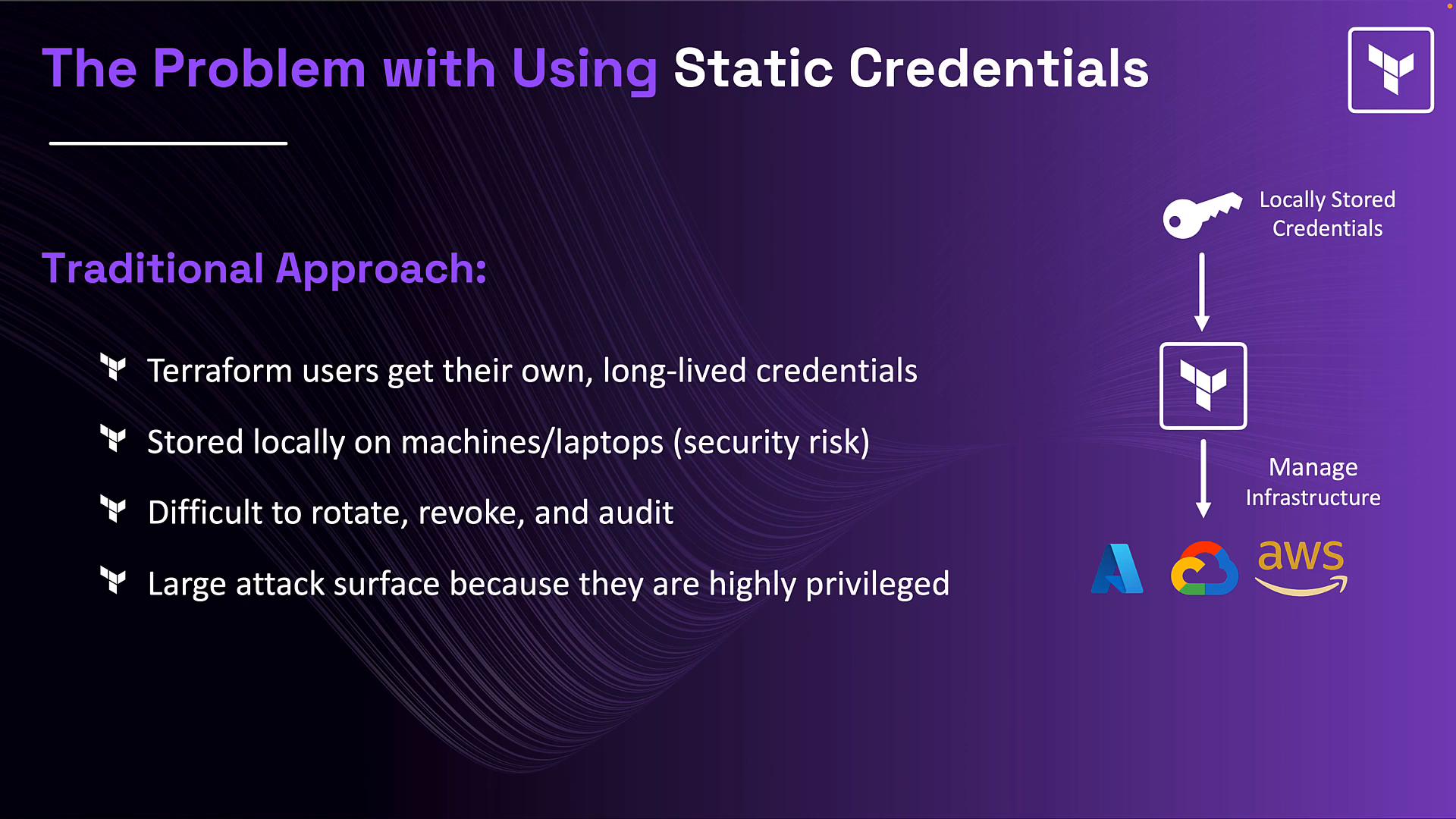

A purple presentation slide titled "The Problem with Using Static Credentials" describing the traditional approach. It lists drawbacks—Terraform users get long-lived, locally stored credentials that are hard to rotate/revoke and create a large attack surface—and shows a diagram of those credentials being used to manage Azure, Google Cloud, and AWS.

Dynamic credential generation with Vault

Vault changes the model: instead of relying on durable static credentials, Vault vends short‑lived credentials on demand. A typical integration flow looks like this:

Terraform authenticates to Vault using an identity‑based authentication method (for example, AWS auth, Azure managed identity, Kubernetes service account, or AppRole), depending on where Terraform runs.
Terraform requests credentials from Vault (often via the Vault provider or a data source).
Vault’s secrets engine for the target platform (for example, the AWS secrets engine) generates credentials on demand and returns them to Terraform.
Terraform uses those temporary credentials to provision or manage infrastructure.

Because these credentials are ephemeral and TTL‑bound (for example, minutes), Vault can revoke them automatically when the TTL expires. Vault also supports scoping credentials to the minimum permissions required.

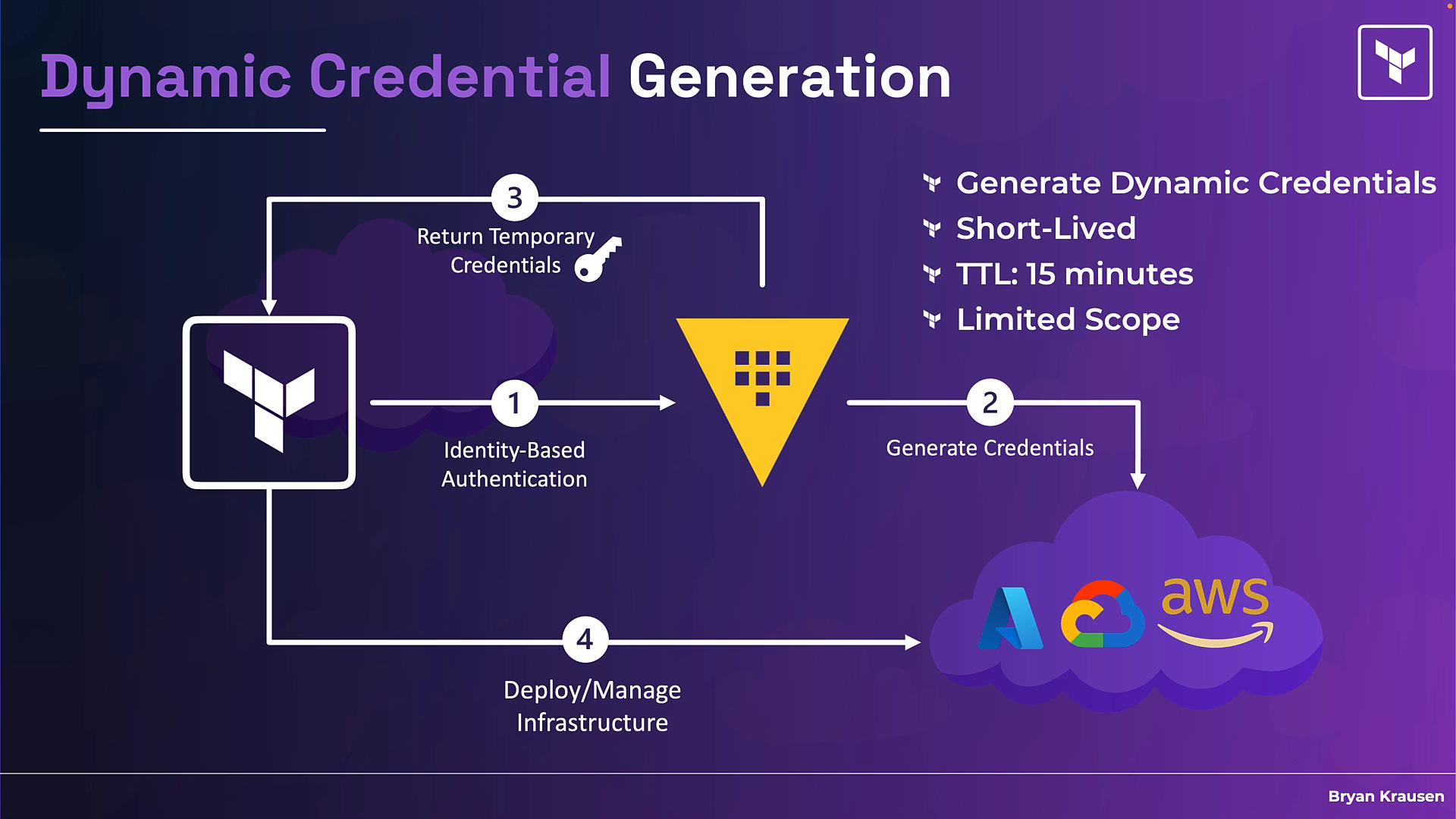

An infographic titled "Dynamic Credential Generation" showing a flow diagram where an identity-based system requests and receives short-lived temporary credentials to generate credentials and deploy/manage infrastructure. The graphic notes properties like "short‑lived" and "TTL: 15 minutes" and shows cloud provider logos (Azure, Google Cloud, AWS).

Example Terraform integration

The following concise Terraform example demonstrates the pattern: configure the Vault provider, use a Vault data source to fetch temporary AWS credentials, and then pass those credentials to the AWS provider.

provider "vault" {
  address = "https://vault.example.com:8200"

  # Configure an identity-based auth method here, depending on where Terraform runs.
  # Examples:
  # - AWS auth method: configure a role that trusts the Terraform runner's IAM identity
  # - Azure: use a managed identity
  # - Kubernetes: use a service account bound to a Vault role
  #
  # Replace the placeholder below with the appropriate auth configuration.
  #
  # <identity-based authentication config>
  # ...
}

# Example: use Vault's AWS secrets engine to generate short-lived credentials.
# The exact data source name and attributes vary by Vault provider version.
data "vault_aws_access_credentials" "creds" {
  backend = "aws"                            # path where the AWS secrets engine is mounted in Vault
  role    = vault_aws_secret_backend_role.example.name
  type    = "sts"                            # or "iam_user", depending on your secrets engine setup
  ttl     = "15m"
}

provider "aws" {
  region     = "us-east-1"
  access_key = data.vault_aws_access_credentials.creds.access_key
  secret_key = data.vault_aws_access_credentials.creds.secret_key
  token      = data.vault_aws_access_credentials.creds.security_token
}

resource "aws_instance" "main" {
  # ... provisioned using the temporary credentials returned by Vault
}

Notes and best practices

The provider "vault" block tells Terraform how to reach Vault and how Terraform should authenticate to Vault. Choose the identity authentication method that matches where Terraform runs.
Use Vault provider data sources (or other provider constructs) to fetch temporary credentials. Names and attributes differ between Vault provider versions — check the provider docs for exact fields.
Avoid persisting short‑lived secrets in Terraform state. Some provider/data-source combinations write credential material into state; prefer approaches that keep secrets transient (e.g., injected environment variables, external helpers, or providers that mark values as sensitive/ephemeral).
In the example, backend is the path to the Vault AWS secrets engine. The role maps to a Vault role that assembles the permission set for created credentials.
Depending on Terraform and provider behavior, you may need to supply credentials to the cloud provider via environment variables or runtime injection to prevent circular dependencies between providers and data sources.
Not all cloud providers or Terraform providers expose data sources that generate ephemeral credentials. Confirm whether a provider supports short‑lived credentials and how credential material is handled.

Quick mapping: common Vault auth methods for Terraform runners

Where Terraform runs	Recommended Vault auth method
EC2 / AWS CI runner	AWS auth method (IAM identity)
Azure VM / Pipelines	Azure Managed Identity
Kubernetes Pods	Kubernetes auth (service account)
Automation / CI	AppRole (machine identities)

Static vs Dynamic credentials — a comparison

Aspect	Static credentials	Dynamic (Vault‑vended) credentials
Rotation	Manual, often infrequent	Automatic via TTL or explicit revoke
Storage	Often on disk or env vars	Transient; not stored long term
Privilege scope	Frequently over‑privileged	Scoped via Vault roles/policies
Auditability	Limited, distributed	Centralized issuance and audit in Vault
Compromise window	Potentially long	Short (TTL) — revocable

For the Terraform Associate exam, understand this pattern conceptually: Vault can generate short‑lived dynamic credentials; Terraform retrieves them (usually via the Vault provider/data sources); and using Vault reduces the need for long‑lived credentials and improves auditability and rotation.

Why adopt this pattern?

Centralized secrets management: Vault is the single control plane for platform credentials.
Reduced attack surface: short‑lived credentials expire quickly and can be revoked.
No long‑lived local credentials: developers and CI systems do not need persistent platform keys.
Easier permission changes: update Vault roles/policies instead of redistributing keys.
Improved audit and compliance: Vault records issuance, revocation, and can enforce policies.

References and further reading

HashiCorp Vault documentation: https://www.vaultproject.io/docs
Vault AWS secrets engine: https://www.vaultproject.io/docs/secrets/aws
Terraform provider for Vault: https://registry.terraform.io/providers/hashicorp/vault/latest
Terraform documentation: https://www.terraform.io/docs

Summary Using Vault to vend short‑lived credentials for Terraform is a practical, secure pattern for enterprise infrastructure automation. It pairs well with other protections — sensitive variables, avoiding storing secrets in state, write‑only arguments, and keeping secrets out of Git — to form a layered, defense‑in‑depth secrets management approach. That concludes this lesson on HashiCorp Vault patterns and approaches with Terraform.
