Describes zero code Java instrumentation with the OpenTelemetry Java agent, configuration options, extensions, and use of manual spans.

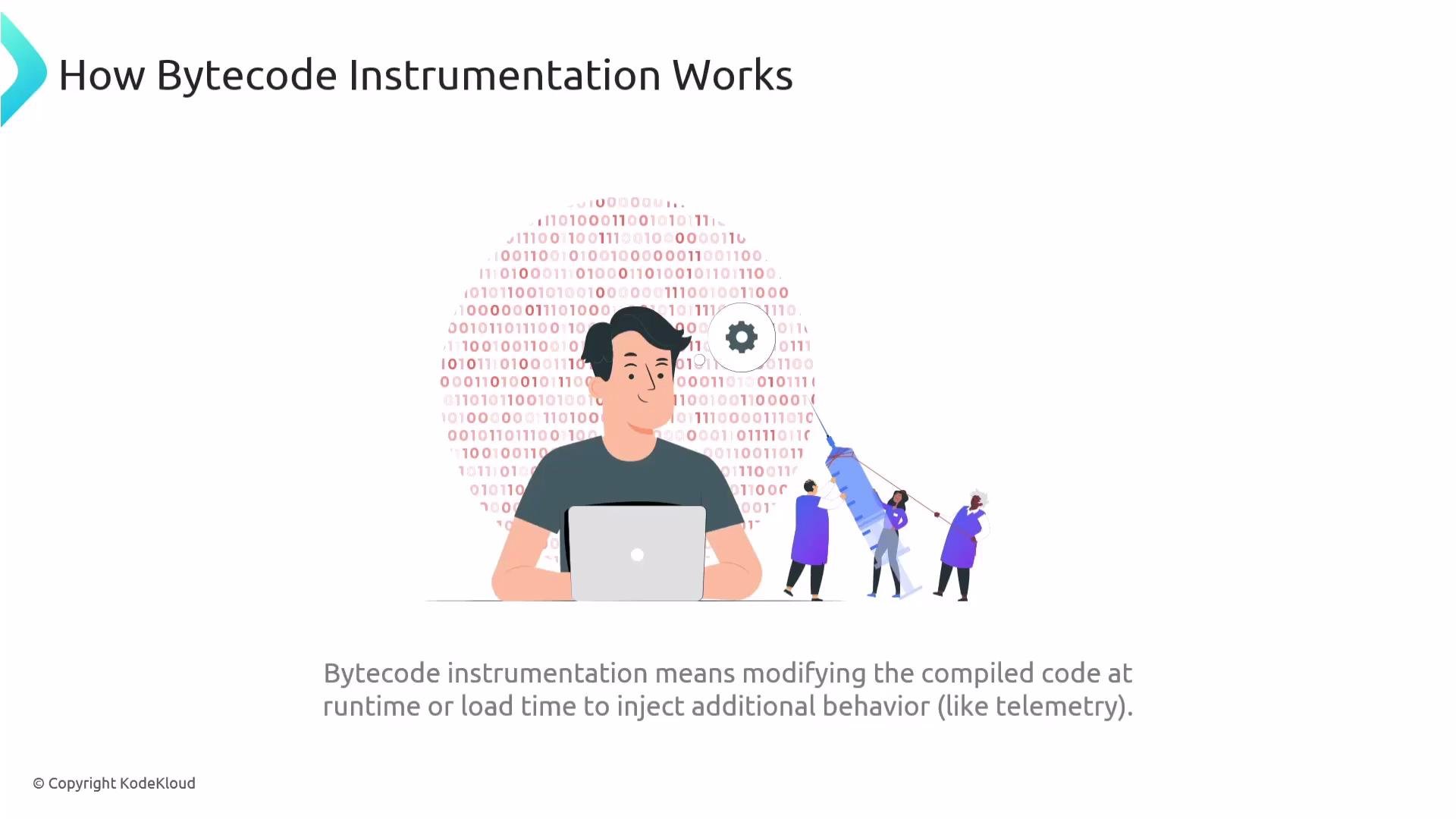

In this lesson we’ll examine zero-code instrumentation for Java applications: how it works, how to configure it, when to use manual spans, and how to extend the agent without changing application source.Bytecode instrumentation is the core technique behind zero-code approaches. Instead of editing source code, an agent modifies compiled Java bytecode at class load or runtime. This injection of behavior lets you capture telemetry automatically — for example, timing HTTP requests or recording database calls — without cluttering business logic.
Think of bytecode instrumentation as a behind-the-scenes upgrade that adds observability to your app without touching the source. For Java, the primary implementation is the OpenTelemetry Java agent.What the OpenTelemetry Java agent provides
Automatic instrumentation for many common libraries and frameworks
Out-of-the-box traces and metrics for typical app building blocks
Minimal or no code changes required to obtain telemetry

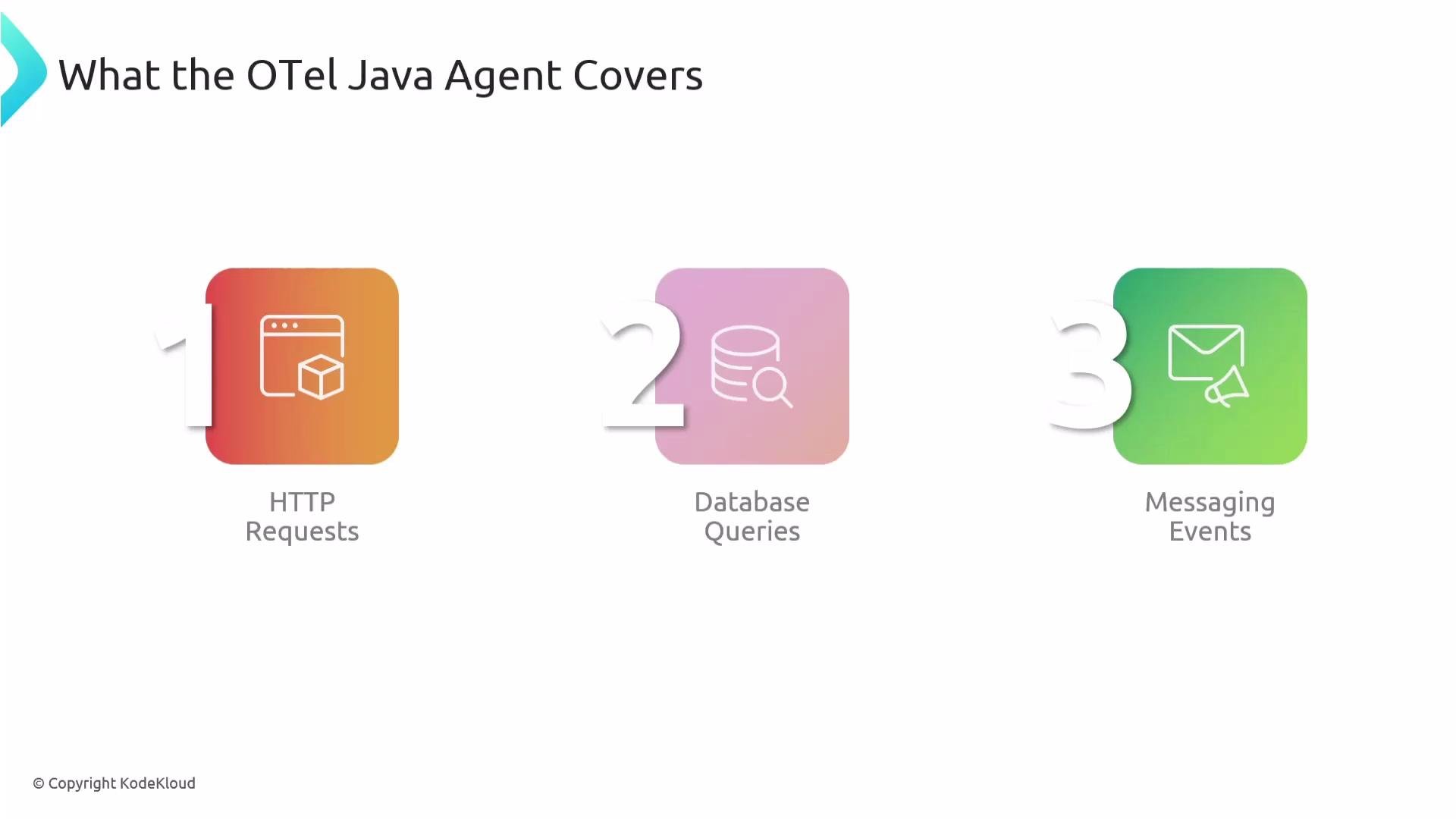

Typical capabilities include:
Tracing incoming and outgoing HTTP requests
Capturing database queries and connection metadata
With the agent you immediately cover the major building blocks of most enterprise applications: web requests, persistence, and messaging.Where to get the Java agent
This attaches the agent and enables automatic instrumentation. In practice you should also configure resource metadata (for example, service name) and the exporter so telemetry is sent to the backend you use.Configure the agent with JVM properties or environment variables

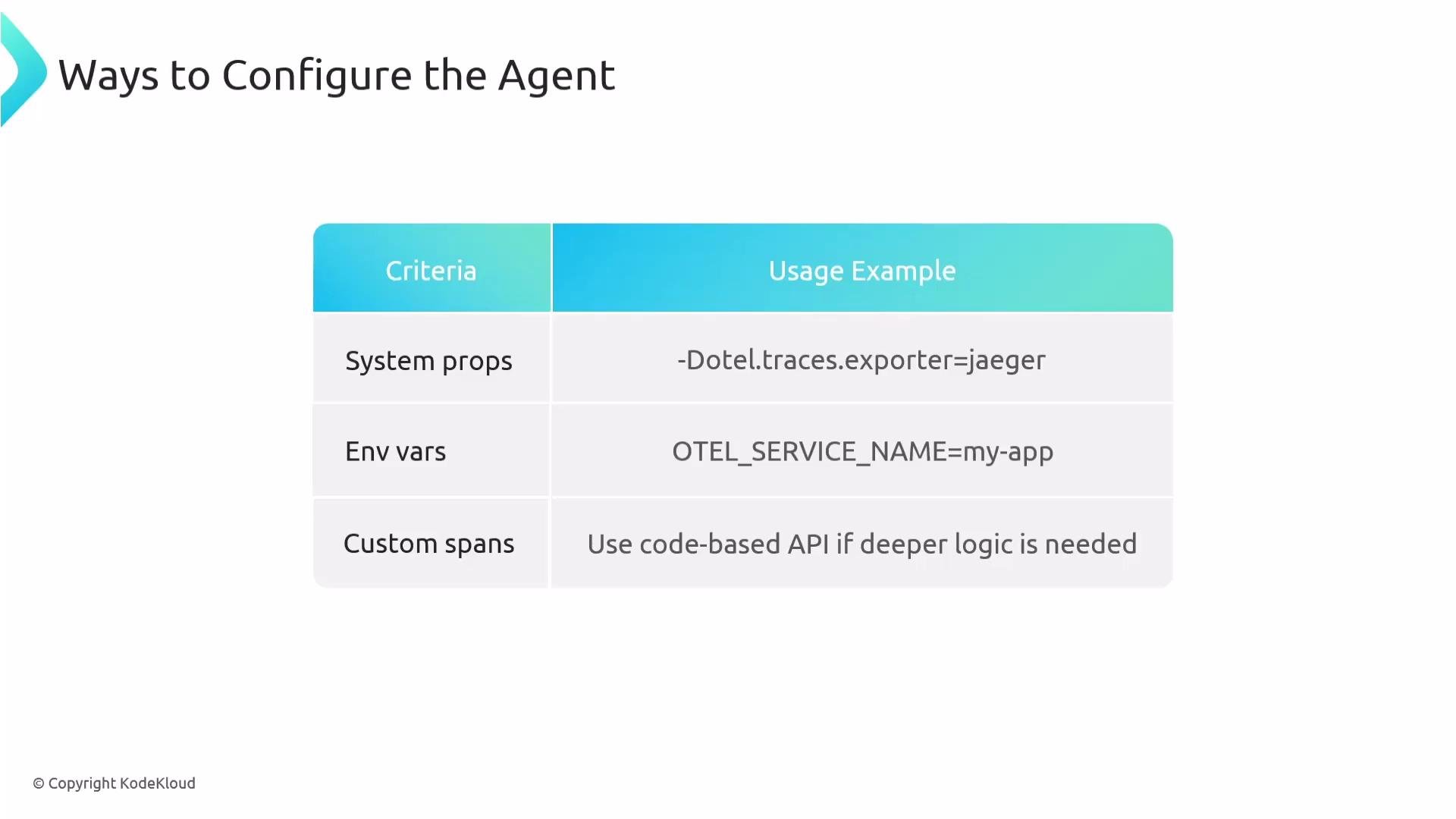

Two common and recommended ways to configure the agent:
JVM system properties (-D flags) — useful for direct JVM launches and fine-grained control.
Environment variables (OTEL_*) — recommended in containerized environments (Docker, Kubernetes).
JVM system properties example (set service name and use Zipkin exporter):
For container deployments, environment variables (OTEL_*) are generally preferable to JVM -D properties because they integrate cleanly with container orchestration, secrets, and configuration management.
Two primary configuration channels:
System properties using -Dotel.* JVM flags
Environment variables using OTEL_* names
Manual / custom spans
Automatic instrumentation covers many common interactions, but you’ll still need manual (code-based) instrumentation for business logic sections that are not automatically instrumented. Manual spans require using the OpenTelemetry API in your application to create spans and set attributes at the points you choose.Common configuration options (quick reference)
Below are commonly used environment variables and JVM properties to tune the Java agent. These are not exhaustive but cover the most important settings you’ll encounter.
Batch span processor and cardinality limits are also configurable (queue sizes, schedule delays, max attributes/events/links). Fine-tune these when optimizing performance and storage.

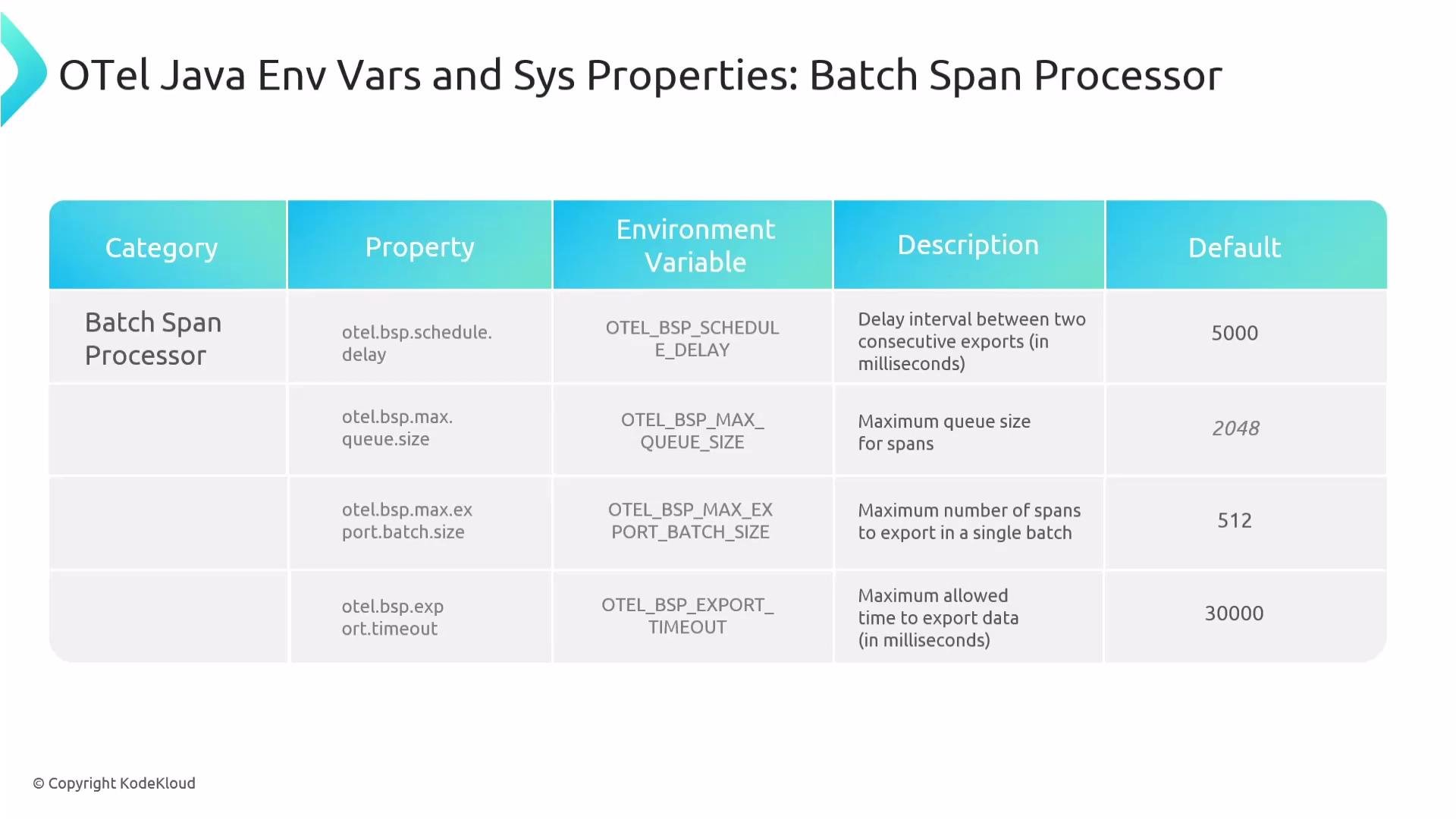

Batch span processor controls and tuning
Performance-sensitive settings—such as batch processor queue size, schedule delay, and export timeout—help balance throughput and memory/latency trade-offs.

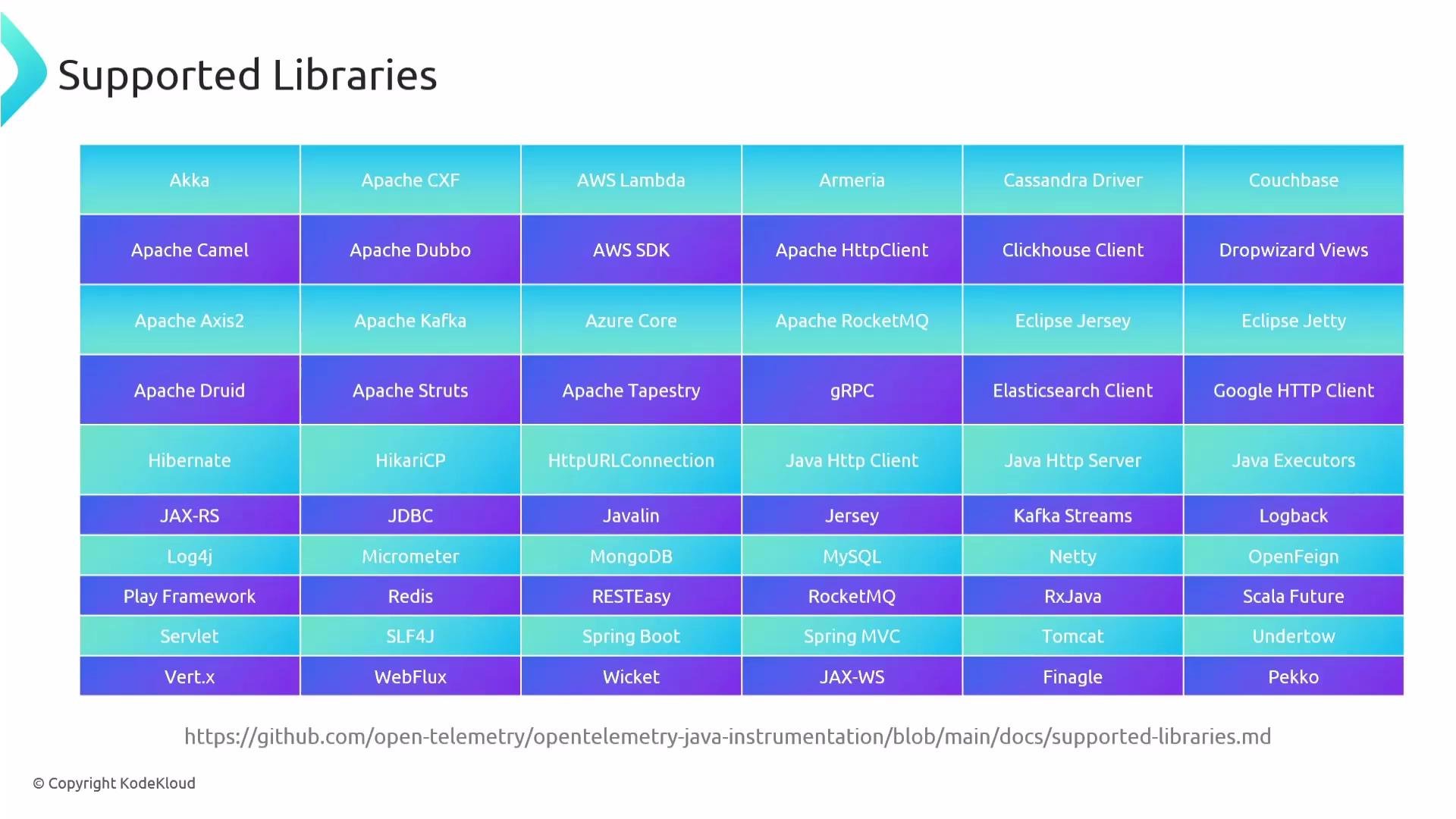

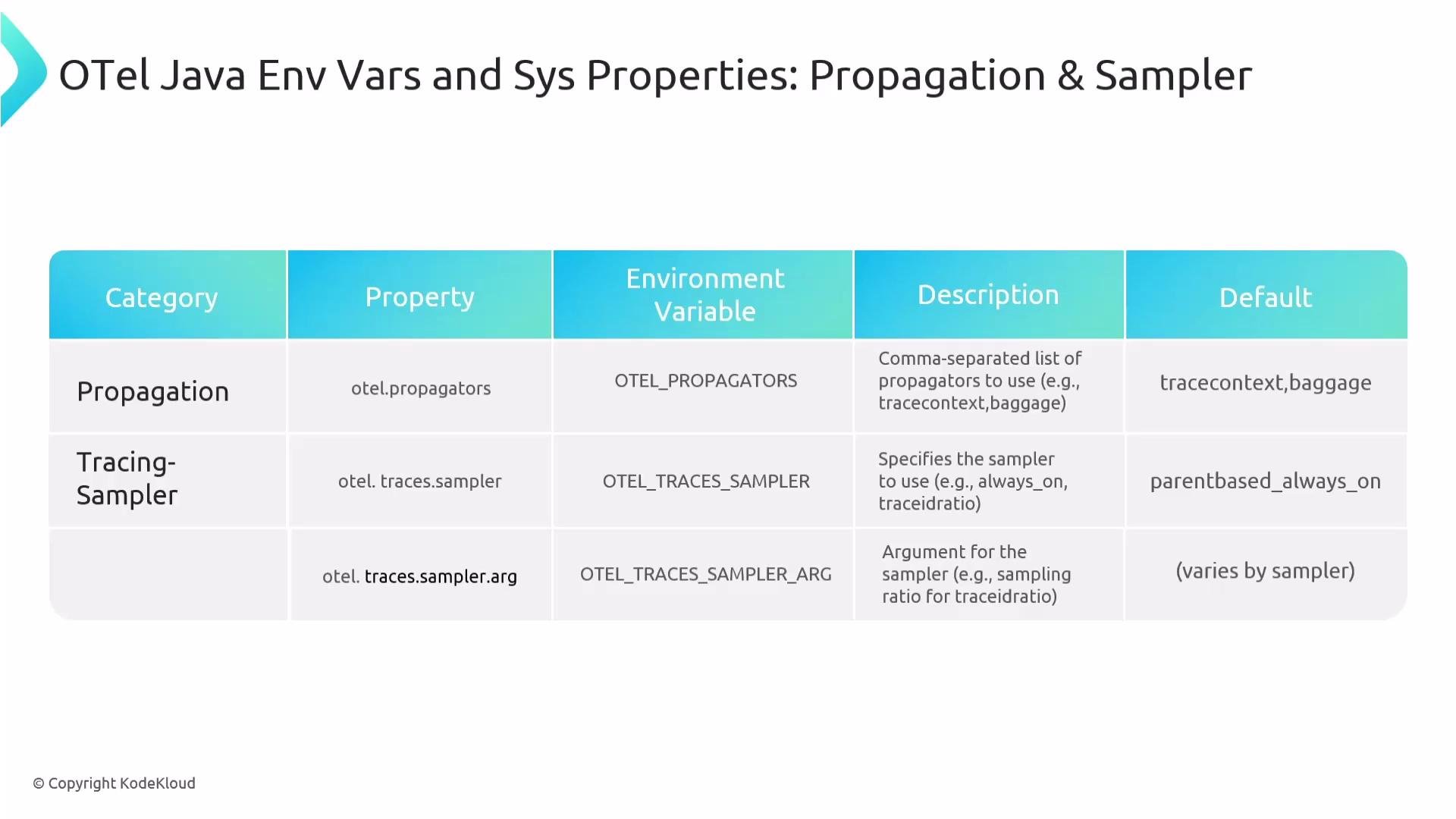

From an exam or conceptual perspective, remember the major ones: service name, resource attributes, propagators, sampler, and exporter.Supported libraries and frameworks
The Java agent supports a large number of libraries and frameworks. Check the instrumentation repository for the exhaustive list and to confirm coverage for your application’s dependencies.
Java agent extensions: customize without changing app code
Agent extensions let you enhance or change agent behavior without modifying the main agent distribution or your application code. Extensions are useful to keep the zero-code promise while adding custom logic.Capabilities of extensions
Add or configure span processors, exporters, samplers, or propagators
Inject new instrumentation modules for libraries not yet supported
Modify or filter span attributes (for example, mask sensitive data)
Disable or override existing instrumentation behavior
Building and loading extensions
Package your extension as a JAR (for example, with Gradle):
This causes the agent to load and apply your extension alongside default instrumentation.Real-world extension examples
Disable spans to reduce noise and storage usage
Normalize attribute names across services
Mask or remove PII before exporting spans
Add support for an in-house library that the agent does not yet instrument
Do not confuse Java agent extensions with OpenTelemetry Collector extensions — they are different concepts in different components. Collector extensions apply to the Collector pipeline, while Java agent extensions modify agent behavior inside the JVM.
Terminology and best practices
Automatic instrumentation is ideal for broad coverage with minimal effort.
Use manual instrumentation (OpenTelemetry API) for business-specific spans and fine-grained telemetry.
Prefer environment variables in containerized environments for easier integration with orchestration and secrets.
Keep an eye on sampling and cardinality limits to control backend costs and performance.

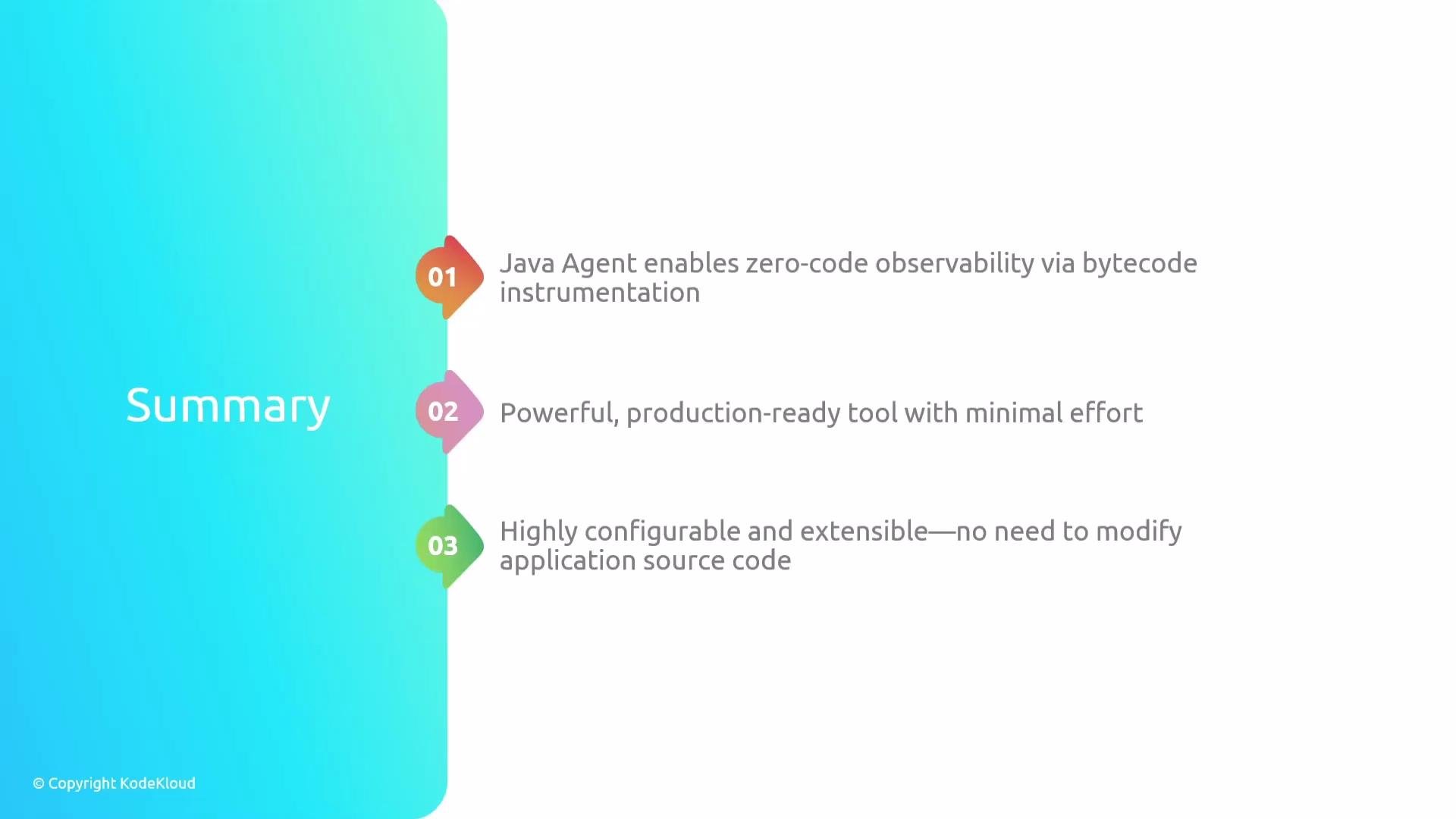

Wrapping up
The OpenTelemetry Java agent enables production-ready, zero-code observability through bytecode instrumentation. It provides immediate visibility into common frameworks and libraries, is highly configurable via environment variables or JVM properties, and can be extended with custom agent extensions when necessary. For functionality not covered automatically, use manual instrumentation with the OpenTelemetry API.
