OpenTelemetry Collector Processors

Processors are the central transformation and enrichment layer in the OpenTelemetry Collector pipeline. Sitting between receivers and exporters, processors can:

normalize, tag, and enrich telemetry,
filter or sample noisy data,
convert metric temporality,
batch and optimize traffic to backends,
and protect the Collector from resource exhaustion.

This guide explains common processors, when to use them, and provides example configurations you can adapt for production.

Processors execute in the order you list them in a pipeline. That order matters: place protective processors (e.g., memory_limiter) early, transformation/enrichment processors in the middle, and batching last for export efficiency.

Memory Limiter

Protects the Collector from running out of RAM by enforcing soft and spike memory limits, triggering GC and optionally dropping or rejecting data when necessary. Example:

processors:
  memory_limiter:
    check_interval: 1s
    limit_mib: 4000
    spike_limit_mib: 8000

Recommended: enable on production Collectors to avoid the Linux OOM killer terminating the process under memory pressure.

Batch

Groups telemetry into larger batches before exporting to reduce network calls and improve compression. Example:

processors:
  batch:
    send_batch_size: 8192
    timeout: 200ms
    send_batch_max_size: 0

Recommended: use batching in production pipelines for better throughput and backend efficiency.

Resource Detection

Automatically detects platform and environment metadata (host, cloud, container, etc.) and attaches it as resource attributes. Example:

processors:
  resourcedetection:
    detectors: [env, system, gcp, ec2, azure]
    timeout: 2s
    override: false

Use this to ensure telemetry contains consistent host/container/cloud metadata across environments.

Resource Processor

Modifies or adds resource-level attributes that apply consistently across all signals. Example:

processors:
  resource:
    attributes:
      - key: environment
        value: production
        action: upsert
      - key: cluster.name
        from_attribute: k8s-cluster
        action: insert

Common uses: label environments, copy attributes into standardized keys, or remove unwanted resource attributes.

Kubernetes Attributes

Enriches telemetry with Kubernetes metadata (pod, namespace, deployment, etc.). Commonly uses the pod service account for authentication. Example:

processors:
  k8sattributes:
    auth_type: serviceAccount
    passthrough: false
    extract:
      metadata:
        - k8s.pod.name
        - k8s.namespace.name
        - k8s.deployment.name

Use when running the Collector in Kubernetes to correlate telemetry with K8s resources for investigation and dashboards.

Attributes Processor

Performs insert/update/delete/hash operations on span/log/metric attributes—useful for adding environment tags and removing or masking PII/sensitive fields. Example:

processors:
  attributes:
    actions:
      - key: environment
        value: prod
        action: insert
      - key: password
        action: delete
      - key: user.email
        action: hash

This is a common processor for tagging signals and sanitizing attributes before export.

Transform (OTTL)

Applies conditional rules using the OpenTelemetry Transformation Language (OTTL) for complex, expression-based changes. Example:

processors:
  transform:
    error_mode: ignore
    trace_statements:
      - set(status.code, STATUS_CODE_OK) where attributes["http.status_code"] == 200
      - set(name, "redacted") where name == "secret_operation"

Use transform for advanced renaming, conditional status updates, and dynamic attribute extraction. More: OTTL reference.

Filter

Drops telemetry that matches defined conditions to reduce noise and backend costs. Example:

processors:
  filter:
    error_mode: ignore
    traces:
      span:
        - 'attributes["http.target"] == "/health"'
    logs:
      log_record:
        - 'severity_number < SEVERITY_NUMBER_WARN'

Typical use cases: drop health-check spans, verbose debug logs, or low-severity log records.

Probabilistic Sampler

Samples a fixed percentage of traces using a deterministic hash of the trace ID. Good for predictable, repeatable sampling. Example:

processors:
  probabilistic_sampler:
    sampling_percentage: 15
    hash_seed: 22

Use in high-traffic systems where consistent downsampling of traces is required.

Tail Sampling

Waits until a trace completes, evaluates policies (errors, latency, attributes), and then decides whether to keep or drop the trace. This preserves critical traces that front-loaded samplers might miss. Example:

processors:
  tail_sampling:
    decision_wait: 10s
    num_traces: 100
    policies:
      - name: errors-policy
        type: status
        status: { status_codes: [ERROR] }
      - name: slow-traces
        type: latency
        latency: { threshold: 5s }

Best for retaining error traces and high-latency traces that are important to debugging.

Delta ↔ Cumulative Conversions

Some backends expect cumulative counters, others expect delta metrics. Use temporality conversion processors to adapt metric streams. Delta → Cumulative:

processors:
  deltatocumulative:
    max_stale: 5m
    max_streams: 1000

Cumulative → Delta (selective):

processors:
  cumulativedelta:
    include:
      metrics:
        - "http.server.request.duration"
        - "system.cpu.utilization"
    metric_types:
      - sum
    exclude:
      metric_types:
        - histogram
    max_stalenness: 5m

These processors maintain state for metric points, compute differences or accumulate as needed, and clear state when streams go stale.

Span-oriented transformations allow renaming, status setting, and attribute extraction to make span names and statuses more meaningful. Example (rename and set status based on attributes):

processors:
  span:
    name:
      from_attributes: ["http.method", "http.route"]
      separator: " "
      include:
        match_type: regexp
        attributes:
          - key: http.status_code
            value: "^[4-5][0-9]{2}$"
    status:
      code: Error
      description: "HTTP request failed"

Use this to standardize span names for searchability and to mark spans as errors when HTTP codes indicate failure.

Processor Order Best Practices

Processor ordering impacts correctness, data quality, and Collector stability. A typical ordering pattern:

memory_limiter — protect the Collector
attributes / transform — normalize and enrich data
resourcedetection / k8sattributes — add infrastructure metadata
batch — prepare data for efficient export

Processor sequence is critical. For example, run memory_limiter early to protect the Collector; run batch near the end to optimize export behavior. Reordering can change transformations or cause unexpected data loss.

Example pipeline demonstrating recommended ordering:

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317

processors:
  memory_limiter:
    check_interval: 1s
    limit_mib: 512
  attributes:
    actions:
      - key: environment
        value: production
        action: insert
  resource:
    attributes:
      - key: service.instance.id
        from_attribute: host.name
        action: insert
  batch:
    timeout: 10s
    send_batch_size: 1024

exporters:
  otlp:
    endpoint: backend:4317
    tls:
      insecure: true

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [memory_limiter, attributes, resource, batch]
      exporters: [otlp]

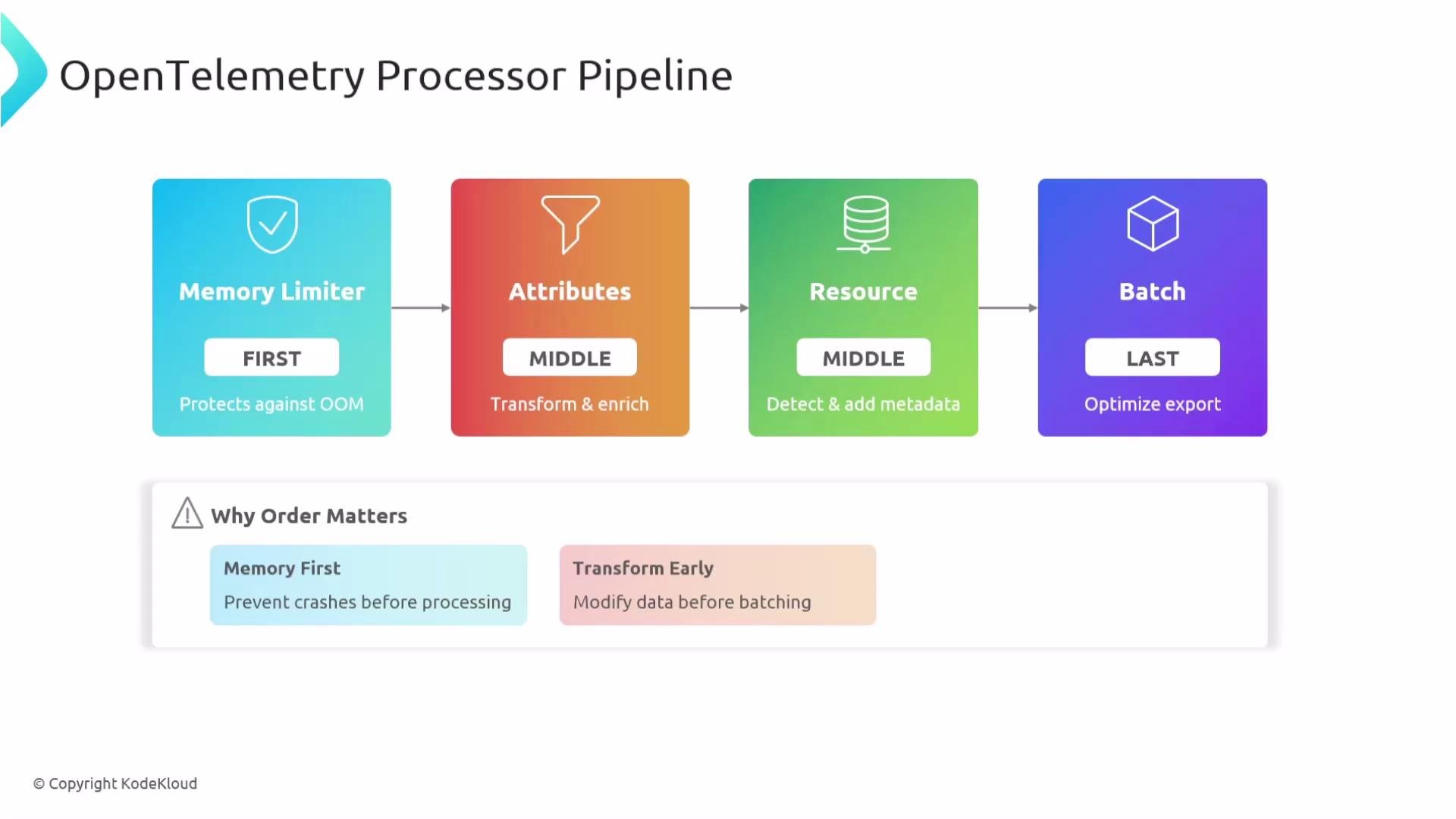

The image illustrates the OpenTelemetry Processor Pipeline, highlighting the sequence of Memory Limiter, Attributes, Resource, and Batch stages, with notes on the importance of order for preventing crashes and optimizing data processing.

Quick Reference Table

Processor	Purpose	When to Use
memory_limiter	Protects Collector from OOMs by enforcing memory caps	Always on production Collectors
batch	Aggregates telemetry for efficient export	Default in production pipelines
resourcedetection	Auto-detect host/cloud/container metadata	Multi-cloud or mixed infra deployments
resource	Add/modify resource-level attributes	Standardize resource attributes
k8sattributes	Enrich telemetry with Kubernetes metadata	When the Collector runs in Kubernetes
attributes	Insert/update/delete/hash attributes	Tagging & PII sanitization
transform (OTTL)	Rule-based transformations using OTTL	Complex conditional transformations
filter	Drop noisy or irrelevant telemetry	Reduce cost and noise
probabilistic_sampler	Deterministic percent-based trace sampling	High-traffic sampling with repeatability
tail_sampling	Keep traces based on full-trace evaluation	Preserve error or slow traces
deltatocumulative / cumulativedelta	Convert metric temporality	Backend-specific metric expectations
span	Rename/standardize span names and statuses	Improve trace readability/searchability

Recap of Popular Processors

memory_limiter — prevents OOMs and stabilizes the Collector
resourcedetection — auto-discovers host/cloud/container metadata
resource — modify or add resource-level attributes
k8sattributes — enrich telemetry with Kubernetes metadata
attributes — insert/delete/hash attributes across signals
transform — apply OTTL-based complex rules
filter — drop noisy or unwanted telemetry
probabilistic_sampler — deterministic percent-based sampling
tail_sampling — keep critical traces by evaluating full traces
deltatocumulative / cumulativedelta — temporality conversions for metrics
span — rename and standardize spans for readability
batch — group telemetry before export for efficiency

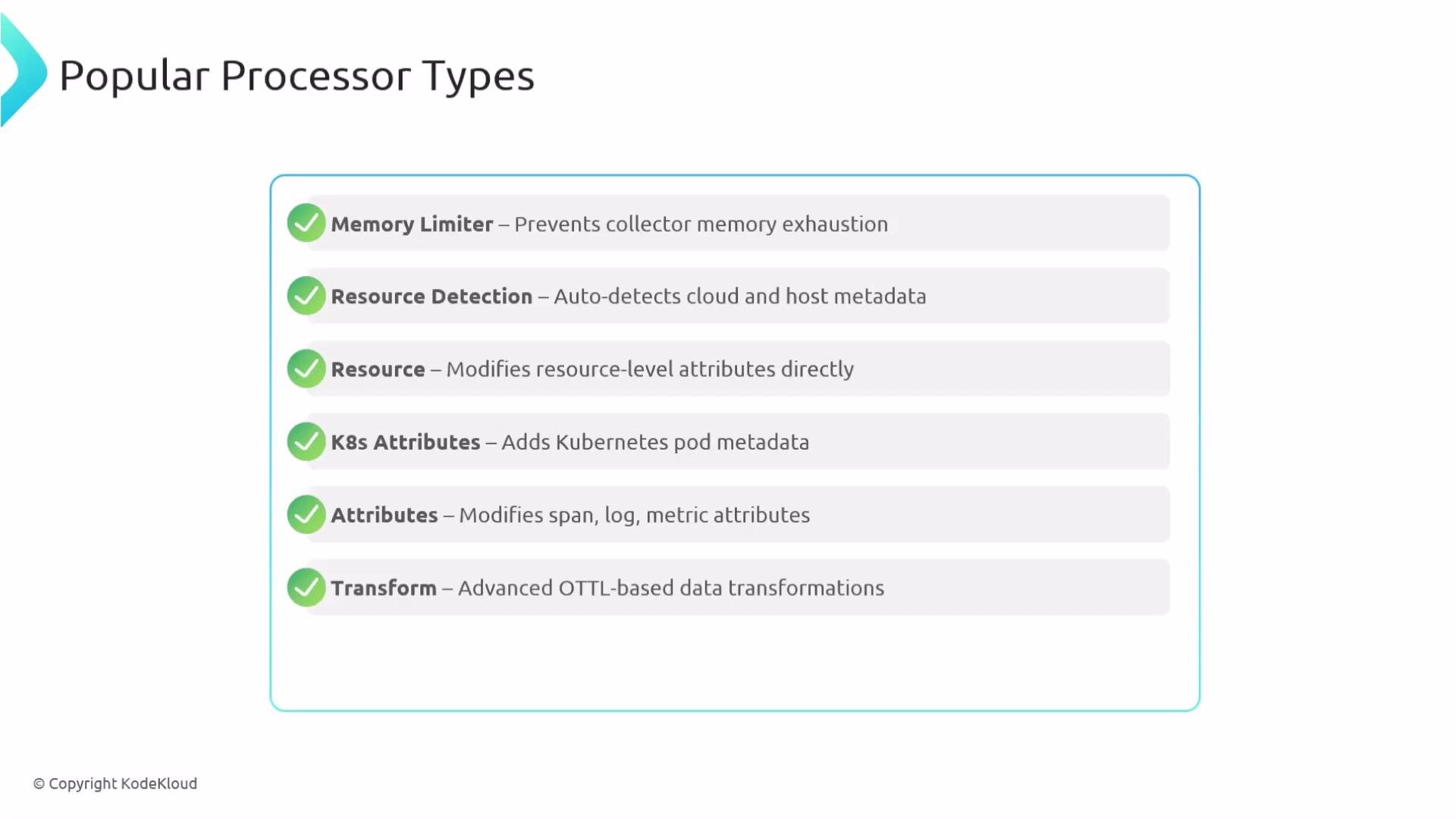

The image lists popular processor types with descriptions, including Memory Limiter, Resource Detection, Resource, K8s Attributes, Attributes, and Transform.

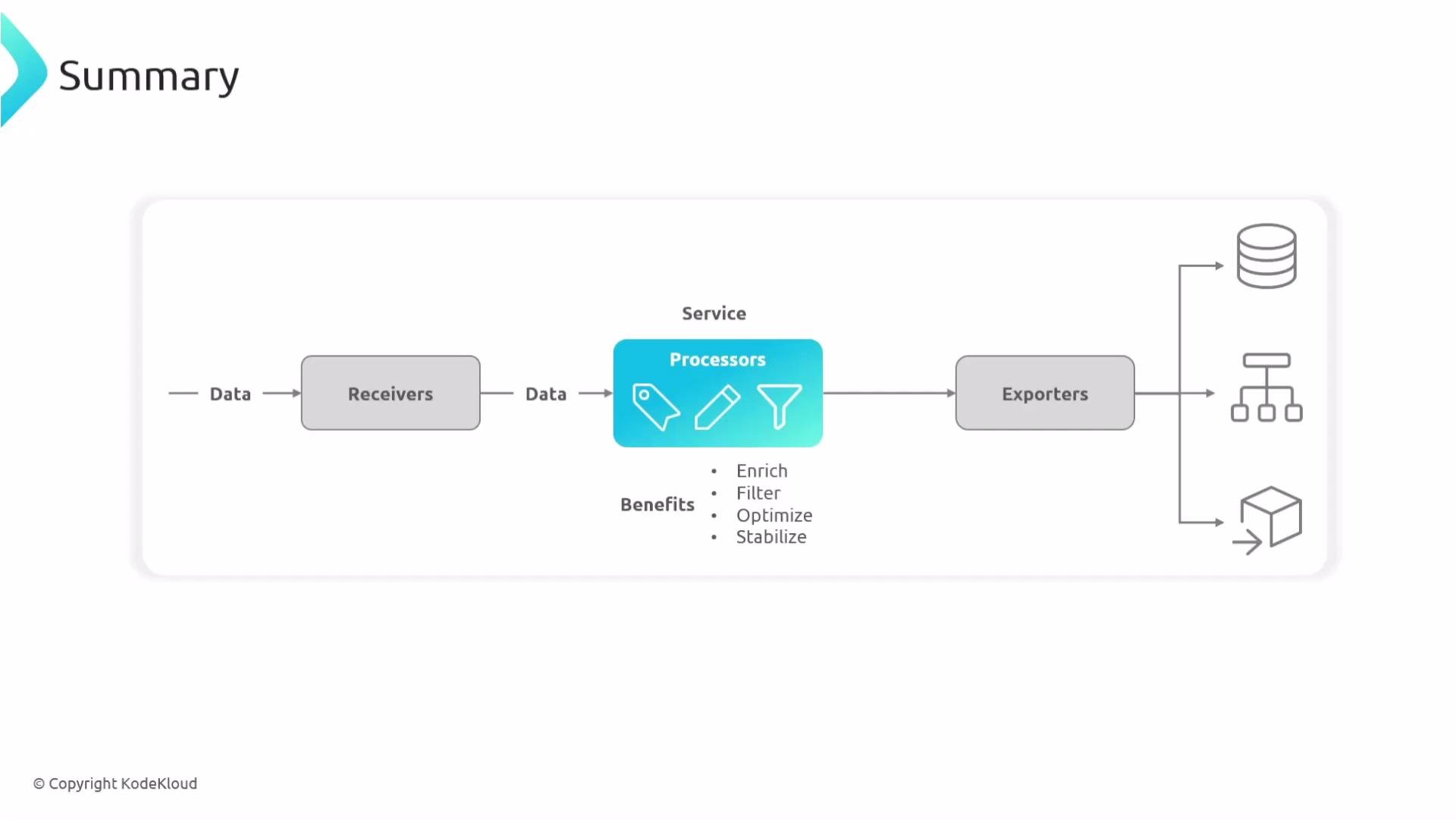

The image depicts a data processing flowchart with three main components: "Receivers," "Processors," and "Exporters," highlighting benefits such as enriching, filtering, optimizing, and stabilizing data services.

Processors are optional from a configuration perspective but essential in practice: they make telemetry actionable, cost-effective, and stable. Choose the right processors and arrange them intentionally so your backend receives clean, complete, and useful telemetry. References and further reading:

This is the end of the article on processors.
