Service and Pipelines Explained

In this lesson we break down the service and pipelines of the OpenTelemetry Collector and show how to wire receivers, processors, exporters, and runtime extensions together for reliable telemetry collection. Each telemetry signal (traces, metrics, logs) flows through its own pipeline. The service section acts as the Collector’s control plane — it activates pipelines, selects which component instances are used, and defines processor execution order and internal telemetry settings.

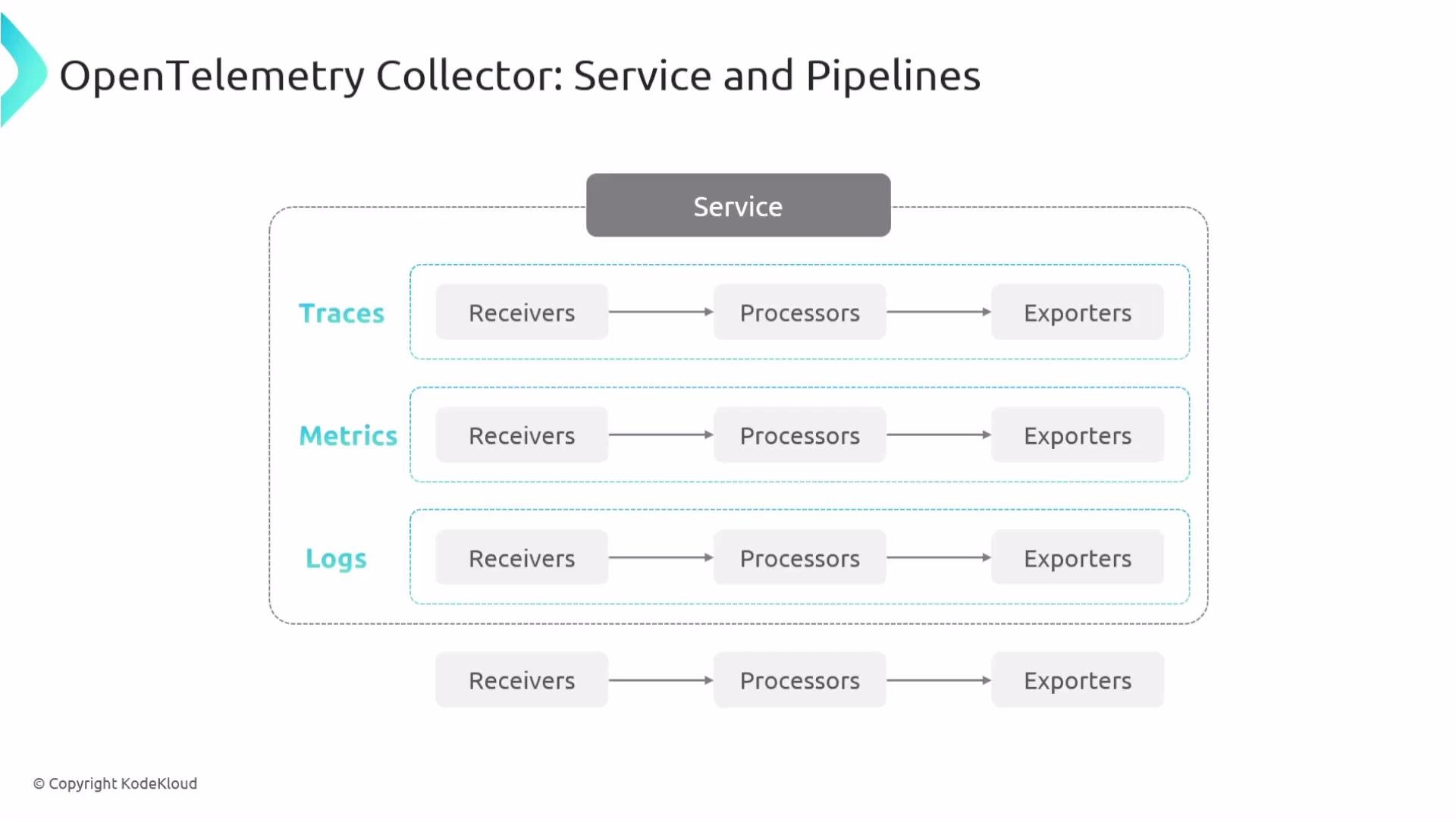

The image is a diagram showing the OpenTelemetry Collector's structure, including pipelines for traces, metrics, and logs, each consisting of receivers, processors, and exporters.

Overview: how pipelines fit together

Receivers ingest telemetry into the Collector.
Processors transform, filter, or enrich telemetry; order is significant (executed left-to-right).
Exporters send telemetry to backends (or local logging/debugging exporters).
The service block references component instances and binds them to each pipeline.

Quick reference: component roles

Component type	Purpose	Example usage
Receiver	Ingest telemetry from sources	`otlp` (gRPC/HTTP), `prometheus`
Processor	Transform/filter/limit telemetry; order matters	`attributes`, `batch`, `memory_limiter`
Exporter	Deliver telemetry to backends or local debug	`otlphttp`, `prometheusremotewrite`, `debug`
Extension	Runtime features not part of pipelines	`health_check`, `pprof`, `file_storage`

Basic idea (visualized):

Pipelines:
  service
    ├─ pipelines
    │   └─ traces
    └─ processors  ← left-to-right order matters

Minimal YAML example showing component definitions and pipeline activation:

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4318
  otlp/ingest2:       # type/name — second instance of the otlp receiver

processors:
  batch: {}
  attributes/sanitize: {}

exporters:
  otlphttp:
    endpoint: https://vendorname.example.com:4318
    debug:
      verbosity: normal

service:
  pipelines:
    traces/prod:
      receivers: [otlp]
      processors: [attributes/sanitize, batch]   # processor order matters
      exporters: [otlphttp]

    traces/dev:
      receivers: [otlp/ingest2]
      processors: [attributes/sanitize]
      exporters: [debug]

Naming and instances

You can create multiple instances of a component type using type/name (example: otlp/ingest2).
Any instance referenced by a pipeline must exist under the corresponding top-level receivers, processors, or exporters section.
If a component is not listed in the service pipelines, it will not be active.

Telemetry and internal metrics

The service block also configures the Collector’s internal logs and metrics.
Older configs used a single metrics.address field. Current Collector releases prefer telemetry.metrics.readers for flexible pull (Prometheus) and push (periodic) strategies.

Processor order matters. Put limiters or normalizers (for example memory_limiter, attributes) before the batch processor so transformations and limits are applied prior to batching.

Deprecated (older style):

# Deprecated style (older releases)
metrics:
  address: "0.0.0.0:8888"  # single endpoint for Prometheus scraping

telemetry:
  logs:
    level: "INFO"

Recommended (current) style using readers:

telemetry:
  logs:
    level: "INFO"
  metrics:
    level: normal
    readers:
      - pull:
          exporter:
            prometheus:
              host: "0.0.0.0"
              port: 8888
      - periodic:
          exporter:
            otlp:
              endpoint: "https://telemetry.vendorname.example.com:4318"

Using readers:

pull: exposes a Prometheus scrape endpoint.
periodic: periodically pushes Collector-internal metrics to an OTLP endpoint.
Both readers can run concurrently to support mixed workflows.

Fan-out: send same telemetry to multiple exporters

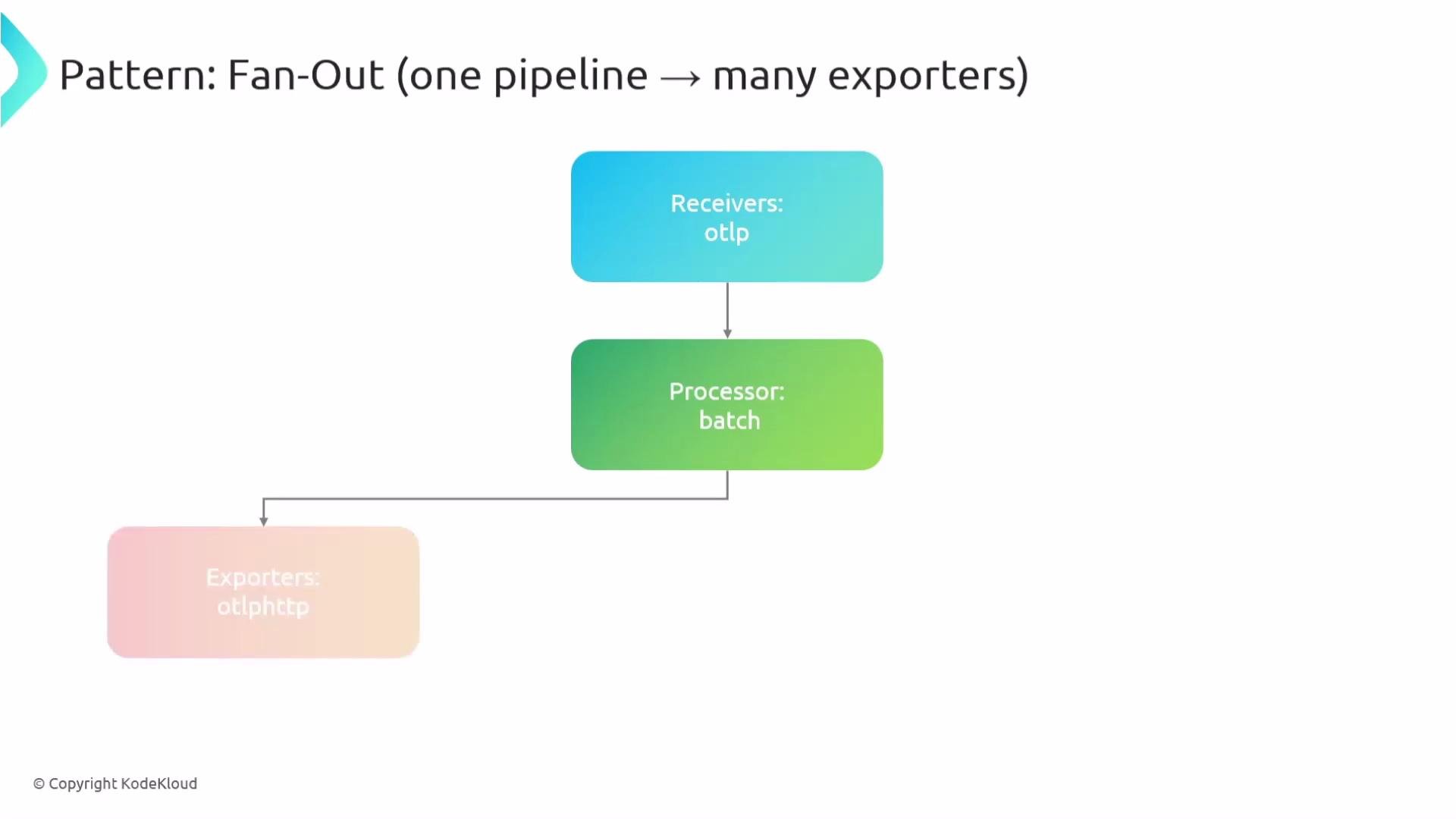

The image depicts a "Fan-Out" pattern workflow, showing a data flow from a "Receivers: otlp" component to a "Processor: batch," and then branching out to "Exporters: otlphttp."

Example — fan-out to multiple backends:

service:
  pipelines:
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp, kafka/audit, prometheusremotewrite/edge] # fan-out

Fan-in: multiple receivers into a single pipeline

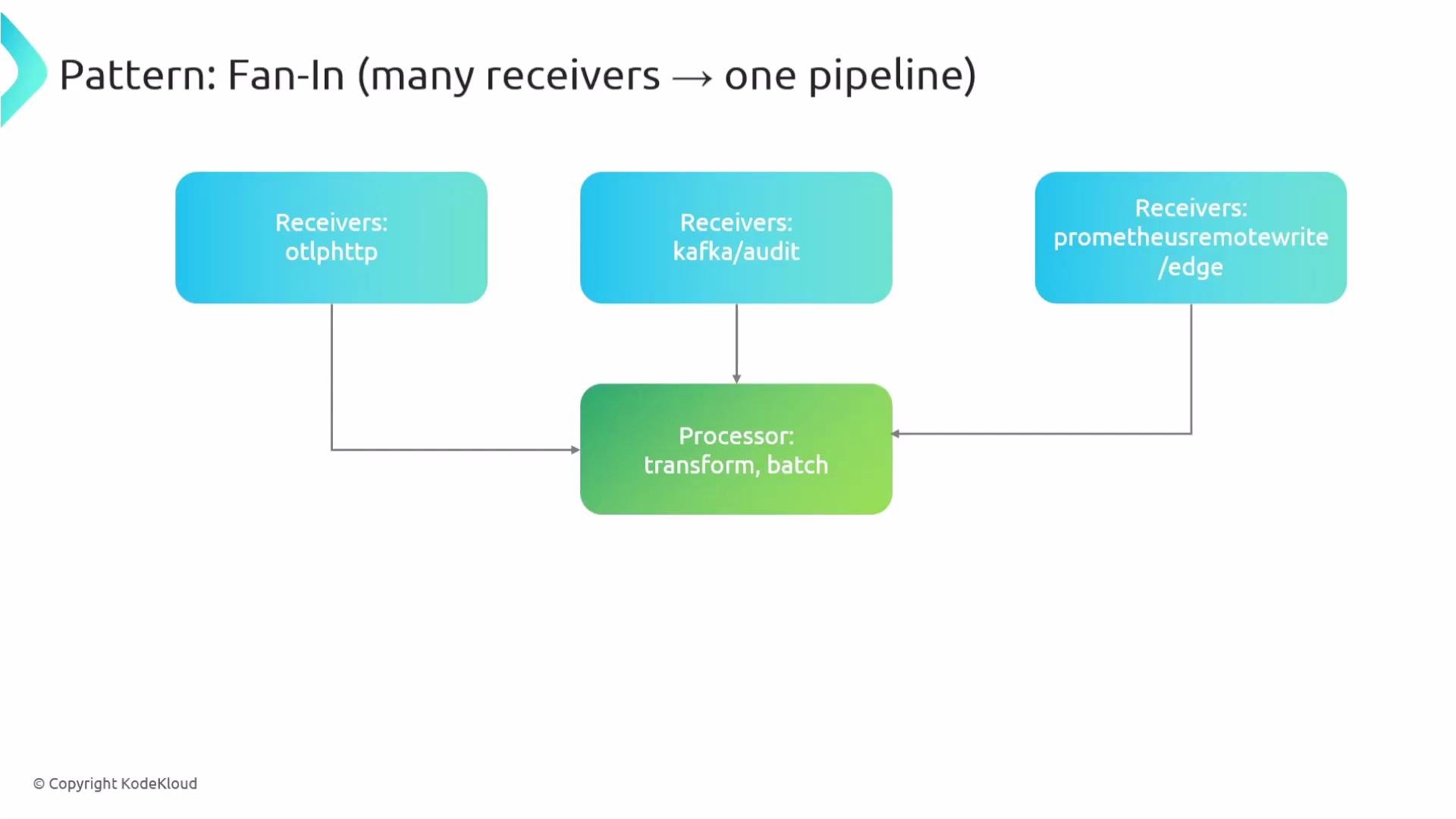

The image illustrates a "Fan-In" pattern with multiple receivers feeding into one pipeline through a processor that handles transformation and batching.

Example — fan-in to normalize and forward metrics:

service:
  pipelines:
    metrics:
      receivers: [otlp, prometheus, hostmetrics]
      processors: [transform, batch]
      exporters: [prometheusremotewrite/edge]

Multi-pipeline scenarios (prod/dev split)

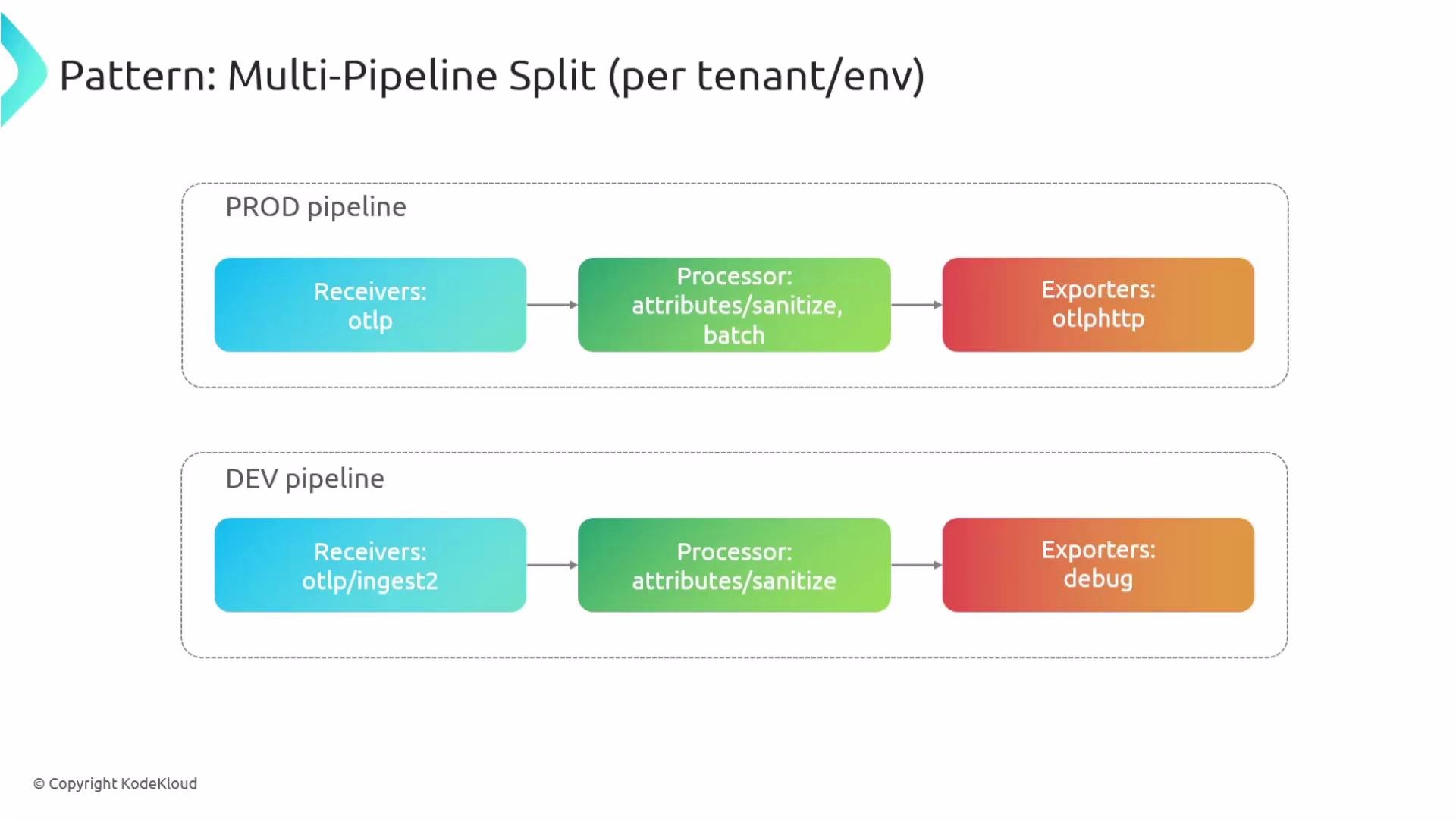

The image illustrates a pattern for a multi-pipeline split with separate configurations for a PROD and DEV environment, showing the flow from receivers to processors to exporters in each pipeline.

You can run multiple pipelines for the same signal (e.g., traces/prod and traces/dev) with different receivers/processors/exporters:

service:
  pipelines:
    traces/prod:
      receivers: [otlp]
      processors: [attributes/sanitize, batch]
      exporters: [otlphttp]

    traces/dev:
      receivers: [otlp/ingest2]
      processors: [attributes/sanitize]
      exporters: [debug] # local inspection

Blue/green pipeline pattern — safe testing of new processors

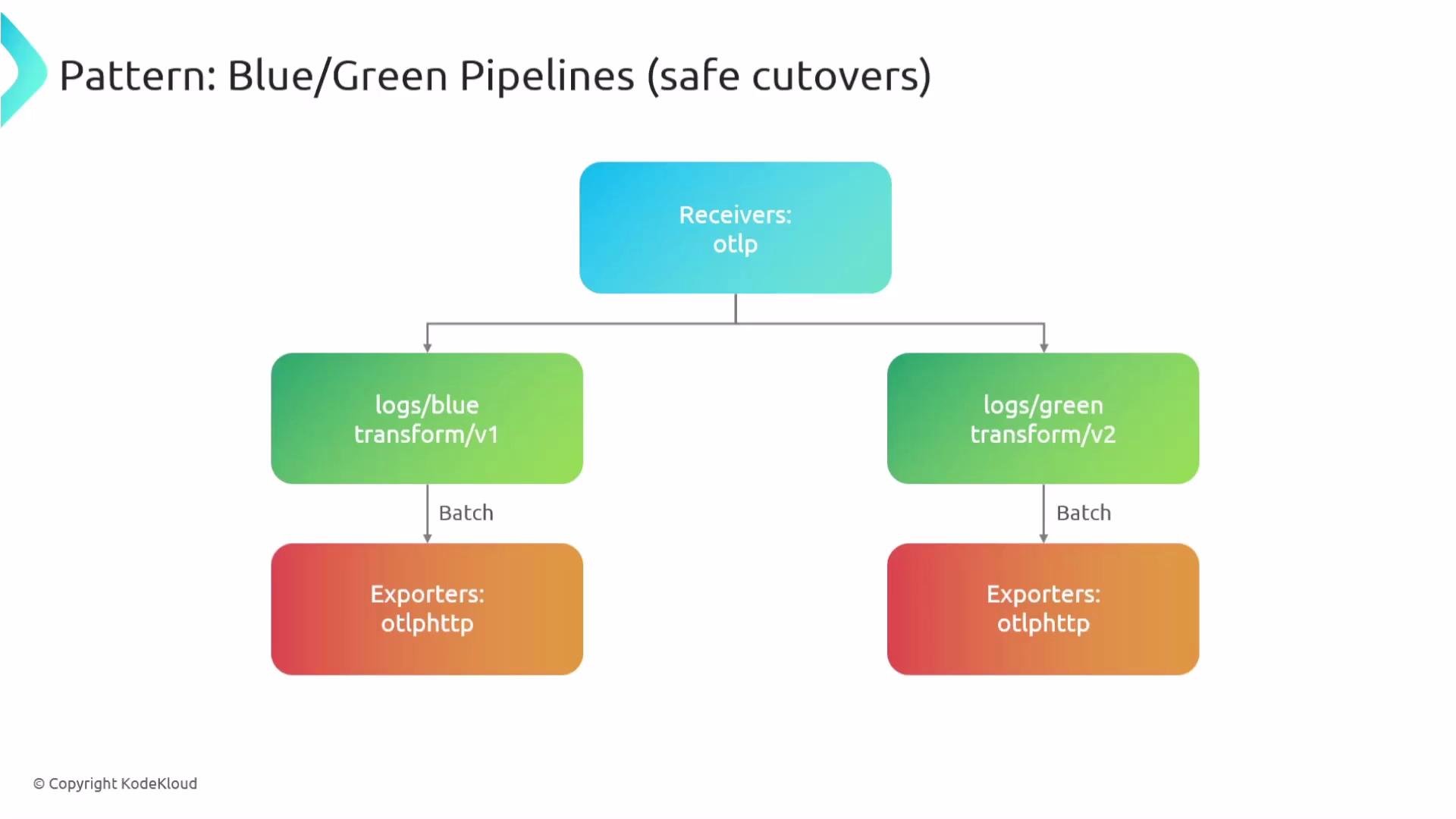

The image depicts a diagram of a Blue/Green pipeline pattern for safe cutovers, showing a flow from "Receivers: otlp" to two branches labeled "logs/blue transform/v1" and "logs/green transform/v2" with respective export sections.

Blue/green lets you test a new transform chain in parallel with the current pipeline:

service:
  pipelines:
    logs/blue:
      receivers: [otlp]
      processors: [transform/v1, batch]
      exporters: [otlphttp]

    logs/green:
      receivers: [otlp]
      processors: [transform/v2, batch]
      exporters: [otlphttp]
# Flip upstream routing or switch receiver instances when ready

If both blue and green pipelines are active and receive the same input, you will produce duplicate telemetry at the destination(s). Use routing rules or switch receivers to avoid duplication during cutover.

Common failure modes and quick fixes

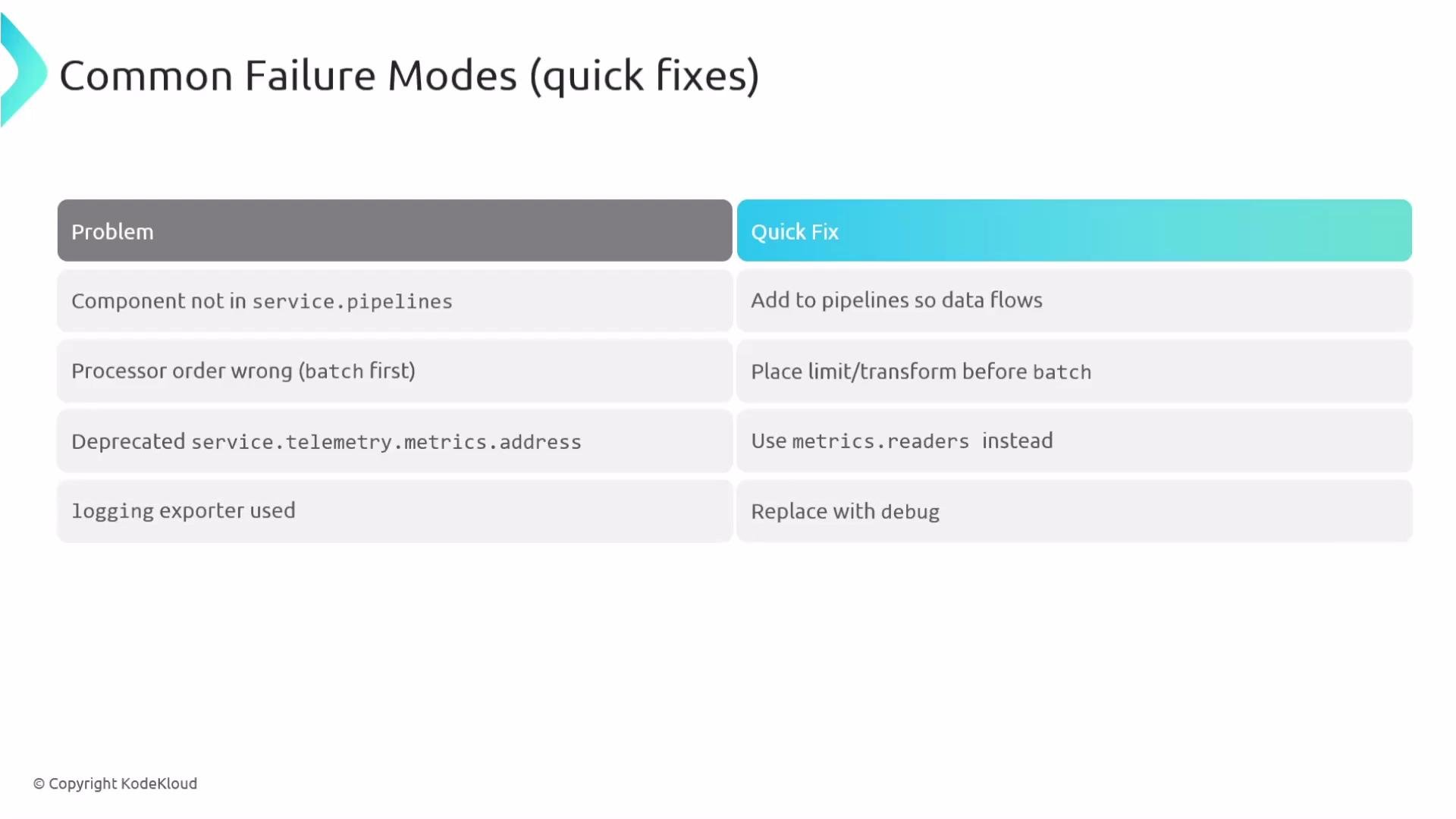

The image shows a table titled "Common Failure Modes (quick fixes)" listing problems and their corresponding quick fixes. It includes issues like component pipeline errors and deprecated addresses, along with suggested solutions.

Table: common problems and remedies

Problem	Quick fix
Component not active	Ensure the instance name is referenced in `service.pipelines`.
Processor order incorrect	Run normalizers/limiters before `batch` (e.g., `memory_limiter` before `batch`).
Deprecated metrics address in config	Replace with `telemetry.metrics.readers`.
Debug/logging exporters in prod	Remove or replace with production exporters; keep `debug` for troubleshooting only.
Port conflicts	Assign unique host/port values for Prometheus receivers or internal metrics endpoints.
Configuration errors	Validate config with `otelcol --config config.yaml --validate` (or your distribution’s validation command).

Extensions — runtime features (not part of pipelines) Extensions are long-running features that support the Collector runtime but do not process telemetry within pipelines. Common use cases include Kubernetes health endpoints, runtime profiling, and durable local storage for queues.

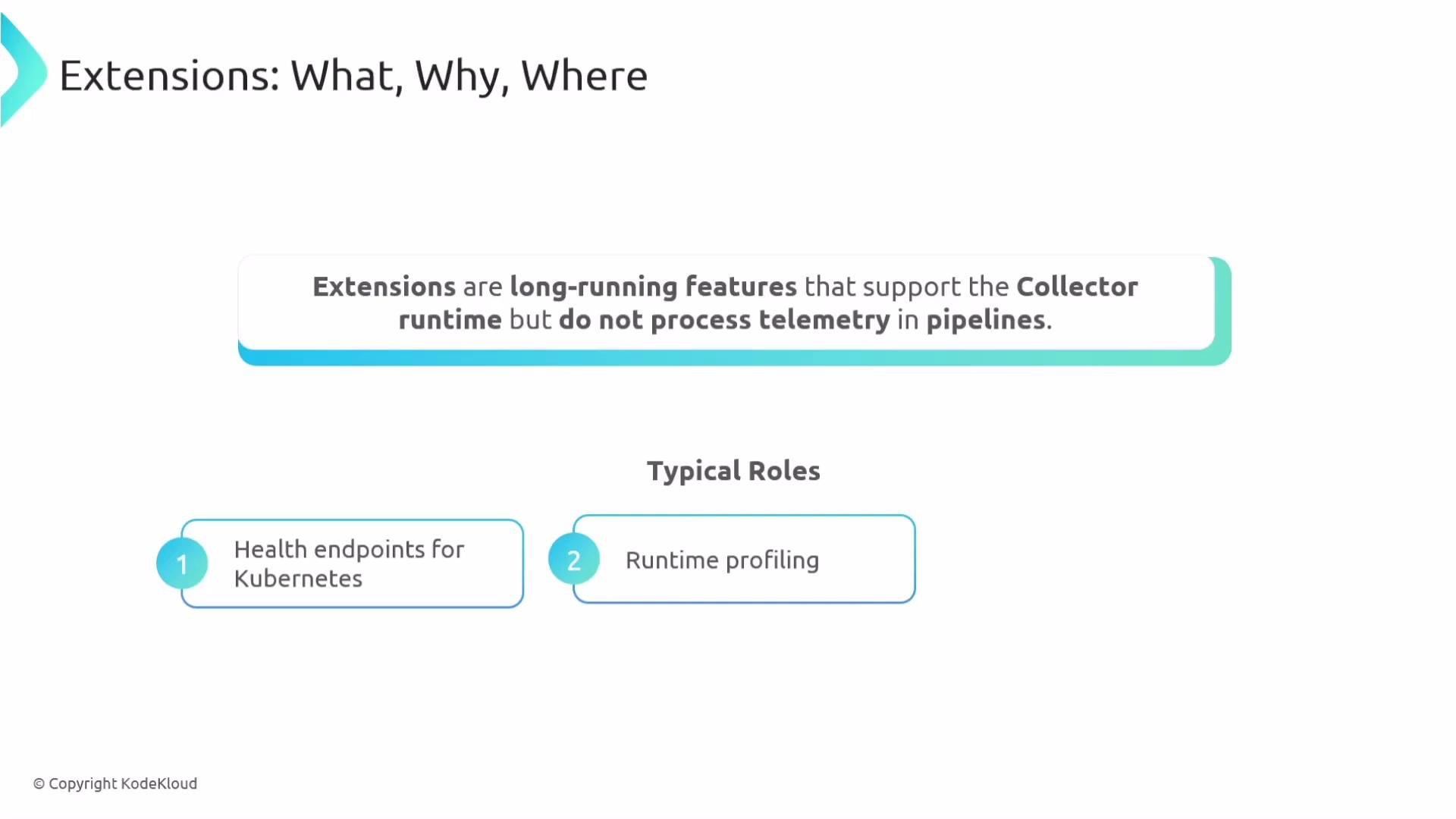

The image explains the role of "Extensions" as long-running features supporting the Collector runtime but not processing telemetry in pipelines, with typical roles including health endpoints for Kubernetes and runtime profiling.

Example: enabling extensions and referencing them in service.extensions:

extensions:
  health_check:
    endpoint: 0.0.0.0:13133   # liveness/readiness probe
  pprof:
    endpoint: 0.0.0.0:1777     # CPU/heap profiling
  file_storage:
    directory: /var/lib/otelcol/file_storage

service:
  extensions: [health_check, pprof, file_storage]
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

Durable sending queues with file storage

If an exporter uses retries and a sending queue, bind the queue storage to a file_storage extension so telemetry is persisted locally while the backend is unavailable:

extensions:
  file_storage:
    directory: /var/lib/otelcol/file_storage

exporters:
  otlphttp:
    endpoint: https://vendorname.example.com:4318
    retry_on_failure:
      enabled: true
      max_elapsed_time: 10m
    sending_queue:
      queue_size: 5000
      storage: file_storage # ties the exporter queue to the file_storage extension

service:
  extensions: [file_storage]
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

Health checks

When health_check is enabled and added to service.extensions, the Collector exposes a health endpoint (useful for Kubernetes liveness/readiness probes) on the configured port (example: 13133).

Recap — actionable rules to remember

The image contains a list of five exam tips and a recap with colorful numbered icons. The tips cover topics like service, processors, fan-out, debugging, and internal telemetry.

The service section is mandatory: unreferenced components are ignored.
Processor execution order is left-to-right — put limiters/normalizers before batch.
Fan-out: a pipeline can export the same data to multiple destinations.
Fan-in: multiple receivers can feed a single normalized pipeline.
Use debug or logging exporters only for troubleshooting; avoid in production.
Use telemetry.metrics.readers to expose internal metrics (Prometheus pull or periodic pushes).
Validate configuration before starting the Collector and use internal metrics/debug exporter to analyze behavior:
- otelcol --config config.yaml --validate

Links and references

OpenTelemetry Collector documentation: https://opentelemetry.io/docs/collector/
Prometheus: https://prometheus.io/
Kubernetes probes and readiness/liveness: https://kubernetes.io/docs/tasks/configure-pod-container/configure-liveness-readiness-startup-probes/

That’s it for the Collector’s service section and pipelines — use these patterns to design robust collection flows, avoid duplicates during cutovers, and ensure internal telemetry is observable.
