In this lesson we continue the Collector diagnostics journey by focusing on internal telemetry. Telemetry logs show activities across the Collector, while internal metrics reveal how each component is performing over time. The OpenTelemetry Collector exposes built-in telemetry (Prometheus format) and several debugging extensions for deeper inspection. Together, these signals provide a clear view of Collector health, performance, and where to investigate when things go wrong. Key diagnostic tools and endpoints:
  • Internal metrics (Prometheus format) for runtime visibility and alerting.
  • Health checks to confirm the Collector is up and ready.
  • zPages to inspect live traces, spans, and internal workings of receivers and exporters.
  • Performance profiler (pprof) for detailed CPU and memory profiling.
pprof is an advanced diagnostic tool used for deep performance investigations. It’s usually not necessary for routine troubleshooting.

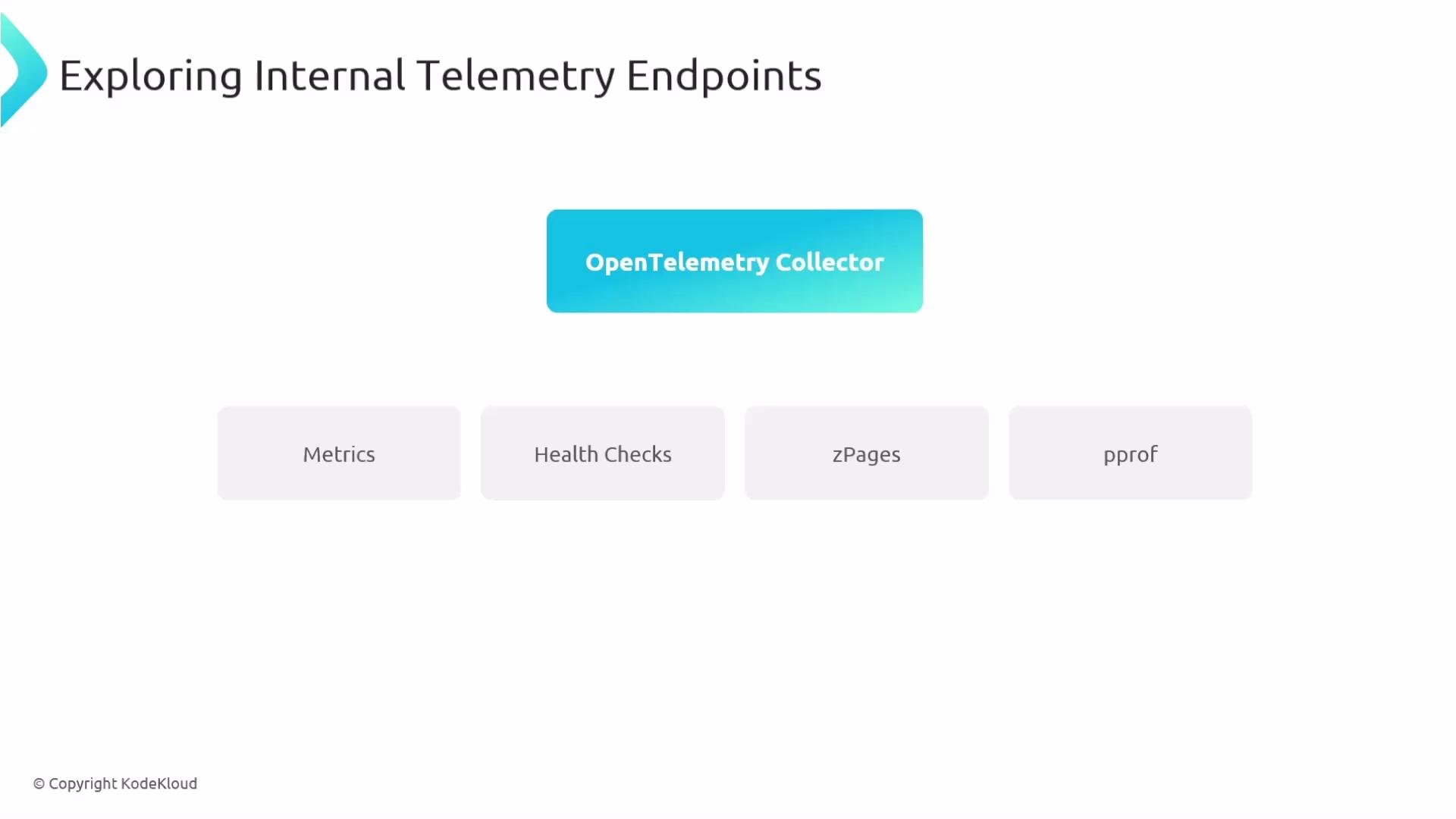

The image is a diagram titled "Exploring Internal Telemetry Endpoints," featuring the "OpenTelemetry Collector" and various components like Metrics, Health Checks, zPages, and pprof.
Why these endpoints matter
  • Metrics let you quantify throughput, error rates, drops, and resource pressure.
  • Health checks give a quick boolean of liveness/readiness.
  • zPages provide an interactive look at pipeline internals without stopping the Collector.
  • pprof helps find hotspots, memory leaks, and expensive code paths.
Tool summary
Diagnostic toolPurposeWhere to learn more
Internal metrics (Prometheus)Monitor pipeline throughput, failures, queue sizes, resource usagePrometheus
Health checksLiveness/readiness probes for orchestration platformsCollector docs
zPagesLive inspection of receivers/exporters and internal spanszPages extension
pprofCPU/memory profiling for deep performance analysisnet/http/pprof docs
Important: Do not expose Collector telemetry endpoints (metrics, pprof, zPages, health) to the public internet. Restrict access with network controls, authentication, or internal-only interfaces.
How the Collector exposes internal metrics By default many Collector setups expose internal metrics on port 8888 via a Prometheus pull-style reader. Example telemetry configuration:
You can change the port or binding as needed to fit your deployment model. The metrics are available at http://<collector-host>:8888/metrics (or the host/port you configure). What these metrics reveal Internal metrics provide insights into:
  • Pipeline health and stability
  • Throughput for receivers, processors, and exporters
  • Performance hotspots and bottlenecks
  • Backpressure and queue growth indicating possible drops
  • Resource pressure (CPU, memory) and potential leaks
  • Which components are loaded and their versions (metadata)

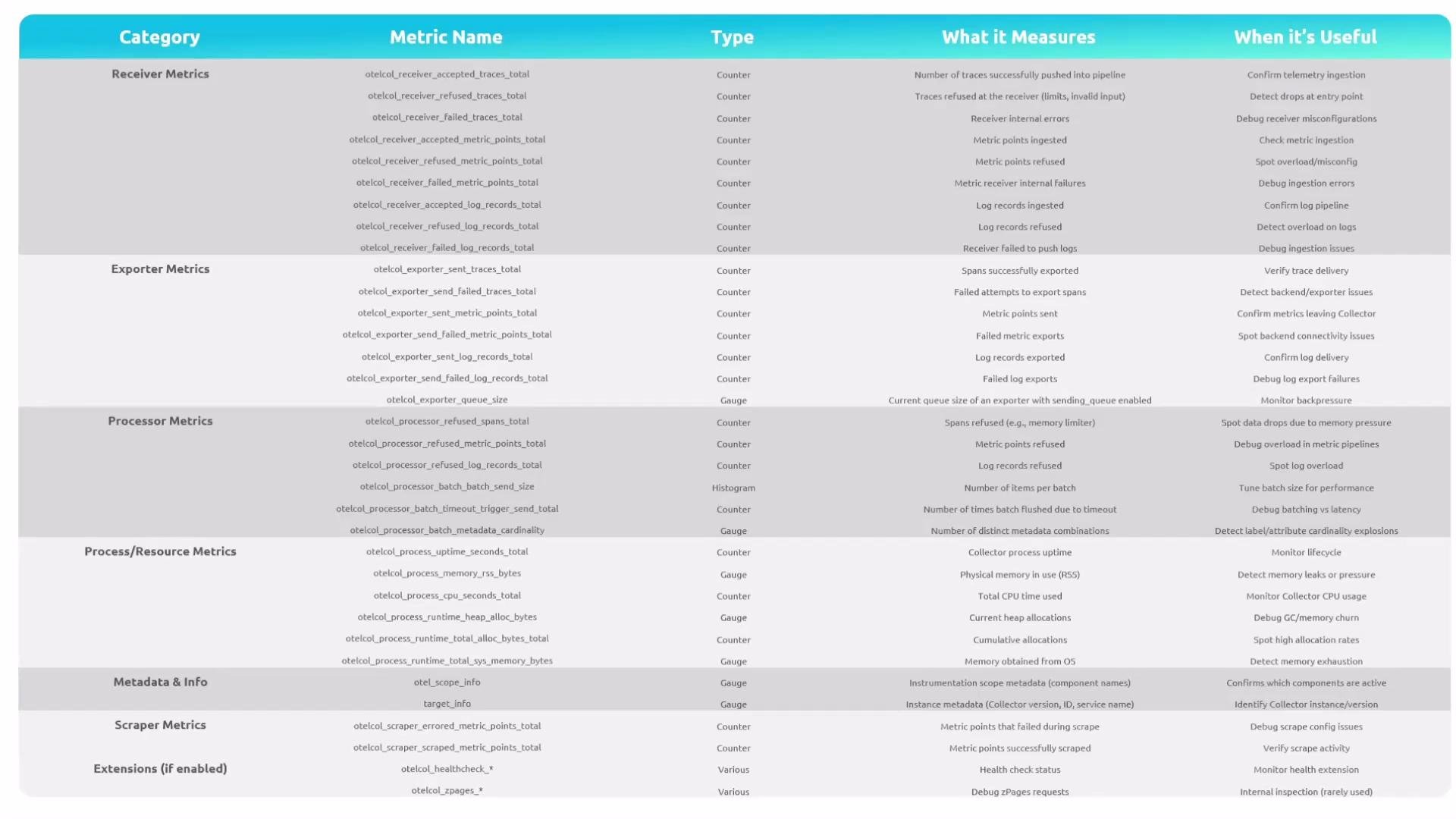

The image is a table listing various metrics related to telemetry, organized into categories such as Receiver, Exporter, Processor, and Process/Resource Metrics. It details metric names, types, descriptions of what they measure, and when they are useful.
Naming pattern overview Metrics follow a consistent, readable pattern. Parse names logically rather than memorizing them.
  • Prefix: otelcol_ — indicates the metric is from the OpenTelemetry Collector.
  • Component: receiver, exporter, processor, extension, etc.
  • Signal (optional): traces, metrics, logs.
  • Suffix: e.g., _total for counters, _bytes, _duration_seconds.
Common examples and what to look for
  • Receiver activity: otelcol_receiver_accepted_traces_total — incoming traffic accepted by receivers.
  • Refused/Rejected metrics: otelcol_receiver_refused_traces_total — indicates drops due to limits or malformed inputs.
  • Exporter success/failure: otelcol_exporter_sent_spans_total, otelcol_exporter_send_failed_spans_total — failures often mean connectivity/backend issues.
  • Queue/Buffer metrics: queue size growth suggests backpressure or downstream slowness.
  • Processor metrics: batch sizes and timeout metrics help tune throughput vs. latency.
  • Process/resource metrics: CPU, memory, heap allocations (process_cpu_seconds_total, memory-related metrics) show resource pressure.
  • Metadata metrics: otel_scope_info and similar indicate active components and versions.

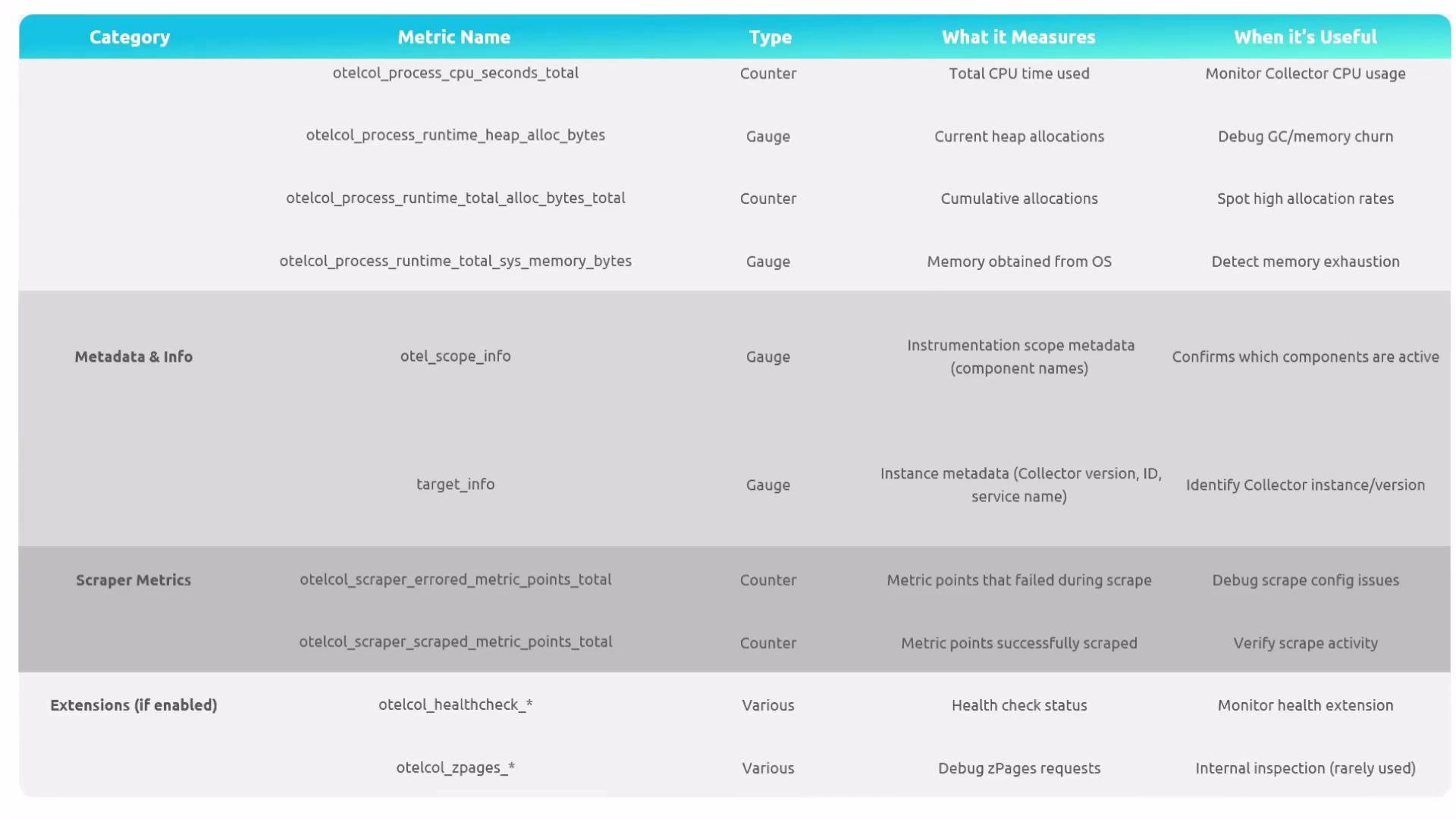

The image is a table listing OpenTelemetry metrics with categories, metric names, types, descriptions of what they measure, and their use cases.
Example: Prometheus-format metrics output Here is a sample of metrics as exposed by the Collector (available at http://<collector-host>:8888/metrics when using the example config above):
Scraping and forward-ing
  • Scrape with Prometheus or any compatible scrape-based monitoring system.
  • The Collector can also ingest its own metrics and forward them to any supported backend for dashboards, alerts, and long-term analysis.
Troubleshooting approach (quick checklist)
  • Check receiver accepted/refused counters for ingestion issues.
  • Inspect exporter send failures to identify backend problems.
  • Monitor queue size and processor metrics for backpressure.
  • Correlate process CPU/memory metrics with spikes in refused or failed counts.
  • Use zPages for quick, live introspection; use pprof for deep performance profiling.
Quiz: which OpenTelemetry Collector metric indicates that the Collector is refusing new span data due to memory constraints?
  • A. Memory usage
  • B. Exported queue size
  • C. Rejected traces
  • D. otelcol_processor_refused_spans_total

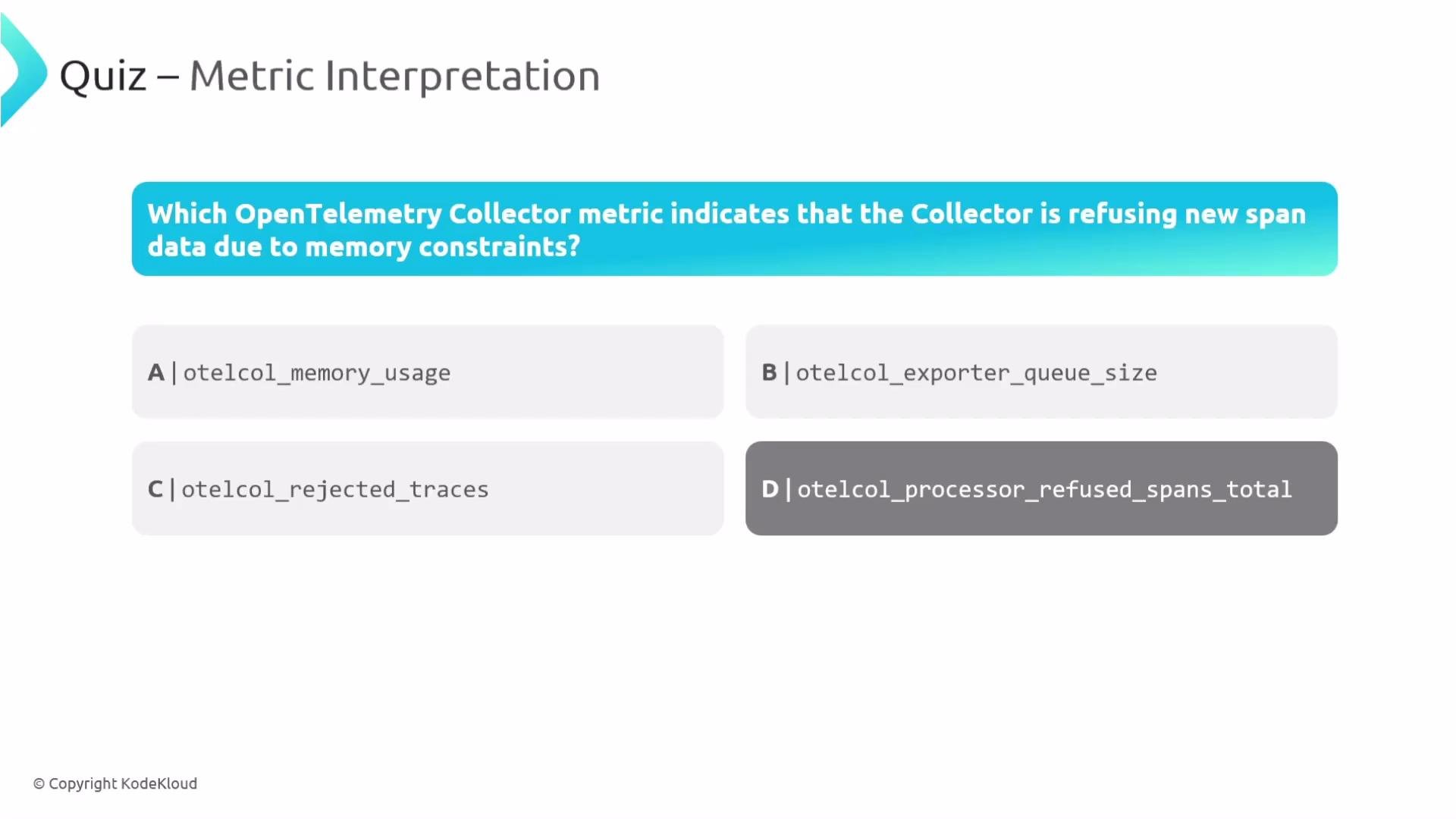

The image is a quiz question about identifying which OpenTelemetry Collector metric indicates span refusal due to memory constraints, with four answer options. Option D, "otelcol_processor_refused_spans_total," is highlighted.
Answer explanation
  • The phrasing “refusing new span data” maps directly to a refused-spans metric. The metric otelcol_processor_refused_spans_total explicitly records spans that were refused by a processor (for example, because of memory pressure or configured dropping rules). Parse metric names logically: component → action → signal.
Takeaway
  • Focus on the consistent naming pattern: otelcol_<component>_<action>_<signal>_<suffix>.
  • Use metrics to pinpoint where the problem lies (receivers, processors, exporters, or resource exhaustion) and then apply targeted debugging (zPages, logs, pprof) as needed.
