Demo OTel Col Attribute Processor

This guide demonstrates how to use the OpenTelemetry Collector attributes processor to add, modify, or remove attributes on telemetry (traces, metrics, logs). It includes a concise Collector configuration and a line-by-line explanation so you can apply attribute mutation rules (insert, upsert, delete, etc.) and wire the processor into pipelines correctly. See the OpenTelemetry Collector docs for more details: OpenTelemetry Collector.

Collector configuration

Below is a minimal Collector configuration that defines an attributes processor instance named attributes/add_env. The configuration also includes an OTLP receiver, the batch processor, a Jaeger OTLP exporter, and a debug exporter for local inspection.

receivers:
  otlp:
    protocols:
      http:
        endpoint: 0.0.0.0:4318

processors:
  batch:
    timeout: 15s
    send_batch_size: 512

  # An instance of the attributes processor named "add_env"
  attributes/add_env:
    actions:
      - key: deployment.environment
        value: production
        action: insert
      - key: service.region
        value: us-west-2
        action: upsert

exporters:
  otlp/jaeger:
    endpoint: http://jaeger:4317
    tls:
      insecure: true

  debug:
    # The debug exporter logs telemetry to the console for inspection
    loglevel: debug

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [attributes/add_env, batch]
      exporters: [debug, otlp/jaeger]
    metrics:
      receivers: [otlp]
      exporters: [debug]
    logs:
      receivers: [otlp]
      exporters: [debug]

What this configuration does

Receives OTLP/HTTP traffic on port 4318 (receivers.otlp.protocols.http.endpoint).
Runs an attributes processor instance named attributes/add_env that mutates attributes on telemetry.
Uses the batch processor to group telemetry before sending to exporters.
Exports traces to a Jaeger collector at http://jaeger:4317 via the otlp/jaeger exporter.
Sends telemetry to the debug exporter so you can view messages in the Collector logs while testing.

Why name the attributes instance `attributes/add_env`?

Naming the instance attributes/add_env lets you reference it in pipelines as attributes/add_env. The full processor type is attributes and add_env is the instance name.

Attributes actions explained

In the attributes/add_env processor we define two actions:

deployment.environment set to production with action: insert
- insert only adds the attribute if it does not already exist.
service.region set to us-west-2 with action: upsert
- upsert adds the attribute if missing and overwrites it if present.

Here’s a quick reference table of common actions for the attributes processor:

Action	Purpose	Example
`insert`	Add the attribute only if it does not already exist.	`deployment.environment=production`
`upsert`	Add the attribute if missing or overwrite if present.	`service.region=us-west-2`
`delete`	Remove the attribute if it exists.	`- key: foo action: delete`
`extract`	Extract values from existing attributes (e.g., regex capture) into a new attribute.	`- key: version action: extract`
`hash`	Replace attribute value with a hashed value (useful for PII).	`- key: user_id action: hash`
`update`	Update an attribute only if it already exists.	`- key: env action: update`

Processor execution order matters. Place processors in the sequence you want them applied. For example, if you want attributes added before batching (so they appear in the batched payload), list the attributes processor before the batch processor.

Choose the correct action type for your intent. Use insert to avoid overwriting existing values and upsert if you want to force a value. Misusing upsert can unintentionally overwrite source-provided attributes.

Processor order and pipeline behavior

Processors are executed in the order you list them in a pipeline. In the traces pipeline above:

attributes/add_env runs first — it mutates/sets attributes on each trace/span.
batch runs next — it groups the modified telemetry before exporting.

If you reversed the order, the batch processor would group traces before attributes are added, meaning the exported batches might not include your added attributes.

Verify in Jaeger

After restarting the Collector with this configuration and generating traces from your instrumented application, inspect traces in Jaeger. You should observe the added/modified attributes such as deployment.environment=production and service.region=us-west-2.

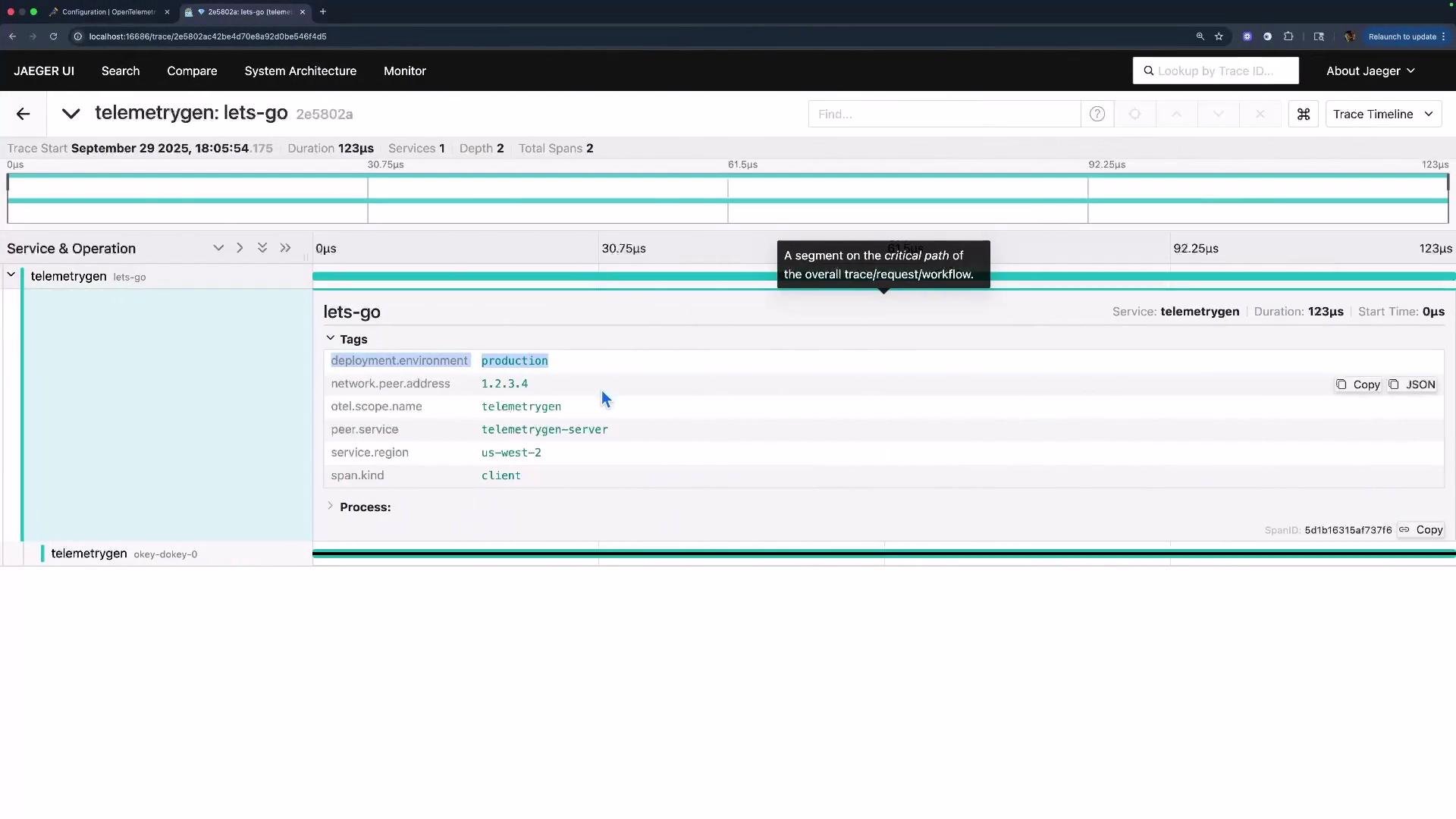

The image shows a user interface from Jaeger, a tracing system, displaying trace details for a service named "telemetrygen: lets-go," with information such as trace duration, deployment environment, and network peer address.

Additional resources

OpenTelemetry Collector documentation: https://opentelemetry.io/docs/collector/
Jaeger tracing: https://www.jaegertracing.io/

That’s the essentials: define an attributes processor instance, choose appropriate actions (insert vs upsert), and place the processor in the correct pipeline order so your mutations are applied when you expect them.
