This guide explains how to author and apply schema translation rules (YAML) to evolve telemetry across schema versions. Rules are organized by telemetry signal type to give you precise control over renames, additions, removals, splits, and filters. Use the examples below as templates for common transformations. Key sections (signal-focused):
  • all — global rules applied to every signal type
  • resources — resource-level attributes shared across signals
  • spans — span-level attributes (with optional span-name filters)
  • span_events — events that occur within spans (exceptions, logs)
  • metrics — metric names, metric attributes, and splitting metrics by attribute values
  • logs — log record attributes

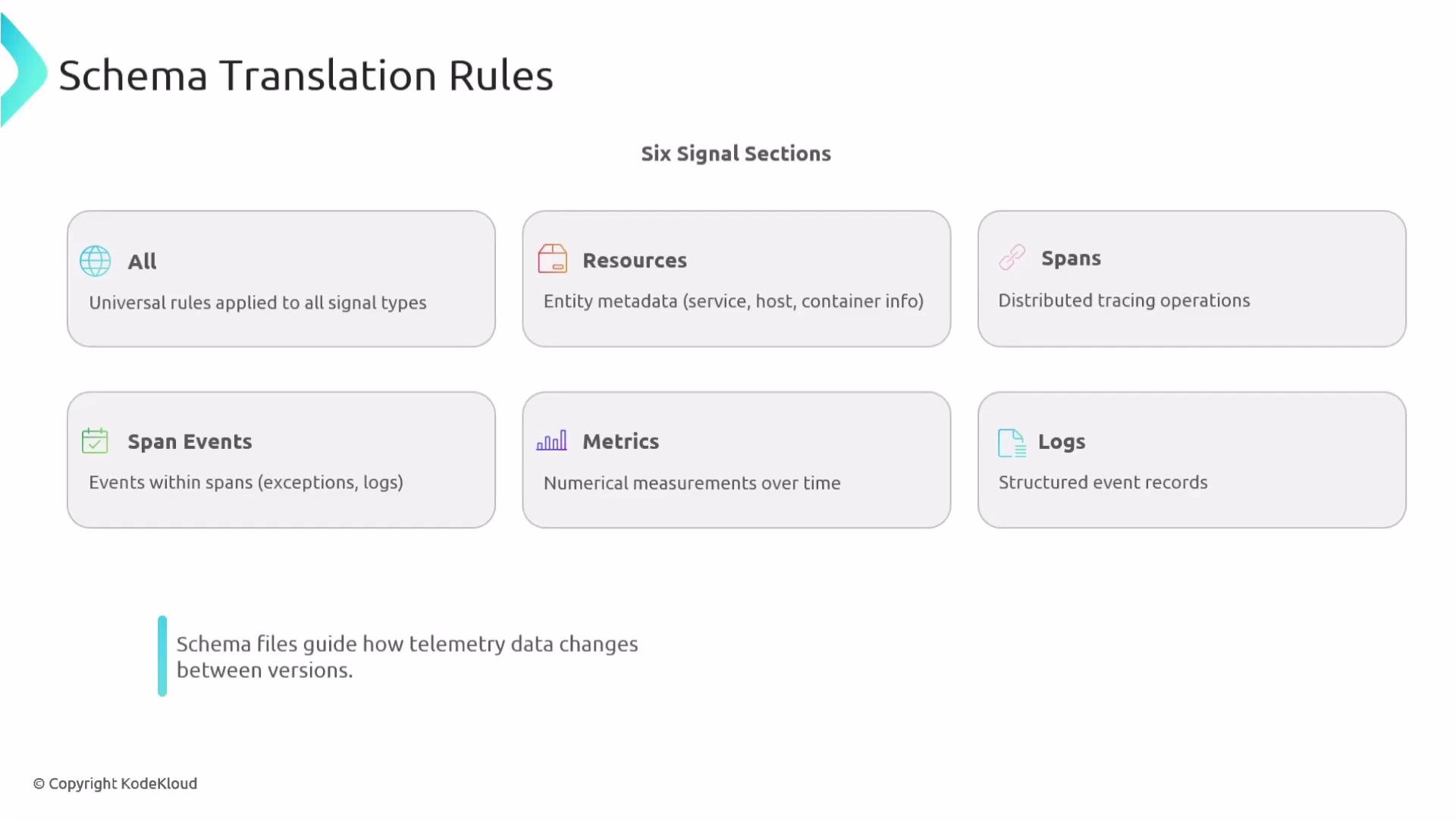

The image outlines "Schema Translation Rules" with six signal sections: All, Resources, Spans, Span Events, Metrics, and Logs, each with a brief description.
Schema translation rules live under version blocks. Each version contains signal-specific sections. Start with all for global normalizations, then add targeted rules per signal. Test changes in staging since transforms are applied in a fixed order and are often non-commutative.

​
Quick reference table

SectionPurposeCommon operations
allGlobal normalizations applied to every signalrename_attributes, add_attributes, remove_attributes
resourcesResource attributes (service, host, cloud)rename_attributes, add_attributes
spansSpan attributes and optional filtering by span namerename_attributes, remove_attributes, add_attributes
span_eventsEvents within spans (exceptions, logs)rename_events, rename_attributes, remove_attributes
metricsMetric names/attributes and splitting metrics by attribute valuesrename_metrics, rename_attributes, split
logsLog record attributesrename_attributes, remove_attributes, add_attributes

​
Execution order (important)

Transforms execute in this fixed sequence:
  1. all (applies to every signal type)
  2. Signal-specific sections:
    • spans runs before span_events
    • resources, metrics, and logs run after all and effectively in parallel relative to each other
Because all runs first, any subsequent transformations must reference attribute names as transformed by all.

​
all — Global transformations

Run once per version as a first pass for broad renames or normalizations that should apply to every signal (resources, spans, metrics, logs). Useful for standardizing vendor or SDK attribute names. Example: Global attribute renames

​
resources — Resource attribute rules

Use this section for attributes attached to resources (shared metadata across multiple signals). Typical uses include standardizing cloud or SDK-provided resource keys. Example: Resource attribute renames

​
spans — Span-level transformations

Span rules apply to attributes recorded on spans. You can scope operations to specific span names using apply_to_spans. If apply_to_spans is omitted, the change applies to all spans. Example: Rename span attributes (with optional span-name filter)

​
span_events — Events inside spans

Span events are timestamped records inside spans (exceptions, logs, custom events). Supported operations include renaming event names and renaming event attributes. Both apply_to_spans and apply_to_events can be used to scope a change; if omitted, changes apply broadly. Example span event JSON (a span with an exception event)
Example: Rename events and event attributes

​
metrics — Metric transformations and splitting

Metrics support renaming metric identifiers (rename_metrics), renaming metric attributes (rename_attributes with apply_to_metrics filter), and splitting a metric into multiple metrics based on an attribute (split). Example: Rename metric names and metric attributes
Example: Split a metric by an attribute value
Using split transforms a metric with an attribute (e.g., direction=in) into separate metrics (e.g., system.paging.operations.in), simplifying queries and aggregation.

​
logs — Log record attribute rules

Target log record attributes only. Common uses: standardizing executable names, severity fields, and message/body fields. Example: Rename log attributes

​
Ordering pitfalls and best practices

Transforms are not generally commutative. Renaming or removing an attribute that a later transform depends on (for example, a split by that attribute) will break the later transform. Always reason about dependencies and ordering when composing changes.
Order matters: if you rename or remove an attribute that a later transform depends on (for example split), the later transform will fail because the attribute is missing. Apply split (or other operations that depend on original attributes) before renames that remove or change those attributes.
Problem example (incorrect order — direction renamed before split)
Correct approach: perform split (or other dependent transforms) while the original attribute exists, then rename or remove attributes afterwards.

​
Upgrading schema versions

  • Apply schema upgrades sequentially (for example: 1.0 → 1.1 → 1.2). Do not skip intermediate versions.
  • Many transforms depend on prior state; apply each version’s rules in order to guarantee reproducibility.
  • When refactoring a large set of attributes, consider a multi-step upgrade plan:
    1. Add new attributes or split metrics without removing originals.
    2. Migrate consumers (dashboards, alerts) to new names.
    3. Remove old attributes in a subsequent version.

​
Summary / Checklist

  • Use all for global, first-pass normalizations.
  • Use signal-specific sections to refine or add targeted transformations.
  • Scope changes with apply_to_spans, apply_to_metrics, and apply_to_events.
  • Remember fixed execution order: all → signal sections (spans before span_events).
  • Apply schema upgrades sequentially and test each version in staging.
Further reading:
