All right, payload packers — it’s time to serialize some data. This article explains OTLP (OpenTelemetry Protocol): what it is, why it exists, how telemetry is structured, and how it is transported. OTLP is the standard OpenTelemetry uses to send telemetry data. It provides a common language so services, agents, collectors, and backends can interoperate without vendor-specific exporters or formats. Historically, telemetry instrumentation was fragmented. Each backend shipped its own agent and used its own data format. Teams needed different exporters and libraries to send traces, metrics, and logs to Prometheus, Jaeger, Zipkin, or commercial platforms — creating vendor lock-in, inconsistent instrumentation, and extra operational burden.

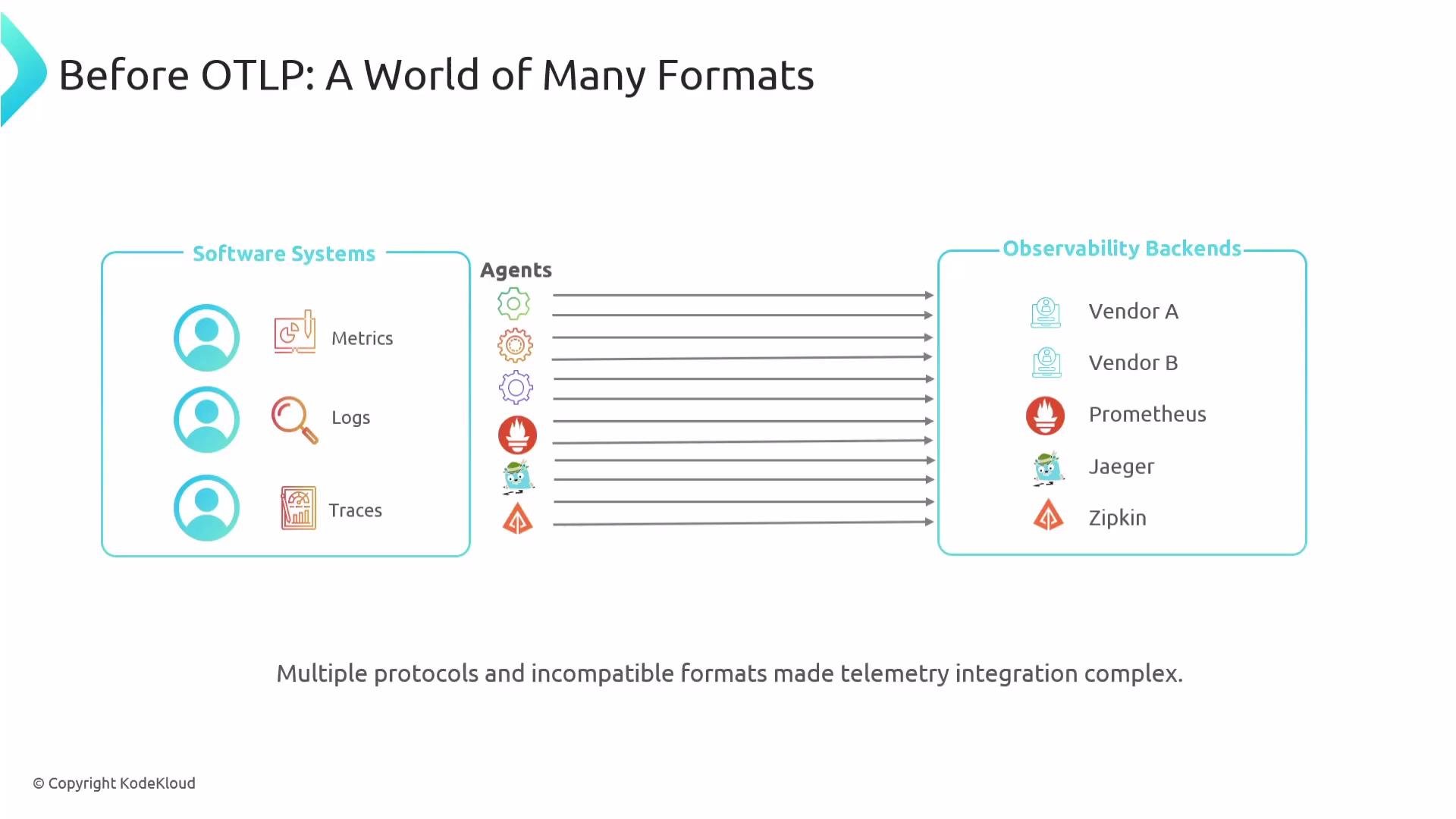

The image illustrates a complex setup with various software systems, agents, and observability backends, highlighting the challenges in telemetry integration due to multiple protocols and formats.
Why OTLP matters
  • Reduces duplicate exporters and agents.
  • Standardizes telemetry signals (traces, metrics, logs).
  • Decouples instrumentation from destination choices using a neutral wire format.
  • Enables the OpenTelemetry Collector to receive, process, and forward telemetry to any backend.
Before OTLP, different systems used different formats and transports:
  • Prometheus: text-based exposition format (moving toward OpenMetrics).
  • Jaeger: originally Apache Thrift (UDP), later gRPC + Protobuf.
  • Zipkin: Thrift and JSON.
  • OpenCensus: Protobuf-based wire format.
Collecting telemetry from multiple sources meant maintaining multiple exporters.

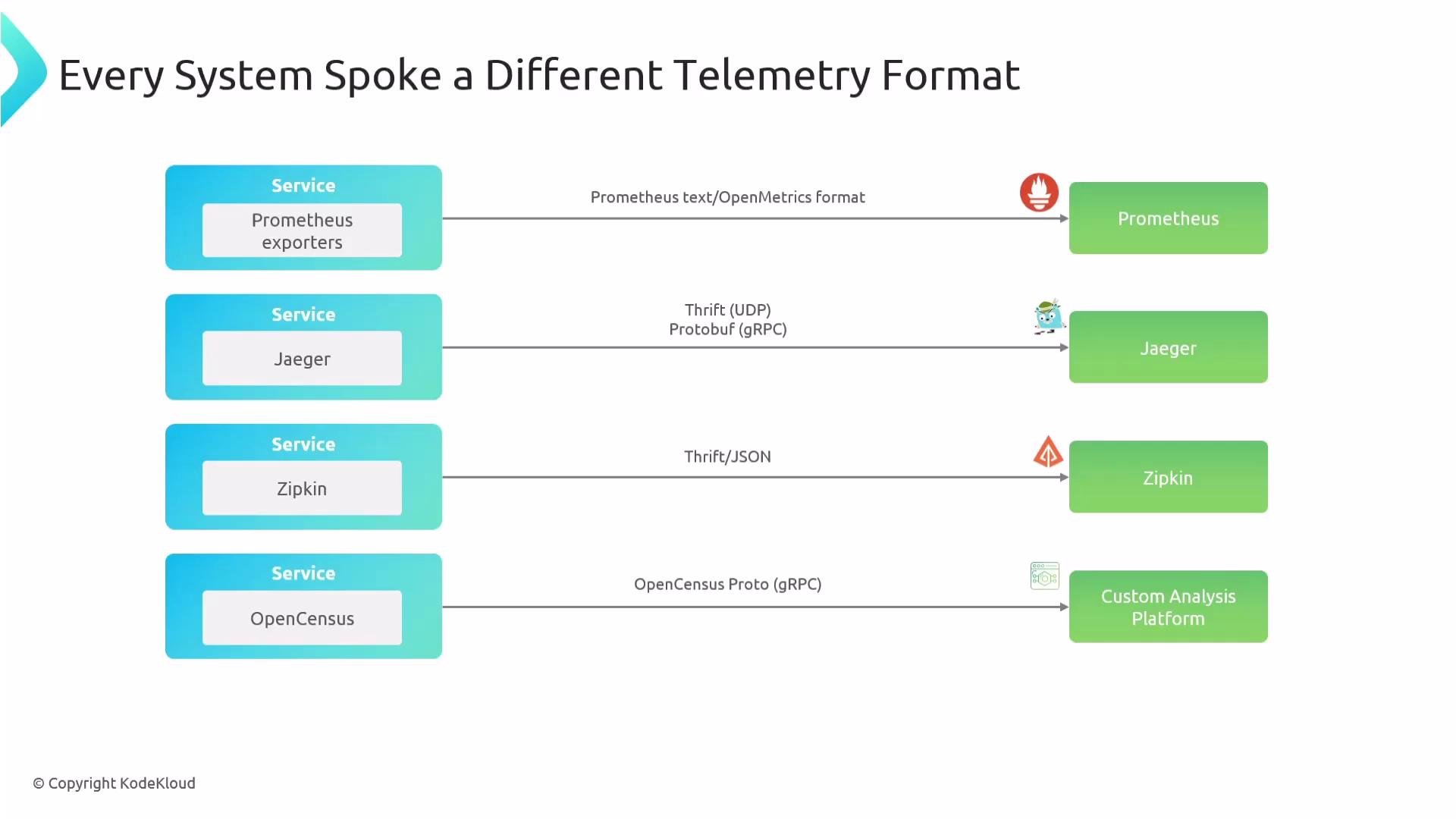

The image illustrates different telemetry formats used by various systems, including Prometheus, Jaeger, Zipkin, and OpenCensus, each communicating with their respective platforms using distinct protocols.
OTLP provides a vendor-neutral, signal-agnostic layer. SDKs and agents standardize telemetry into traces, metrics, and logs. The OpenTelemetry Collector can receive OTLP, process data (batching, filtering, enrichment), and export it to any backend, data lake, or custom platform.

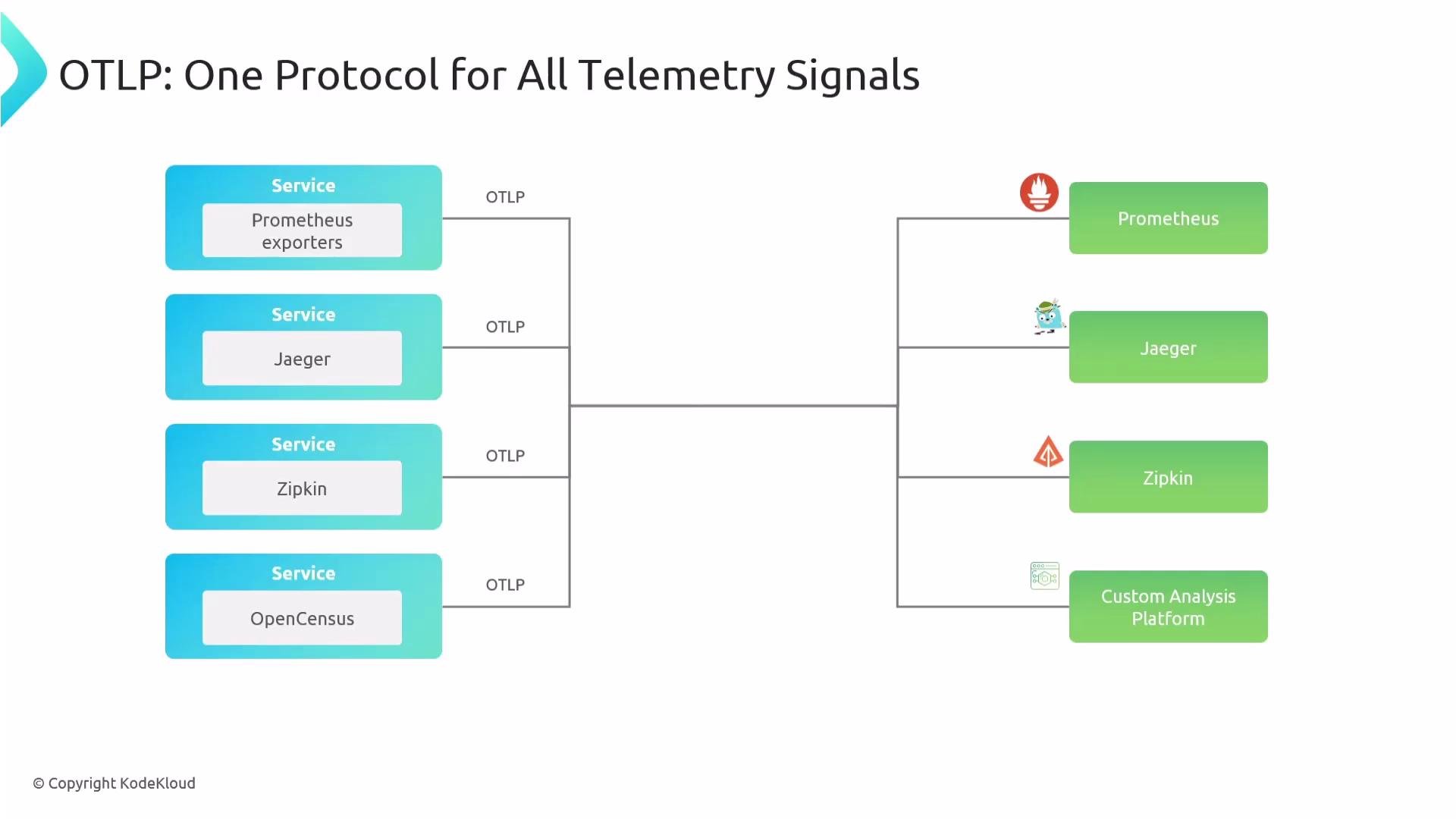

The image outlines the use of OTLP (OpenTelemetry Protocol) to unify telemetry signals from various services like Prometheus exporters, Jaeger, Zipkin, and OpenCensus to corresponding monitoring and analysis platforms.
What OTLP is
  • A wire protocol: defines how telemetry is structured and transmitted over the network (application-layer protocol).
  • A data model: trace, metric, and log message schemas encoded with Protocol Buffers (Protobuf).
  • A transport specification: commonly uses gRPC or HTTP, with defined compression, batching, and error-handling semantics.

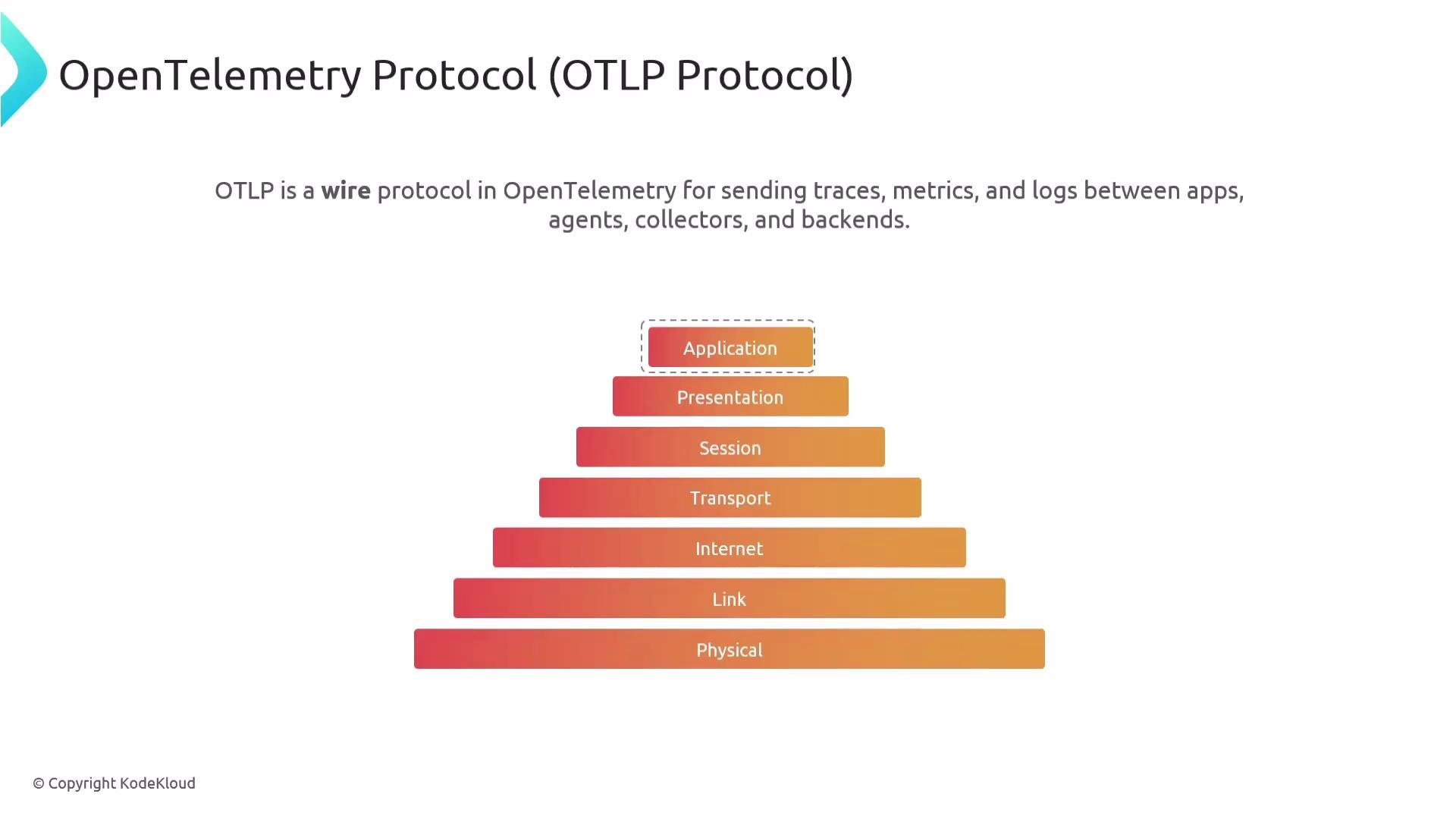

The image illustrates the OpenTelemetry Protocol (OTLP) and features a pyramid diagram depicting the OSI model layers from Physical to Application.
OTLP is signal-agnostic: the same structural approach applies to traces, metrics, and logs. Typical transports are gRPC (preferred) and HTTP (Protobuf over HTTP; some mappings support JSON).
Primary OpenTelemetry signals
  • Traces: spans representing operations and distributed request flows.
  • Metrics: numerical measurements like counters, gauges, and histograms.
  • Logs: timestamped event records with severity and structured fields.

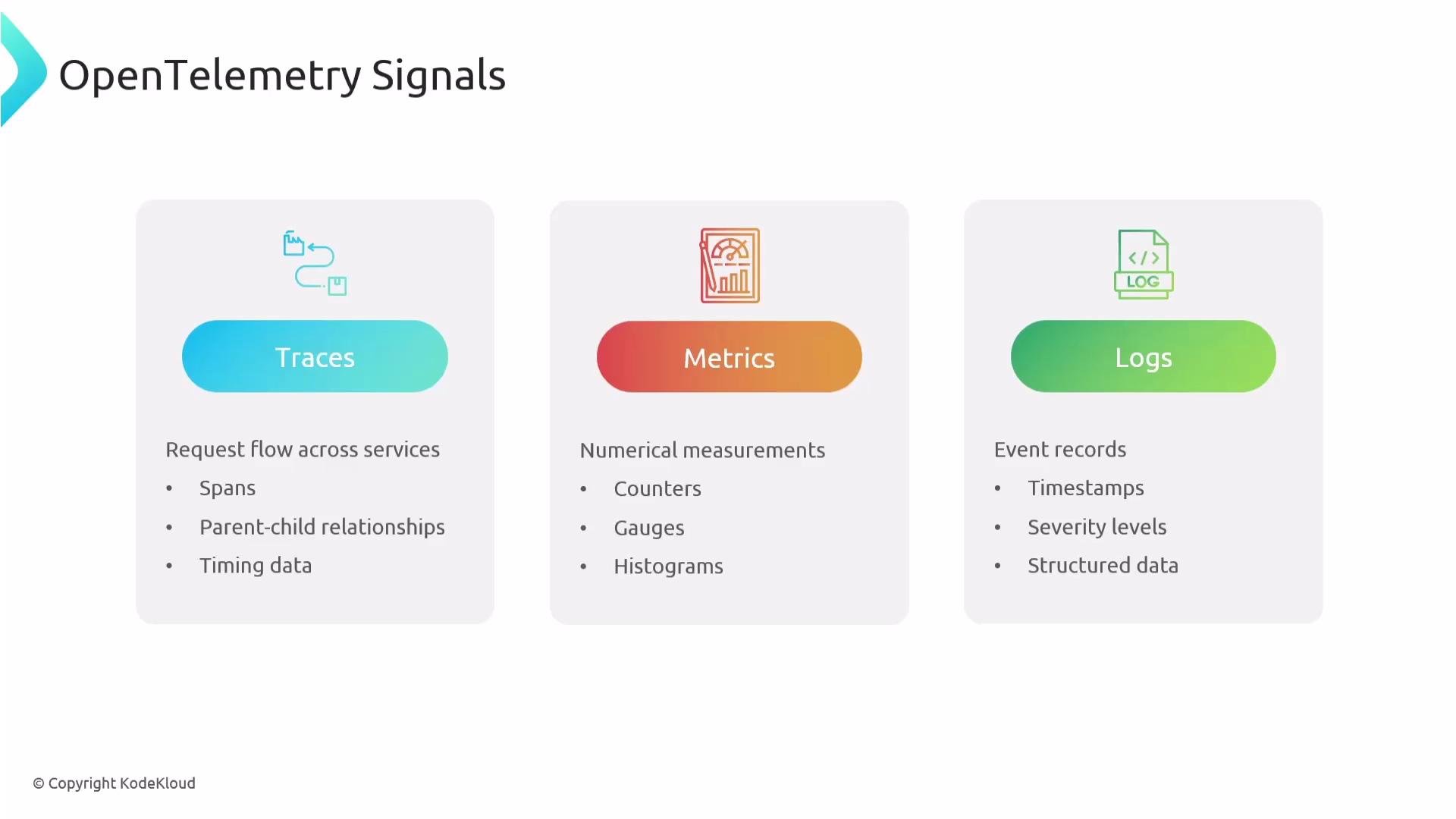

The image is an infographic titled "OpenTelemetry Signals," showcasing three categories: Traces, Metrics, and Logs, each with a brief description.
OTLP payload hierarchy Before transport, telemetry is organized into a consistent hierarchy so every record carries both the data and the context that produced it. The hierarchy is:
  1. Resource — describes the entity producing telemetry (service name, host, deployment, etc.).
  2. Instrumentation Scope — identifies the library or instrumentation (name + version) that generated the signal.
  3. Signal Data — the actual spans, metric points, or log records.
All OTLP payloads follow this structure so telemetry is self-describing and portable across backends. Resource attributes
  • Set at initialization (TracerProvider, MeterProvider) and treated as immutable for emitted telemetry.
  • Typical attributes: service.name, service.version, host.name, k8s.namespace.name, cloud metadata, etc.
Example resource attributes (YAML):
Instrumentation scope
  • Ties telemetry to the library or module that produced it (name + version).
  • Useful for slicing by library usage, finding regressions, or tracking adoption.

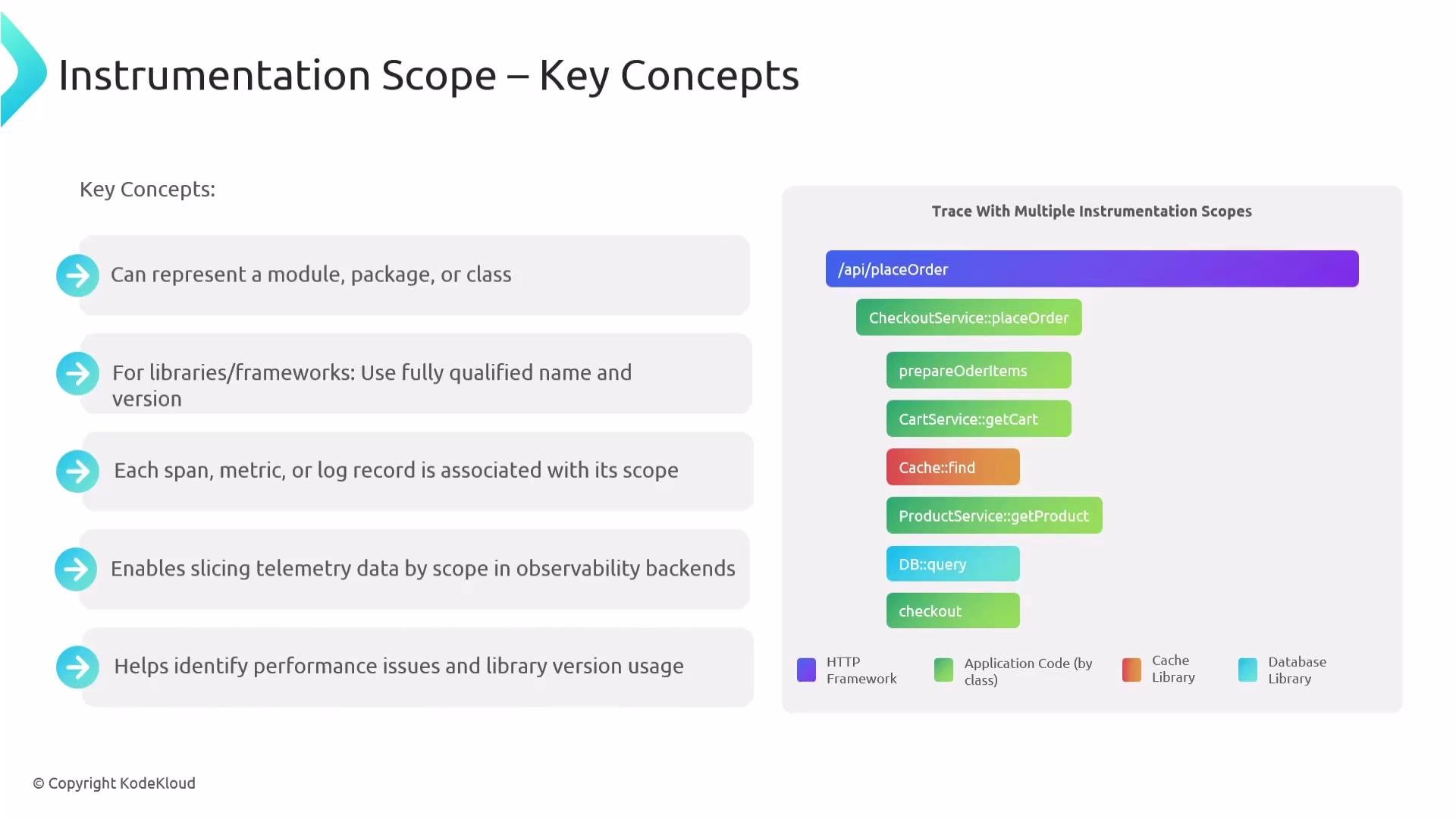

The image explains "Instrumentation Scope – Key Concepts," detailing how instrumentation can represent modules, packages, or classes, and shows a trace with multiple instrumentation scopes using a color-coded system for different components.
Instrumentation scope example (JSON):
Benefits of instrumentation scopes include easier attribution of telemetry to specific libraries, quicker root-cause analysis, and version-aware performance tracking.

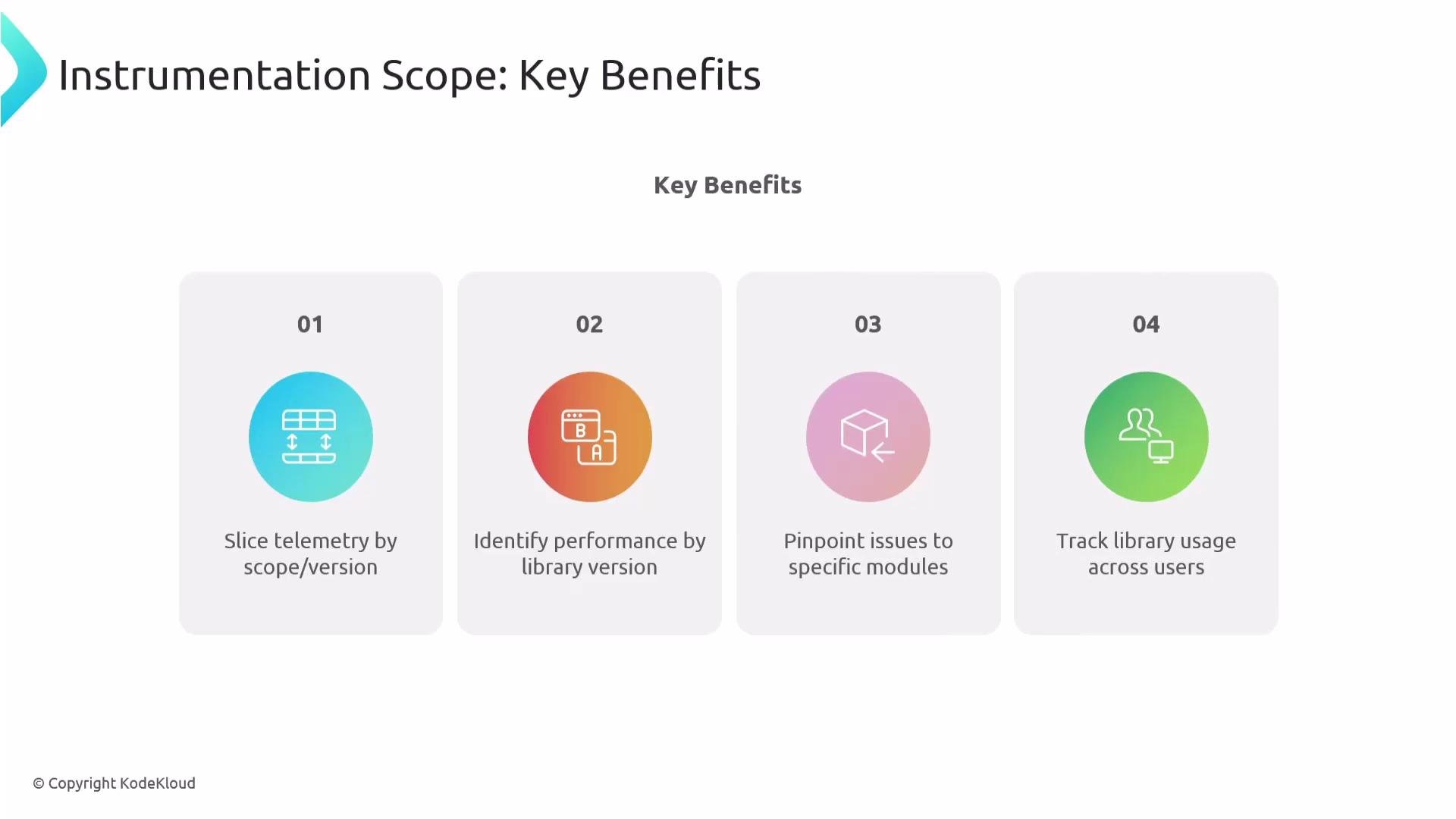

The image lists key benefits of instrumentation, including slicing telemetry by scope/version, identifying performance by library version, pinpointing issues to specific modules, and tracking library usage across users.
Signal data examples
  • Traces: collections of spans (traceId, spanId, timestamps, kind, attributes, events).
  • Metrics: data points with timestamps, values, and aggregation metadata.
  • Logs: structured log records with severity, timestamp, and attributes.
Example span (JSON):
Complete OTLP payloads combine resource, scope, and signal data in nested structures so each emitted record carries both who produced it and what was produced.

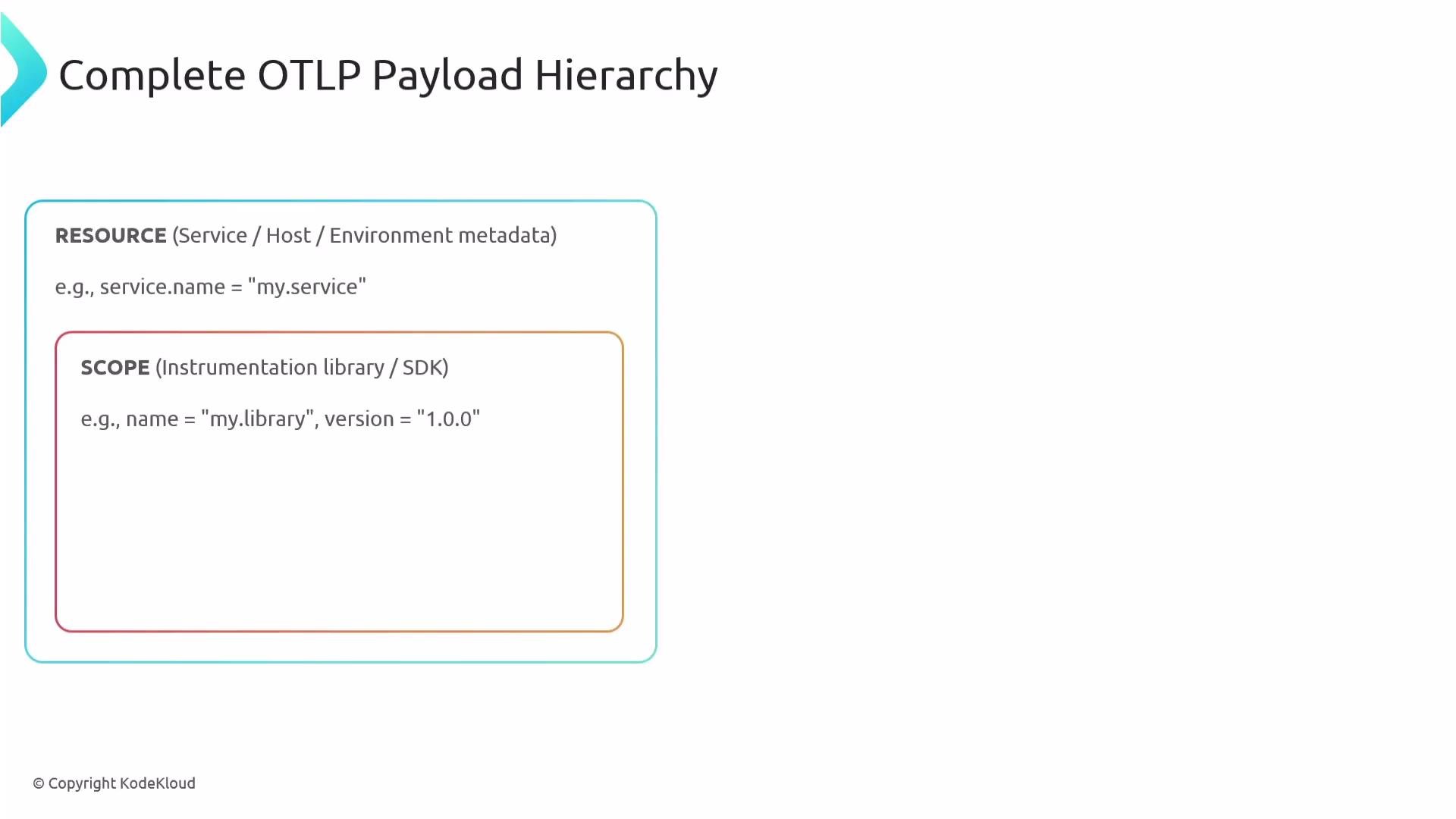

The image illustrates the "Complete OTLP Payload Hierarchy," showing a hierarchy with "Resource" and "Scope" including examples of service and library name formats.
Example OTLP payload rendered in JSON (simplified):
Serialization and transport
  • OTLP structures are compiled to Protobuf messages and serialized into compact binary form.
  • Protobuf yields smaller payloads and faster parsing than text formats.
  • Protobuf supports schema evolution: new optional fields can be added without breaking older clients (unknown fields are ignored).
Example (hex view of a small Protobuf-serialized payload fragment):
Comparison: common OTLP transports
TransportTypical EncodingUse Cases
gRPCProtobuf (binary)Preferred for high-throughput, low-latency telemetry (supports streaming, deadlines, and built-in compression).
HTTPProtobuf over HTTP (or JSON in some mappings)Simpler setups, easier to route through HTTP infrastructure or when gRPC is not available.
Best practices
  • Prefer gRPC for production telemetry if your stack supports it.
  • Attach stable resource attributes (service.name, service.version) at startup to ensure consistent attribution.
  • Use the OpenTelemetry Collector to centralize processing (batching, sampling, enrichment) and flexible export to backends.
  • Instrumentation scopes help identify problematic libraries and track upgrades or regressions.
When designing telemetry pipelines, avoid embedding volatile identifiers (like pod names) as the only way to identify a service — rely on stable resource attributes (e.g., service.name) and add volatile metadata separately if needed.
Summary OTLP is a signal-agnostic, Protobuf-based wire protocol that standardizes how traces, metrics, and logs are represented and transported. By combining resource attributes, instrumentation scope, and signal data into a nested, self-describing payload, OTLP makes telemetry portable and interoperable across instrumentation, collectors, and backends. Use the OpenTelemetry Collector and OTLP to decouple your instrumentation from vendor-specific formats and to build a flexible observability pipeline.
