This lesson explains Span Kind — the semantic classification that tells tracing systems what role a span plays in a distributed trace (is it making a request, handling one, or processing a message?). Correct span kinds give observability tools the context they need to link spans, build dependency graphs, and surface meaningful service relationships.

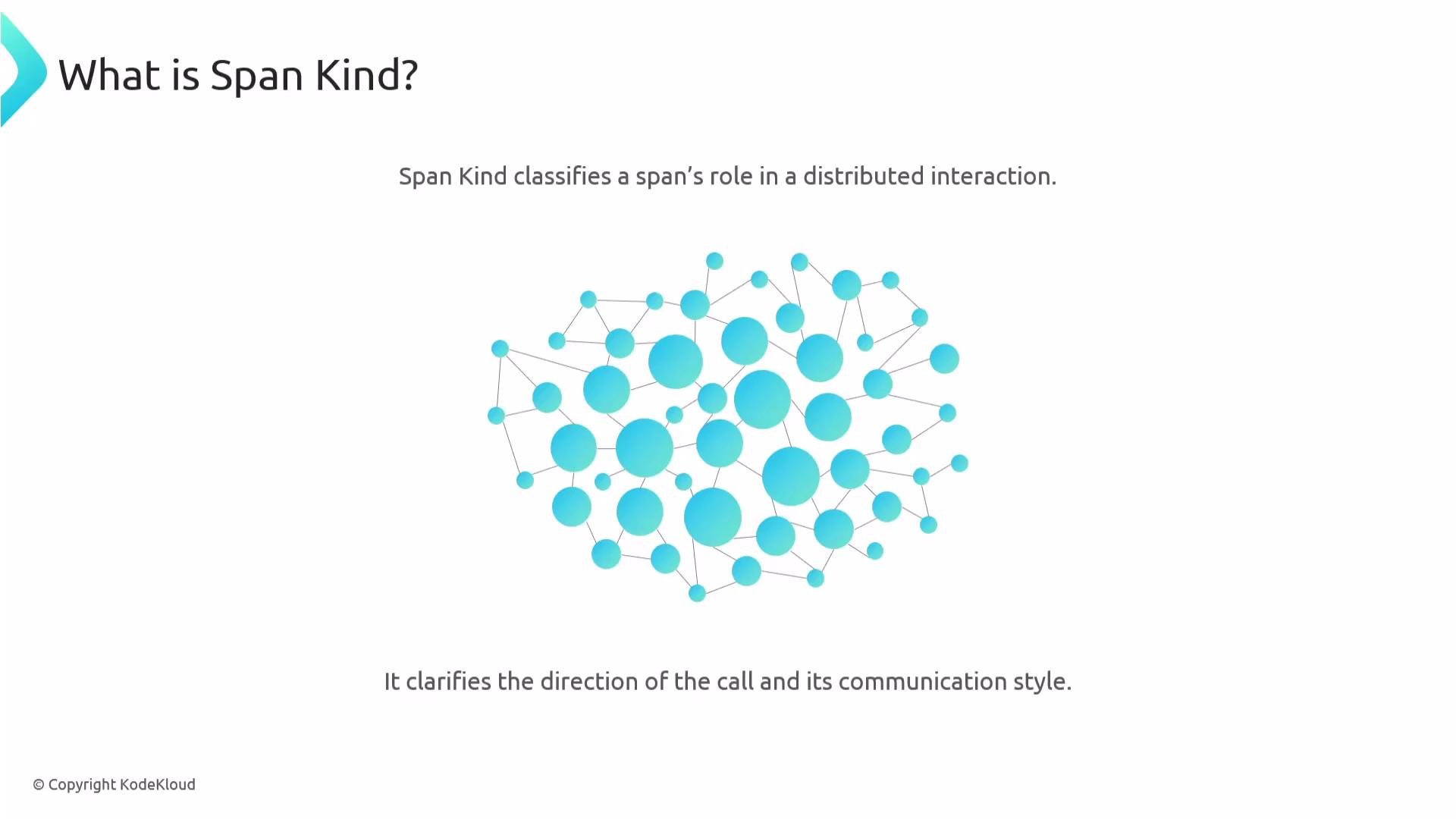

The image explains the concept of "Span Kind," which classifies a span's role in a distributed interaction using a network diagram of connected blue circles. It mentions that it clarifies the direction of the call and its communication style.
Why span kind matters
  • It provides semantic information that tracing backends use to interpret relationships between spans (for example, to connect outgoing requests to the service that received them).
  • It indicates whether an interaction is synchronous (request/response) or asynchronous (message-based), which affects how traces are visualized and analyzed.
  • It helps maintain correct parent-child relationships across process or service boundaries when context is propagated.

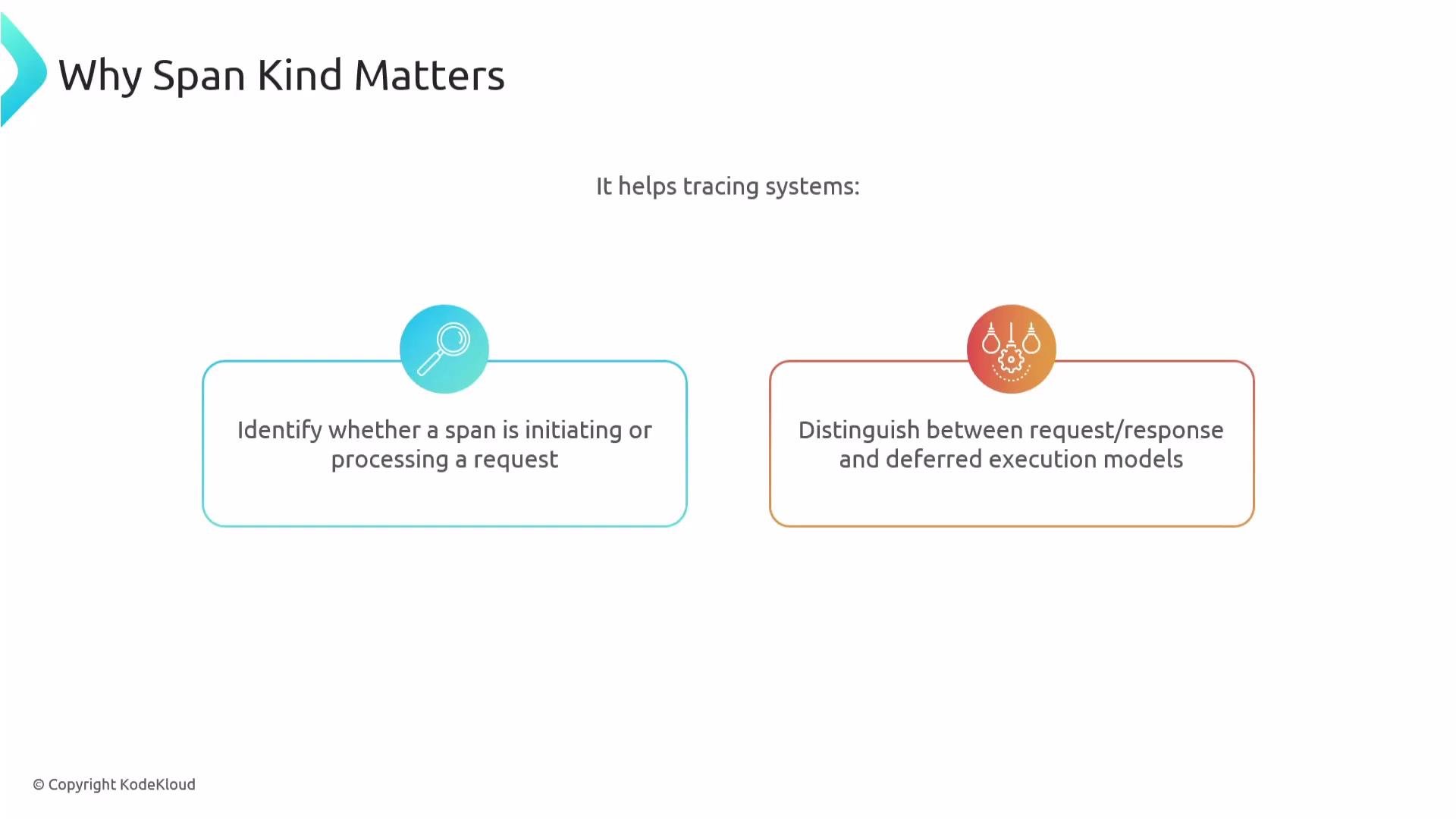

The image explains why span kind matters for tracing systems, highlighting its role in identifying if a span is initiating or processing a request and distinguishing between request/response and deferred execution models.
OpenTelemetry span kinds OpenTelemetry defines five span kinds to cover common interaction models: CLIENT, SERVER, INTERNAL, PRODUCER, and CONSUMER. Use the kind that best represents the role of the span so tracing tools can correctly link and display causal relationships.

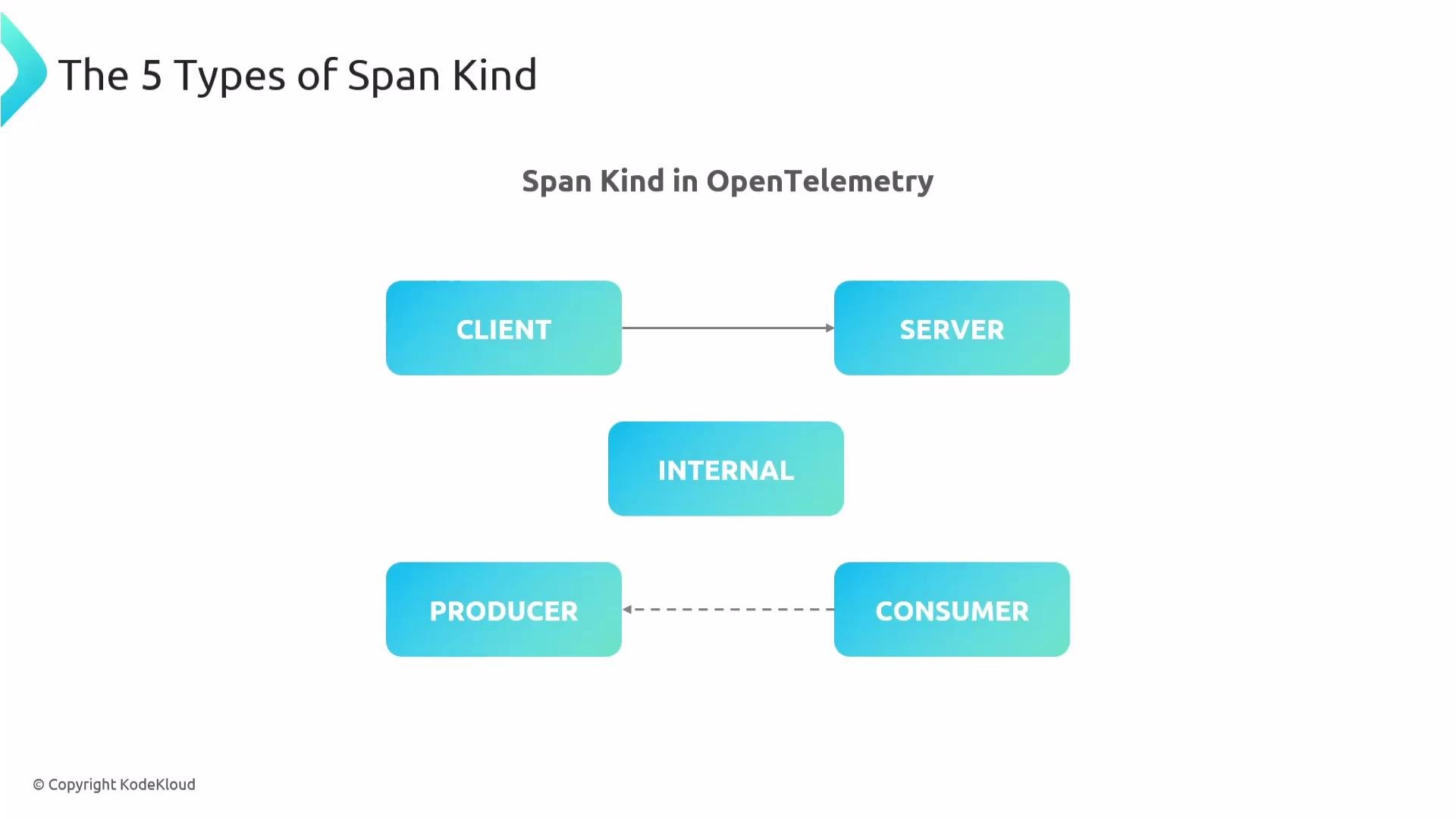

The image illustrates the five types of span kind in OpenTelemetry: Client, Server, Internal, Producer, and Consumer, using labeled arrows to show their relationships.
Summary table of span kinds
Span KindDirectionCommunication styleTypical use case
CLIENTOutgoingSynchronous request/responseHTTP requests, RPC calls, DB queries
SERVERIncomingSynchronous request/responseWeb server handling an HTTP request
INTERNALLocalIn-process work (no boundary crossing)Computations, helper functions, local processing
PRODUCEROutgoing (message)Asynchronous/message-basedPublishing to a Kafka topic or message queue
CONSUMERIncoming (message)Asynchronous/message-basedProcessing messages consumed from a queue or topic
Why use span kinds correctly?
  • Correct kinds enable accurate trace analysis and visualization (dependency maps, service flow graphs).
  • They reduce ambiguity: each span should represent a single, clear purpose.
  • They ensure propagation and linking work as intended across service boundaries.

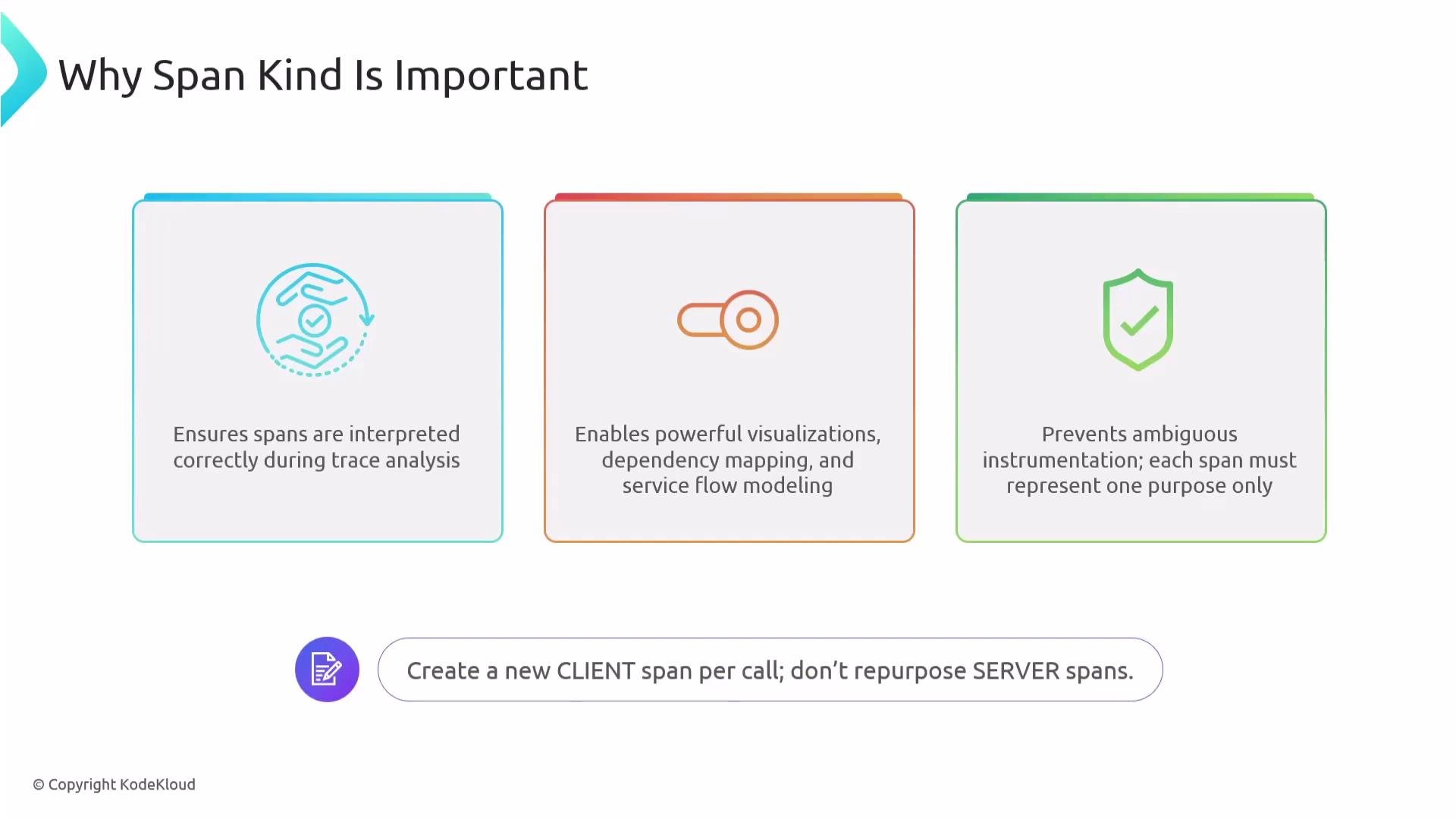

The image explains the importance of span kind in trace analysis, highlighting correct interpretation, visualization benefits, and prevention of ambiguous instrumentation. It advises creating a new client span for each call.
Concrete examples
  • CLIENT: Outgoing calls (HTTP requests, RPC, DB queries). Create a new CLIENT span for each external call so each request is represented individually.
  • SERVER: Incoming requests handled by a service. When context is propagated, the SERVER span becomes a child of the originating CLIENT span.
  • PRODUCER: Enqueuing or publishing a message (e.g., writing to a Kafka topic).
  • CONSUMER: Receiving and processing a message from a broker or queue.
  • INTERNAL: Local in-process operations that do not cross service boundaries (default kind when none is set).

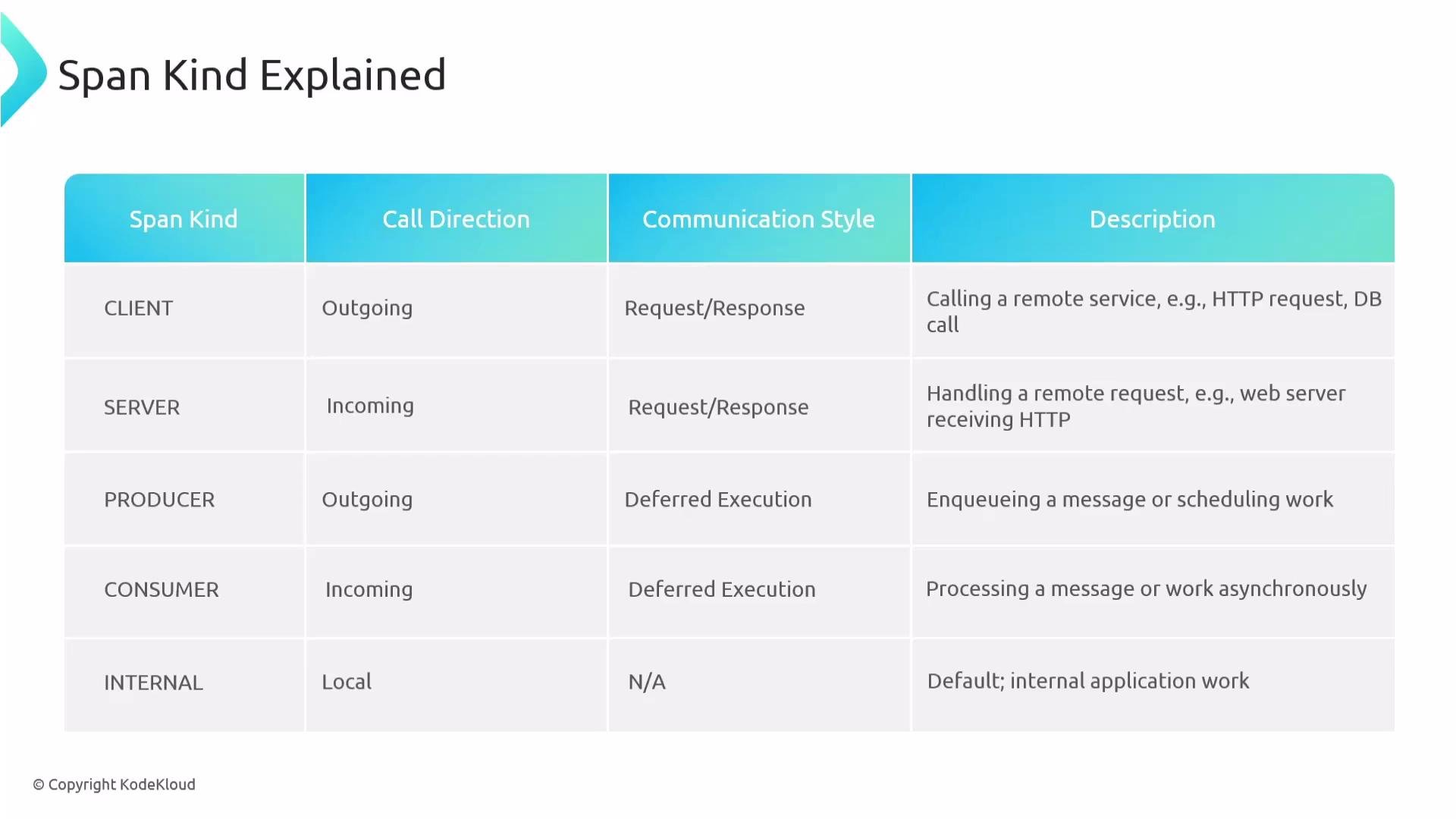

The image is a table explaining different "Span Kinds" with columns for call direction, communication style, and a brief description of each type, including CLIENT, SERVER, PRODUCER, CONSUMER, and INTERNAL categories.
HTTP example
  • Client side: creating an outgoing HTTP request should produce a CLIENT span.
  • Server side: receiving that request produces a SERVER span.
  • When headers (or another propagation mechanism) carry trace context, the server span becomes a child of the client span, forming a clear client→server causal link in the trace.

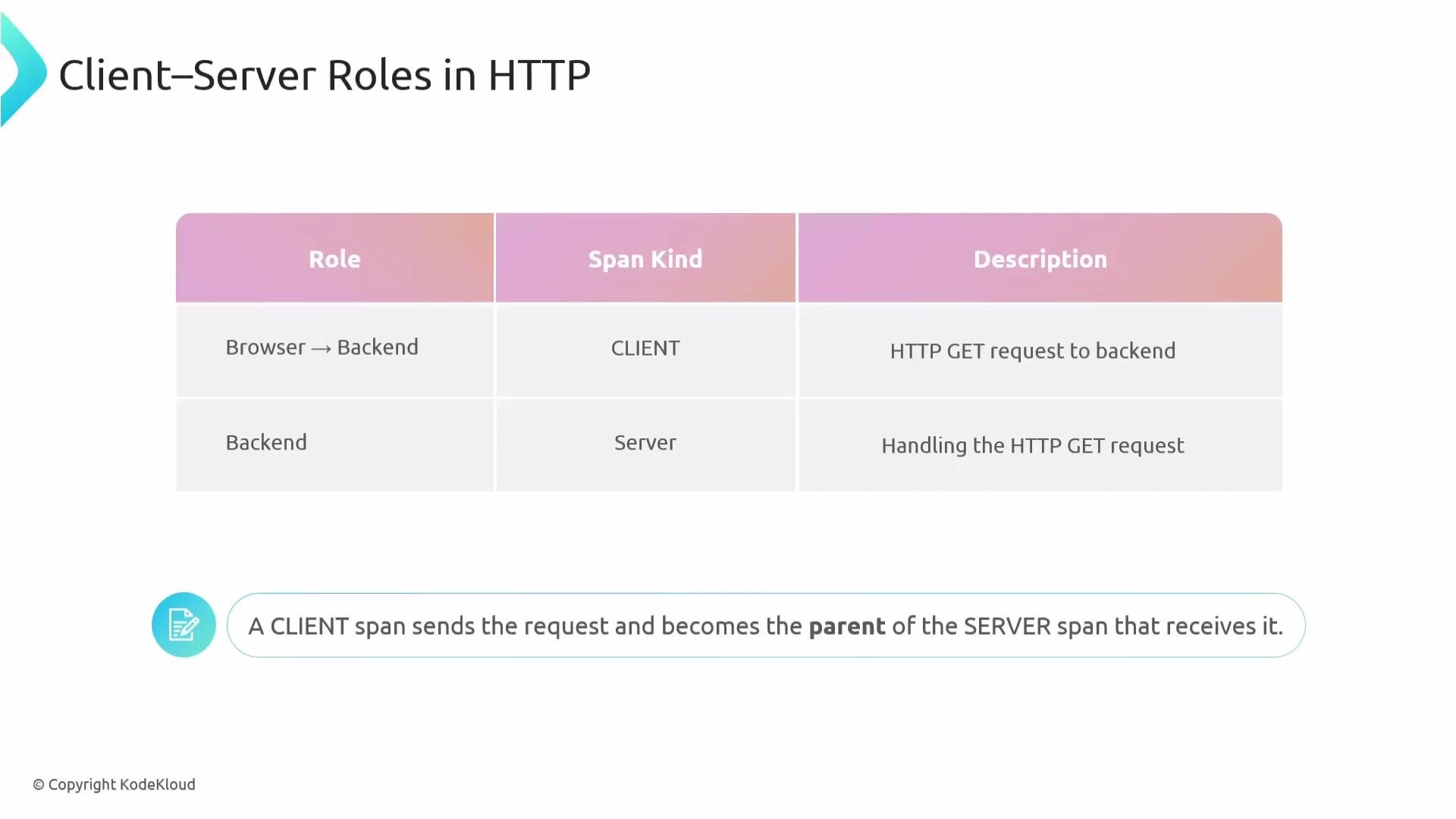

The image is a diagram explaining client-server roles in HTTP, showing "Browser → Backend" as a CLIENT sending an HTTP GET request, and "Backend" as the Server handling the request.
Messaging example
  • PRODUCER spans represent the act of publishing or enqueueing a message.
  • CONSUMER spans represent the processing of that message by consumers.
  • Any additional local work done while processing a message (parsing, business logic) should use INTERNAL spans to reflect in-process operations.

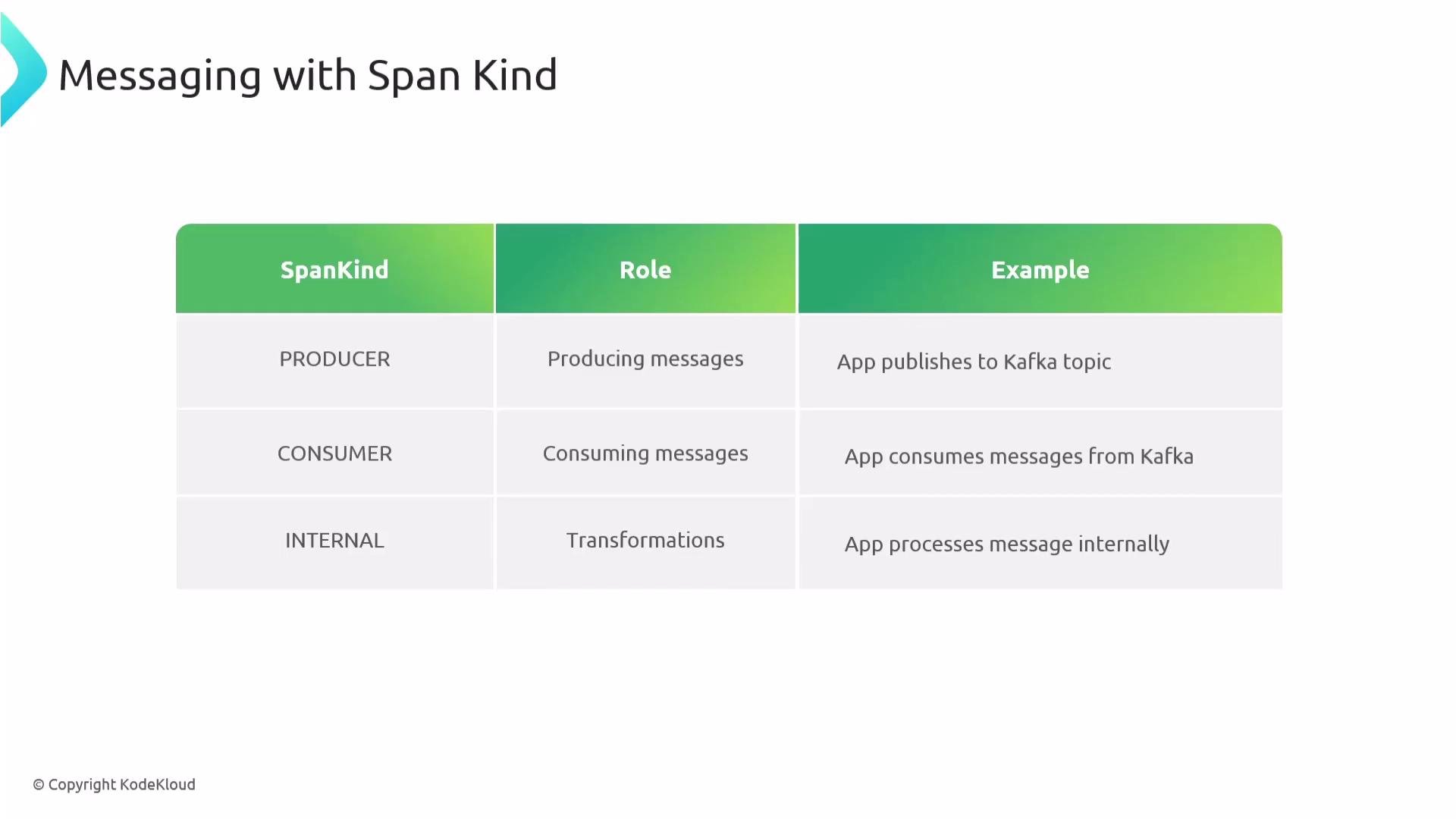

The image is a table explaining "Messaging with Span Kind," outlining three roles: Producer, Consumer, and Internal, with corresponding examples and functions.
Best practices
  • Give each span one clear role — do not mix CLIENT and SERVER responsibilities in a single span.
  • When a call crosses a process or service boundary, set the appropriate span kind to help tracing backends visualize relationships.
  • Create separate CLIENT spans for each outgoing operation (e.g., multiple DB calls should each have their own CLIENT span).
  • For async flows, use PRODUCER and CONSUMER and preserve causal links via context propagation or explicit span links.
The image lists "Span Kind Best Practices," highlighting "Avoid multi-role spans" and "Chain correctly" with brief explanations and icons.
Key takeaways
  • Span kinds are essential for meaningful tracing: they indicate direction, communication style, and clarify cause-effect relationships.
  • Use CLIENT/SERVER for synchronous request/response; use PRODUCER/CONSUMER for messaging; default to INTERNAL for local operations.
  • Avoid overloading spans with multiple roles; create distinct spans for separate outgoing operations to keep traces clear and accurate.

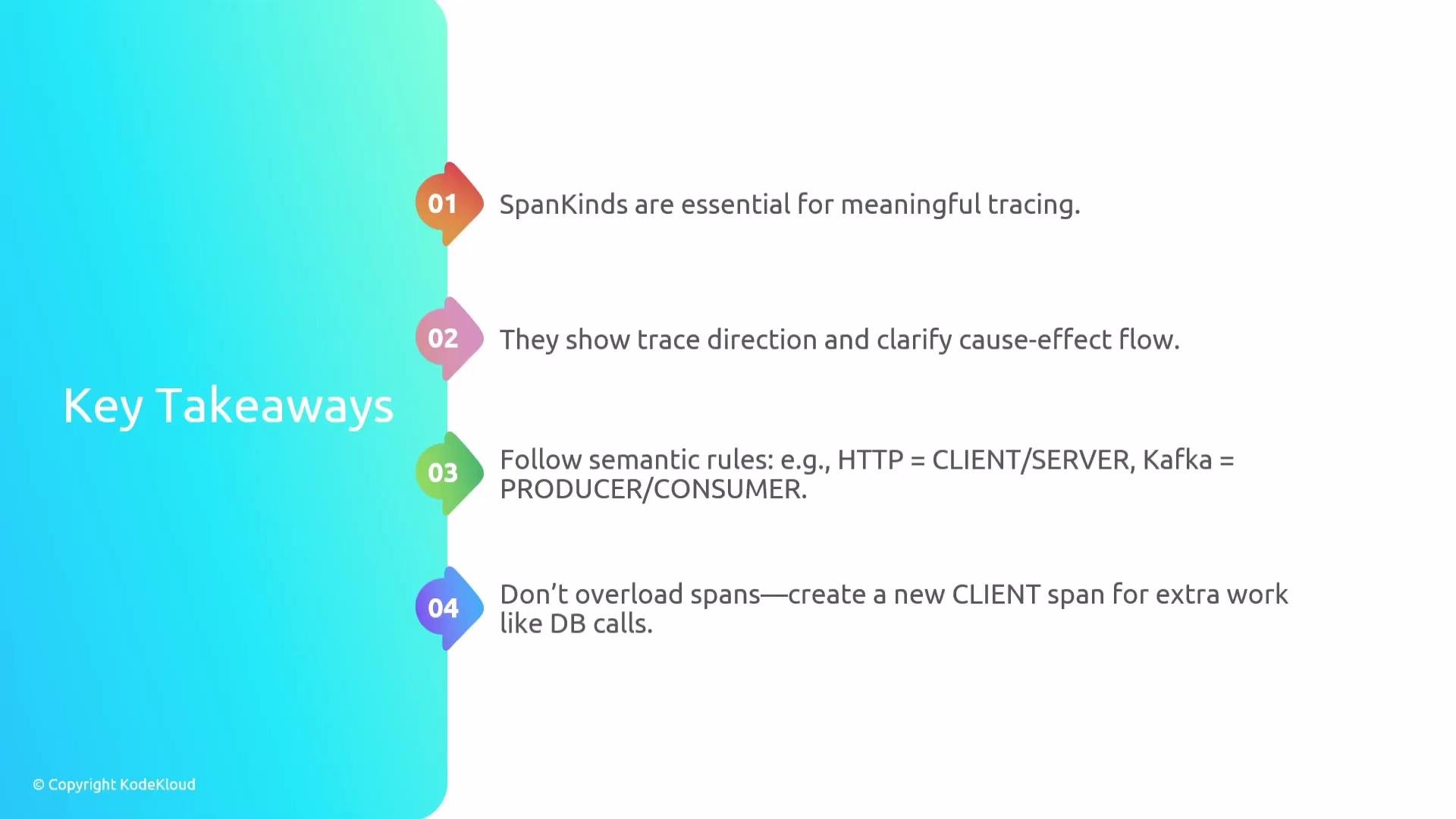

The image is a slide titled "Key Takeaways" outlining four points about SpanKinds and semantic rules for meaningful tracing, emphasizing trace direction, semantic rules, and efficient span creation.
Most spans you create locally will be INTERNAL. Reserve CLIENT, SERVER, PRODUCER, and CONSUMER for interactions that cross process or service boundaries.
