Face Detection Using Azure AI Vision

Face detection with Azure AI Vision (Face API) lets you detect and analyze faces in images. The API locates faces, returns bounding boxes and landmarks (eye centers, nose tip, lip corners), and can optionally return attributes such as head pose, glasses, and more. Note that certain capabilities—like identity matching and some sensitive attributes (age, gender, emotion)—require explicit approval for your Azure subscription.

Some attributes (for example: age, gender, emotions, and identity matching/Face ID) require extra approval from Microsoft before they can be used. You can still retrieve landmarks and basic location data without that approval.

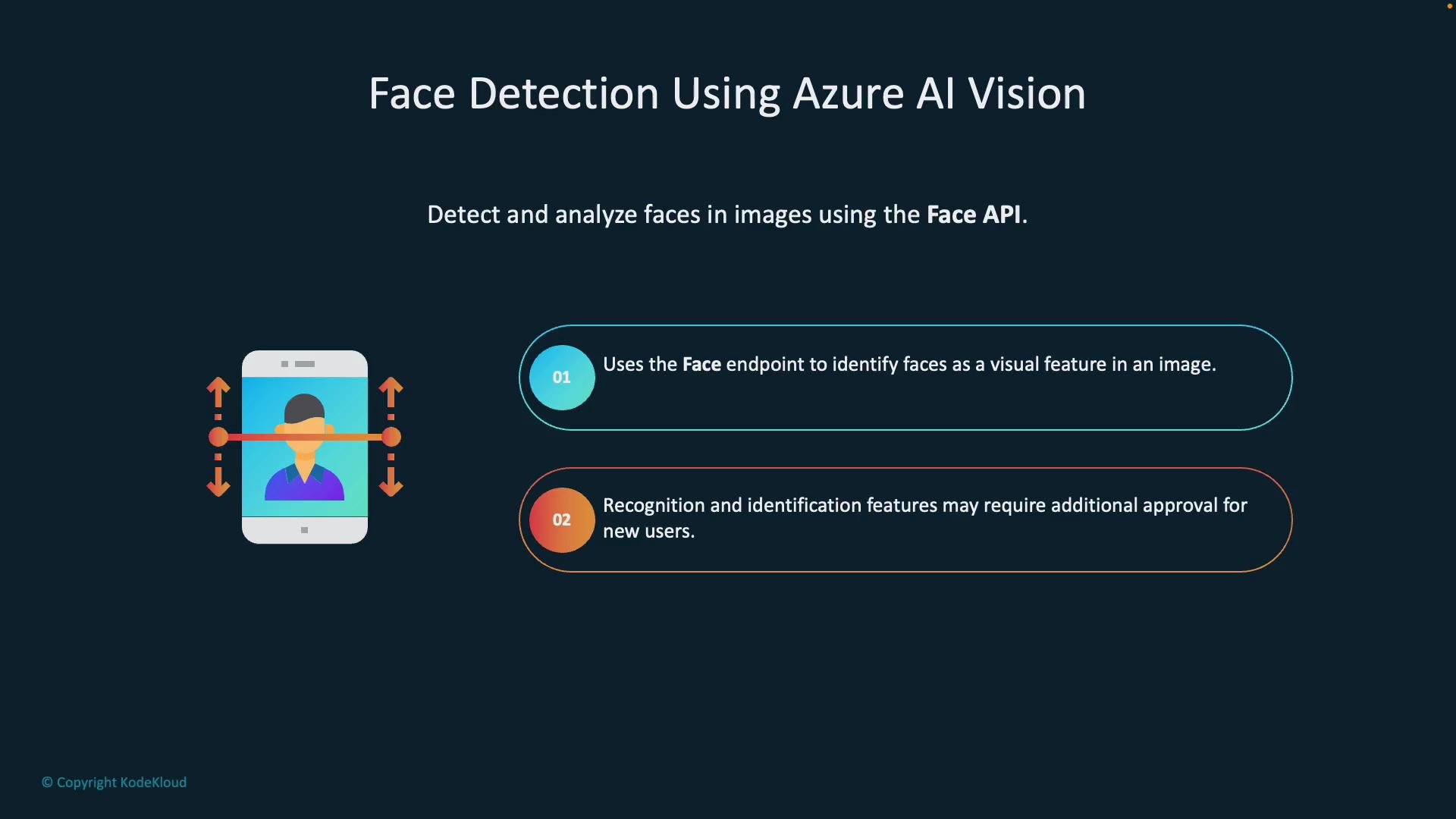

A presentation slide titled "Face Detection Using Azure AI Vision" explaining the Face API's ability to detect and analyze faces. It includes a smartphone illustration showing a detected face and two numbered notes about using the Face endpoint and possible extra approval for recognition/identification features.

What the Face API can return

Bounding boxes for each detected face.
Detailed facial landmarks (eyes, nose, mouth, pupils, etc.).
Optional face attributes (head pose, glasses, and other attributes where allowed).
Optional unique face identifiers for cross-image matching (subject to approval).

Optional request parameters (quick overview)

Parameter	Purpose	Notes
returnFaceId	Return a unique faceId for each detected face	Enables cross-image matching; may require additional approval
returnFaceLandmarks	Return detailed facial keypoints (pupils, nose tip, lip corners)	Useful for overlaying or measuring facial geometry
returnFaceAttributes	Request attributes such as age, emotion, headPose, glasses, etc.	Some attributes require Microsoft approval

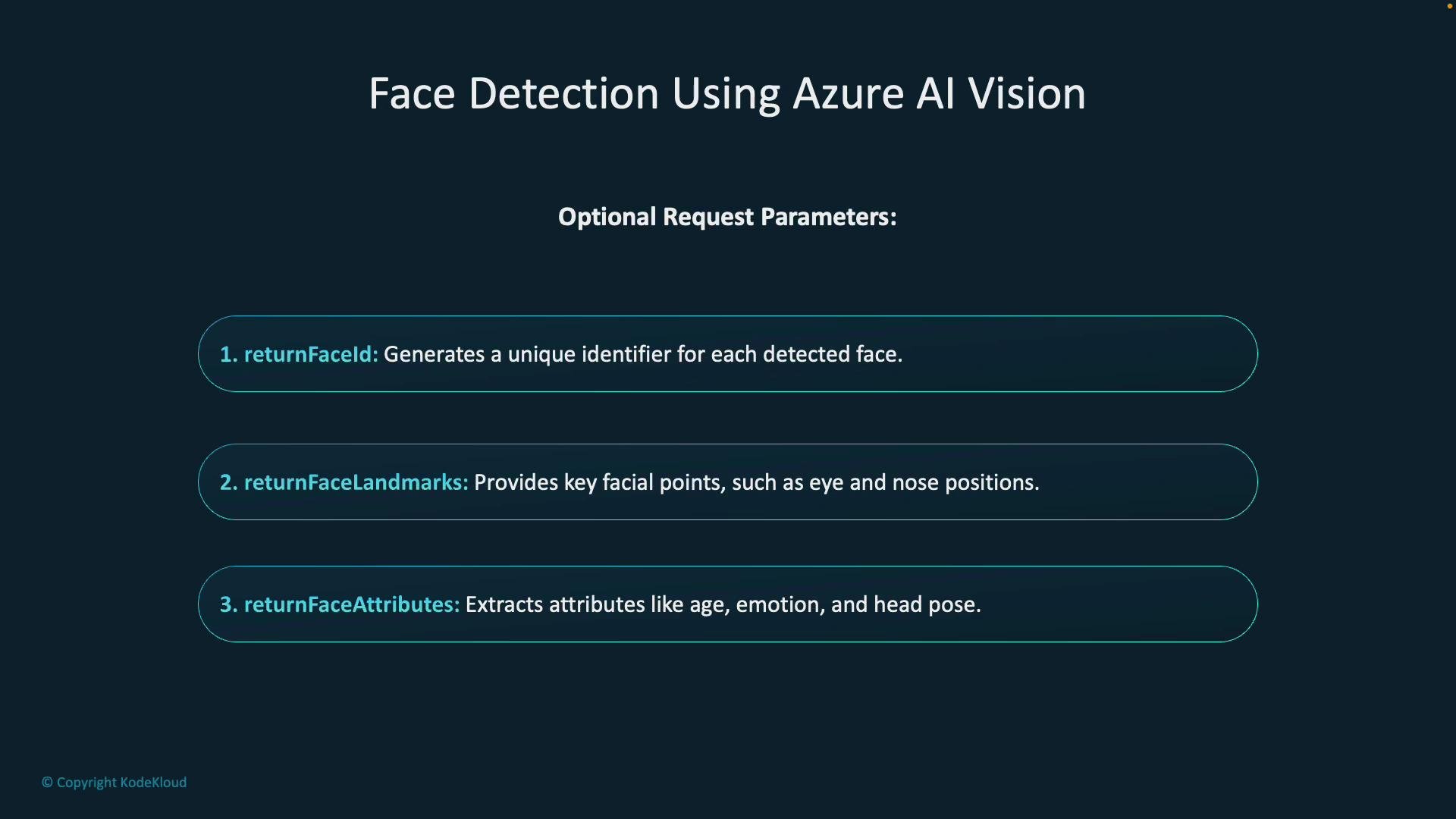

A presentation slide titled "Face Detection Using Azure AI Vision" that lists three optional request parameters — returnFaceId, returnFaceLandmarks, and returnFaceAttributes — each with a brief description. The slide has a dark teal background with rounded rectangular bullets and a small KodeKloud copyright.

Additional optional parameters

Parameter	Purpose	When to use
recognitionModel	Specify which recognition model version to use	Use when identity matching is allowed and multiple models are available
returnRecognitionModel	Return the recognition model version used in the response	Helpful for auditing and reproducibility
detectionModel	Choose the face detection model to control scanning/localization behavior	Useful to balance performance vs. accuracy

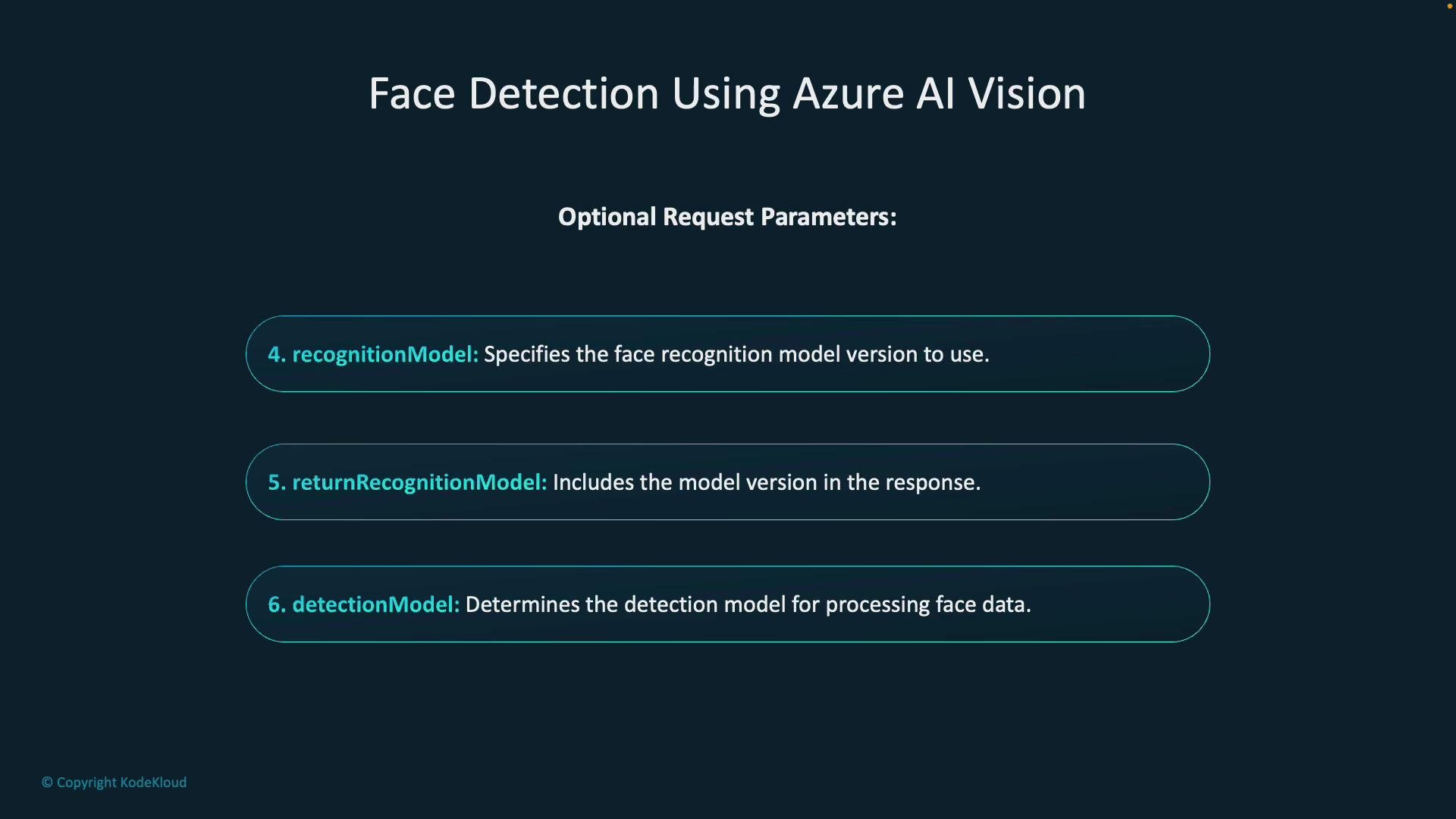

A slide titled "Face Detection Using Azure AI Vision" listing three optional request parameters—recognitionModel, returnRecognitionModel, and detectionModel—with short descriptions for each.

API response structure When faces are detected, the Face API returns a JSON array where each element corresponds to one detected face. Key fields include:

Field	Type	Description
faceId	string	Unique ID for the detected face (if requested and permitted)
recognitionModel	string	Recognition model name/version used for processing
faceRectangle	object	Bounding box with left, top, width, height
faceLandmarks	object	Coordinates for facial keypoints (pupilLeft, noseTip, mouthLeft, etc.)
faceAttributes	object	Requested attributes such as headPose, glasses, emotions (if available)

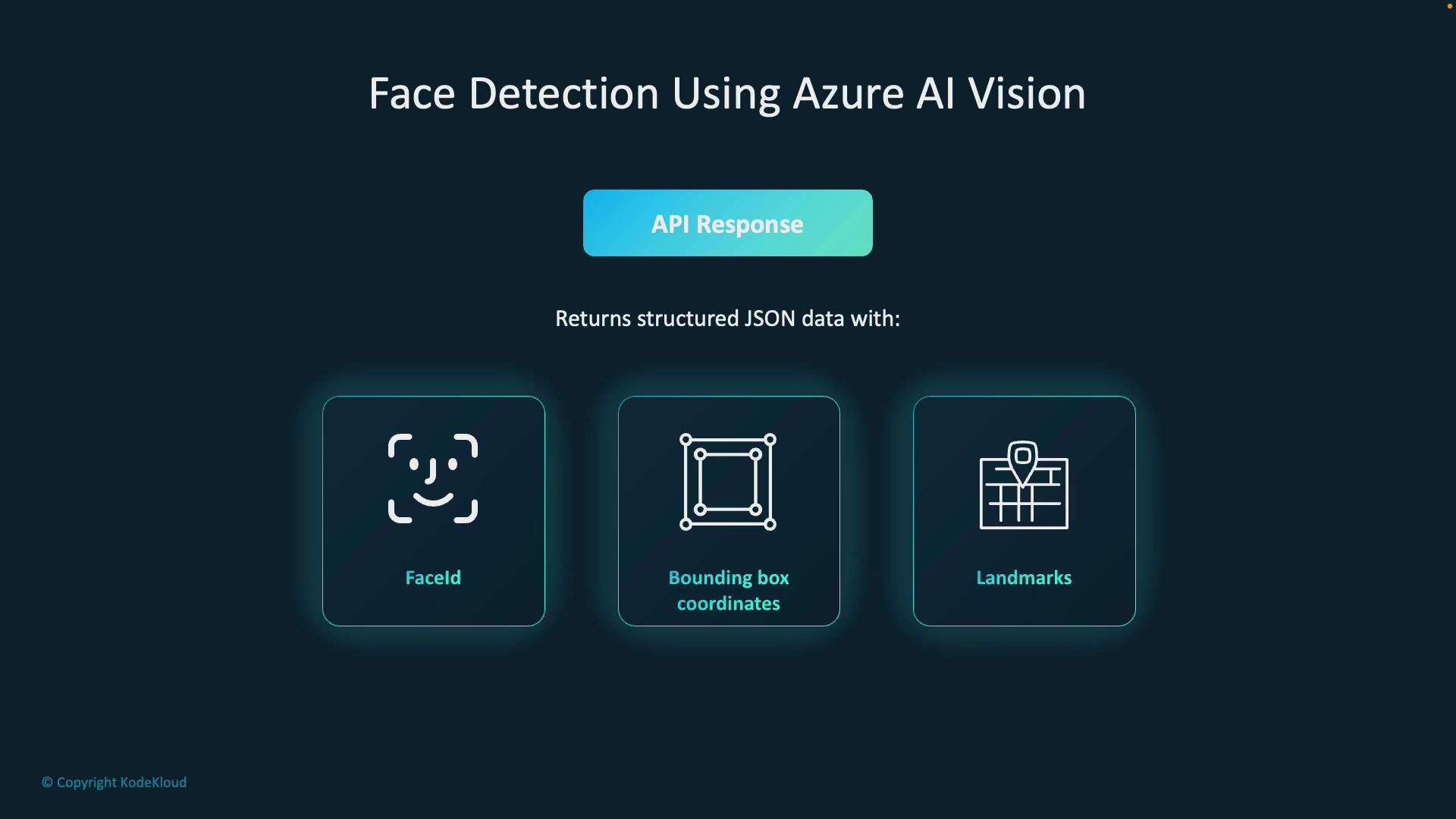

A dark-themed presentation slide titled "Face Detection Using Azure AI Vision" showing an "API Response" button and three icons labeled "FaceId," "Bounding box coordinates," and "Landmarks" that illustrate the structured JSON output.

Example: simplified REST detect request and a trimmed JSON response

Request: https://{endpoint}/face/v1.0/detect[?returnFaceId=true|false&returnFaceLandmarks=true|false&returnFaceAttributes=...]
Body: {"url": "http://path-to-image"}

Response:
[
  {
    "faceId": "c5c24a82-6845-4031-9d5d-978df9175426",
    "recognitionModel": "recognition_03",
    "faceRectangle": {
      "width": 78,
      "height": 78,
      "left": 394,
      "top": 54
    },
    "faceLandmarks": {
      "pupilLeft": { "x": 412.7, "y": 78.4 },
      "pupilRight": { "x": 446.8, "y": 74.2 }
    },
    "faceAttributes": {
      "headPose": { "roll": 0.5, "yaw": 10.0, "pitch": -2.1 }
    }
  }
]

Create and configure the Face resource in Azure Portal

In the Azure Portal, create an Azure AI (Face) resource. Provide subscription, resource group, region, name, and pricing tier. Note: the free tier is limited to one per subscription and may not always be available.
After creation, open the resource and copy the service endpoint and subscription keys from the “Keys and Endpoint” blade. You’ll use these values in SDKs and REST calls.

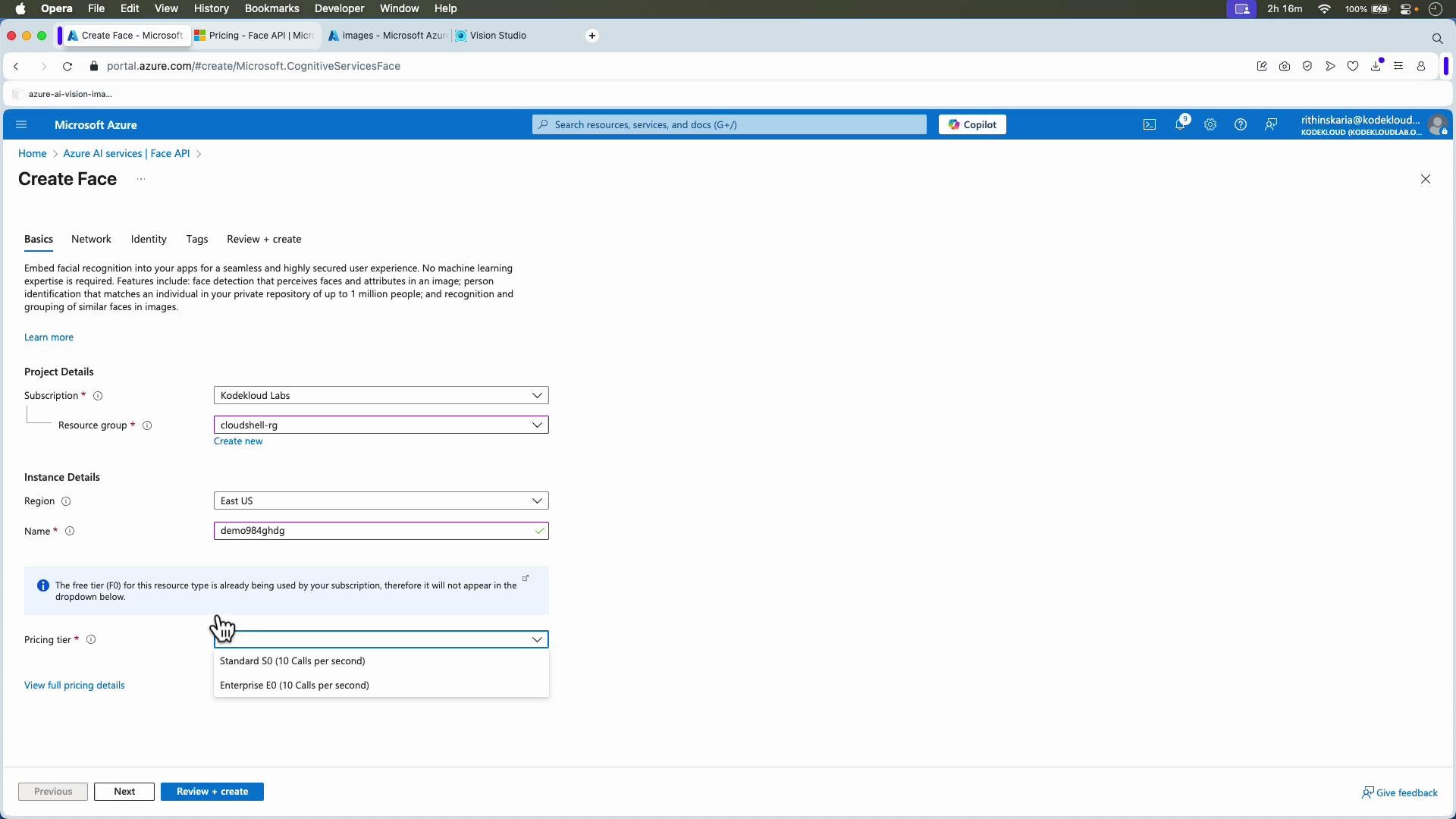

A screenshot of the Microsoft Azure portal showing the "Create Face" resource form with fields for subscription, resource group, region, instance name, and pricing tier. The page includes navigation tabs and a pricing dropdown open near the bottom.

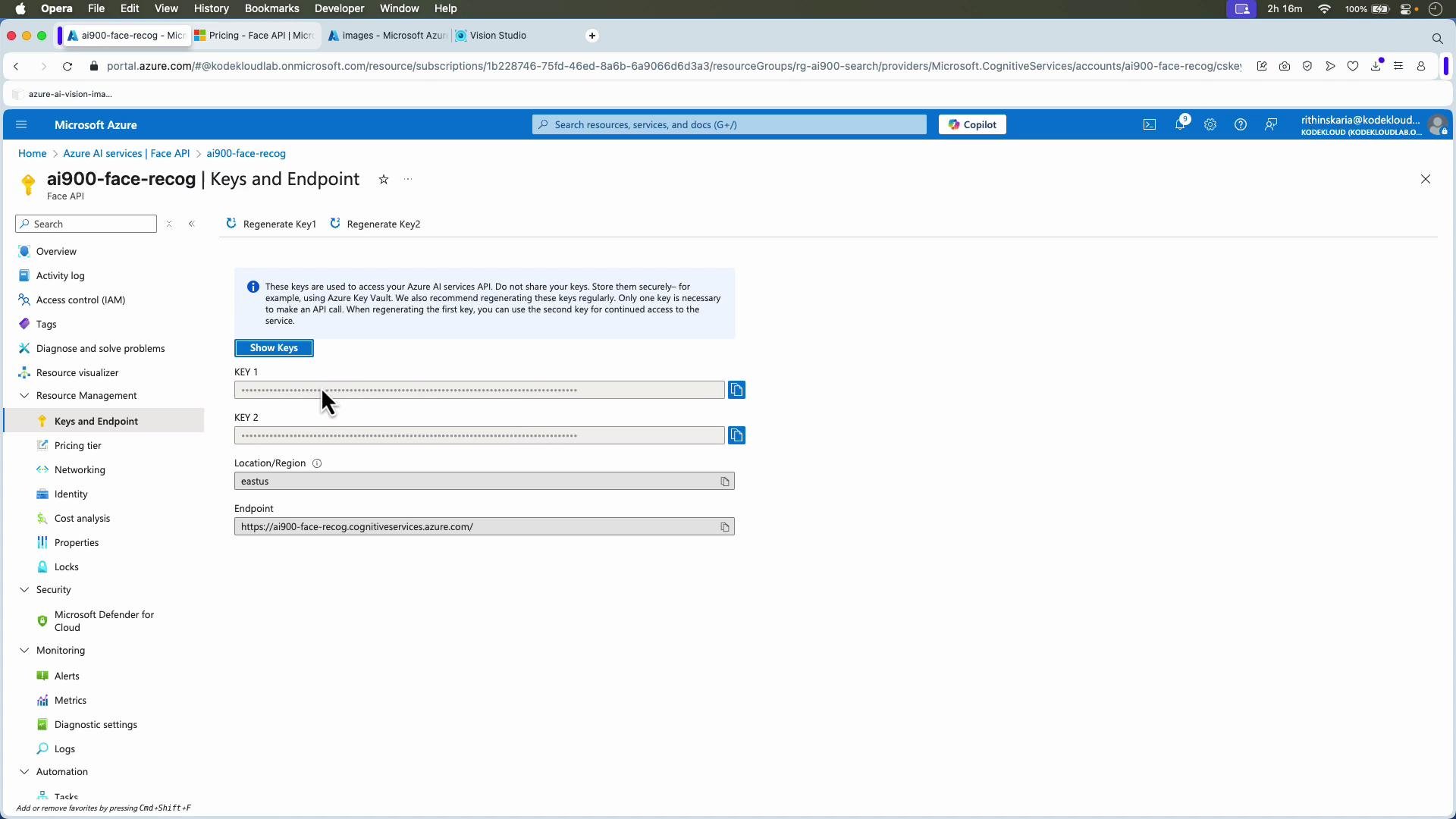

A screenshot of the Microsoft Azure portal showing the "ai900-face-recog | Keys and Endpoint" page for the Face API, with masked keys, Location/Region set to "eastus," and the service endpoint URL displayed. The Azure left-hand navigation menu and top browser tabs are also visible.

Python examples (Azure Face SDK) Below are concise Python examples using the Azure Cognitive Services Face SDK. Replace the endpoint and key placeholders with values from your Azure resource. Single-image example (detect faces and landmarks, without returning Face ID)

# Ref: https://learn.microsoft.com/en-us/python/api/overview/azure/ai-vision-face-readme?view=azure-python-preview
from azure.cognitiveservices.vision.face import FaceClient
from azure.cognitiveservices.vision.face.models import FaceAttributeType
from msrest.authentication import CognitiveServicesCredentials
import json

# Replace with your correct endpoint and key
ENDPOINT = "https://<your-resource-name>.cognitiveservices.azure.com/"
KEY = "<your_key_here>"

# Public image URL (single person)
image_url = "https://azai102imagestore.blob.core.windows.net/images/happy.jpg"

face_client = FaceClient(ENDPOINT, CognitiveServicesCredentials(KEY))

# Define the face attributes you want to extract
face_attributes = [FaceAttributeType.head_pose]

# Detect faces and attributes
detected_faces = face_client.face.detect_with_url(
    url=image_url,
    return_face_id=False,
    return_face_landmarks=True,
    return_face_attributes=face_attributes
)

print(f"Detected {len(detected_faces)} face(s) in the image.\n")

if not detected_faces:
    print("No face detected.")
else:
    for i, face in enumerate(detected_faces, start=1):
        print(f"Face #{i}")
        # face.face_id may be None when return_face_id=False
        print(f"Face ID: {getattr(face, 'face_id', None)}")
        # Some attributes like glasses or headPose are available when requested
        if face.face_attributes:
            print(f"Head pose: {face.face_attributes.head_pose}")
        # Landmarks (example)
        if face.face_landmarks:
            pl = face.face_landmarks.pupil_left
            nt = face.face_landmarks.nose_tip
            ml = face.face_landmarks.mouth_left
            mr = face.face_landmarks.mouth_right
            print("Landmarks:")
            print(f" - Pupil Left: {pl.x}, {pl.y}")
            print(f" - Nose Tip: {nt.x}, {nt.y}")
            print(f" - Mouth Left: {ml.x}, {ml.y}")
            print(f" - Mouth Right: {mr.x}, {mr.y}")

# Optionally, print the full JSON response for inspection
# NOTE: the SDK objects can be serialized; here we convert to dict via repr/json where useful
print("\nFull JSON-like response for all faces:")
print(json.dumps([face.as_dict() for face in detected_faces], indent=2))

Typical cleaned console output (example):

Detected 1 face(s) in the image.

Face #1
Face ID: None
Head pose: {'roll': 1.0, 'yaw': 24.3, 'pitch': -4.5}
Landmarks:
 - Pupil Left: 253.9, 145.6
 - Nose Tip: 295.6, 202.2
 - Mouth Left: 258.9, 231.1
 - Mouth Right: 337.8, 230.2

Full JSON-like response for all faces:
[
  {
    "faceRectangle": {
      "width": 189,
      "height": 189,
      "left": 203,
      "top": 95
    },
    "faceLandmarks": {
      "pupilLeft": { "x": 253.9, "y": 145.6 },
      "pupilRight": { "x": 340.6, "y": 145.9 },
      "noseTip": { "x": 295.6, "y": 202.2 },
      ...
    },
    "faceAttributes": {
      "headPose": { "roll": 1.0, "yaw": 24.3, "pitch": -4.5 }
    }
  }
]

Group image (multiple faces) To analyze group images, provide a group image URL. The API response will return one object per detected face in the array.

# Public group image URL (multiple people)
image_url = "https://azai102imagestore.blob.core.windows.net/images/group.jpg"

detected_faces = face_client.face.detect_with_url(
    url=image_url,
    return_face_id=False,
    return_face_landmarks=True,
    return_face_attributes=face_attributes
)

print(f"Detected {len(detected_faces)} face(s) in the group image.\n")

for i, face in enumerate(detected_faces, start=1):
    print(f"Face #{i}")
    if face.face_landmarks:
        pl = face.face_landmarks.pupil_left
        nt = face.face_landmarks.nose_tip
        print(f" - Pupil Left: {pl.x}, {pl.y}")
        print(f" - Nose Tip: {nt.x}, {nt.y}")
    print()

Tips, notes, and troubleshooting

If you request face IDs or certain attributes and your subscription lacks approval, the service may return an error—disable those parameters or request access via Azure support.
Use returnRecognitionModel for traceability when running experiments across SDK versions.
Verify pricing tier and quotas (especially in production) to avoid throttling.

For persistent matching across images, you need faceId functionality and the appropriate approval.
If you get permissions errors for sensitive attributes, file an Azure support request to request feature access.
When debugging, log the recognitionModel and detectionModel returned so you can reproduce results later.

Resources and references

Resource	Description
Face API docs	https://learn.microsoft.com/azure/cognitive-services/face/
Azure Cognitive Services Python samples	https://learn.microsoft.com/en-us/python/api/overview/azure/ai-vision-face-readme?view=azure-python-preview
Azure Portal	https://portal.azure.com/

With these steps and examples you can detect faces, extract landmarks, and request face attributes where allowed. Explore the broader Azure Vision documentation for additional capabilities like OCR, object detection, and custom vision scenarios.
