VPC Configuration for SageMaker

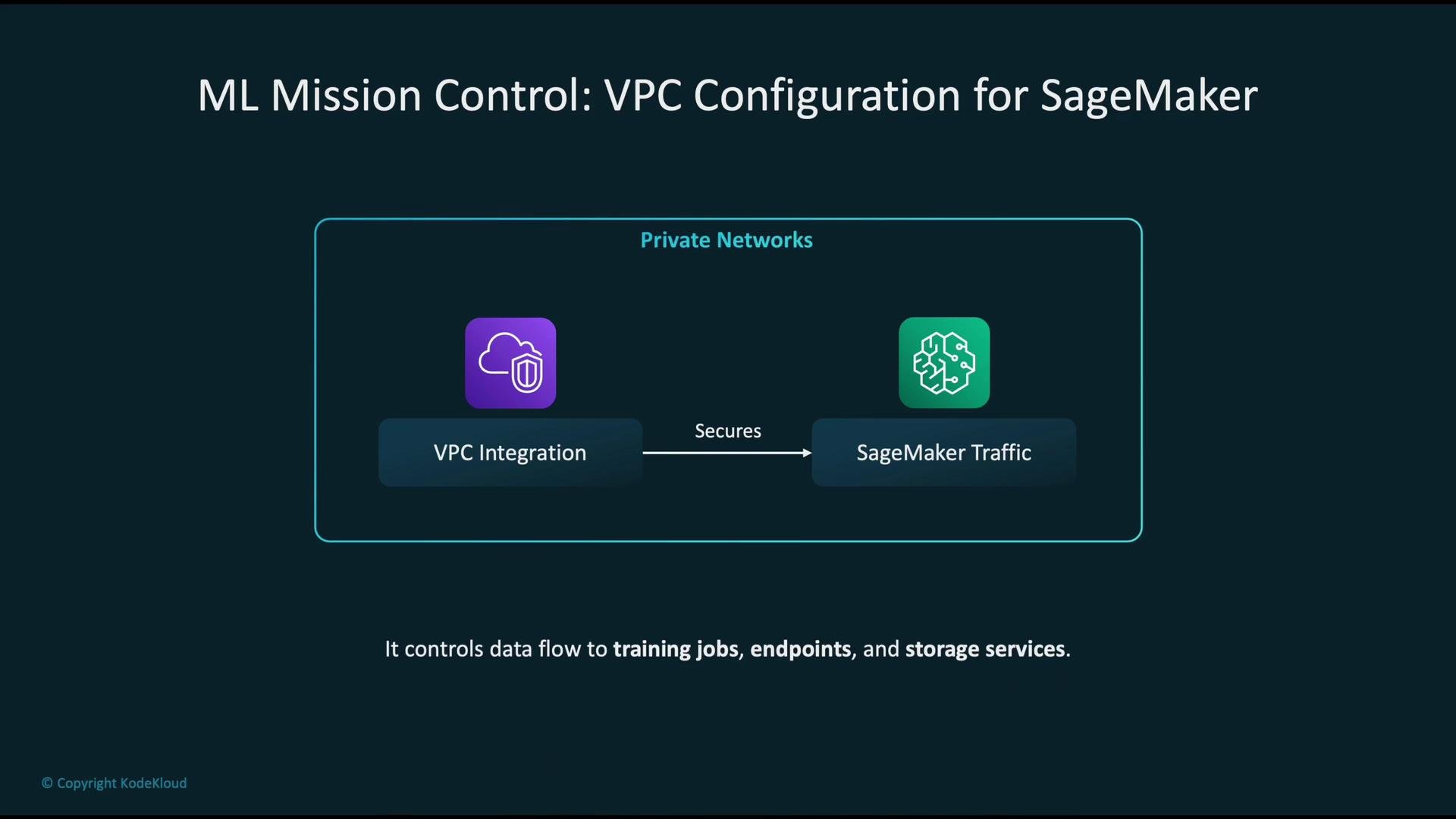

All right — let’s focus on a critical aspect of security and networking: configuring a Virtual Private Cloud (VPC) for Amazon SageMaker. This guide explains how to configure SageMaker to run inside your VPC so traffic stays on AWS’s private network. VPC-enabled SageMaker provides isolation and fine-grained control over network access for training jobs, processing jobs, and hosted endpoints, and it enables private access to AWS services such as S3, ECR, and CloudWatch.

Why run SageMaker in a VPC

Security: Keep model training and inference traffic off the public internet.
Control: Enforce access using security groups, route tables, and VPC endpoints.
Compliance: Satisfy organizational policies for private network traffic and encrypted storage.

Network exposure choices when deploying SageMaker

Public ML deployment: resources have direct internet access. Simpler to set up but exposes endpoints and nodes to public networks.
VPC-based deployment: SageMaker ENIs are placed in private subnets. Network access is controlled, and external service access can be routed over AWS private networking.

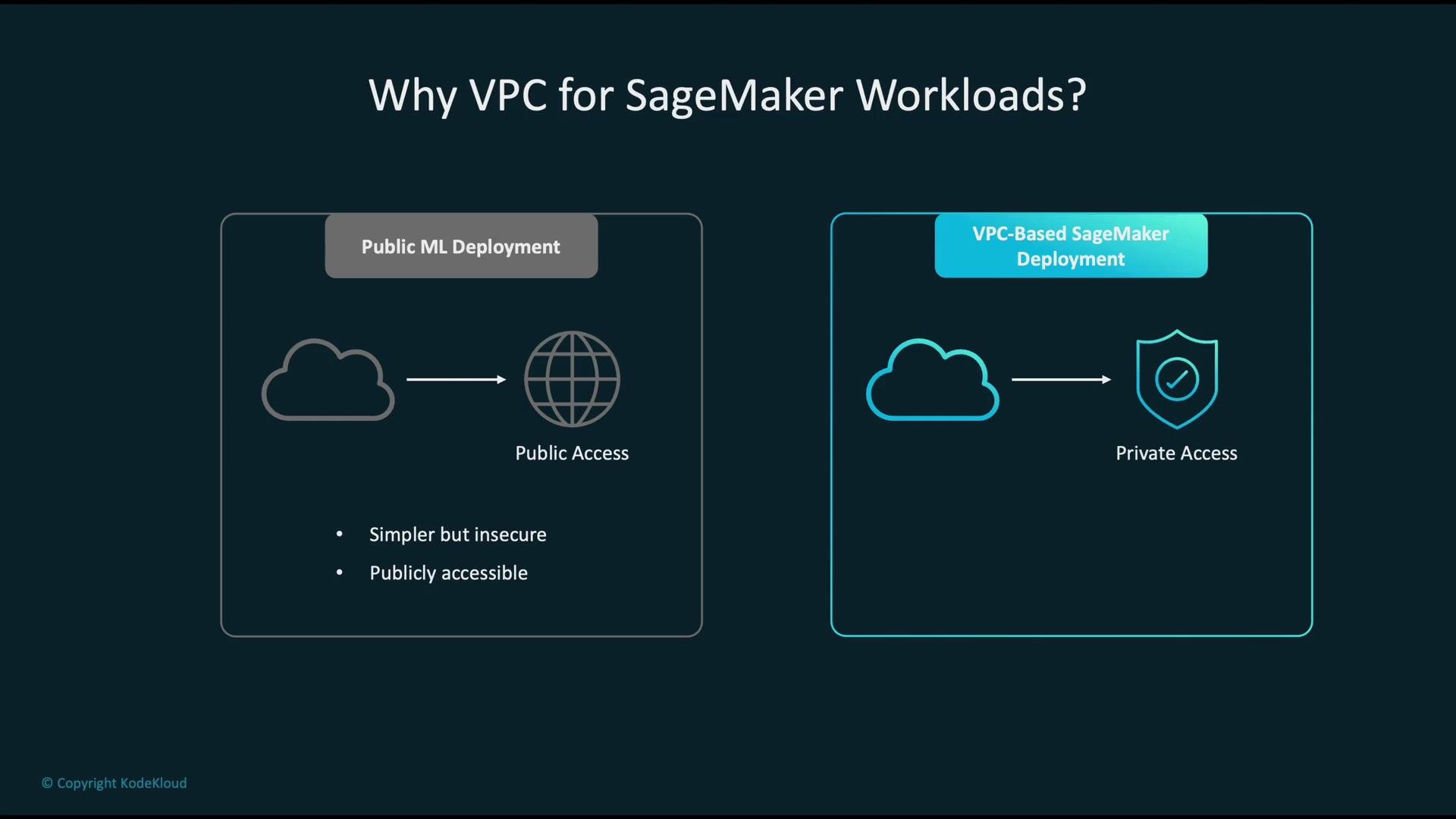

The image compares public ML deployment and VPC-based SageMaker deployment, highlighting the advantages of private access in a VPC for increased security.

How SageMaker interacts with AWS services from a VPC

When you supply a VpcConfig, SageMaker creates Elastic Network Interfaces (ENIs) in your subnets for training jobs, hosted models/endpoints, and processing jobs. These ENIs are subject to your security group rules.
Typical service dependencies to consider:
- Amazon S3 — dataset and model artifact storage
- Amazon ECR — container images (ecr.api and ecr.dkr endpoints)
- Amazon CloudWatch — logs and monitoring metrics
To avoid public egress, route access to these services via VPC endpoints when possible.

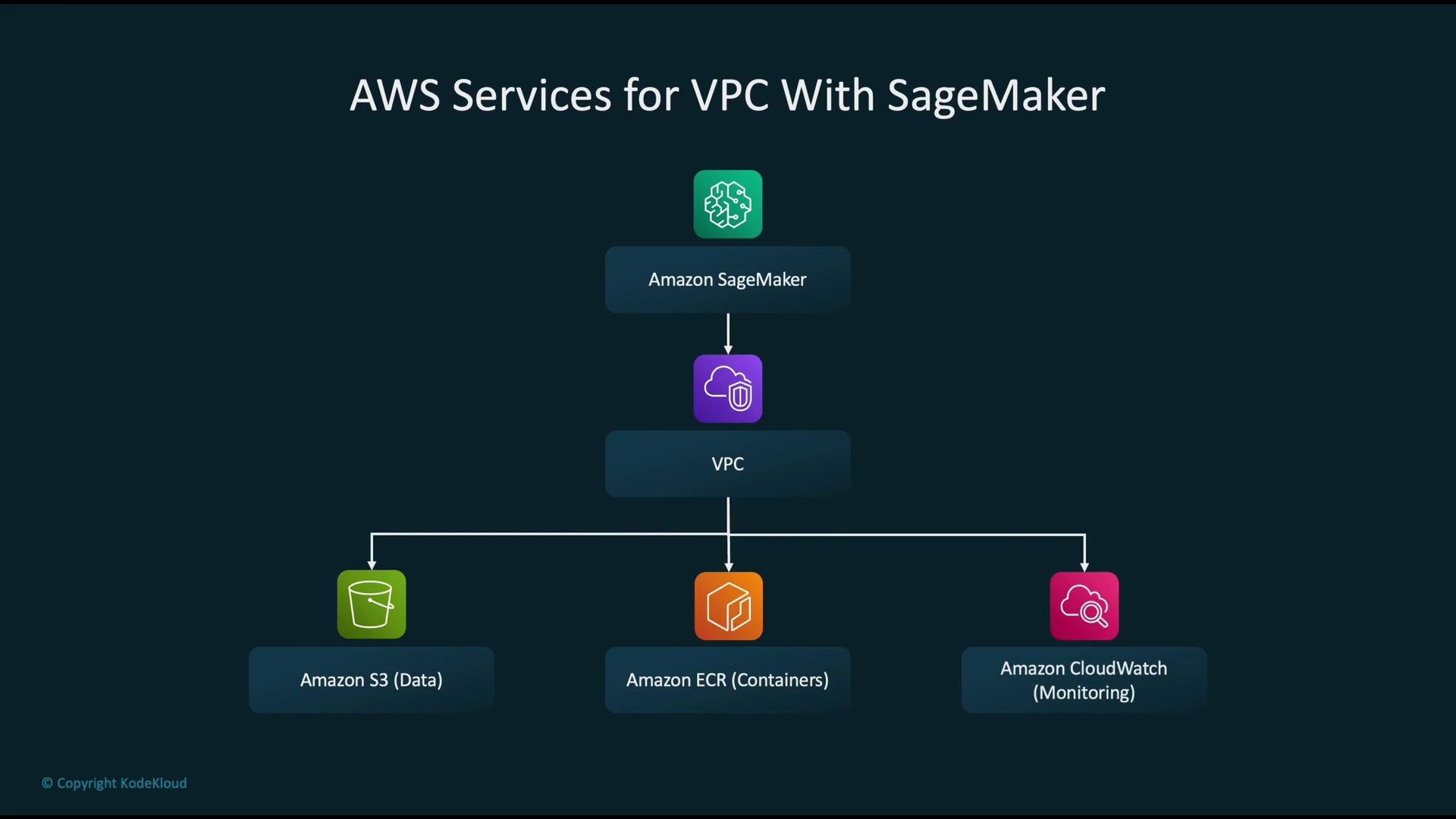

The image is a diagram showing AWS services integrated with Amazon SageMaker through a VPC, including Amazon S3 for data, Amazon ECR for containers, and Amazon CloudWatch for monitoring.

Configuring SageMaker to use a VPC

Provide a VPC configuration (subnets and security group IDs) when creating SageMaker training jobs, models, or endpoints.
SageMaker will attach ENIs to the specified subnets and enforce the inbound/outbound rules from the provided security groups.
Example (boto3): create a SageMaker model and attach a VpcConfig:

import boto3

sm = boto3.client("sagemaker")

response = sm.create_model(
    ModelName="my-model",
    PrimaryContainer={
        "Image": "123456789012.dkr.ecr.us-west-2.amazonaws.com/my-image:latest",
        "ModelDataUrl": "s3://my-bucket/path/to/model.tar.gz"
    },
    ExecutionRoleArn="arn:aws:iam::123456789012:role/SageMakerExecutionRole",
    VpcConfig={
        "SecurityGroupIds": ["sg-0123456789abcdef0"],
        "Subnets": [
            "subnet-0123456789abcdef0",
            "subnet-0fedcba9876543210"
        ]
    }
)

Use this minimal model or a small training job to validate reachability for S3, ECR, and CloudWatch before rolling out at scale.

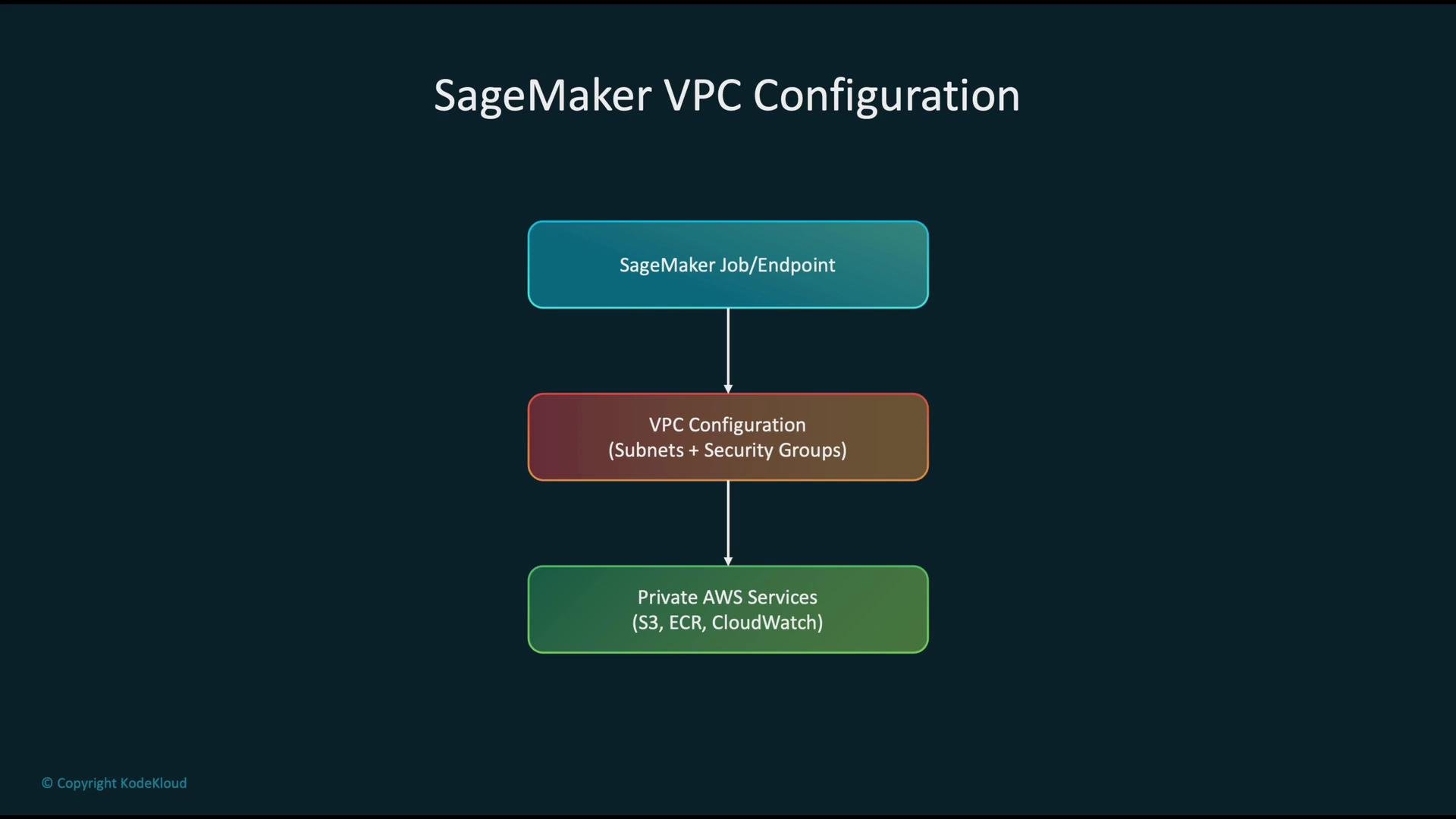

The image shows a flowchart of SageMaker VPC Configuration, illustrating the connection between SageMaker Job/Endpoint, VPC Configuration (Subnets + Security Groups), and Private AWS Services (S3, ECR, CloudWatch).

Network controls: security groups and subnet placement

Security groups: act as virtual firewalls for SageMaker ENIs. Apply least-privilege rules (allow only the necessary ports and destinations).
Subnet placement: put SageMaker ENIs in private subnets (no direct route to an Internet Gateway) to avoid unintended public exposure.
Multi-AZ: deploy across multiple Availability Zones for high availability and resilience.

VPC endpoints for private access to AWS services

Use VPC endpoints to keep service traffic within the AWS network and reduce or eliminate NAT gateway egress:
- Gateway VPC Endpoint: S3, DynamoDB
- Interface VPC Endpoint (PrivateLink): ECR API, ECR DKR (image pulls), CloudWatch Logs, CloudWatch Metrics, STS, and other regional service APIs
If containers or your code require access to public internet resources (third-party repos, public APIs), you’ll still need controlled internet egress (NAT gateway or IGW with strict routing/security).

Recommended VPC endpoints at a glance

Service	Endpoint Type	Purpose
Amazon S3	Gateway VPC Endpoint	Private, scalable access to S3 without NAT
Amazon ECR (API)	Interface VPC Endpoint	Access ECR API (auth, list repositories)
Amazon ECR (DKR)	Interface VPC Endpoint	Pull container images privately
CloudWatch Logs / Metrics	Interface VPC Endpoint	Send logs and metrics over PrivateLink
AWS STS	Interface VPC Endpoint	Token exchange/auth without public egress

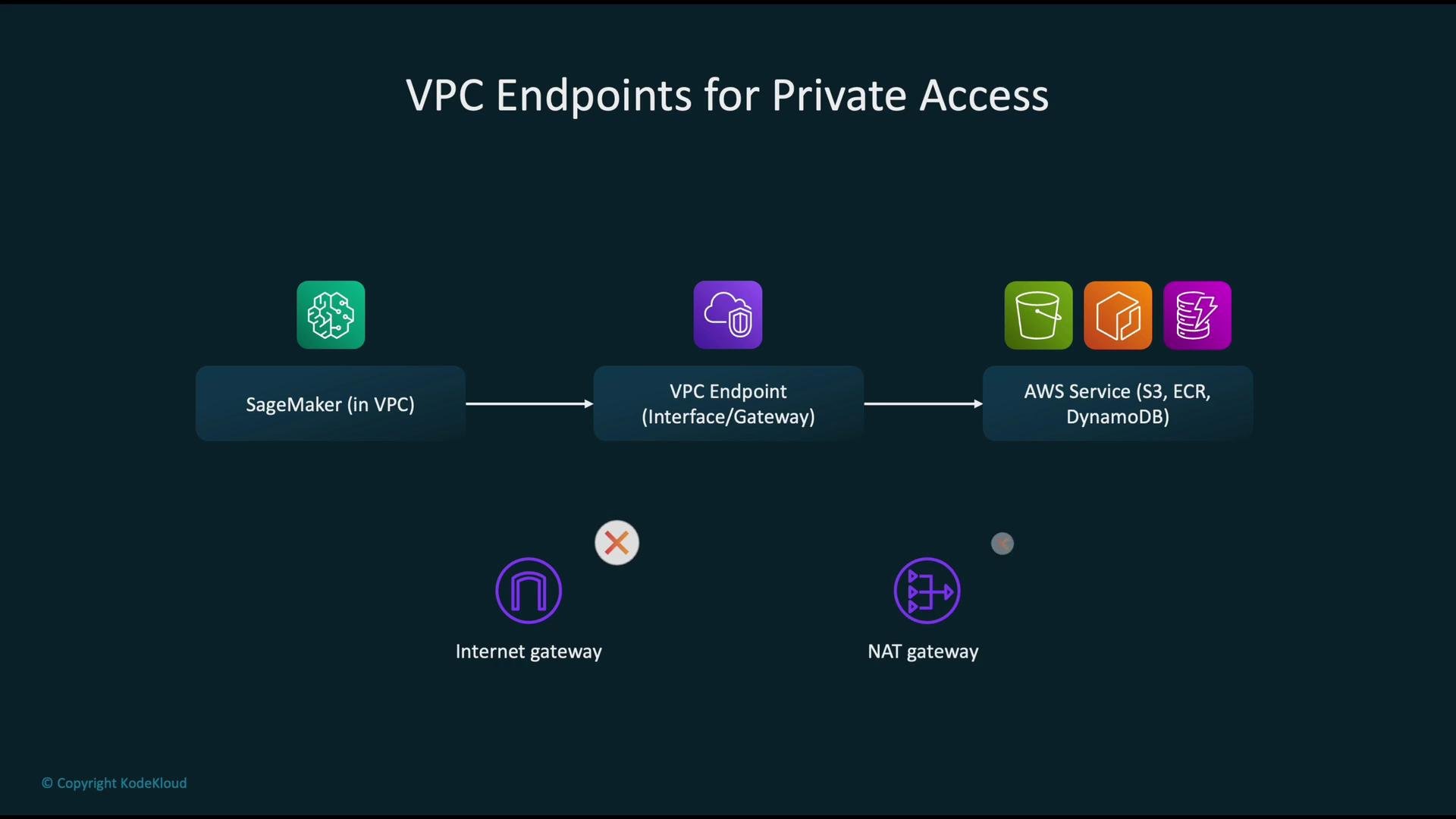

The image is a diagram illustrating VPC Endpoints for private access, showing AWS SageMaker in a VPC connecting to AWS services like S3, ECR, and DynamoDB through a VPC Endpoint, with symbols for an internet gateway and NAT gateway below.

IAM and KMS within a VPC-enabled SageMaker environment

Execution roles: the IAM role assumed by SageMaker jobs/endpoints governs access to S3, ECR, KMS, CloudWatch, and other APIs. Apply least-privilege principles.
KMS: use AWS KMS for encryption-at-rest:
- S3 objects: SSE-KMS
- EBS volumes (if applicable): encrypted using KMS keys
- ECR repository artifacts: encrypted at rest with KMS
Ensure the SageMaker execution role has required KMS permissions (for example kms:Decrypt) for any keys used by your artifacts.

Monitoring and auditability

CloudWatch: metrics and logs for operational monitoring and alarms.
CloudTrail: API call auditing and user actions.
VPC Flow Logs: capture ENI-level traffic flows for forensics and network troubleshooting.
Aggregate these sources into dashboards and automated alerts to detect anomalies and trigger incident response.

Common pitfalls and anti-patterns

Exposing SageMaker endpoints publicly or using overly permissive security groups.
Omitting VPC endpoints for S3 and ECR, forcing traffic to go through NAT/IGW and the public AWS service endpoints.
Single-AZ deployments without cross-AZ or cross-region redundancy for critical artifacts and endpoints.

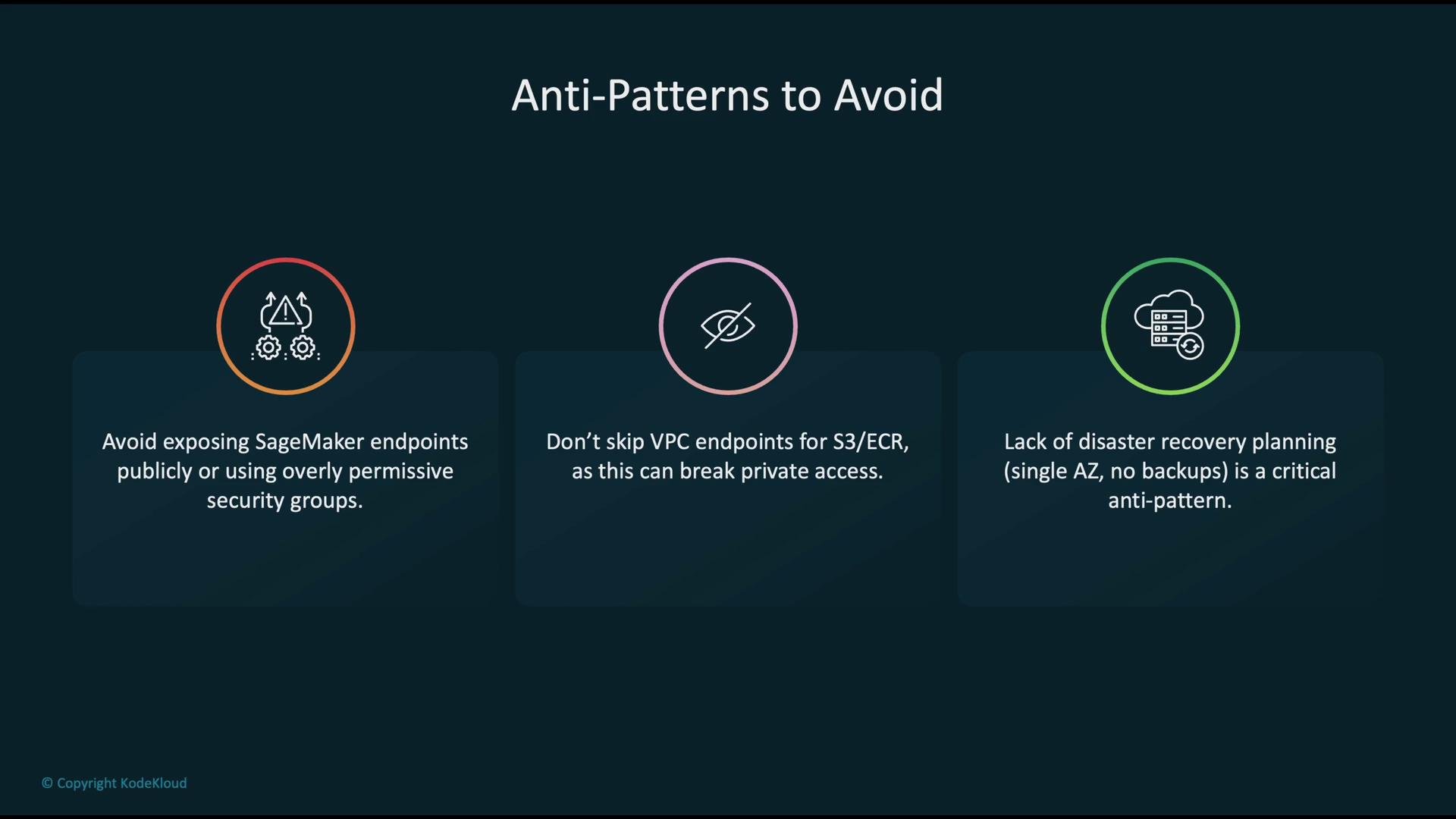

The image lists three anti-patterns to avoid: exposing SageMaker endpoints publicly, skipping VPC endpoints for S3/ECR, and lacking disaster recovery planning.

Avoid wide-open security groups and public endpoints. Always require least-privilege IAM roles and restrict network access to the minimum necessary.

Key operational recommendations (wrap-up)

Place SageMaker training jobs, processing jobs, and endpoints in private subnets and protect ENIs with strict security groups.
Use Gateway VPC endpoints for S3 and Interface VPC endpoints (PrivateLink) for ECR, CloudWatch, STS, and other APIs so service traffic stays on the AWS network.
Apply least-privilege IAM roles and enable KMS encryption for data at rest.
Monitor continuously with CloudWatch, CloudTrail, and VPC Flow Logs; consolidate logs and create alerting for anomalous patterns.
Design for high availability: use multi-AZ subnets, cross-region backups for critical artifacts, and a tested disaster recovery plan.

When configuring VPC endpoints and security groups, test access from a minimal SageMaker job or endpoint to confirm that S3, ECR, and CloudWatch are reachable without internet egress before rolling out at scale.

Links and references

SageMaker VPC documentation: https://docs.aws.amazon.com/sagemaker/latest/dg/amazon-sagemaker-vpc.html
VPC endpoints (AWS PrivateLink & gateway endpoints): https://docs.aws.amazon.com/vpc/latest/privatelink/what-is-privatelink.html
AWS KMS documentation: https://docs.aws.amazon.com/kms/latest/developerguide/overview.html
boto3 SageMaker client: https://boto3.amazonaws.com/v1/documentation/api/latest/reference/services/sagemaker.html
