Using SageMaker Script Mode with Frameworks

Amazon SageMaker Script Mode lets you run your existing training scripts inside SageMaker’s managed environment with minimal changes by using SageMaker’s pre-built framework containers. This approach simplifies migrating from local development to cloud training while leveraging managed infrastructure, scalability, and experiment tracking.

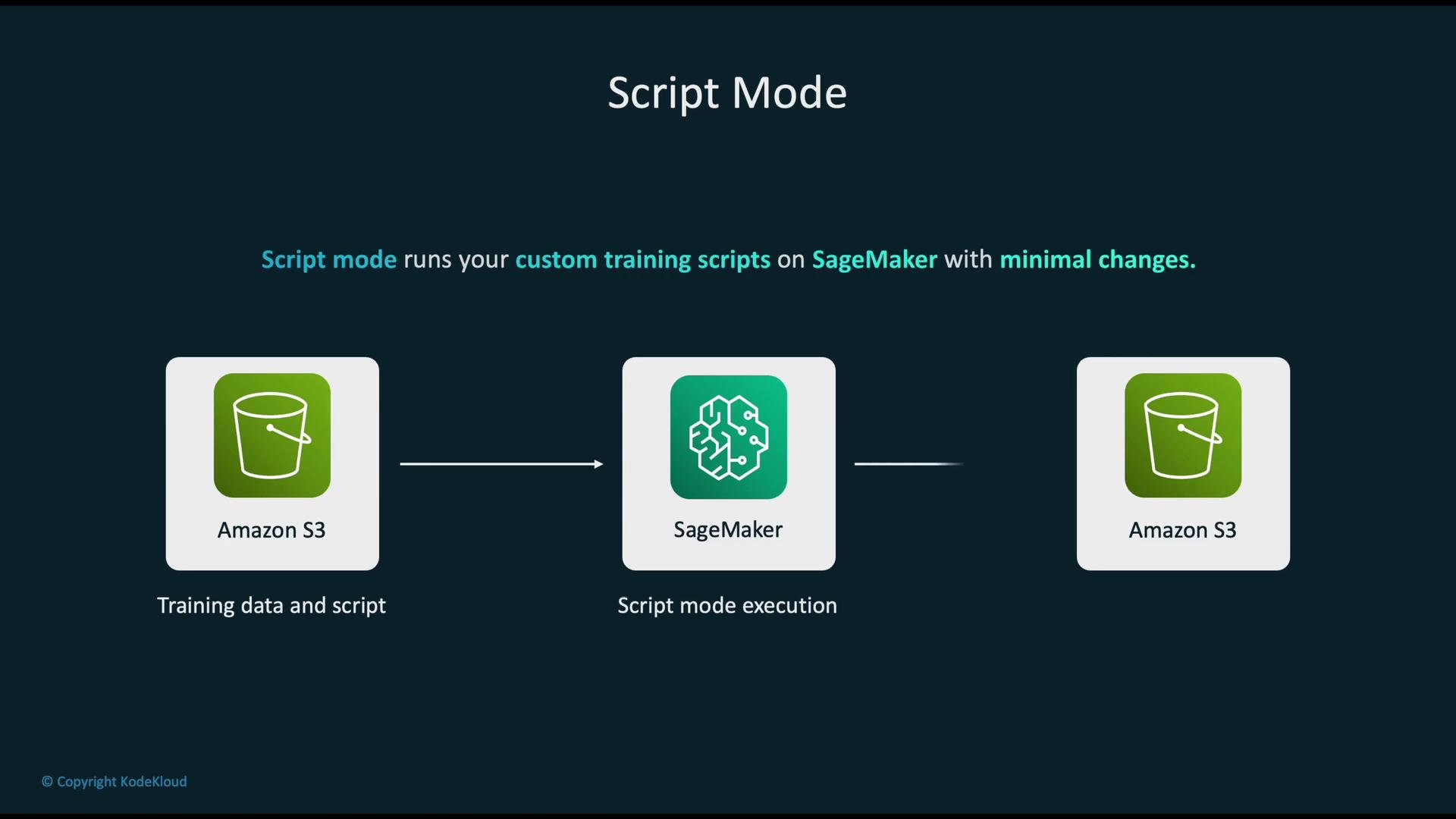

The image illustrates a flow of script mode execution for custom training scripts on SageMaker, involving Amazon S3 for data storage.

Key benefits of Script Mode:

Minimal code changes — keep your existing train.py and other modules.
Managed infrastructure — SageMaker handles instance provisioning and lifecycle.
Scalability — run on CPU or GPU instances, and scale to distributed training.
Experiment tracking — logs, metrics, and artifacts are collected automatically.
Flexibility — include third‑party libraries and arbitrary training logic.

The image lists the advantages of script mode, including minimal code changes, managed infrastructure, scalability, experiment tracking, and flexibility, each with an icon.

How Script Mode works With Script Mode, you bring your training entry point (for example, train.py) and SageMaker runs it inside a managed container that already includes the specified framework and Python runtime. Typically you provide:

train.py — required training entry point
inference.py — optional inference handler for deployment
requirements.txt — optional list of additional Python packages

The SageMaker Estimator acts as the recipe for the training job. When you create an Estimator you configure:

Script to run (entry_point)
Framework / container (e.g., TensorFlow, PyTorch)
Compute resources (instance type and count)
Data locations (S3 URIs for channels such as train and validation)
Hyperparameters (epochs, learning rate, batch size)
IAM role (permissions to access S3 and other AWS services)

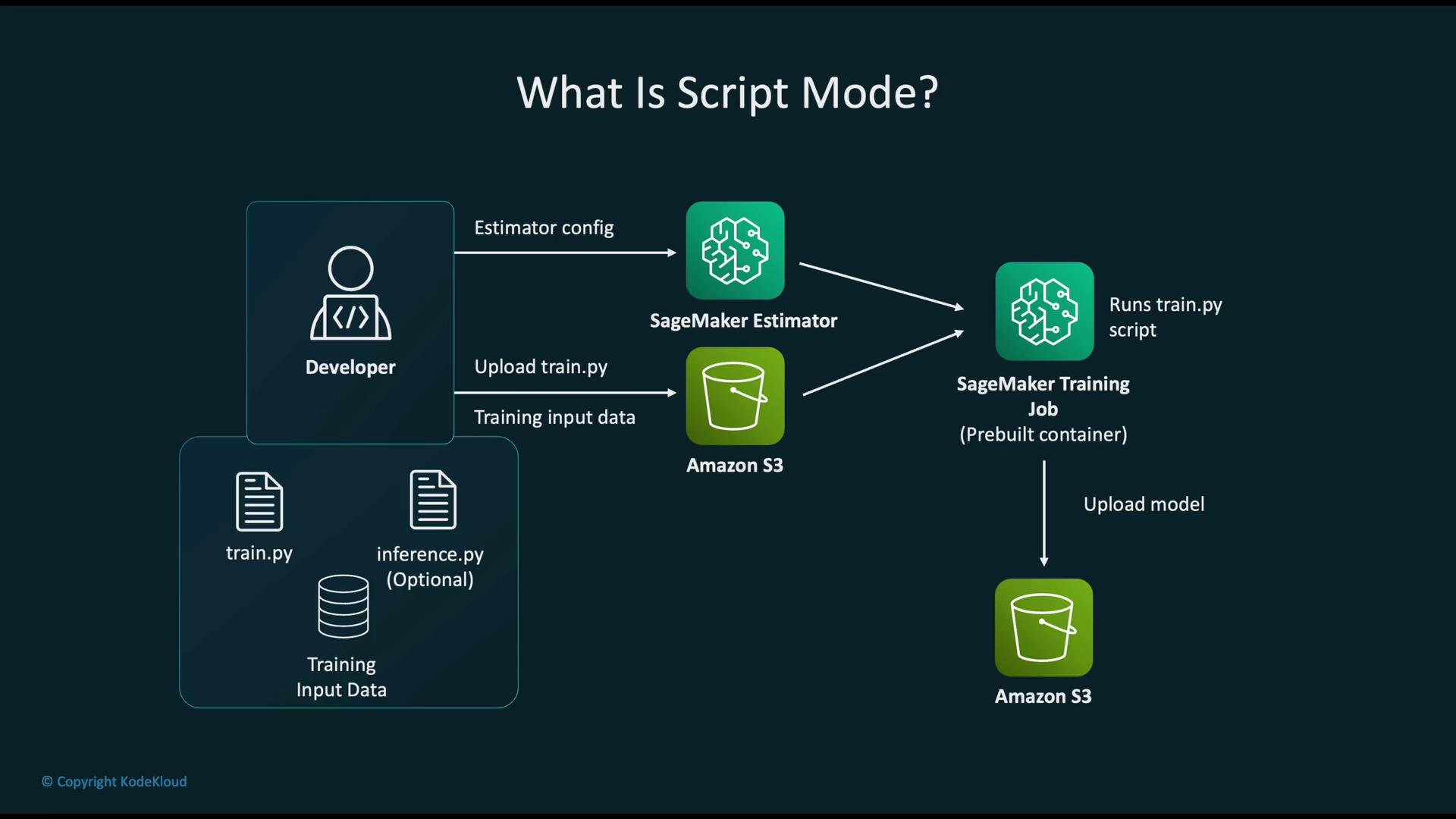

The image illustrates the workflow of AWS SageMaker's Script Mode, showing how a developer uses SageMaker Estimator to configure and upload training scripts and data to Amazon S3, which runs in a SageMaker Training Job.

Estimator components

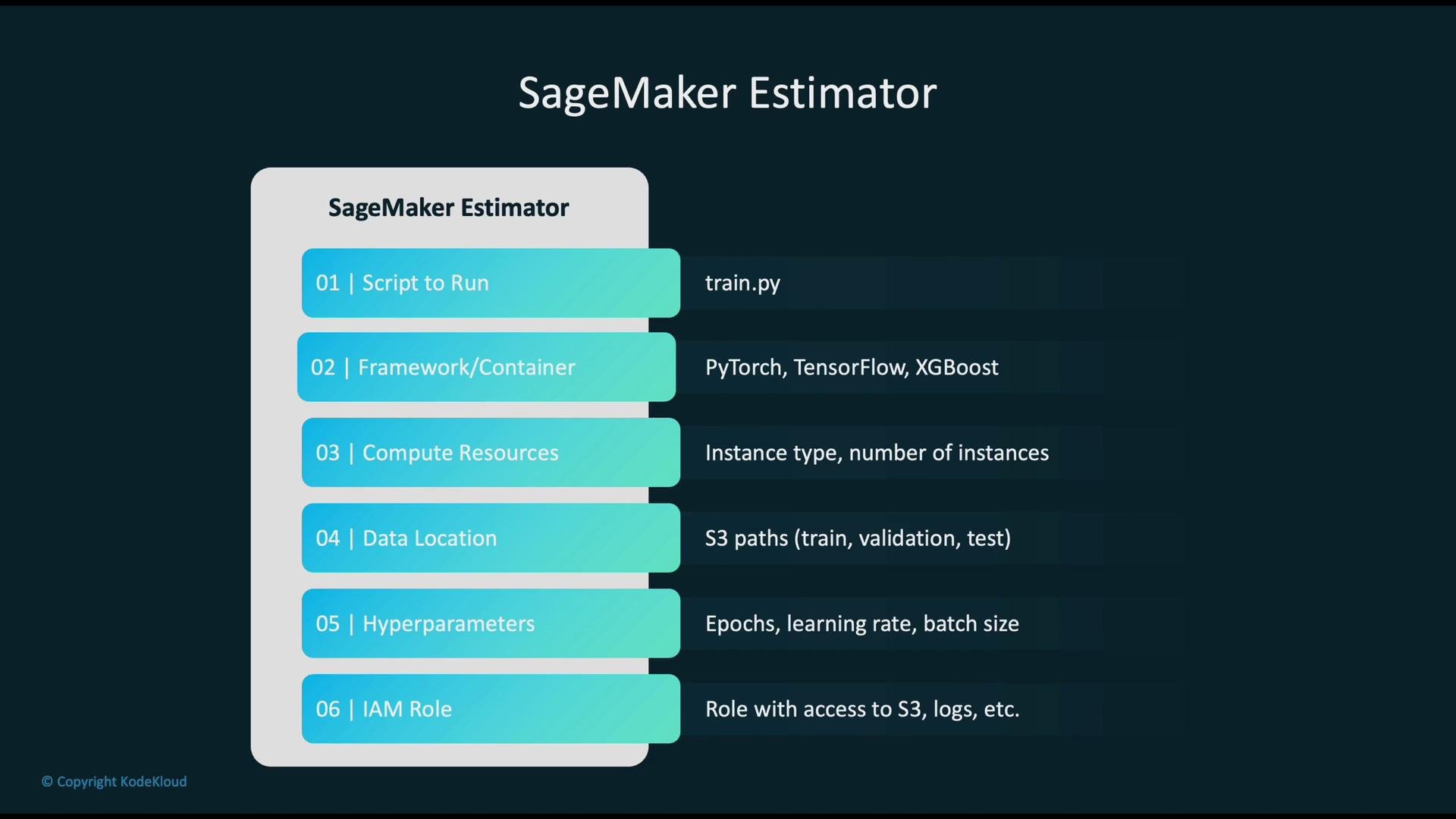

The image outlines the components of a SageMaker Estimator, including script to run, framework/container, compute resources, data location, hyperparameters, and IAM role.

Below is a concise reference for common Estimator parameters and their purpose.

Parameter	Purpose	Example
`entry_point`	Training script file to execute	`train.py`
`source_dir`	Directory with additional code and modules	`src/`
`role`	IAM role for training job access	`arn:aws:iam::123456:role/SageMakerRole`
`instance_type`	Compute instance to run training	`ml.p3.2xlarge`
`instance_count`	Number of instances for distributed training	`1`
`framework_version`	Framework version used by the container	`2.3`
`py_version`	Python runtime inside the container	`py310`
`hyperparameters`	Hyperparameters passed to your script	`{"epochs": 5, "lr": 0.001}`
`channels`	S3 input channels mapped at `fit()` time	`{"train": "s3://bucket/train/"}`

Example: launching a PyTorch training job using the SageMaker Python SDK

from sagemaker.pytorch import PyTorch

estimator = PyTorch(
    entry_point="train.py",           # your training script
    source_dir="src",                 # directory with your code (optional)
    role="arn:aws:iam::123456:role/SageMakerRole",
    instance_type="ml.m5.xlarge",     # compute instance
    instance_count=1,
    framework_version="2.3",          # framework version (example)
    py_version="py310",               # python runtime in container
    hyperparameters={
        "epochs": 5,
        "lr": 0.001
    }
)

# Launch training job with channel-to-S3 mappings
estimator.fit({
    "train": "s3://mybucket/data/train/",
    "validation": "s3://mybucket/data/val/"
})

Pre-built framework containers SageMaker pre-built containers include Python, the chosen framework libraries, and common dependencies. These containers run your entry_point script and accept hyperparameters and environment variables. They support single-node and distributed training modes.

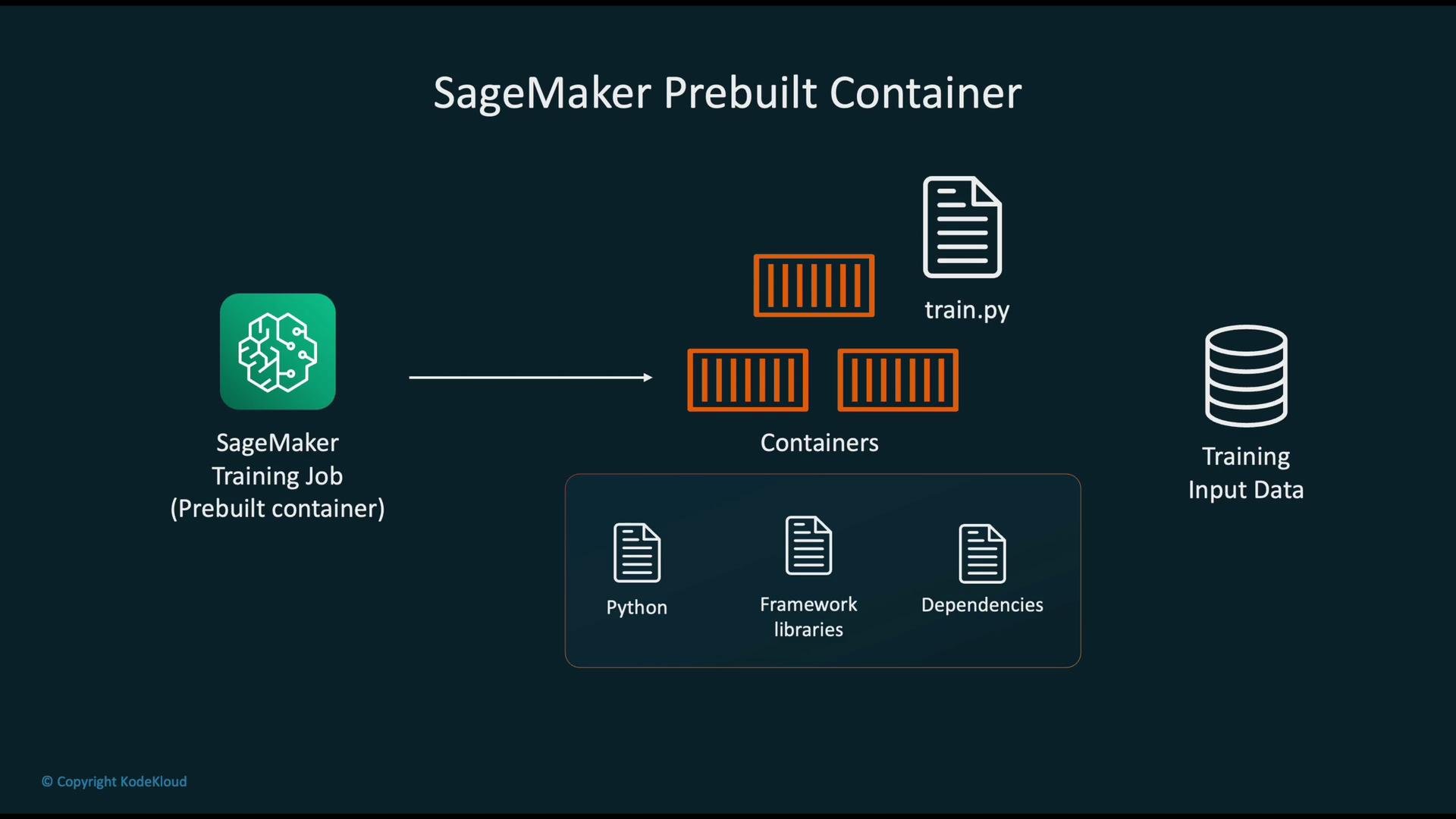

The image is a diagram illustrating a SageMaker training job using a prebuilt container, showing components like training input data, a train.py script, and various containerized elements such as Python, framework libraries, and dependencies.

Filesystem layout and artifacts Inside the container SageMaker exposes a standard filesystem layout (for example, /opt/ml). Use these directories or provided environment variables in your training script to:

Read input data from the mapped channel directories
Write output artifacts (model files, logs, metrics)

After training completes, SageMaker bundles the model artifact (typically model.tar.gz or model.tar) and uploads it to Amazon S3. Deploying trained models With a single call to the Estimator’s deploy() method you can create a hosted endpoint. SageMaker will:

Provision serving instances
Load the model artifact from S3
Start a scalable REST API endpoint for real-time predictions

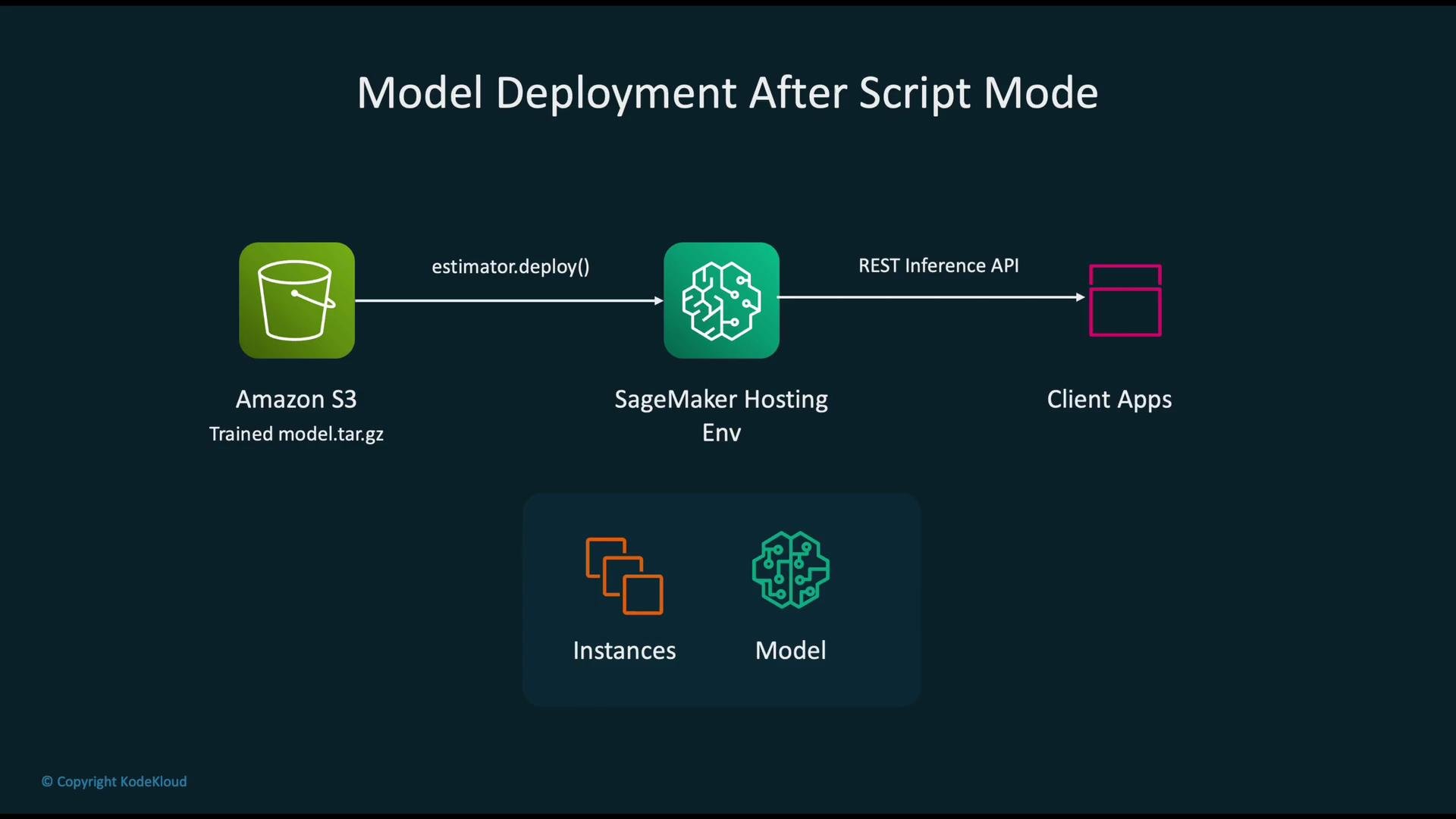

The image illustrates the process of model deployment using Amazon SageMaker, showing how a trained model stored in Amazon S3 is deployed to SageMaker Hosting and accessed by client applications via a REST API.

Supported frameworks and when to use Script Mode Supported frameworks include TensorFlow, PyTorch, MXNet, scikit-learn, and XGBoost via SageMaker’s pre-built containers.

Scenario	Recommendation
Standard training with common libraries	Use Script Mode with a pre-built container
Need system-level libraries or non-standard OS packages	Build a Custom Container
Highly tuned or non-standard serving runtime	Custom Container for full control

Project layout example Organize your project so the Estimator’s source_dir contains the training script and any helper modules:

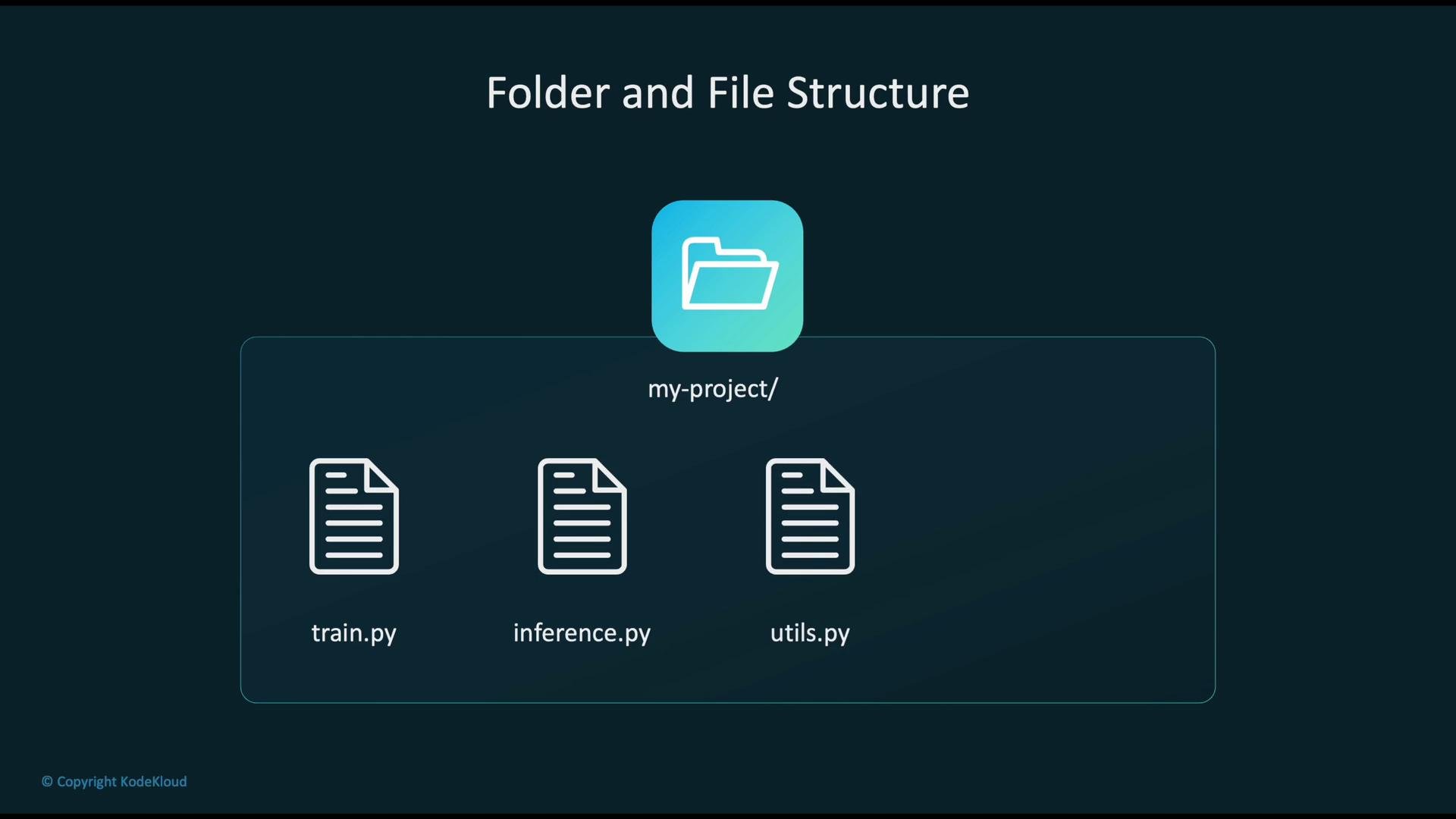

The image shows a folder and file structure for a project named "my-project," containing three Python files: train.py, inference.py, and utils.py.

Recommended files:

train.py — main training entry point (required)
inference.py — optional handler for model serving (when deploying)
utils.py — helper functions for training or inference
requirements.txt — optional extra dependencies to install in the container

Script Mode vs Custom Container

Script Mode: Bring your script and use SageMaker’s pre-built container (fast to adopt, fewer maintenance tasks).
Custom Container: Provide a full container image when you need system-level control, special OS packages, or unsupported runtimes.

Use Script Mode when your code and dependencies fit within a supported framework container. Choose a custom container only when you need dependencies or system-level customizations not available in the pre-built images.

Summary

Amazon SageMaker Script Mode lets you run standard training and optional inference scripts using pre-built framework containers.
Provide train.py (required), inference.py (optional), and any additional dependencies.
SageMaker manages infrastructure, collects logs/metrics, stores model artifacts to S3, and provides easy deployment to managed endpoints.
