In this lesson we review instance families tailored for machine learning workloads and the key performance, security, and cost trade-offs to evaluate when choosing among them. Selecting the right instance family, actively monitoring utilization, and using automated tools to right-size and scale are critical to building performant, secure, and cost-efficient ML systems on AWS. When running ML on AWS, consider both the compute platform and managed services:
  • Amazon EC2 provides flexible compute options including powerful GPU instances for demanding training jobs.
  • AWS SageMaker is a fully managed service that streamlines model building, training, tuning, and deployment.
  • AWS CloudWatch supplies metrics, dashboards, and alarms for monitoring and alerting so you can keep training and inference workloads healthy.
Links:
The image shows two people sitting at a console with multiple screens, under a heading about ML-specific instance types, featuring Amazon EC2 and SageMaker icons.
Why choosing the right instance type matters Instances broadly fall into two categories:
  • EC2 general-purpose instances: balanced CPU, memory, and network. Cost-effective for web servers, small databases, preprocessing, and classical ML tasks that do not require GPU acceleration.
  • ML-specific (accelerated) instances: optimized for GPU/accelerator throughput and parallel compute. Higher hourly cost but essential for deep learning training, large-scale inference, and high-performance workloads.
Pick instance families based on the workload’s dominant resource profile—CPU-bound, memory-bound, or accelerator-bound—and whether you prioritize latency or throughput.

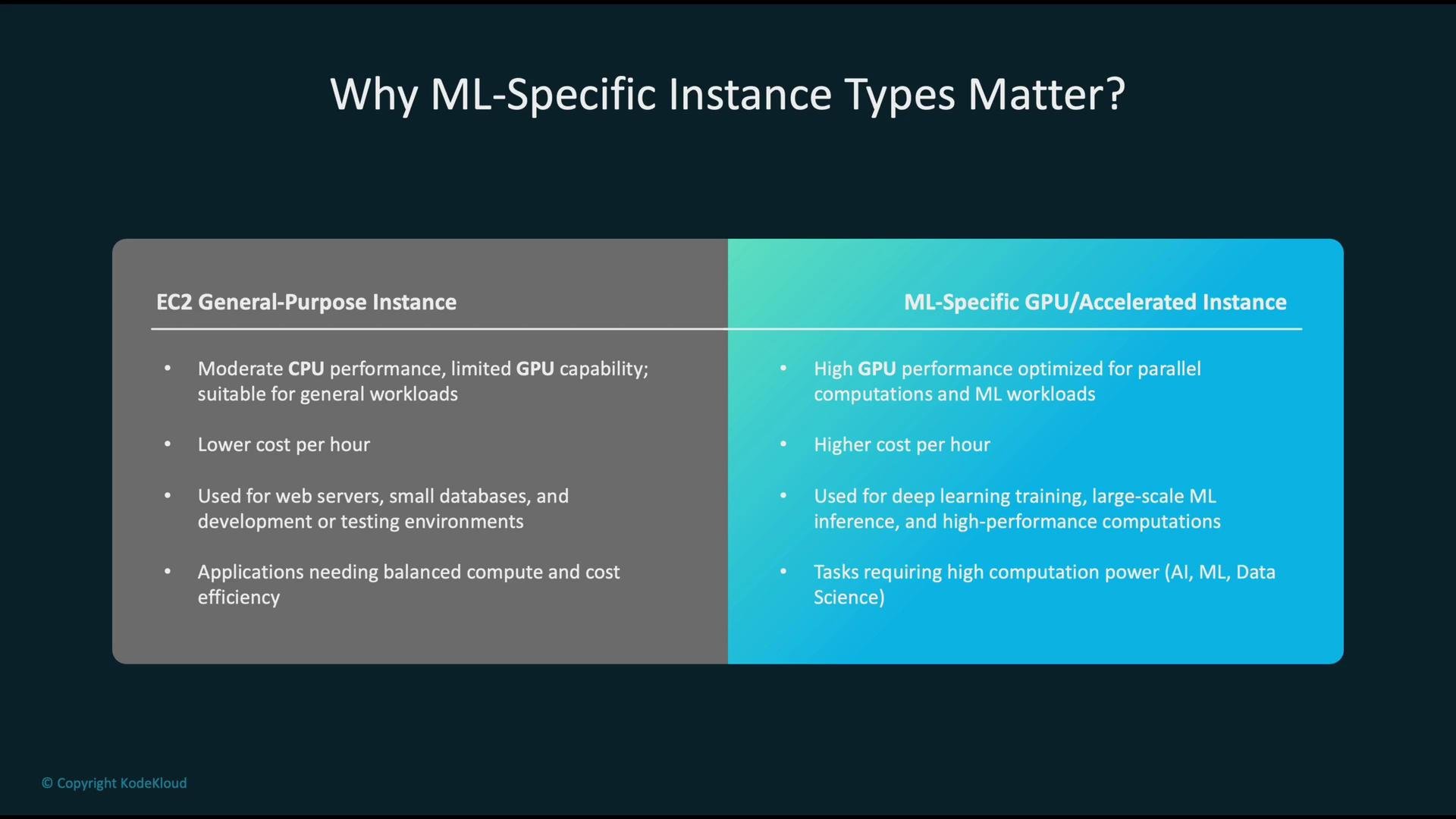

The image is a comparison between EC2 General-Purpose Instances and ML-Specific GPU/Accelerated Instances, highlighting their performance, cost, and usage scenarios. It explains why ML-specific instance types are important, emphasizing their suitability for high-computation tasks.
Instance choices by ML workflow stage Choose instance families according to the pipeline stage and dominant resource needs.

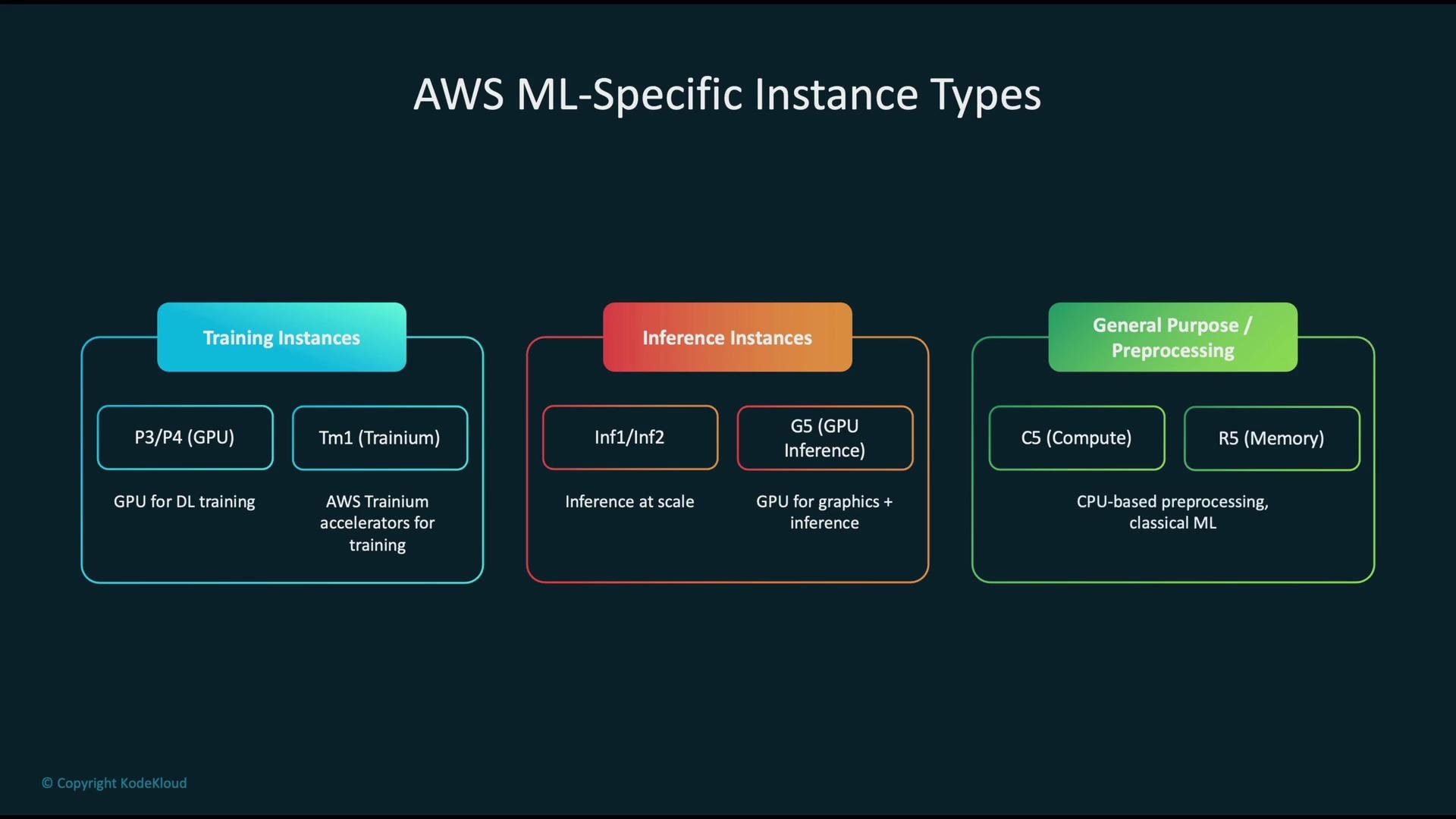

The image is a diagram categorizing AWS ML-specific instance types into Training Instances, Inference Instances, and General Purpose/Preprocessing. Each category lists specific instances like P3/P4 (GPU), Inf1/Inf2, and C5 (Compute).
Performance considerations during training Training performance is determined by GPU/CPU utilization, memory capacity, I/O throughput, and network bandwidth (critical for multi-node distributed training). A practical approach:
  • Instrument: collect CPU, memory, GPU utilization, disk I/O, and network metrics via CloudWatch and SageMaker-provided metrics.
  • Diagnose: identify bottlenecks—common patterns include GPUs idle due to slow data loading or CPUs overloaded with preprocessing.
  • Optimize:
    • Use distributed training patterns (data parallelism or model parallelism).
    • Improve data pipelines: sharding, prefetching, caching, and streaming large datasets from S3 or local NVMe.
    • Choose instances with higher network bandwidth or local NVMe storage if I/O is the limiting factor.
    • Tune batch sizes and mixed-precision training to improve GPU throughput.

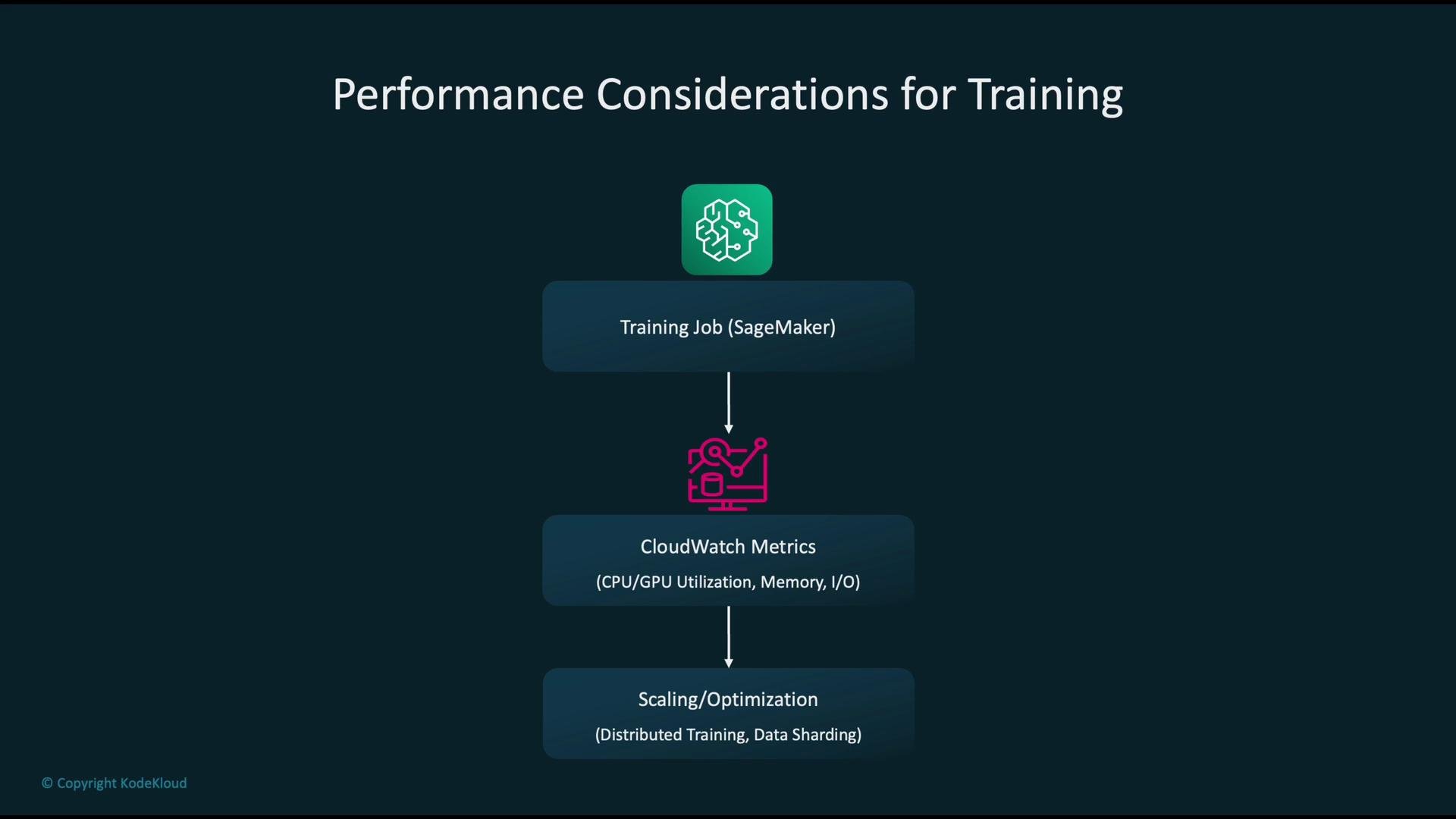

The image displays a flowchart illustrating performance considerations for training in AWS SageMaker, including monitoring via CloudWatch Metrics and optimizing through scaling and data sharding.
Optimizing inference performance For inference, focus on latency, throughput, and error rate. A concise iterative workflow:
  1. Start from the trained model (SageMaker training job output).
  2. Deploy to an endpoint and monitor CloudWatch metrics for latency, requests/sec, and errors.
  3. Apply optimizations:
    • Autoscale endpoints to match request patterns.
    • Compile models with SageMaker Neo to optimize for target hardware: https://aws.amazon.com/sagemaker/neo/
    • Use quantization or pruning to reduce model size and improve latency.
    • Deploy on accelerator-optimized instances (Inf1/Inf2) for high throughput or low-cost inference.
  4. Re-measure, iterate, and profile per-model traffic patterns.

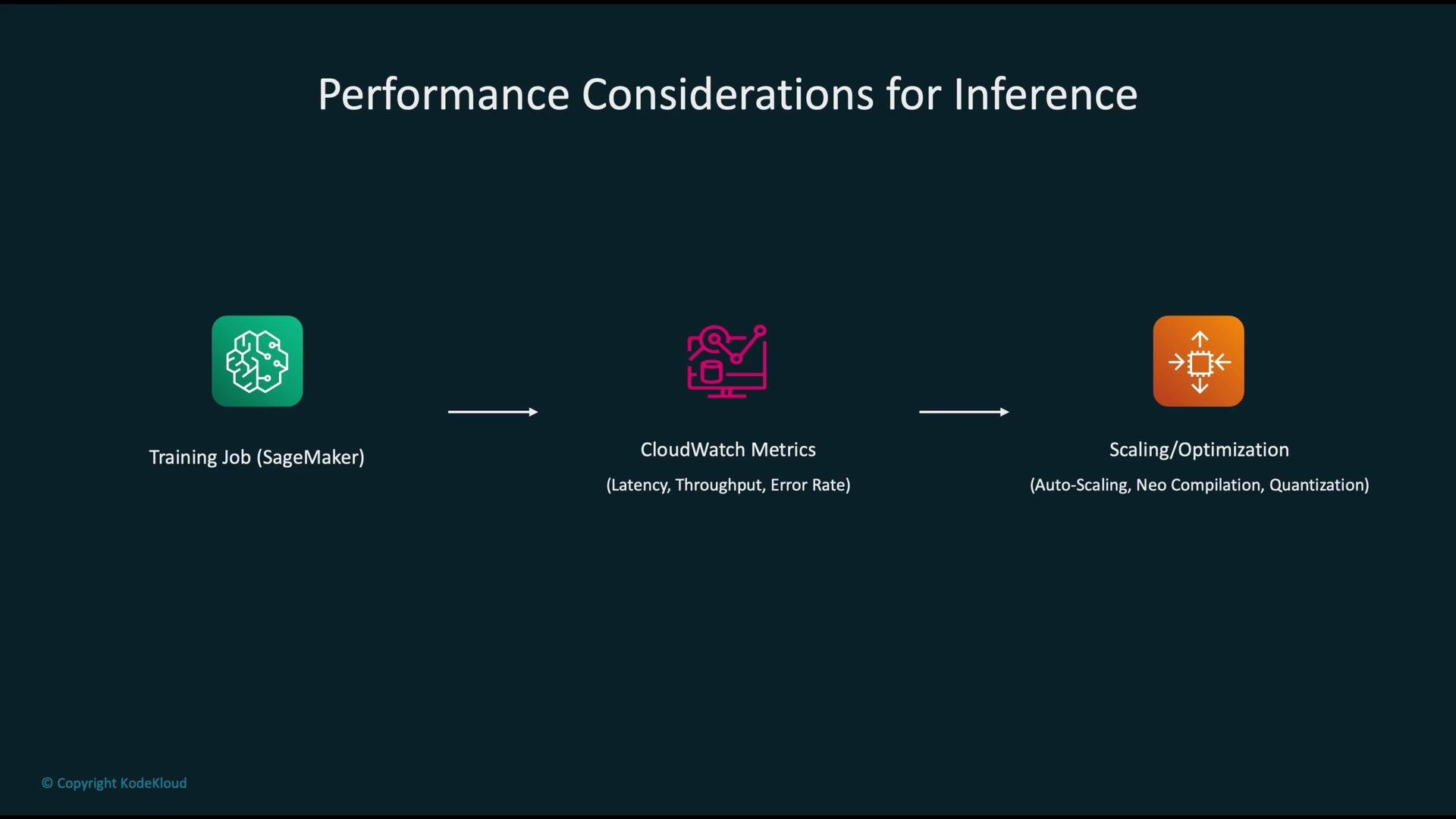

The image presents a flowchart titled "Performance Considerations for Inference," showing a sequence from a SageMaker Training Job to CloudWatch Metrics (Latency, Throughput, Error Rate), and finally to Scaling/Optimization (Auto-Scaling, Neo Compilation, Quantization).
Autoscaling behavior and why it matters Design endpoints to handle variable workloads using autoscaling:
  • Scale out (add instances) when traffic or latency spikes to maintain performance and availability.
  • Scale in (remove instances) when demand drops to reduce costs.
Autoscaling prevents sustained over-provisioning while ensuring responsiveness under peak load. Configure scaling policies on meaningful metrics (e.g., p90 latency, requests/sec, GPU utilization) and test scaling thresholds with load testing.
The image explains auto-scaling and instance performance, highlighting that policies adjust the number of instances automatically by scaling out when traffic or latency is high to ensure performance, and scaling in when demand drops for cost efficiency.
Right-sizing tools Two AWS services help you pick optimal instance configurations: Use both together: Inference Recommender for model-driven choices and Compute Optimizer for account-level utilization and cost patterns.

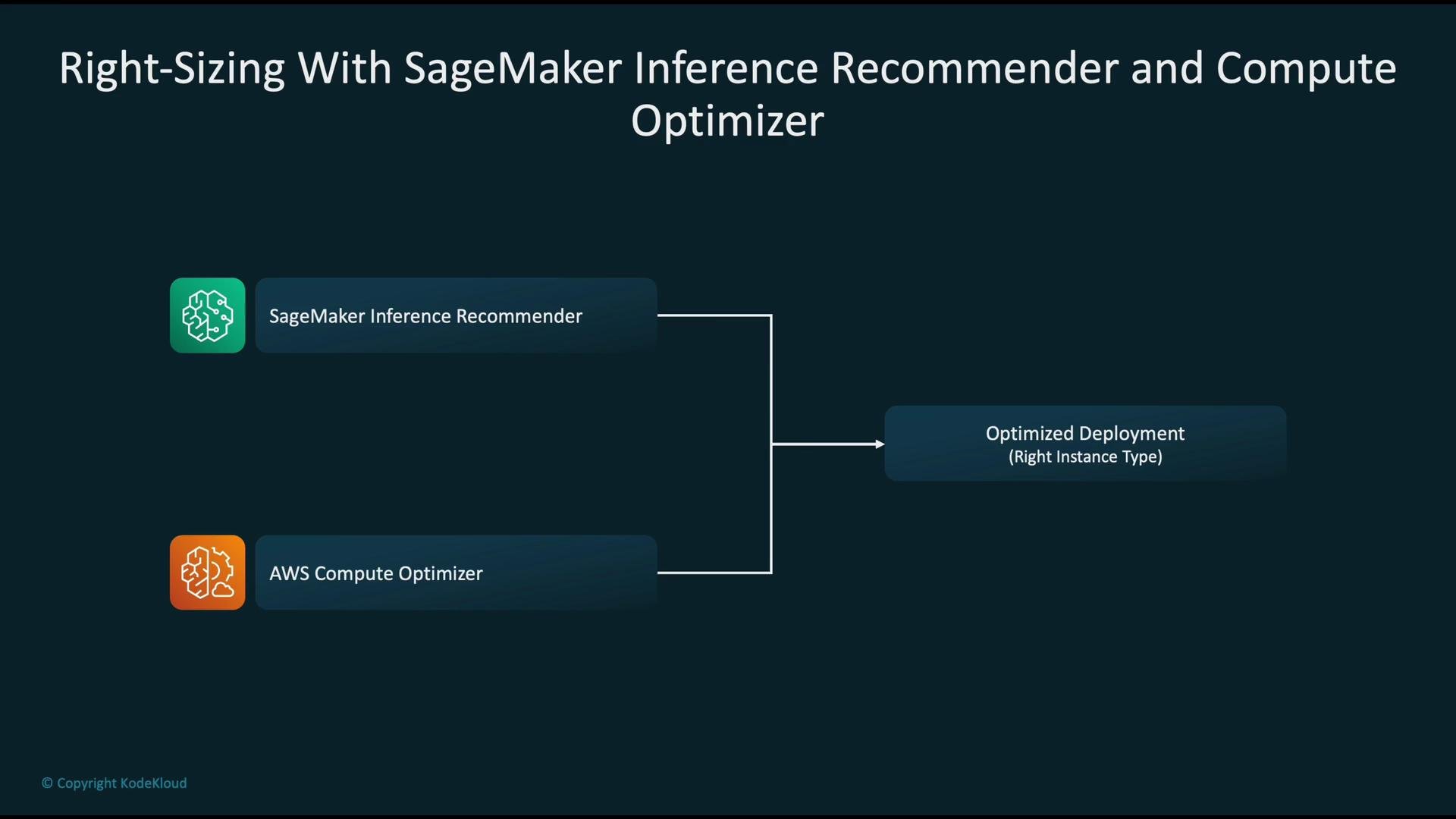

The image is a diagram illustrating "Right-Sizing With SageMaker Inference Recommender and Compute Optimizer," showing how these tools lead to optimized deployment with the right instance type.
Monitoring with CloudWatch Stream performance data to CloudWatch for both training and inference:
  • Metrics to collect: CPU, memory (via agent or SageMaker), GPU utilization (via CloudWatch custom metrics or vendor plugins), disk I/O, and network throughput.
  • Use cases:
    • Dashboards for at-a-glance visibility.
    • Alarms for threshold-based notifications (e.g., high latency, sustained GPU memory pressure, low disk space).
    • Automated remediation actions triggered by alarms.

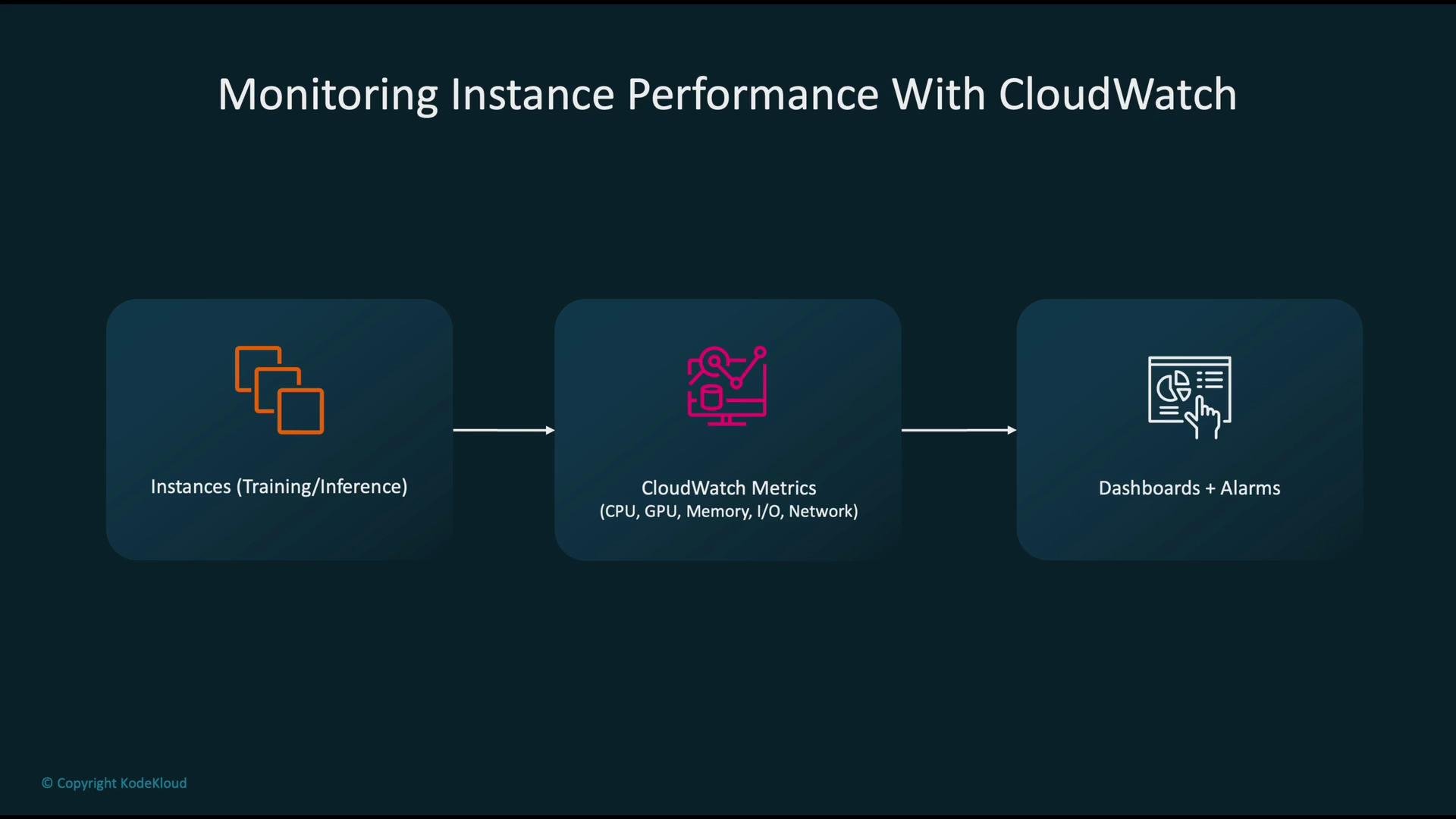

The image illustrates the process of monitoring instance performance with CloudWatch, showing the flow from instances (training/inference) to CloudWatch metrics (covering CPU, GPU, memory, I/O, and network), and then to dashboards and alarms.
Automated remediation and notifications A recommended automated response pattern:
  1. CloudWatch alarm detects a threshold breach (e.g., high latency or error rate).
  2. Alarm publishes to an Amazon SNS topic.
  3. A Lambda function subscribed to the topic executes.
  4. Lambda actions can include:
    • Adjusting SageMaker endpoint configuration (scale out/in, change instance weights).
    • Disabling or rolling back a failing model variant.
    • Sending notifications to operators (email, Slack, or an incident system).
Combine automated mitigation (fast remediation) with human-in-the-loop processes for deeper investigation when required.
When collecting GPU metrics, enable the appropriate CloudWatch agent or use SageMaker’s built-in GPU metrics. Some GPU metrics require CloudWatch custom metrics or vendor plugins to expose GPU memory and utilization.
Security and compliance for SageMaker instances Protect training and inference workloads with layered controls:
  • IAM roles and least-privilege policies: grant only the permissions SageMaker jobs and endpoints require.
  • VPC isolation: deploy training and inference resources inside a VPC with subnet segmentation and tightly scoped security groups.
  • Encryption: use AWS KMS to encrypt data at rest (S3, EBS, model artifacts) and TLS for data in transit between services and clients.
  • Audit & logging: enable AWS CloudTrail, VPC Flow Logs, and SageMaker logs for traceability and incident response.

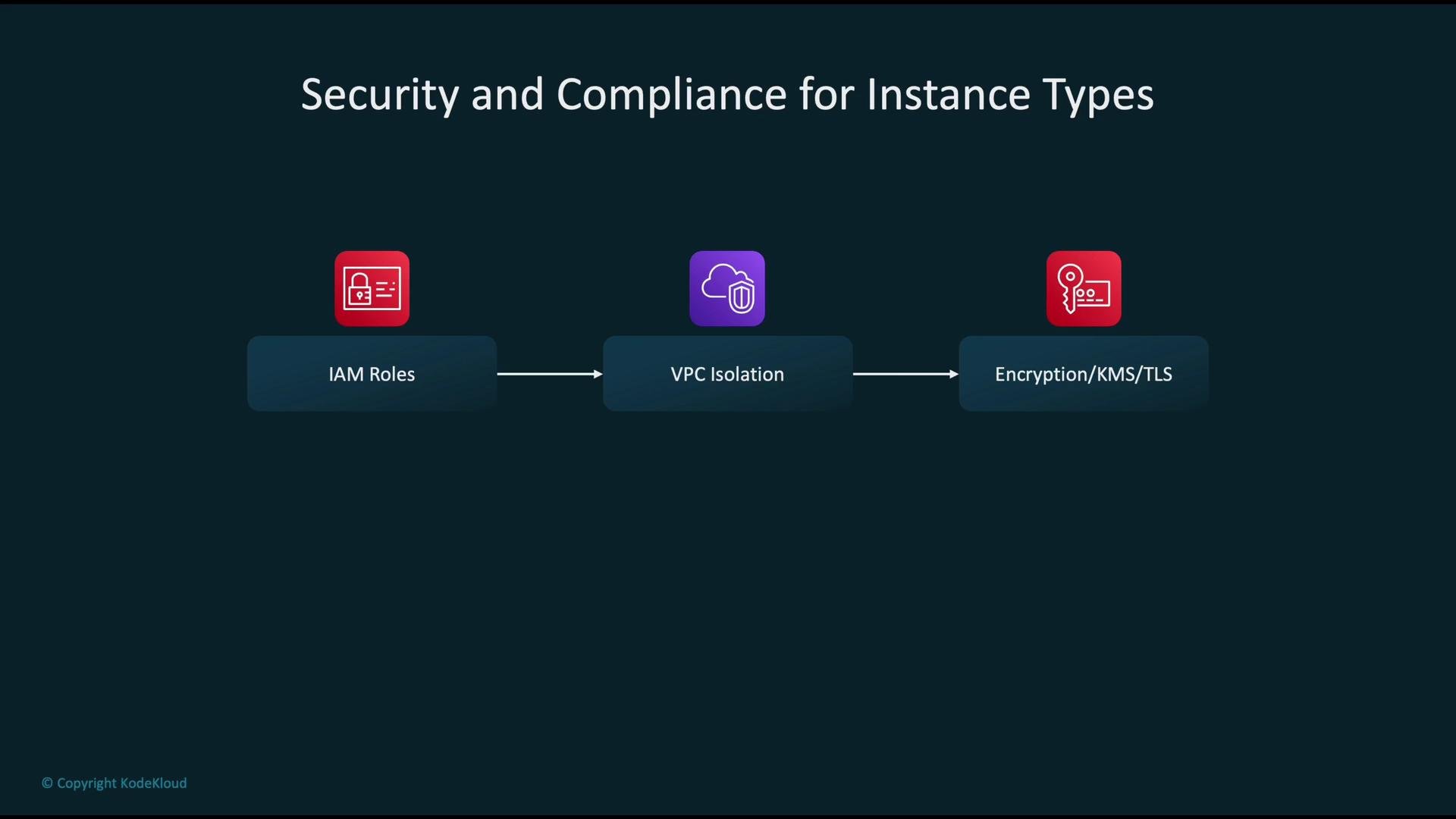

The image outlines a process flow for "Security and Compliance for Instance Types" using icons and text blocks for IAM Roles, VPC Isolation, and Encryption/KMS/TLS.
Cost optimization strategies
  • Training:
    • Use Spot Instances (or SageMaker managed Spot training) to significantly reduce training costs—often up to ~90% savings—while architecting for interruptions with checkpointing and restart logic.
  • Storage:
    • Apply S3 lifecycle policies to transition older logs and artifacts to lower-cost classes (S3 Glacier, Glacier Deep Archive) as appropriate.
  • Inference:
    • Use multi-model endpoints (when suitable) to host multiple models on a single instance.
    • Leverage SageMaker Inference Recommender to choose instance types that deliver the best cost/performance trade-off for your model.

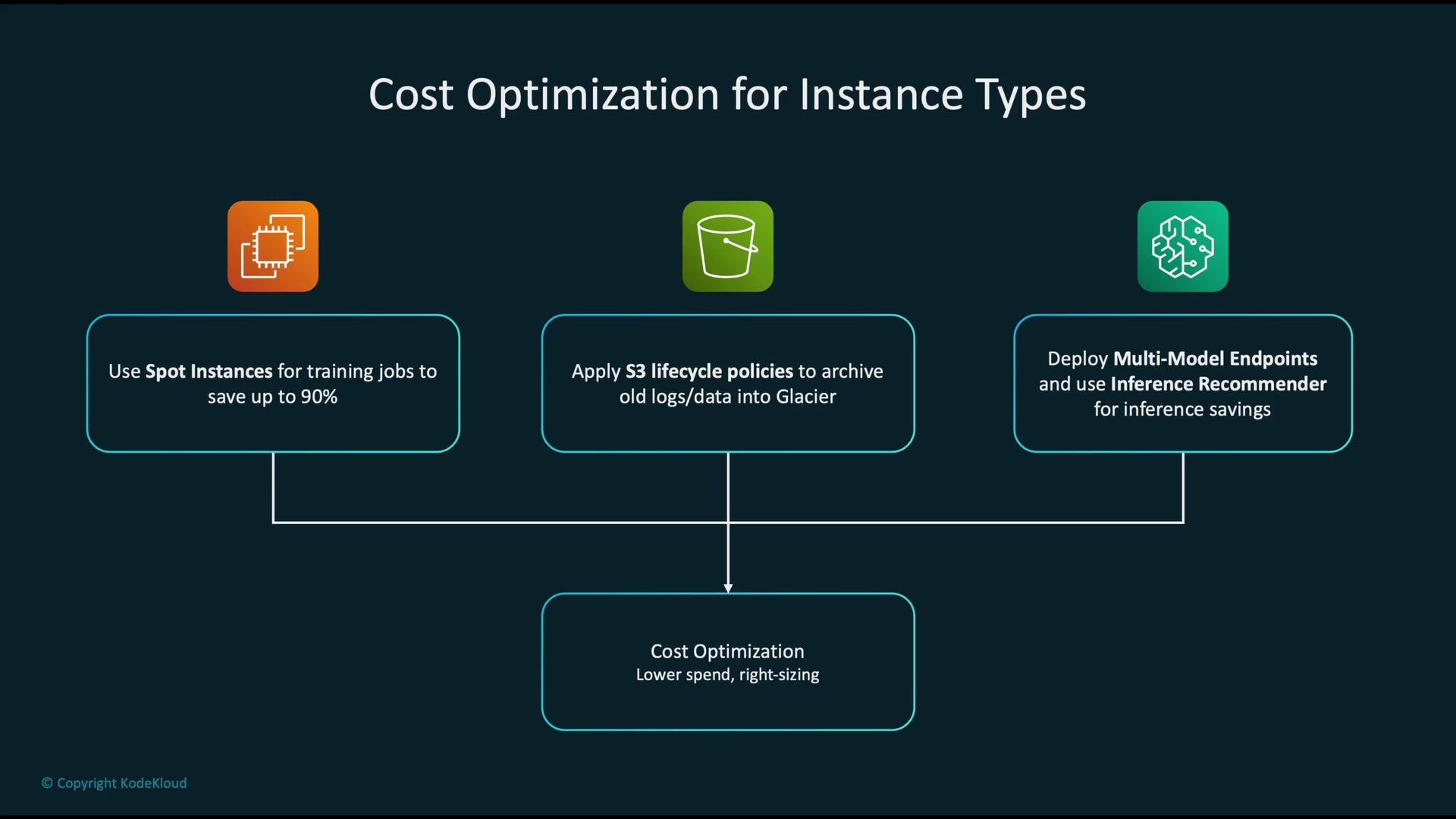

The image outlines cost optimization strategies for instance types, including using Spot Instances, applying S3 lifecycle policies, and deploying Multi-Model Endpoints.
Spot Instances are cost-effective but can be interrupted. Ensure training jobs are checkpointed and tolerant to interruptions before relying on Spot for critical workloads.
Common anti-patterns to avoid
  • Defaulting to the largest, most expensive GPU instance without benchmarking—this wastes budget.
  • Ignoring CloudWatch metrics—without monitoring you cannot diagnose or fix bottlenecks.
  • Not enabling autoscaling—leads to chronic over-provisioning or degraded service during traffic spikes.
  • Hard-coding instance types into infrastructure code—reduces flexibility and complicates future instance-family changes.

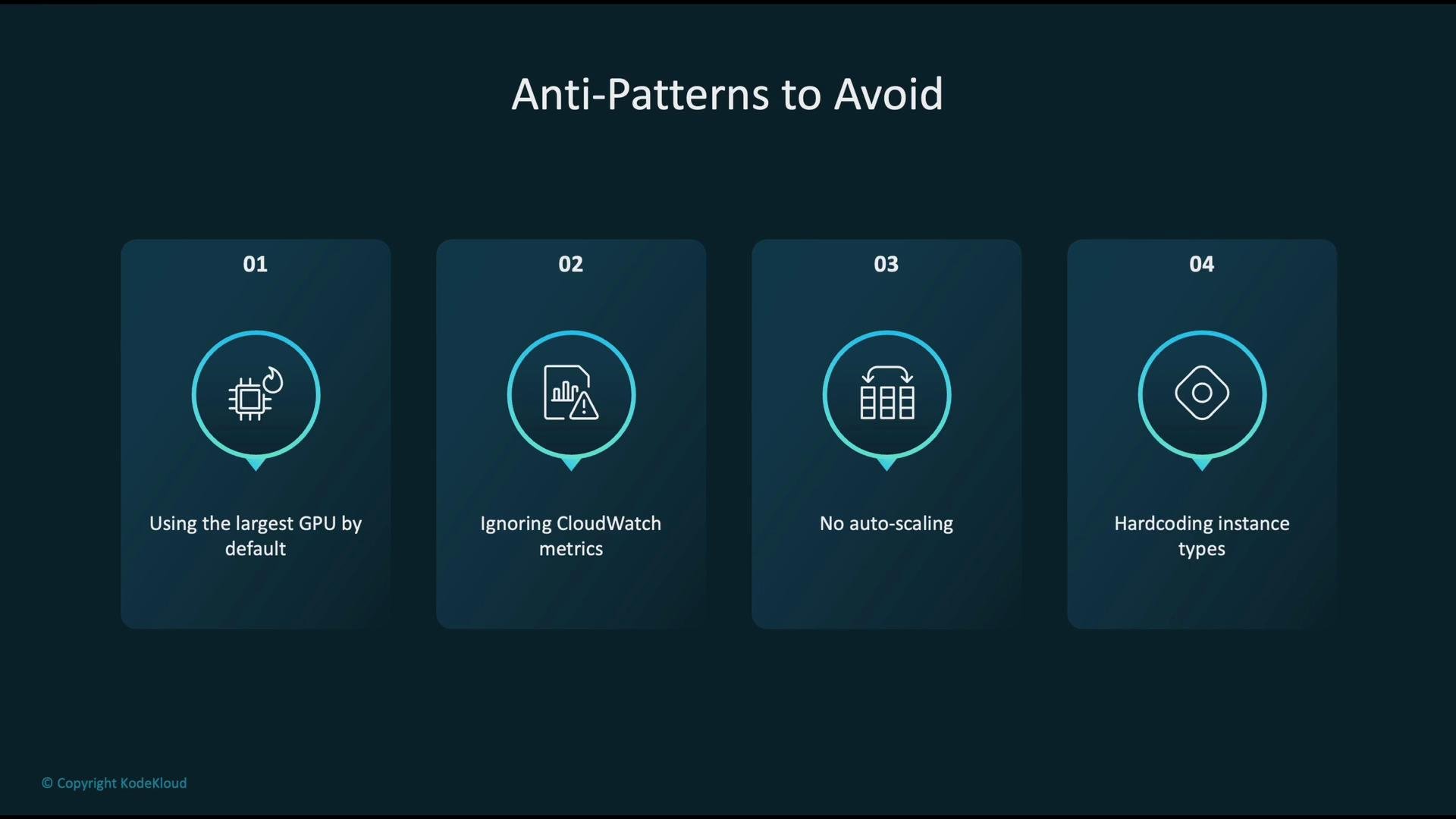

The image lists four anti-patterns to avoid: using the largest GPU by default, ignoring CloudWatch metrics, not enabling auto-scaling, and hardcoding instance types.
Summary
  • Match instance families to the pipeline stage: training, inference, or preprocessing.
  • Monitor CPU, GPU, memory, I/O, network, latency, and throughput via CloudWatch and SageMaker metrics.
  • Use SageMaker Inference Recommender and AWS Compute Optimizer to right-size resources.
  • Secure workloads with IAM, VPC isolation, encryption, and auditing.
  • Reduce costs with Spot Instances (with interruption handling), S3 lifecycle policies, and multi-model endpoints where applicable.
By combining correct instance selection, active monitoring, autoscaling, and right-sizing tools, you can build ML deployments on AWS that are performant, secure, and cost-efficient. Links and references
