Demo Implementing Data Drift Detection

Welcome back. In this lesson we cover data drift: what it is, why it matters, and how to configure a baseline and monitoring so Amazon SageMaker can detect drift in incoming requests. This guide explains the concepts, how SageMaker Model Monitor uses a baseline, and includes a minimal Python example to generate baseline statistics and constraints. What you’ll learn

What data drift is and how it impacts model quality.
How to create a representative baseline dataset.
How SageMaker computes and compares statistics at runtime.
How to view and act on drift detection results.

What is data drift and why it matters

Data drift occurs when the distribution or characteristics of incoming data differ significantly from the data that a model was trained on. When requests fall outside the ranges or distributions the model expects, predictions can become unreliable, potentially harming business outcomes. SageMaker Model Monitor uses a reference distribution — the baseline dataset — to represent expected feature statistics (e.g., ranges, histograms, percentiles). At runtime, Model Monitor computes the same statistics on incoming requests (or a sample) and compares them to the baseline using statistical checks. Significant deviations are flagged as drift so you can investigate and remediate.

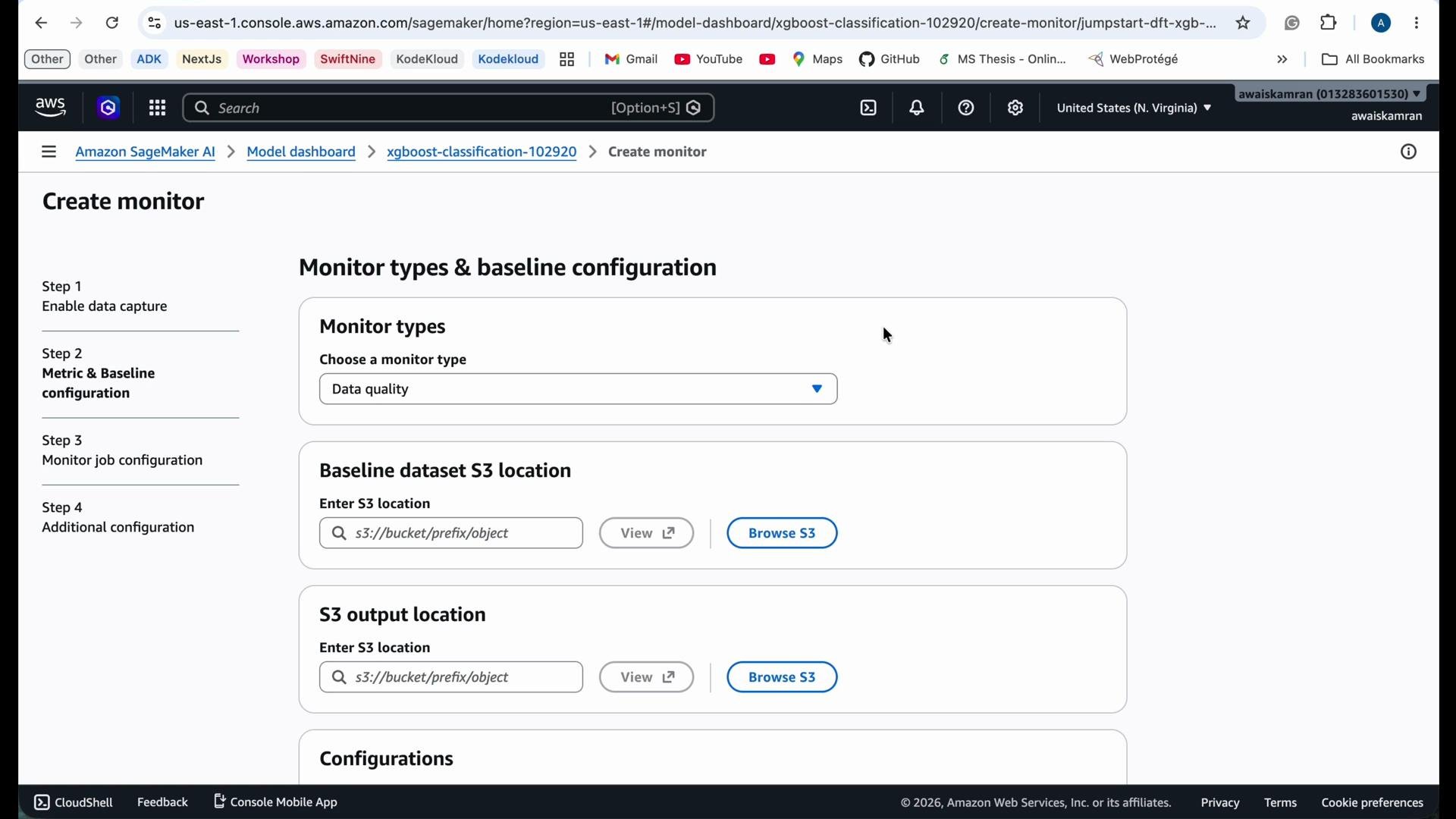

The image shows the user interface of Amazon SageMaker, specifically the "Create monitor" section for configuring data quality monitoring settings. It includes options for setting the monitor type, baseline dataset S3 location, and S3 output location.

How SageMaker Model Monitor uses a baseline

When you provide a baseline dataset (typically an S3 CSV path), SageMaker computes per-feature statistics such as:

Ranges and percentiles
Histograms and distributions
Categorical frequencies
Missing-value counts

These statistics are stored as baseline statistics and optional constraint files. During monitoring, Model Monitor computes the same statistics on incoming records and runs statistical checks (e.g., population stability index, KS-test) to detect:

Univariate shifts such as changes in mean or variance
Categorical distribution shifts (new categories or frequency changes)
Out-of-range values or increased missingness

If a statistic deviates beyond configured thresholds, Model Monitor marks the check as failed and logs the results.

Provide a representative baseline. The baseline should reflect the expected production distribution (for example, the final processed training data). If the baseline is not representative, Model Monitor will generate misleading drift signals.

Typical outcomes of drift detection

Outcome	What it detects	Next steps
Univariate shifts	Mean, variance, or percentile changes for numeric features	Investigate data preprocessing or upstream data source changes
Categorical shifts	New categories or changed frequency distributions	Map new categories, update encoding, or retrain
Out-of-range / missing values	Values falling outside expected ranges or increased nulls	Validate input sanitation, check upstream pipelines
Alerts / Logs	Failed checks emitted and results written to S3	Configure CloudWatch alarms and incident response playbooks

Create a baseline programmatically (minimal example)

Use the SageMaker Model Monitor Python SDK to suggest baseline statistics and constraints from an S3 CSV. The example below shows a minimal setup that generates the baseline output in S3.

from sagemaker import Session
from sagemaker.model_monitor import DefaultModelMonitor, DatasetFormat

# Initialize session and role
session = Session()
role = "arn:aws:iam::123456789012:role/SageMakerExecutionRole"  # replace with your role

# Input baseline CSV and output S3 locations
baseline_input_s3 = "s3://your-bucket/path/to/baseline.csv"
baseline_output_s3 = "s3://your-bucket/path/to/baseline-output/"

# Create a default Model Monitor instance
monitor = DefaultModelMonitor(
    role=role,
    instance_count=1,
    instance_type="ml.m5.xlarge",
    sagemaker_session=session,
)

# Suggest baseline statistics and optional constraint files
monitor.suggest_baseline(
    baseline_dataset=baseline_input_s3,
    dataset_format=DatasetFormat.csv(header=True),
    output_s3_uri=baseline_output_s3,
)

This call writes baseline statistics and constraints to the specified baseline_output_s3 location. Use those artifacts when configuring a Monitor Schedule so Model Monitor compares incoming data against this baseline.

Monitoring schedules and viewing results

Once a monitor runs (scheduled or continuous for streaming), failed checks and drift summaries are visible in the SageMaker console and Model Monitor dashboard. Open your model’s Monitor Schedule to inspect results and any failed checks. The dashboard also surfaces endpoint health and monitoring schedule status.

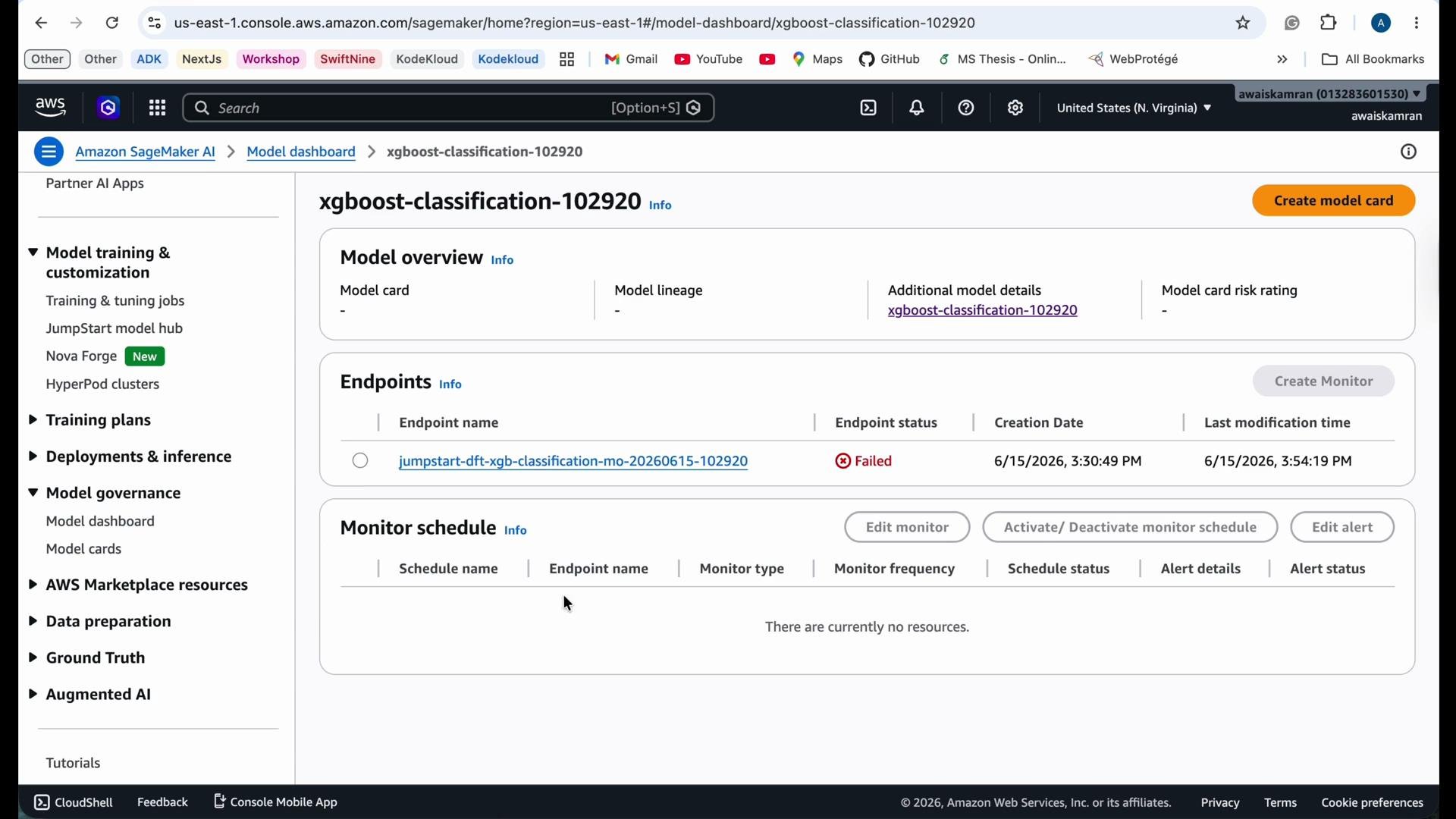

The image shows an Amazon SageMaker dashboard for a model named "xgboost-classification-102920." It includes details such as endpoints, where one endpoint has a failed status, and options for monitoring schedules.

Practical tips and best practices

Use a baseline derived from final, post-processed training data or a stable production sample.
Choose monitoring frequency based on traffic and tolerance for drift: hourly, daily, or custom cron.
Tune thresholds for each check to balance sensitivity and false positives.
Store monitor outputs in S3 and configure CloudWatch alarms for important violations.
Mask, hash, or avoid storing PII. Use aggregation or synthetic data when possible.

Be careful with sensitive data. If monitoring real user data, ensure compliance with privacy regulations (PII handling, encryption at rest/in transit, least privilege IAM) and consider anonymizing or aggregating fields before storing or analyzing them.

Where to go from here

Inspect baseline constraint files and refine checks to fit your production tolerance.
Automate alarms and remediation: trigger retraining, disable automated decisions, or notify data engineers.
Combine data drift signals with model performance metrics (ground-truth labels) for end-to-end quality monitoring.

Links and references

By configuring a reliable baseline and a monitoring schedule, SageMaker Model Monitor will report where incoming requests deviate from expected distributions so you can investigate, retrain, or gate predictions to maintain model quality.
