Shadow Deployment for Model Evaluation

Shadow deployment is a model-release strategy that mirrors real production requests to a candidate (shadow) model while only returning responses from the production model to end users. This lets you validate a new model, container, preprocessing change, or instance type on real traffic patterns without exposing users to untested behavior. Shadow deployments are commonly used to detect regressions, measure performance differences, and collect realistic telemetry for offline evaluation. Why use shadow deployments?

Validate candidate models on real-world inputs without impacting user experience.
Test changes to model code, container runtime, or instance types under production load.
Gather input/output pairs and operational telemetry for offline comparison and debugging.

Common deployment strategies (when to use each)

Strategy	Use Case	User Impact	When to choose
Shadow deployment	Run a candidate model in parallel to production to collect predictions and telemetry	No direct user impact (shadow outputs are not served)	Use when you need risk-free validation on live traffic before promotion
A/B testing	Route a percentage of users to different model variants to compare live performance	Directly affects a subset of users	Use to measure impact on business KPIs or user-facing metrics under production conditions
Canary deployment	Gradually shift a small portion of traffic to a new model	Limited user exposure by design	Use to reduce risk during rollout; monitor and increase traffic if stable

You can implement shadow deployments in Amazon SageMaker to run long-running shadow variants for any component of your model-serving stack (model, container, instance type, feature preprocessing, etc.). The usual pattern is to duplicate inference requests to a separate shadow endpoint or variant while serving live responses only from the production variant.

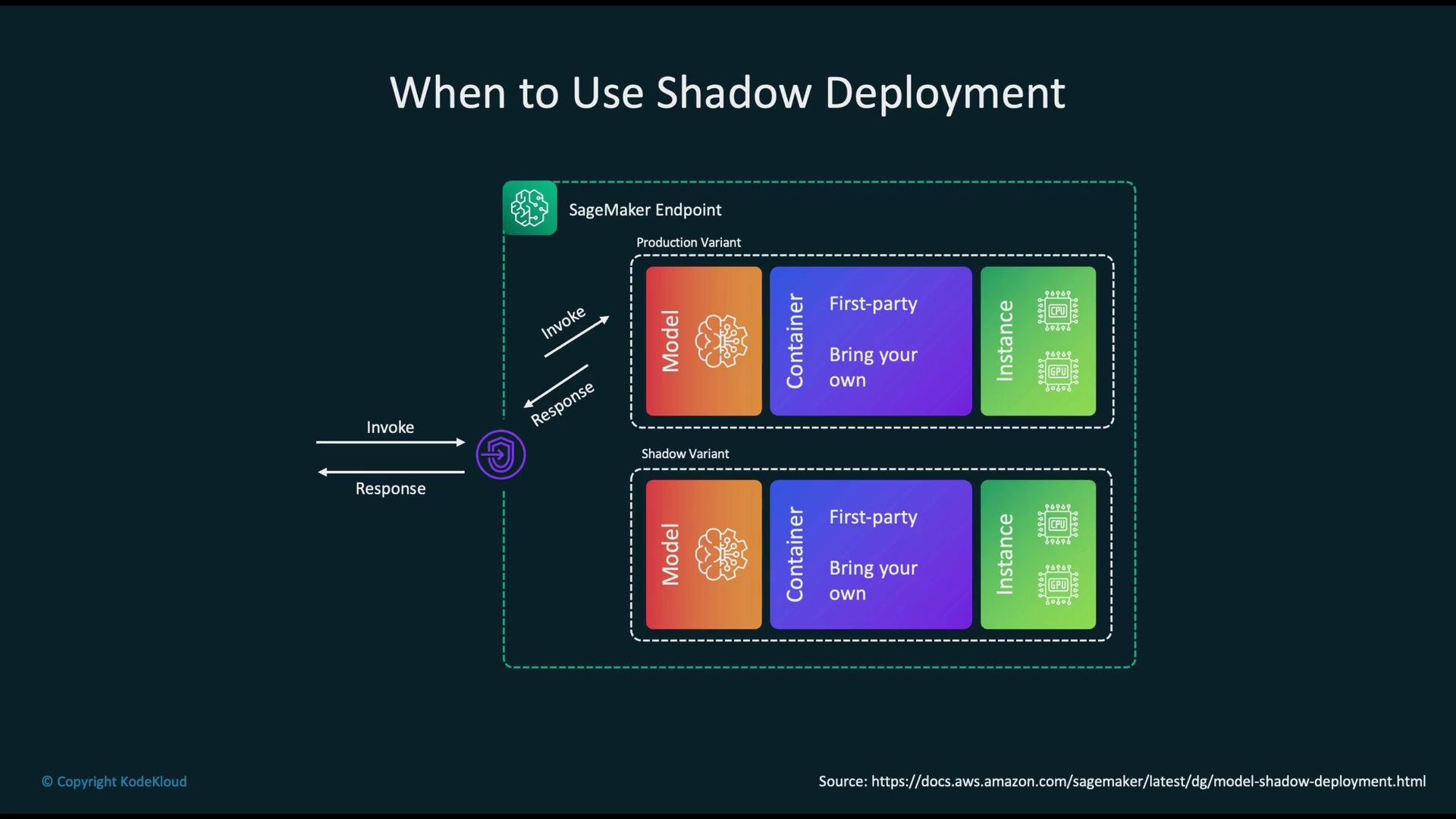

The image illustrates the concept of shadow deployment in AWS SageMaker, showing a comparison between production and shadow variants, each with model, container, and instance components.

How shadow deployment works (SageMaker example)

User requests arrive at the endpoint’s load balancer.
100% of requests are served by the primary (production) model variant for real responses.
Each incoming request is mirrored to the shadow variant running on separate ML instances.
The shadow model processes requests in parallel; its outputs are not returned to users.
Input/output pairs, timestamps, latencies, resource metrics, and error traces are persisted (for example, to Amazon S3) for offline analysis and comparison.

Recommended telemetry to persist

Category	Examples
Input/output	Raw request, prediction, confidence score
Timing & performance	Timestamp, request latency (p50/p95/p99), cold-start duration
Resource telemetry	CPU/GPU utilization, memory usage, instance type
Errors & reliability	Error codes, exception traces, timeouts
Metadata	Model version, container image, preprocess version, request ID

Example telemetry record (persist to S3 for offline analysis)

{
  "request_id": "abc-123",
  "timestamp": "2026-07-30T12:34:56Z",
  "model_version": "candidate-v2",
  "input": {"features": [0.1, 0.3, 0.9]},
  "prediction": {"label": "A", "score": 0.92},
  "latency_ms": 48,
  "instance_type": "ml.m5.xlarge",
  "error": null
}

Key metrics to evaluate shadow deployments

Technical metrics: accuracy, precision, recall, AUC, prediction distribution shifts, calibration.
Performance metrics: latency percentiles (p50/p95/p99), throughput, CPU/GPU and memory usage, cold-start time.
Reliability metrics: error rates, timeouts, exception types.
Data/behavioral metrics: input distribution drift, feature importance changes, differences in upstream preprocessing.
Business/robustness metrics: downstream KPIs, fairness/bias checks, cost impact and resource efficiency.

Typical shadow deployment lifecycle

Train and validate a new model candidate offline.
Deploy the candidate as a shadow variant alongside the current primary model so it receives mirrored traffic.
Collect and store predictions and operational telemetry for both variants.
Compare production and shadow metrics via automated dashboards and offline analysis; trigger alerts on regressions.
If the candidate meets technical, reliability, and business criteria, promote it to the primary variant; otherwise iterate or roll back.

Best practices and operational tips

Persist only the telemetry needed for evaluation; mask or avoid storing sensitive input fields to meet privacy and compliance requirements.
Automate metric comparisons and set alert thresholds for regressions (e.g., significant drop in accuracy or increased p99 latency).
Run shadow variants on isolated instances or accounts to avoid interference with production capacity.
Consider sampling mirrored traffic if full duplication is cost-prohibitive, but ensure samples remain representative.
Use feature flags or configuration to enable/disable mirroring dynamically during incidents.

Links and references

Shadow deployments are ideal when you need to validate changes to model code, container runtime, or instance types on real production traffic without exposing users to potential regressions.

When mirroring production traffic, enforce data governance: mask or redact sensitive inputs, comply with retention policies, and follow your organization’s privacy and compliance rules.
