Optimizing Infrastructure Costs with Spot Instances

In this lesson we show a practical strategy for reducing cloud compute costs by using Spot Instances effectively. Spot Instances can deliver substantial savings for general compute and machine learning workloads when combined with proper checkpointing, monitoring, and interruption handling. This guide focuses on AWS services commonly used together for Spot-based ML workflows: Amazon EC2, Amazon SageMaker, AWS CloudWatch (and EventBridge), and AWS Cost Explorer.

The image depicts two individuals seated at a control center with multiple screens, highlighting the use of Amazon EC2, SageMaker, CloudWatch, and AWS Cost Explorer for optimizing infrastructure costs using spot instances.

Why use Spot Instances?

When running ML training or batch compute, you generally choose between:

On-Demand instances — stable and reliable but more expensive.
Spot Instances — much lower cost but interruptible when AWS reclaims capacity.

Spot savings vary by workload and region. Expect up to ~70% savings for typical EC2 compute, and—when using SageMaker Spot Training with checkpointing—up to ~90% savings for training jobs. The trade-off is potential interruptions; planning for those interruptions is critical.

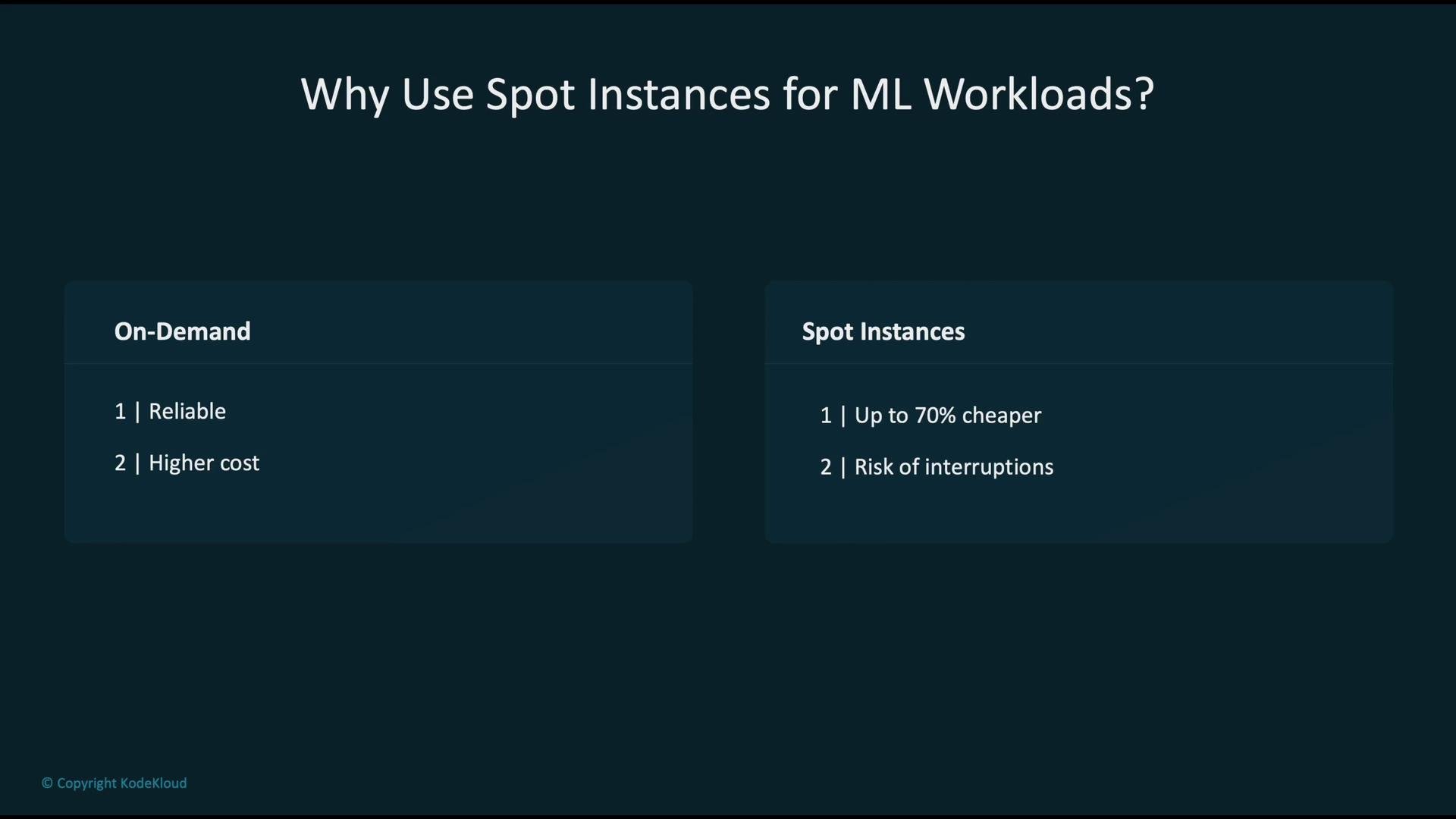

The image compares On-Demand and Spot Instances for ML workloads, highlighting that On-Demand is reliable but costly, while Spot Instances are cheaper but can be interrupted.

AWS tools and patterns for Spot optimization

Use a combination of managed services and monitoring tools to get the most from Spot Instances. The primary options include:

Tool / Service	Purpose	Notes
SageMaker Spot Training	Run training on Spot with managed checkpoint handling	Built into SageMaker training jobs
Auto Scaling + Spot Fleet	Maintain capacity by targeting multiple Spot pools	Useful for resilient EC2 fleets
EC2 Fleet / Compute Optimizer	Find optimal instance types and manage purchase options	Helps reduce interruptions and costs
CloudWatch + EventBridge	Monitor interruption signals and trigger automation	Integrate with Lambda or Step Functions

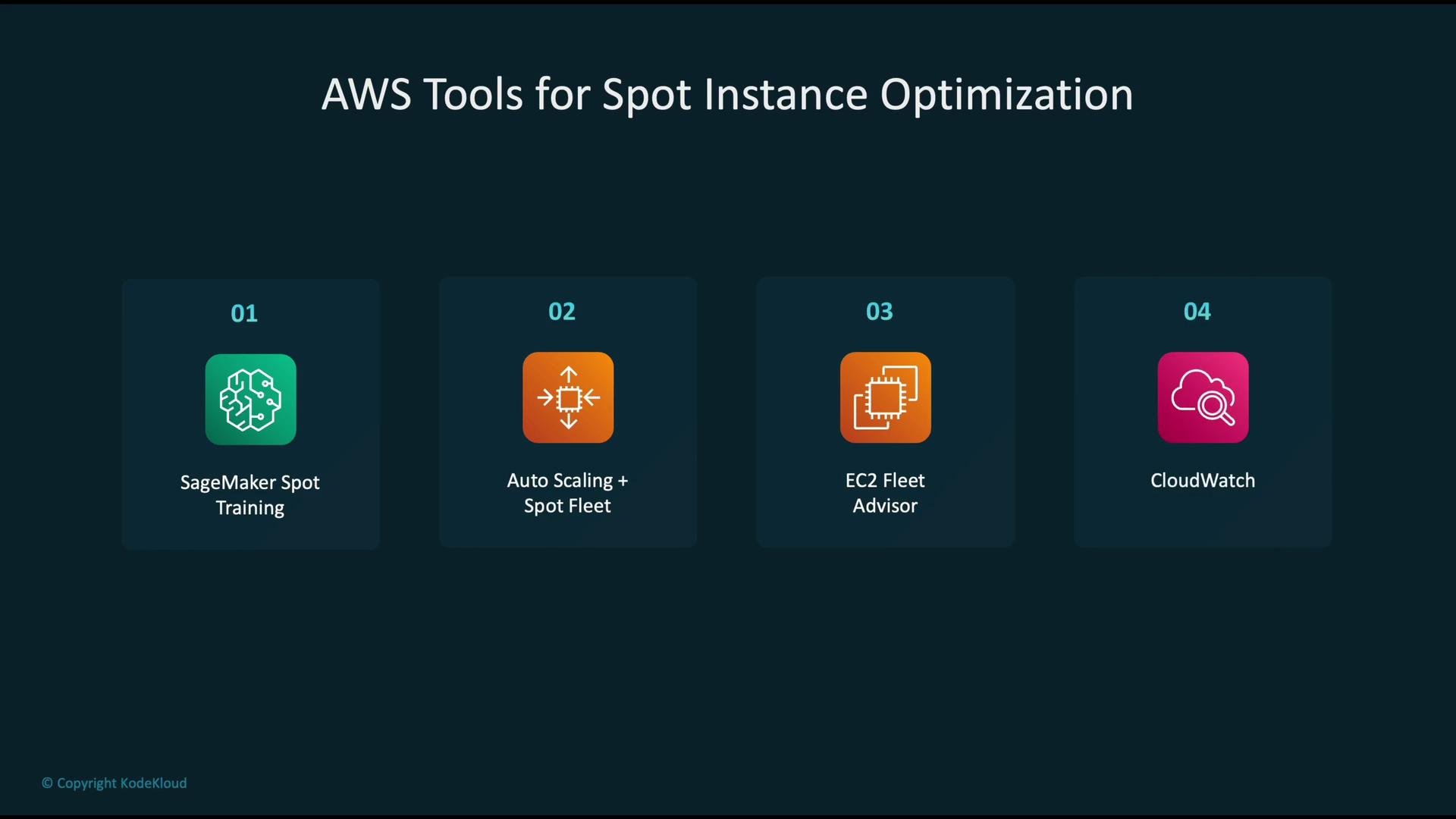

The image lists four AWS tools for spot instance optimization: SageMaker Spot Training, Auto Scaling + Spot Fleet, EC2 Fleet Advisor, and CloudWatch.

Typical SageMaker Spot training flow

A typical managed SageMaker Spot training workflow:

User submits a training job via the SageMaker console or API.
SageMaker provisions Spot Instances and runs the job.
The job periodically uploads checkpoints to S3.
If Spot Instances are reclaimed, SageMaker resumes the job from the last checkpoint when capacity is available again.

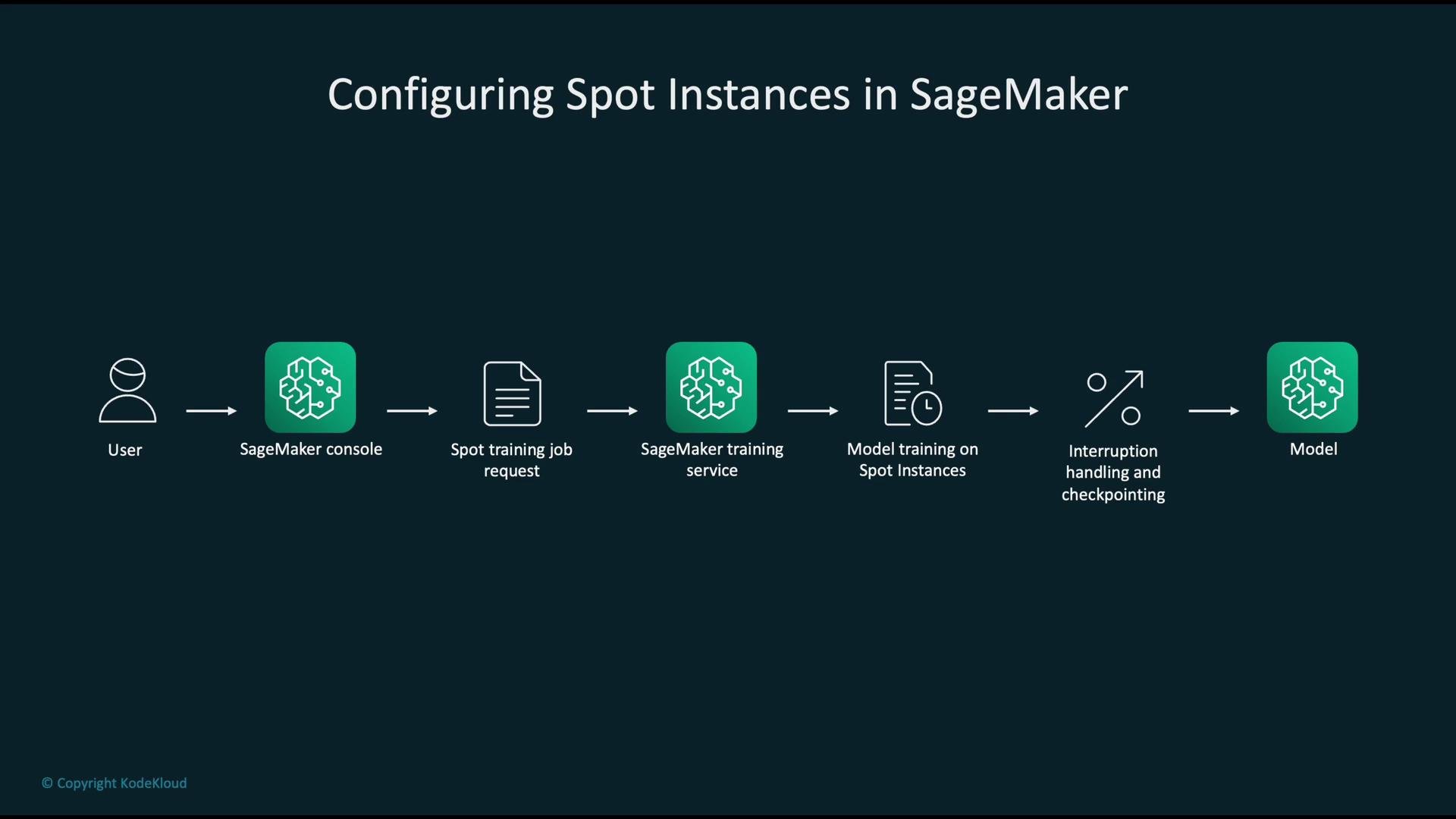

The image illustrates the process flow for configuring Spot Instances in SageMaker, showing steps from user input to model training and interruption handling.

Enable managed Spot training and configure checkpointing in your training job configuration. Example JSON:

{
  "EnableManagedSpotTraining": true,
  "CheckpointConfig": {
    "S3Uri": "s3://my-bucket/checkpoints/",
    "LocalPath": "/opt/ml/checkpoints"
  }
}

Always enable checkpointing and point S3Uri to a durable S3 location. This allows training jobs to resume from the last saved state after a Spot interruption.

Interruption handling and automation

Spot Instances emit an interruption notice shortly before termination (EC2 typically provides a ~2-minute notice via the instance metadata endpoint). SageMaker’s managed environment exposes interruption handling for training jobs, and you can build automations around interruption events:

EventBridge (CloudWatch Events) receives the interruption event or interruption metrics.
EventBridge / CloudWatch triggers a Lambda function or Step Function.
The automation performs final flushes to storage, notifies stakeholders, or triggers a resubmission.

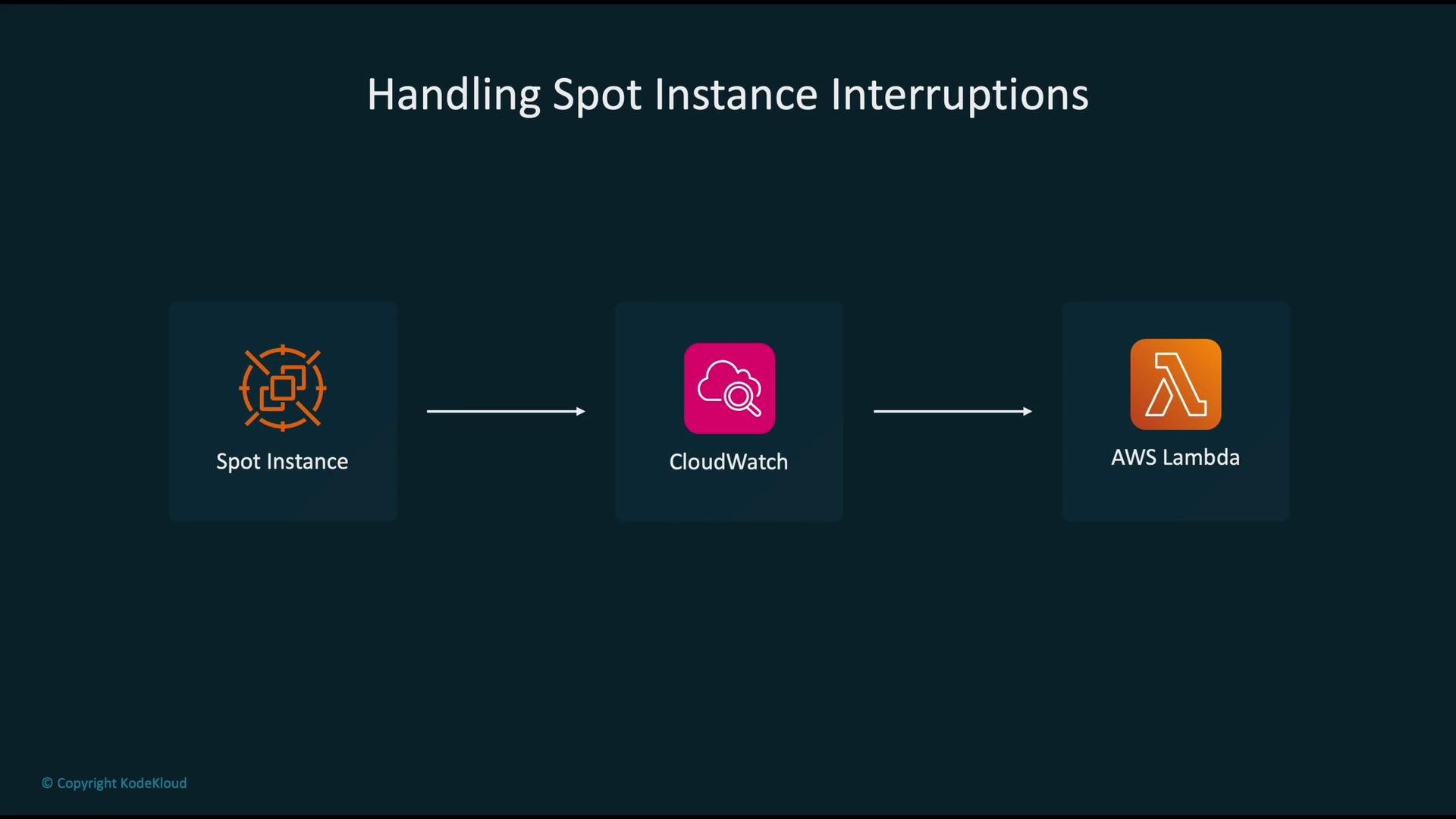

The image shows a diagram illustrating the process of handling spot instance interruptions, involving Spot Instance, CloudWatch, and AWS Lambda.

Monitoring costs and setting alarms

Collect Spot-related metrics and configure CloudWatch alarms for cost and health signals. Example CloudWatch billing alarm configuration:

{
  "AlarmName": "SpotCostThreshold",
  "MetricName": "EstimatedCharges",
  "Namespace": "AWS/Billing",
  "Threshold": 100,
  "ComparisonOperator": "GreaterThanThreshold",
  "Statistic": "Maximum"
}

Visualizing cost trends makes it easier to validate savings and detect spikes. In many cases Spot costs trend lower than On-Demand costs over time, producing meaningful long-term savings.

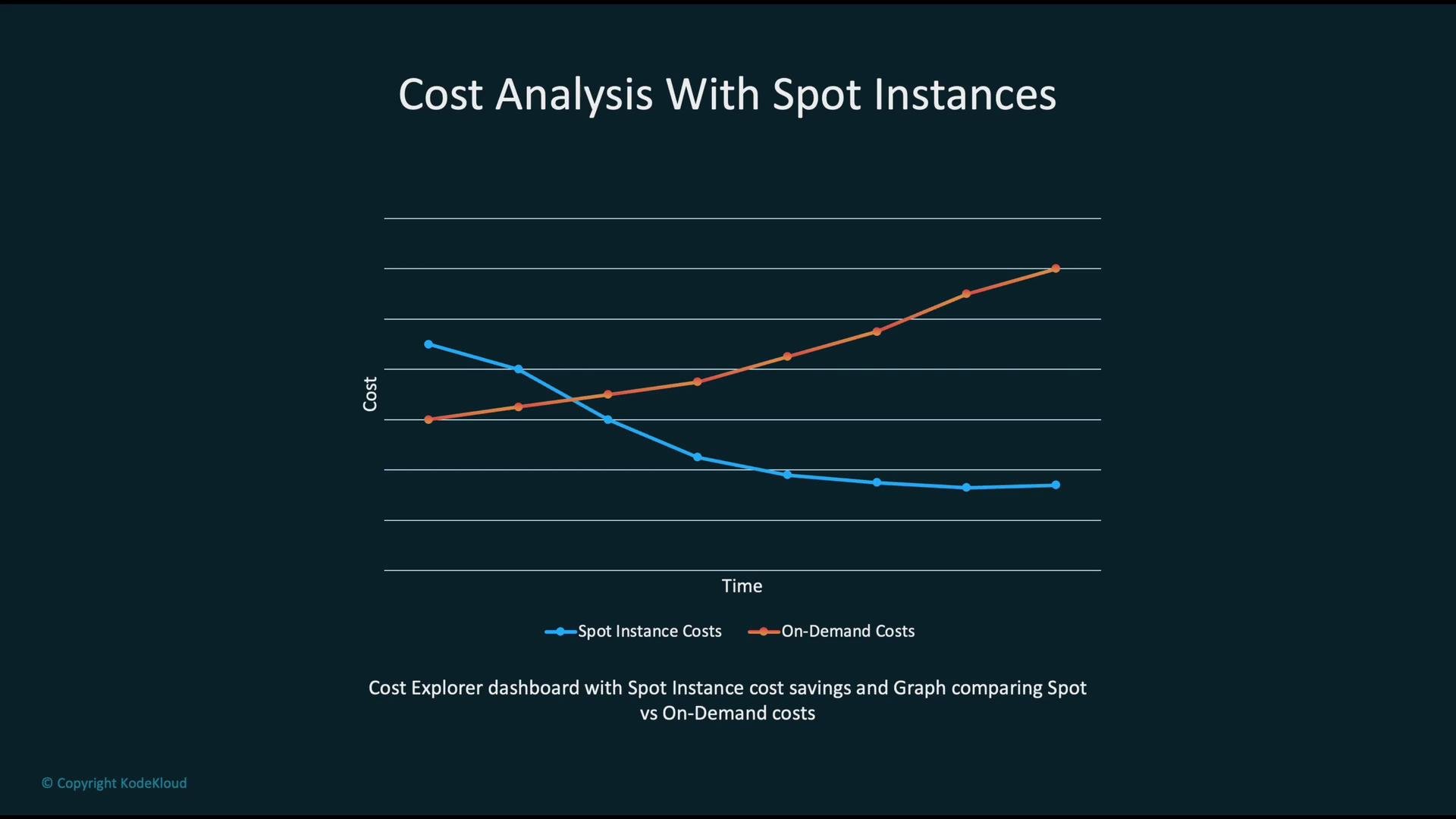

The image is a graph showing a cost analysis comparing Spot Instance costs and On-Demand costs over time. The blue line represents Spot Instance costs declining, while the red line represents On-Demand costs increasing.

You can also query AWS Cost Explorer programmatically (via Boto3) to retrieve cost data for analysis. Example: request the UnblendedCost for January 2023.

import boto3

ce = boto3.client("ce", region_name="us-east-1")
response = ce.get_cost_and_usage(
    TimePeriod={"Start": "2023-01-01", "End": "2023-01-31"},
    Granularity="MONTHLY",
    Metrics=["UnblendedCost"]
)

print(response)  # inspect the returned cost data

Other use-cases for Spot Instances

Spot Instances are not limited to training. Common use-cases include:

Multi-model endpoints (for non-latency-critical inference)
Batch inference jobs
Model compilation and offline transformations
Edge pipeline compilation (e.g., SageMaker Neo)

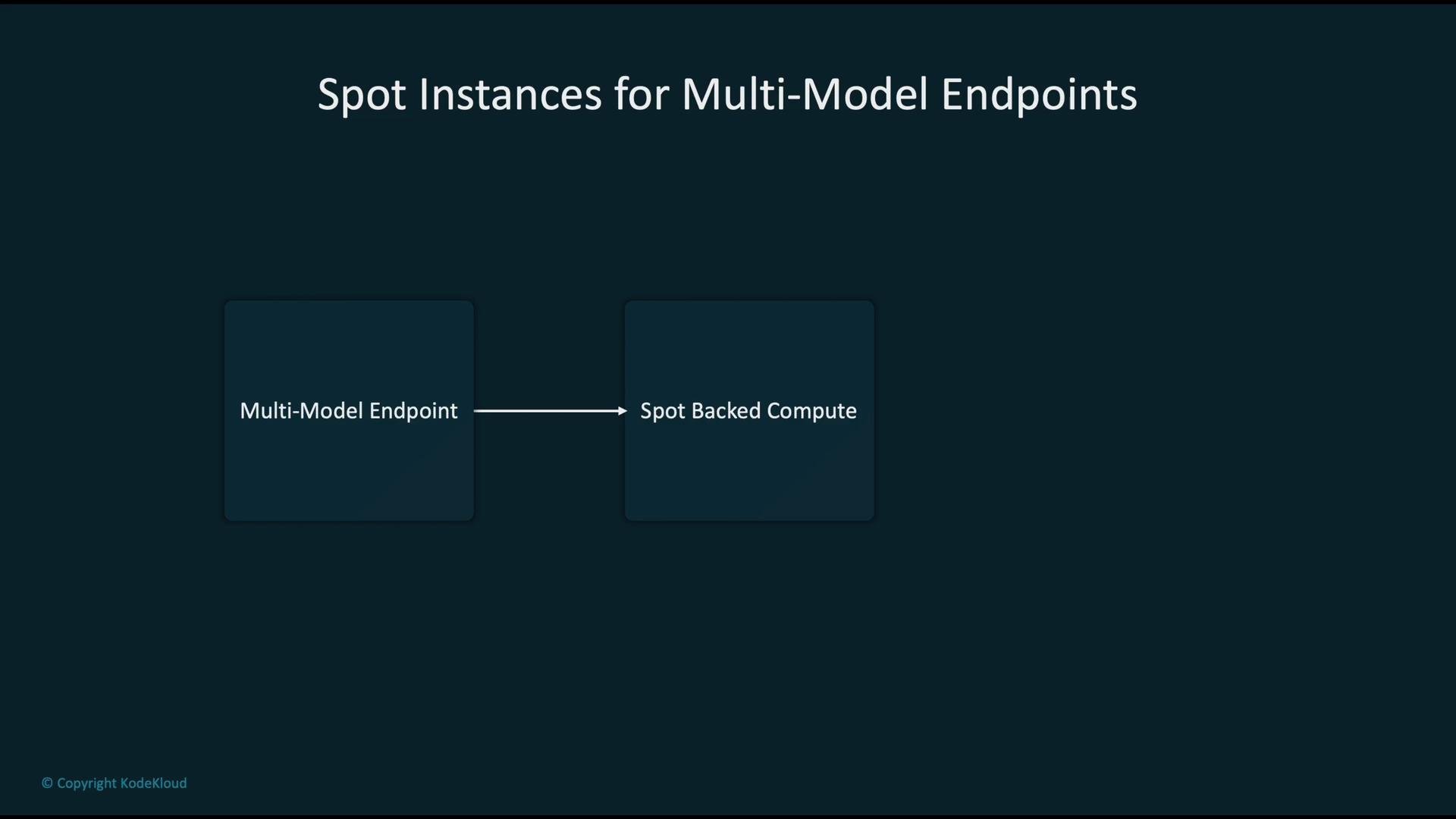

The image is a diagram titled "Spot Instances for Multi-Model Endpoints," showing a connection between a "Multi-Model Endpoint" and "Spot Backed Compute."

For Neo compilation jobs, you can request Spot-backed compilation (when supported by your SDK/account). Example using the SageMaker NeoModel API:

from sagemaker import NeoModel

neo_model = NeoModel(
    model_data="s3://my-bucket/model.tar.gz",
    framework="tensorflow",
    role="SageMakerRole"
)

neo_model.compile(target_instance_family="ml_c5", job_type="spot")

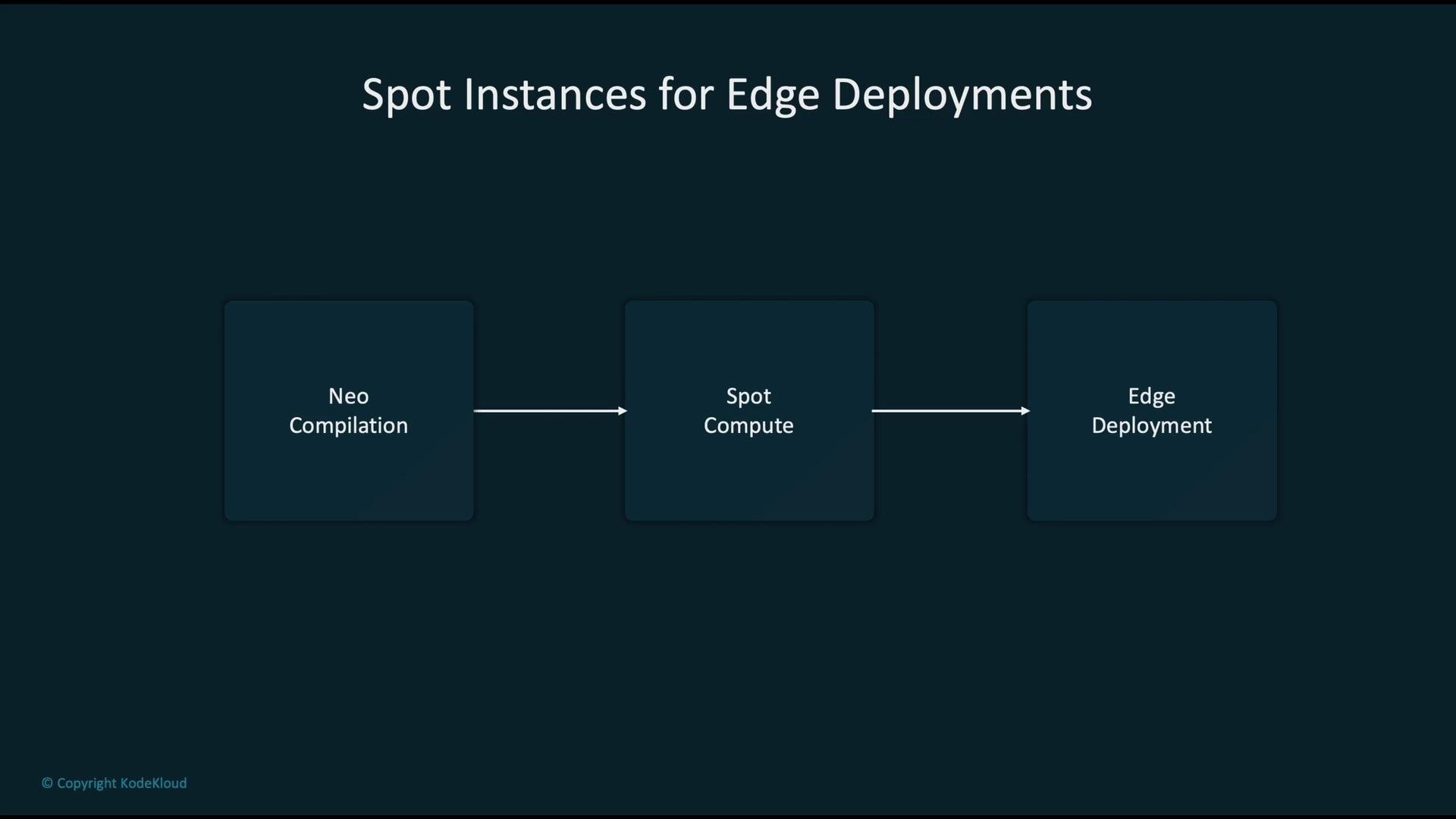

The image is a flowchart titled "Spot Instances for Edge Deployments," illustrating a sequence from "Neo Compilation" to "Spot Compute" and finally "Edge Deployment."

Security and compliance

Treat Spot resources the same way you treat On-Demand resources from an IAM and compliance perspective:

Apply least-privilege IAM policies to restrict who can create and manage Spot jobs.
Audit S3 locations used for checkpoints and ensure proper encryption and retention policies.
Monitor activity and logging with CloudTrail and CloudWatch Logs.

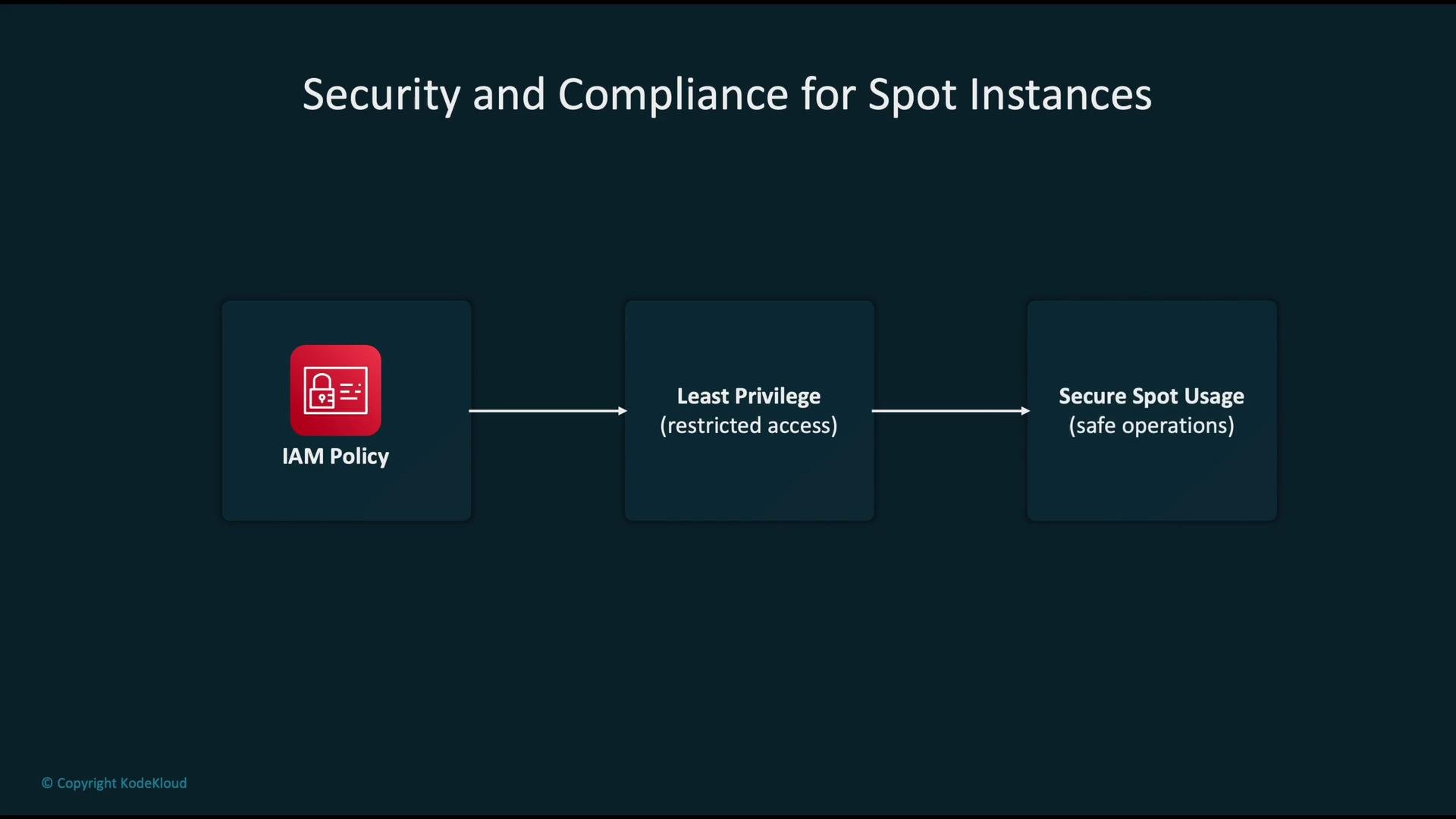

The image illustrates "Security and Compliance for Spot Instances" with a flow from "IAM Policy" to "Least Privilege" to "Secure Spot Usage."

Avoid using Spot Instances for latency-sensitive, real-time inference or critical workloads that cannot tolerate interruptions. For such cases, prefer On-Demand or Reserved Instances to guarantee availability.

Common anti-patterns to avoid

Anti-pattern	Why it’s risky
No checkpointing	Training progress is lost on interruption, increasing cost and time to recovery
No interruption handling	Systems become fragile and require manual restarts or recovery
Using Spot for latency-sensitive real-time inference	Spot can be reclaimed unexpectedly, causing service outages

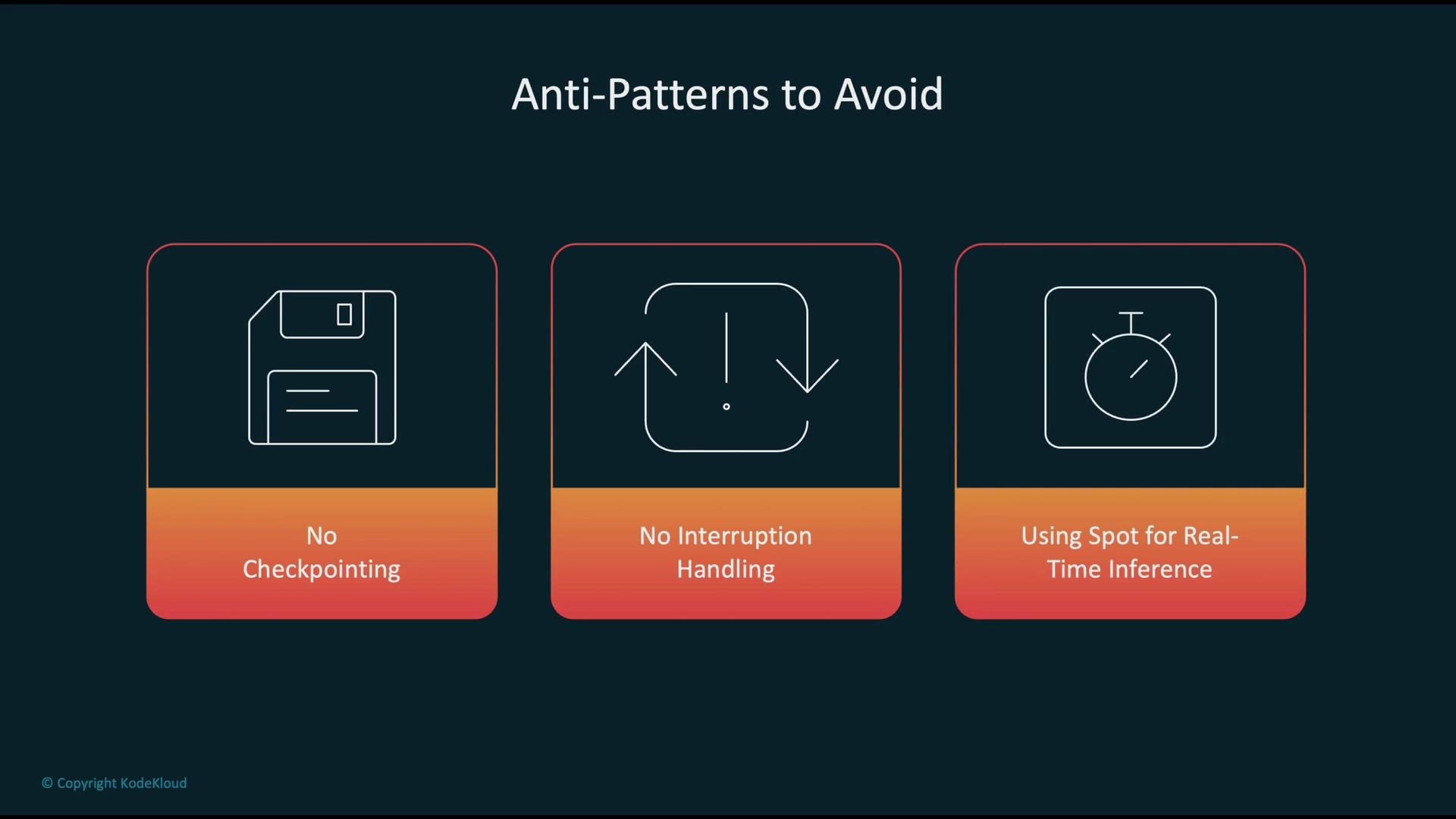

The image lists three anti-patterns to avoid: no checkpointing, no interruption handling, and using spot instances for real-time inference. Each anti-pattern is accompanied by a simple icon.

Summary — Best practices

Use SageMaker Spot Training to reduce training costs where interruptions are tolerable.
Always enable checkpointing to durable S3 locations so jobs can resume.
Automate interruption responses using CloudWatch Events / EventBridge and Lambda, or use SageMaker’s built-in resume behavior.
Monitor instance health and billing metrics with CloudWatch Alarms and analyze financial trends with Cost Explorer.
Enforce least-privilege IAM policies and secure checkpoint S3 locations.

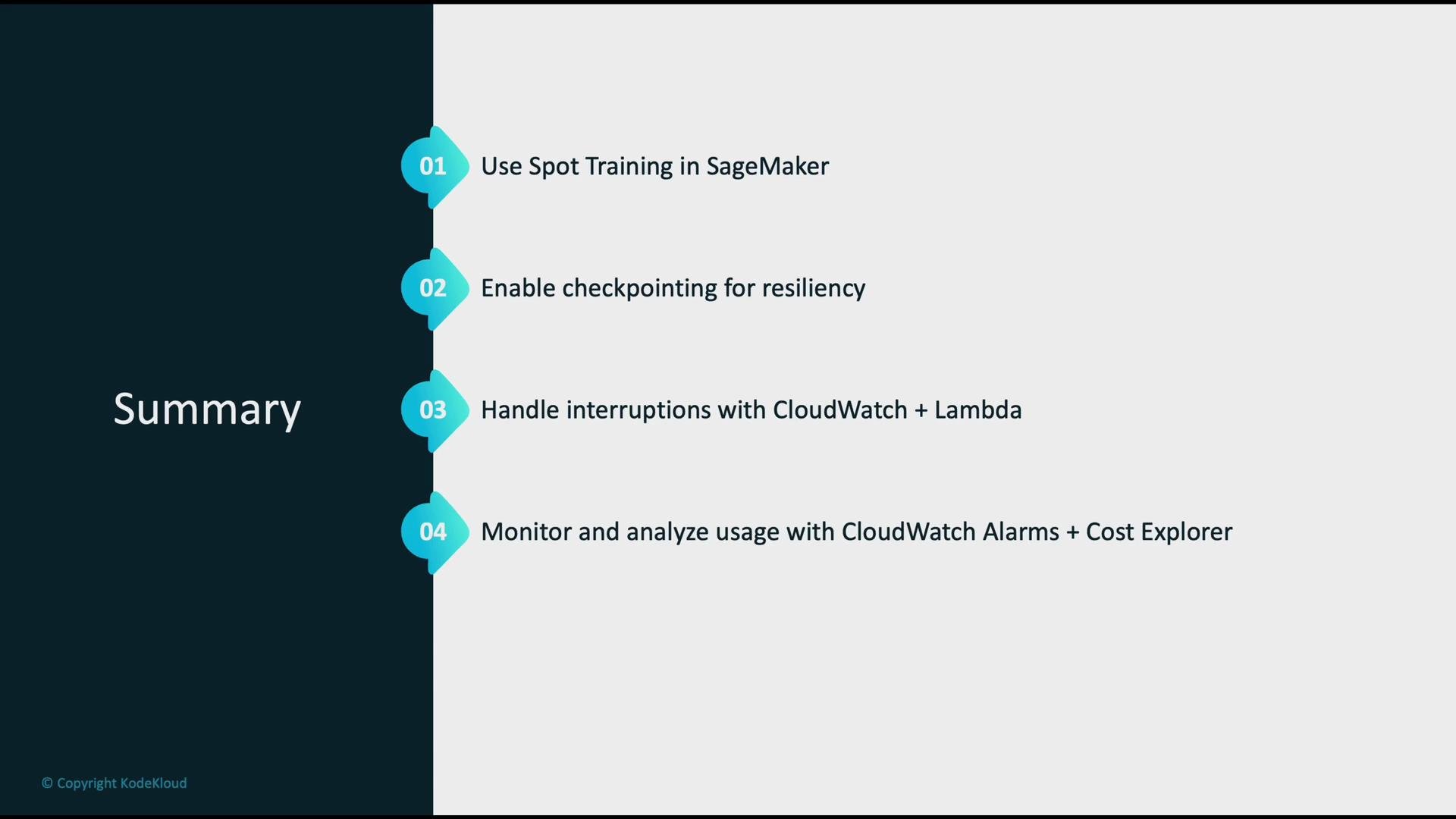

The image is a summary slide listing four steps related to AWS: using Spot Training in SageMaker, enabling checkpointing for resiliency, handling interruptions with CloudWatch and Lambda, and monitoring usage with CloudWatch Alarms and Cost Explorer.
