This lesson demonstrates how to use AWS CloudFormation Conditions to control resource properties and conditional resource creation. We’ll build an S3 bucket whose public-access configuration and bucket policy depend on a developer name mapped to an environment. The same template can therefore apply different, environment-specific configurations at deployment time. Key concepts covered:
  • Mappings to link developer names to environment metadata
  • Parameters for runtime choices
  • Conditions with intrinsic functions (!FindInMap, !Equals, !If)
  • Conditional resource creation using the Condition attribute

​
Template structure — Mappings and Parameters

The template uses a Mapping named DevMap to associate each developer with a profession and an environment. Parameters accept the S3 bucket name and the developer name used to determine the environment at deploy/update time.
Mappings:
  DevMap:
    Arno:
      Field: Quality assurance
      Env: Testing/development
    Alice:
      Field: Backend developer
      Env: Production

Parameters:
  InputBucketName:
    Type: String
    Description: Please enter your desired S3 bucket name
  InputDeveloperName:
    Type: String
    AllowedValues:
      - Arno
      - Alice
    Description: Developer name used to look up environment in the mapping
When the stack is applied, the template uses these values to tag the bucket, select public-access behavior, and optionally create a public-read bucket policy.

​
Runtime view — bucket tags in the console

When the stack was deployed with InputDeveloperName set to Arno, the bucket tags reflect the mapping (Developer = Arno, Environment = Testing/development):

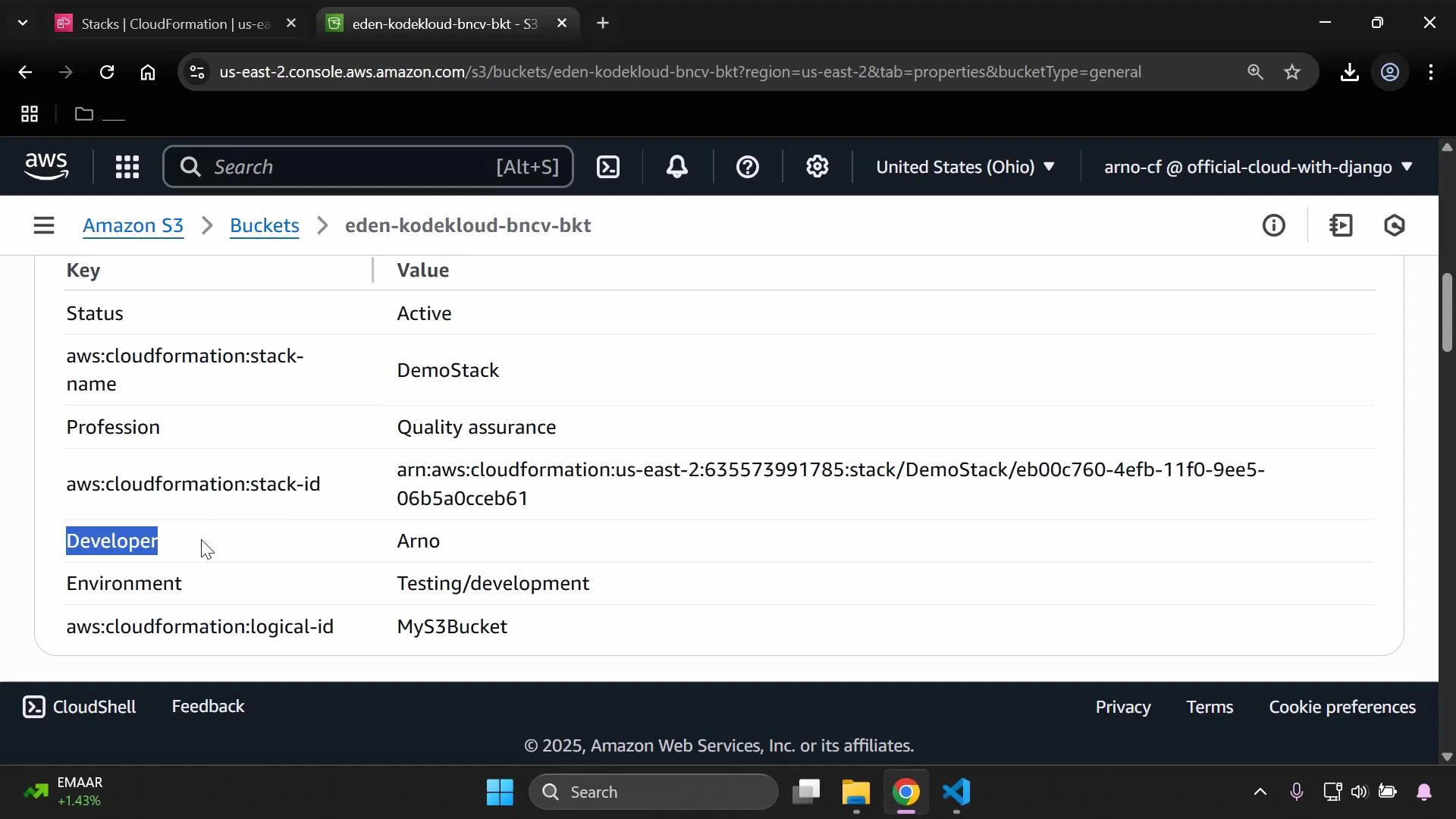

A screenshot of the AWS S3 console showing the properties/tags for a bucket (eden-kodekcloud-bncv-bkt). The table lists key-value tags such as Status: Active, aws:cloudformation:stack-name: DemoStack, Profession: Quality assurance, Developer: Arno, Environment: Testing/development, and aws:cloudformation:logical-id: MyS3Bucket.
Because Arno maps to Testing/development, the production condition evaluated to false. This resulted in two outcomes:
  • The PublicAccessBlockConfiguration used the non-production branch (blocking public access).
  • The bucket policy that would allow anonymous GetObject was not created (it is gated by the production Condition).

​
Conditions — detect production vs non-production

The template defines a Condition to check whether the mapped environment equals “Production”:
Conditions:
  IsProd: !Equals
    - !FindInMap [DevMap, !Ref InputDeveloperName, Env]
    - "Production"
This Condition (IsProd) becomes the switch that drives resource property selection and conditional resource creation.

​
Conditional resource properties — S3 bucket configuration

The S3 bucket resource sets tags from the mapping and uses !If to choose between production and non-production values for PublicAccessBlockConfiguration. When IsProd is true, public-access-block flags are set to false to allow public access. When false, the flags are set to true to block public access.
Resources:
  MyS3Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: !Ref InputBucketName
      Tags:
        - Key: Developer
          Value: !Ref InputDeveloperName
        - Key: Profession
          Value: !FindInMap [DevMap, !Ref InputDeveloperName, Field]
        - Key: Environment
          Value: !FindInMap [DevMap, !Ref InputDeveloperName, Env]

      PublicAccessBlockConfiguration: !If
        - IsProd
        - BlockPublicAcls: false
          BlockPublicPolicy: false
          IgnorePublicAcls: false
          RestrictPublicBuckets: false
        - BlockPublicAcls: true
          BlockPublicPolicy: true
          IgnorePublicAcls: true
          RestrictPublicBuckets: true
Summary of the IsProd effect:
IsProd valuePublicAccessBlockConfigurationBucketPolicy created
true (Production)All flags false (public access allowed)Yes — public-read policy created
false (Non-prod)All flags true (public access blocked)No — bucket policy not created

​
Conditional resource creation — bucket policy

The bucket policy that allows public reads is created only when IsProd is true. This is implemented using the Condition attribute on the BucketPolicy resource:
  MyPublicReadPolicy:
    Condition: IsProd
    DependsOn: MyS3Bucket
    Type: AWS::S3::BucketPolicy
    Properties:
      Bucket: !Ref InputBucketName
      PolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Principal: "*"
            Action: "s3:GetObject"
            Resource: !Sub "arn:aws:s3:::${InputBucketName}/*"
The Condition attribute prevents the BucketPolicy resource from being created when IsProd is false. The !If intrinsic function is used to select the appropriate PublicAccessBlockConfiguration object for production and non-production branches.

​
Demonstration: switching the developer parameter

  • With InputDeveloperName = Arno:
    • IsProd = false
    • The template applies the branch that blocks public access
    • The public-read bucket policy is not created
  • After updating the stack with InputDeveloperName = Alice:
    • IsProd = true (Alice maps to Production)
    • PublicAccessBlockConfiguration flags are set to false (Block all public access = Off)
    • MyPublicReadPolicy is created and attaches a public-read policy to the bucket
The console after switching to Alice shows the environment tag updated to Production and “Block all public access” switched Off:

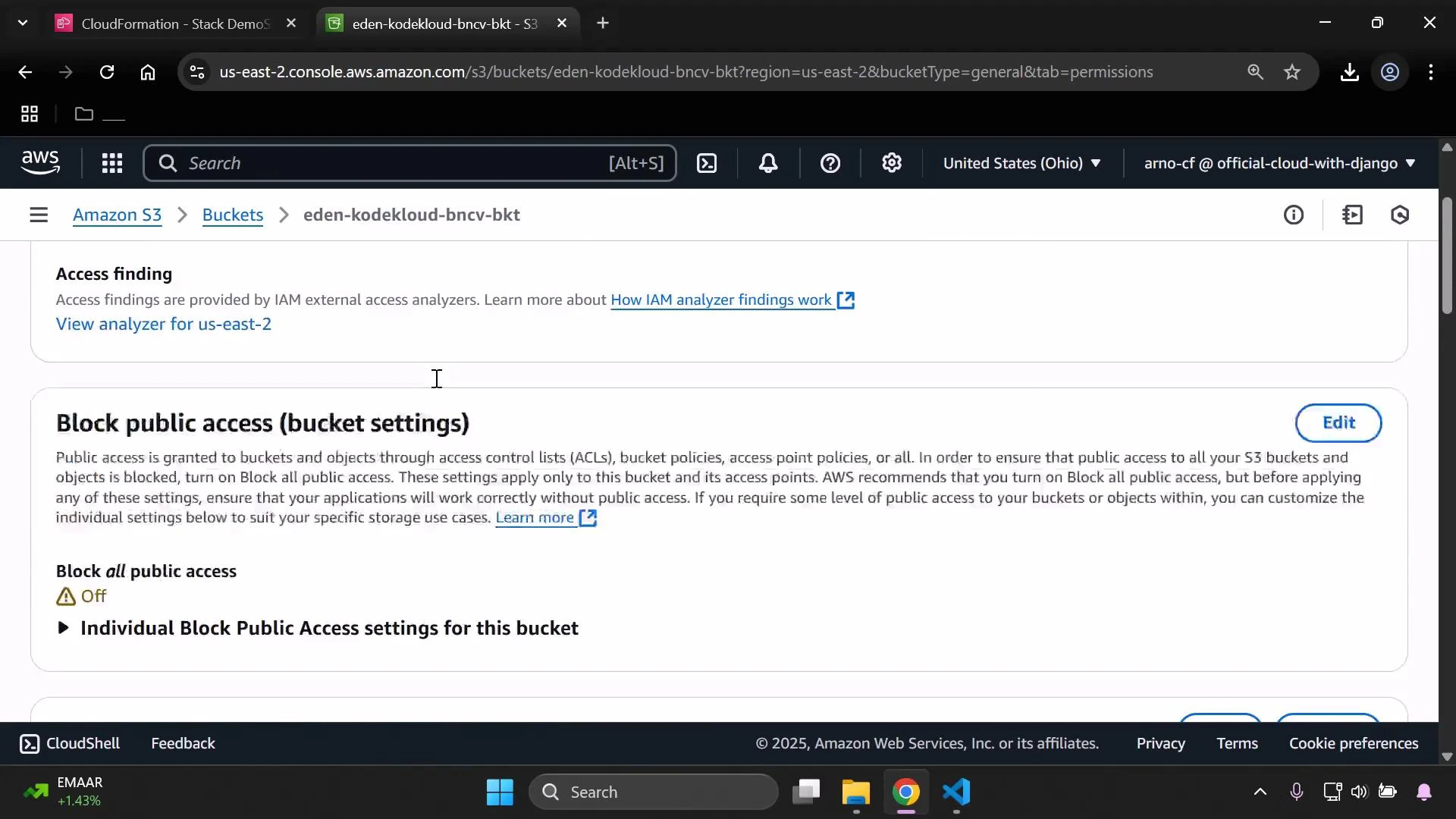

A screenshot of the AWS S3 console showing the bucket "eden-kodekloud-bncv-bkt." The "Block public access (bucket settings)" panel is displayed with "Block all public access" set to Off and an Edit button.
Because public access was allowed, the policy permitting s3:GetObject for all principals became effective. To verify public-read behavior, upload a small test object (image or file) to the bucket. Objects view before upload:

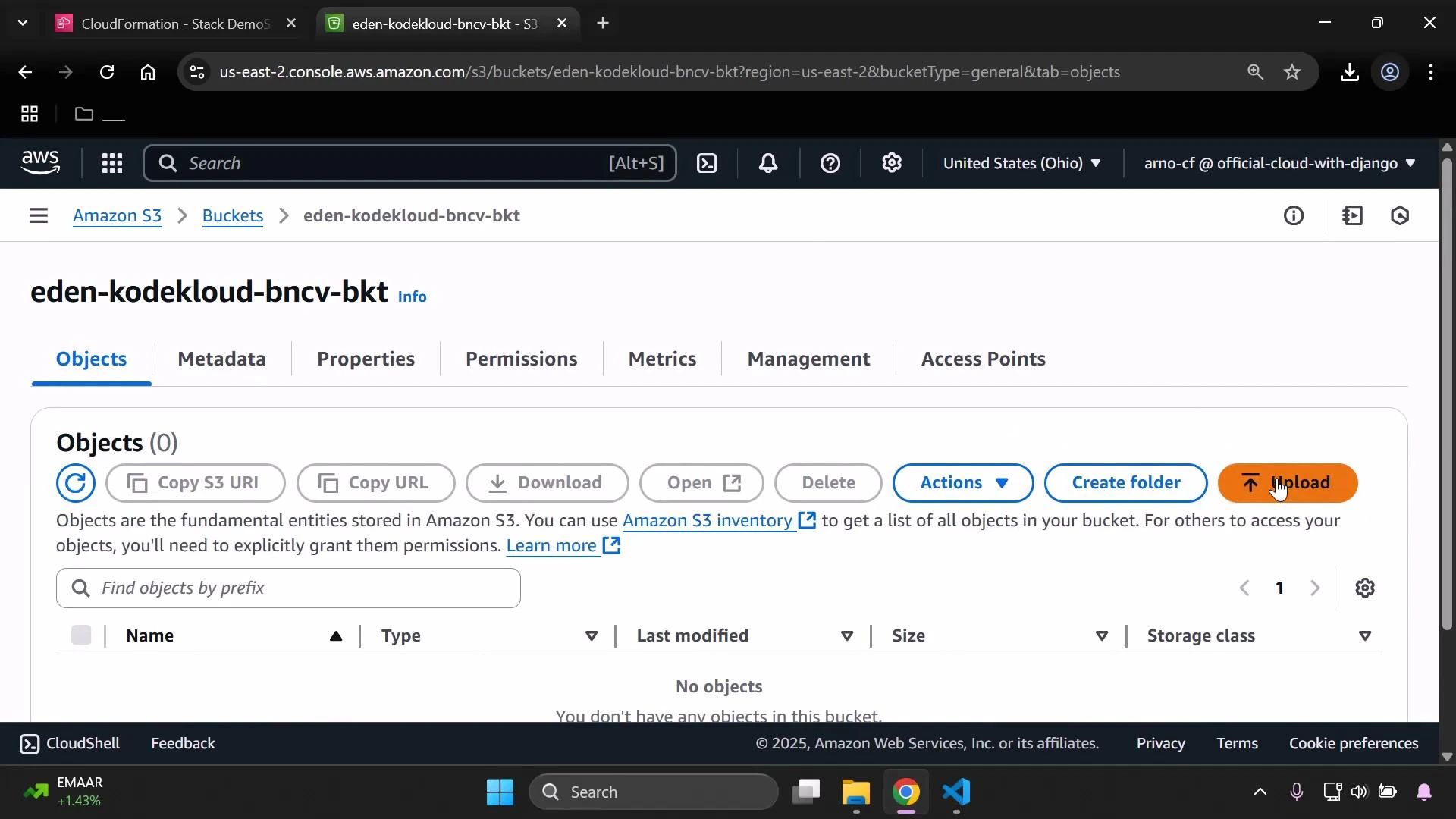

A screenshot of the Amazon S3 console opened to the bucket "eden-kodekloud-bncv-bkt" on the Objects tab. The bucket shows no objects and displays controls like Upload, Create folder, Copy URL, and Actions.
Upload a test image (e.g., Person1.jpg):

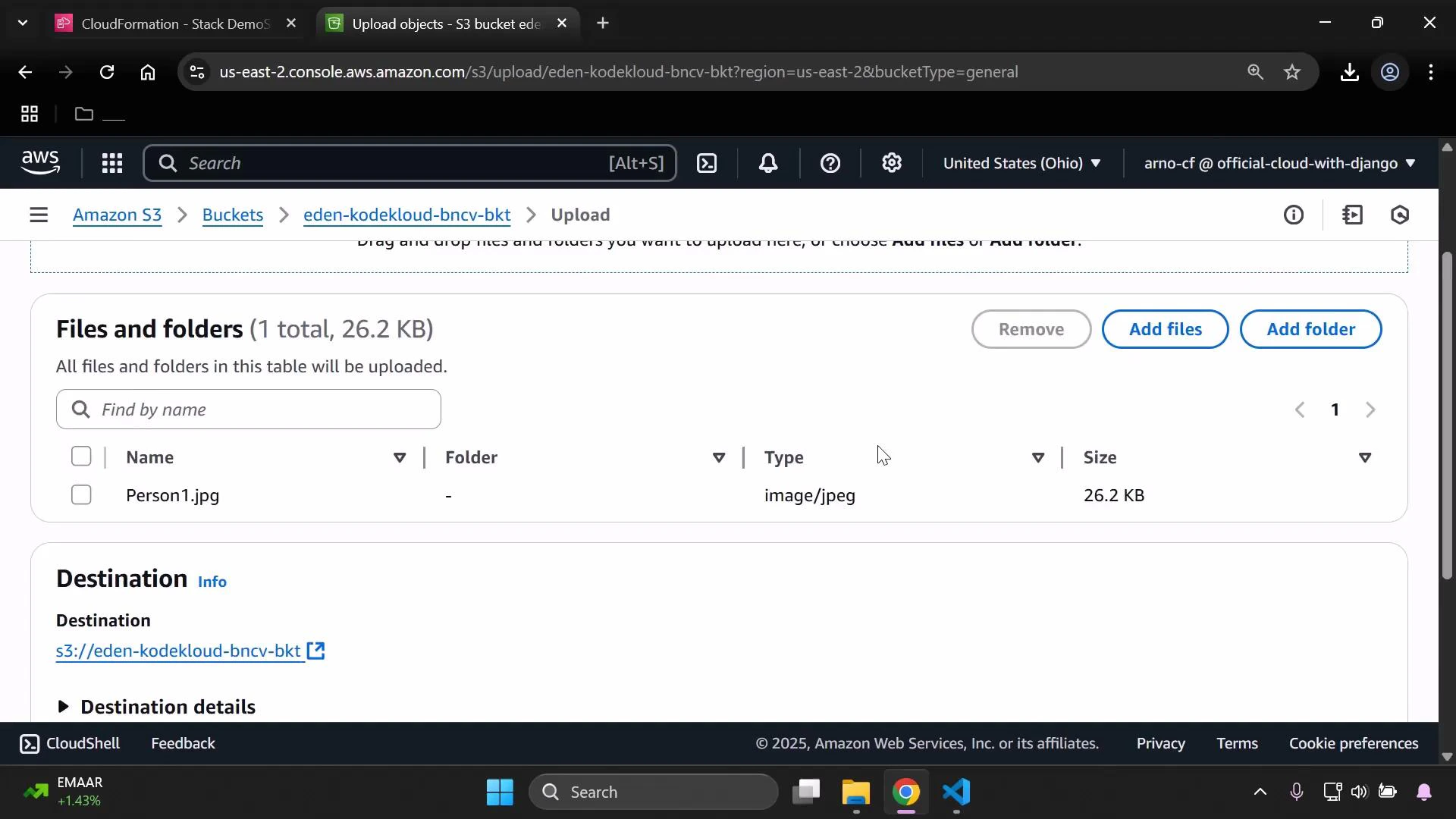

A screenshot of the AWS S3 console's Upload page showing one file (Person1.jpg, 26.2 KB) queued for upload to the bucket "eden-kodekloud-bncv-bkt", with buttons to add files or folders. The page also displays destination details and navigation/header elements for the AWS console.
After the upload, the CloudFormation-created bucket policy is visible under the bucket Permissions tab. The policy document uses !Sub to reference the bucket name and allows s3:GetObject for all principals when IsProd is true:
PolicyDocument:
  Version: "2012-10-17"
  Statement:
    - Effect: Allow
      Principal: "*"
      Action: "s3:GetObject"
      Resource: !Sub "arn:aws:s3:::${InputBucketName}/*"
Open the uploaded object’s public URL (e.g., in an incognito window) to verify it is publicly accessible — this confirms the template’s conditional logic worked as intended.

​
Validation and deployment tips

  • Always lint and validate your CloudFormation template before updating stacks. A quick lint step:
[cfn-lint](https://github.com/aws-cloudformation/cfn-lint) template.yaml
Validate templates and test different parameter combinations in a non-production account to ensure Conditions and !If branches behave as expected. Use the AWS CloudFormation documentation for intrinsic function details: https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/intrinsic-function-reference.html
  • In the AWS Console to update the stack:
    1. Select the stack → Update stack
    2. Replace current template → Upload template file → Next
    3. Provide new parameter values (for example, set InputDeveloperName = Alice) → Update

​
Summary

This example demonstrates how to:
  • Use Mappings and Parameters to drive deployment-time decisions
  • Define Conditions with !FindInMap and !Equals
  • Use !If to select resource property values
  • Use the Condition resource attribute to create resources only for specific environments
You can extend this pattern to other resource types (EC2, IAM, RDS, etc.) to enforce environment-specific configuration and policies during automated deployments. Further reading and references:
