In this lesson you’ll learn how to declare and use Outputs in an AWS CloudFormation template. Outputs let you expose important values—such as ARNs, URLs, or computed labels—after a stack is created or updated. For clarity and maintainability, place the Outputs section at the end of your template (alongside Mappings, Parameters, Conditions, and Resources).
Place Outputs at the bottom of the template (after Resources). Always provide a Description for each output and use intrinsic functions (for example !GetAtt, !Join, and !Ref) to compute values that consumers can rely on.
Below is a concise CloudFormation template demonstrating:
  • Mappings
  • Parameters
  • Conditions
  • Two resources (an S3 bucket and its bucket policy)
  • Two Outputs: the S3 bucket ARN and a combined developer/bucket label
Mappings:
  DevMap:
    Arno:
      Field: Quality assurance
      Env: Testing/development
    Alice:
      Field: Backend developer
      Env: Production

Parameters:
  InputBucketName:
    Type: String
    Description: Please enter your desired S3 bucket name
  InputDeveloperName:
    Type: String
    AllowedValues:
      - Arno
      - Alice

Conditions:
  IsProd: !Equals
    - !FindInMap [DevMap, !Ref InputDeveloperName, Env]
    - "Production"

Resources:
  MyS3Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: !Ref InputBucketName
      Tags:
        - Key: Developer
          Value: !Ref InputDeveloperName
        - Key: Environment
          Value: !FindInMap [DevMap, !Ref InputDeveloperName, Env]

  MyPublicReadPolicy:
    Type: AWS::S3::BucketPolicy
    Properties:
      Bucket: !Ref MyS3Bucket
      PolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Sid: PublicReadGetObject
            Effect: Allow
            Principal: "*"
            Action: "s3:GetObject"
            Resource: !Sub "arn:aws:s3:::${InputBucketName}/*"

Outputs:
  BucketArn:
    Description: "ARN of the S3 bucket"
    Value: !GetAtt MyS3Bucket.Arn

  DeveloperBucketLabel:
    Description: "Label combining developer name and bucket name"
    Value: !Join [ " - ", [ !Ref InputDeveloperName, !Ref InputBucketName ] ]
Why Outputs matter
  • Expose computed or derived values for use by other stacks, tools, or people.
  • Make stack artifacts discoverable without inspecting resource definitions.
  • Support cross-stack references when used together with Export/Import (not shown in this example).
Quick reference — Outputs in this template
Output NamePurposeExample value
BucketArnARN of the created S3 bucket for programmatic accessarn:aws:s3:::example-bucket
DeveloperBucketLabelHuman-friendly label that combines developer name and bucket nameAlice - example-bucket
Detailed explanation of the Outputs
  • BucketArn
    • Description: A concise, human-readable description.
    • Value: Uses !GetAtt MyS3Bucket.Arn to retrieve the bucket’s ARN from the logical resource MyS3Bucket.
  • DeveloperBucketLabel
    • Description: A combined label for easier identification.
    • Value: Uses !Join to concatenate InputDeveloperName and InputBucketName with " - " as the separator: !Join [ " - ", [ !Ref InputDeveloperName, !Ref InputBucketName ] ].
How to view Outputs in the AWS Console
  1. Save your template file.
  2. In the CloudFormation console choose your stack and select Update stack.
  3. Choose Replace current template → Upload a template file (or paste the template).
  4. Continue through the update steps and submit.
  5. After the update finishes, open the stack and select the Outputs tab to view output keys, their descriptions, and values.
Once the stack update finishes you should see entries similar to the following in the Outputs tab:

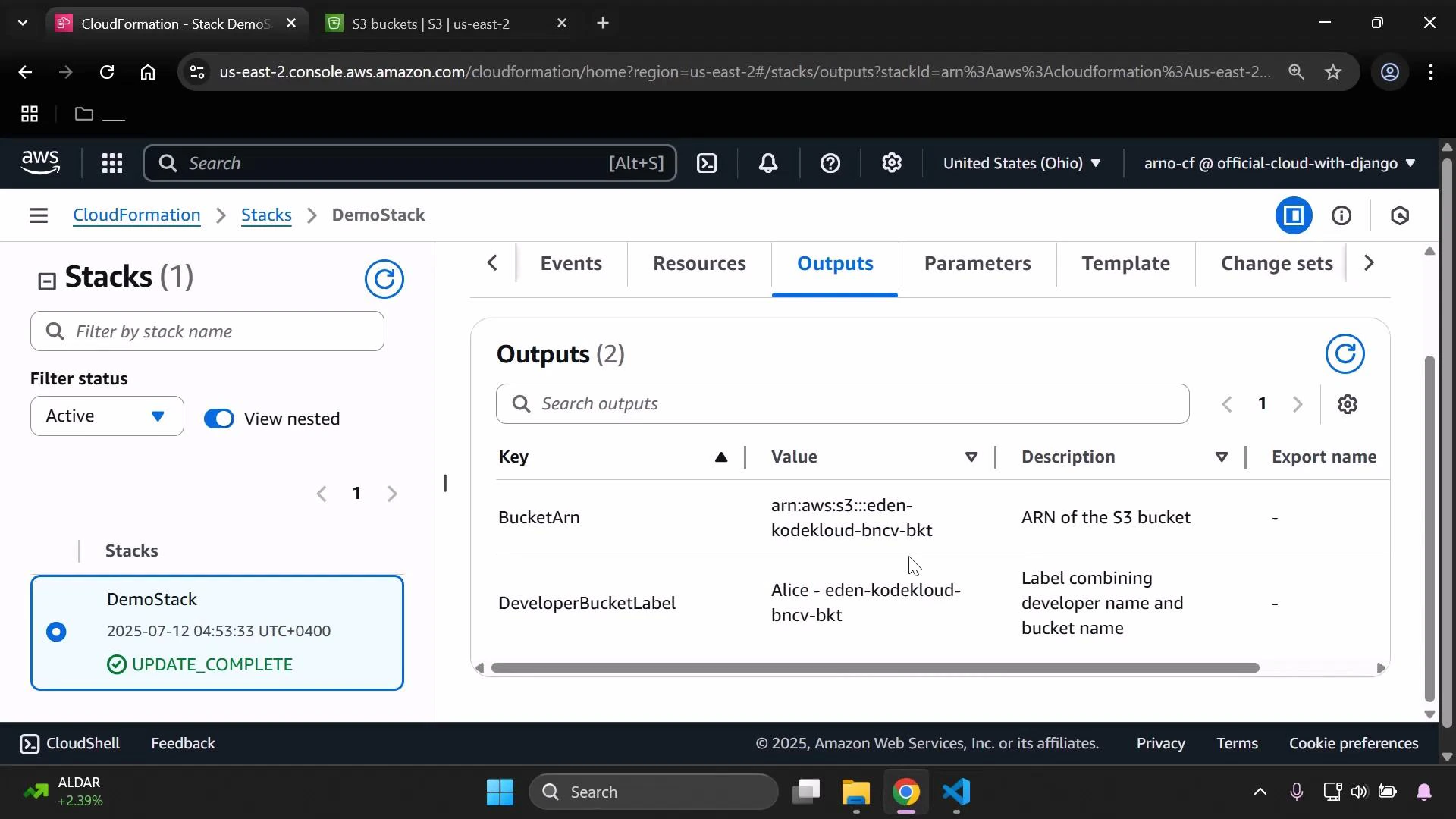

A screenshot of the AWS CloudFormation console showing the "DemoStack" details with the Outputs tab selected. The Outputs table lists two values: the S3 Bucket ARN (arn:aws:s3:::eden-kodekloud-bncv-bkt) and a developer bucket label ("Alice - eden-kodekloud-bncv-bkt").
View Outputs via the AWS CLI Example CLI command to list outputs for a stack:
  • JSON/table output using the CLI:
    • aws cloudformation describe-stacks —stack-name DemoStack —query “Stacks[0].Outputs” —output table
Best practices and security tips
  • Use clear, descriptive output names and descriptions so teammates and automation can understand what each output represents.
  • Avoid exposing secrets, credentials, or sensitive data in Outputs—Outputs are visible at the stack level.
  • If you need to share values between stacks, use Outputs with the Export property to enable cross-stack references.
Do not place sensitive secrets or credentials in Outputs. Outputs are viewable by anyone with access to the CloudFormation stack and can be logged or exposed by tools that read stack outputs.
Links and references That covers how to declare and use Outputs to surface key values from your CloudFormation stacks.
