Application Security Groups (ASGs) provide an application-centric way to manage Network Security Group (NSG) rules in Azure. Instead of writing rules that target static IP addresses, ASGs let you group network interfaces (NICs) — and by extension the virtual machines that own those NICs — and reference those groups in NSG rules. This enables dynamic, reusable, and scalable security policies. Key benefits:
  • Group NICs logically regardless of IP address or subnet.
  • A NIC can belong to multiple ASGs; an ASG can be referenced by many NSGs.
  • Simplifies rule maintenance when VMs scale, are replaced, or move subnets.

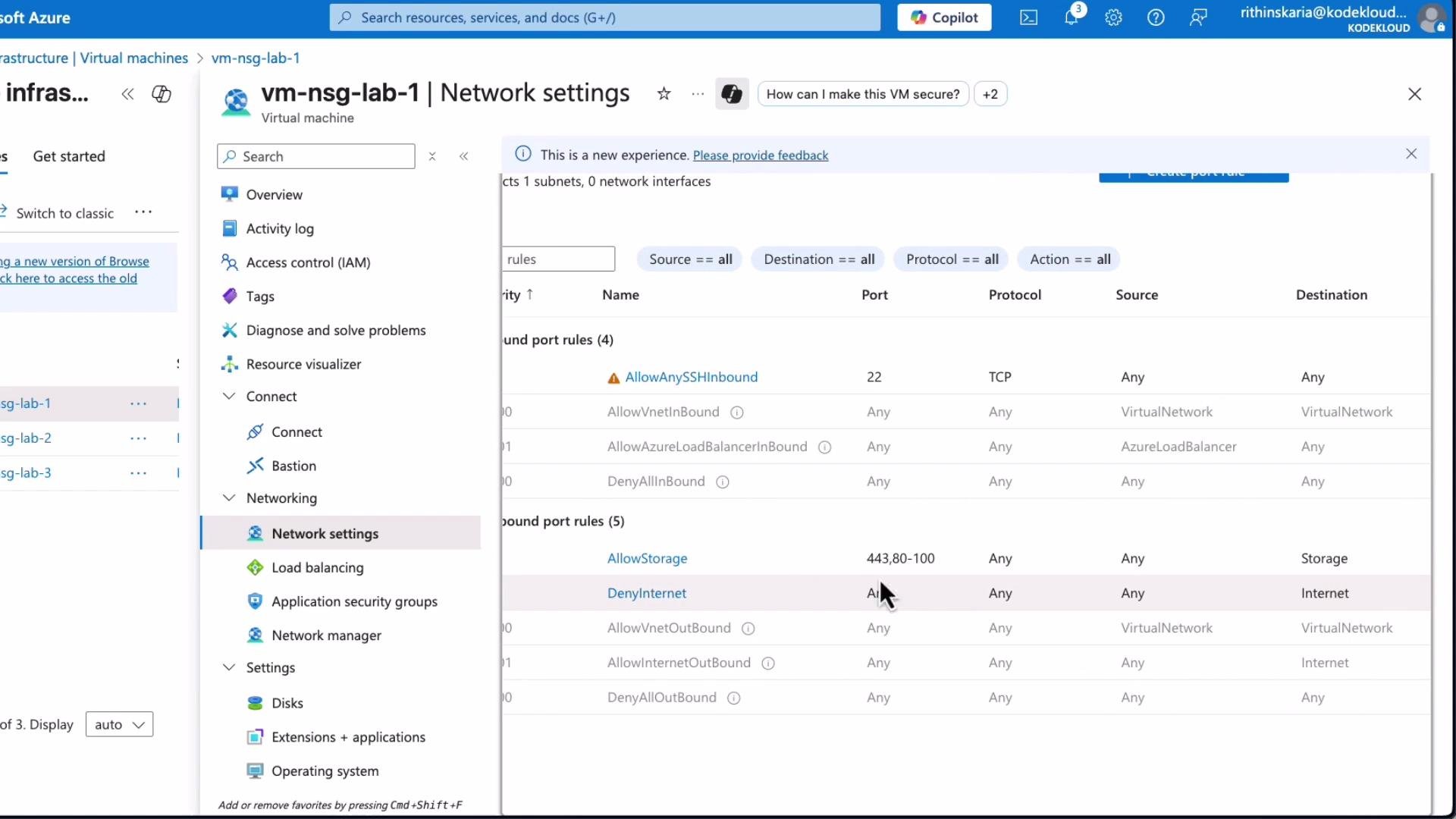

The image shows the network settings for a virtual machine in Microsoft Azure, displaying inbound and outbound port rules. The interface allows management of security configurations for VM communications.

​
How ASGs work (brief)

  • Create an ASG and add NICs as members.
  • Reference the ASG in NSG rules as source or destination.
  • When traffic is evaluated, NSGs match against the ASG membership (not IPs).
  • Use ASGs to build layered, role-based network security policies.

​
Example scenario (problem to solve)

  • A subnet has a broad NSG rule that allows access to a storage account — by default every VM in the subnet inherits it.
  • Requirement: Only specific VMs (lab1 and lab2) should access the storage account; lab3 must be excluded.
  • Without ASGs, you would manually maintain IP addresses in NSG rules — error-prone and hard to scale.

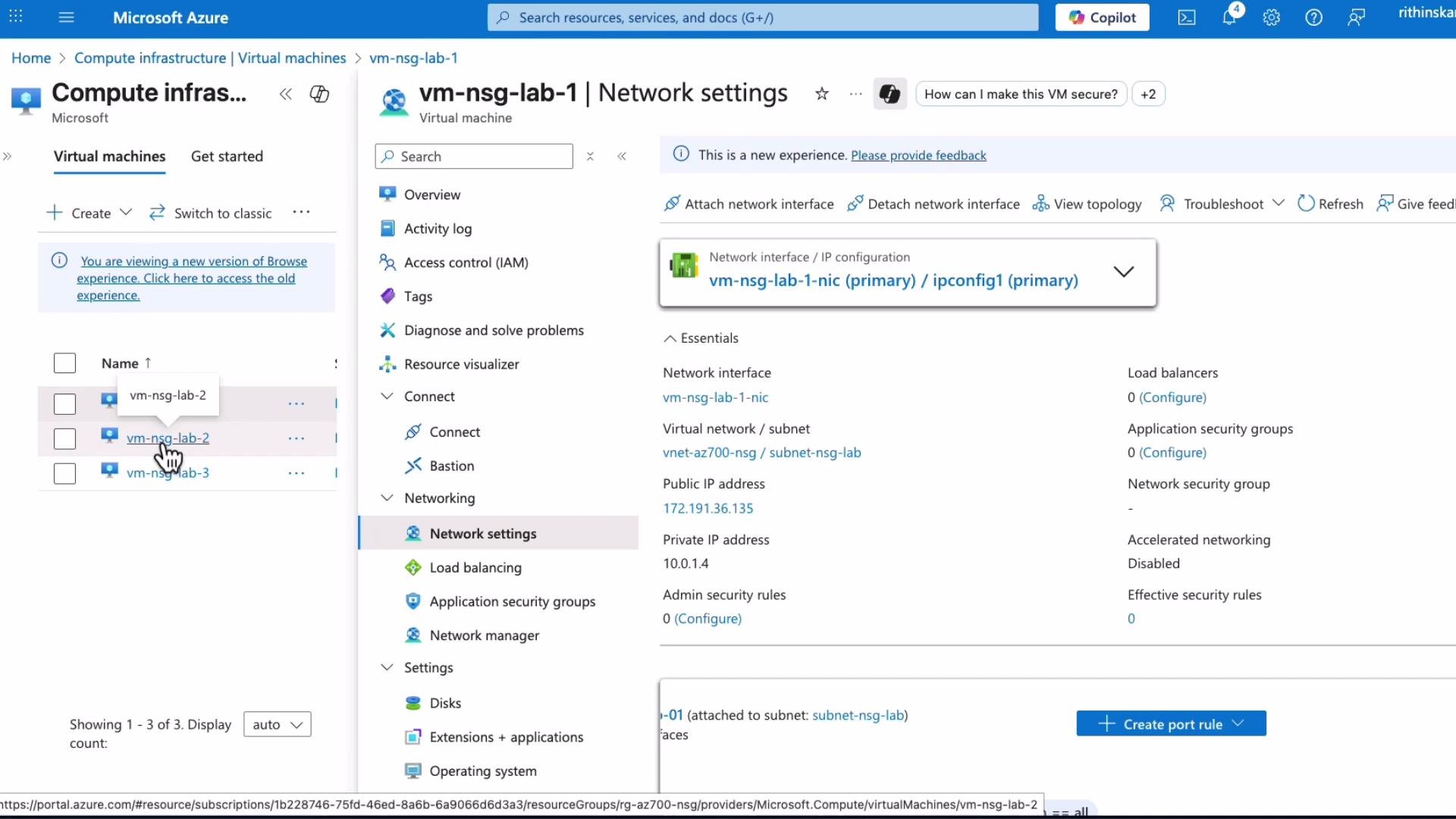

The image shows the Microsoft Azure portal interface, displaying the network settings for a virtual machine named "vm-nsg-lab-1," including details like network interface, IP addresses, and security configuration.
Solution overview:
  1. Create an ASG (for example, ASG-storage-servers).
  2. Associate the NICs for lab1 and lab2 with that ASG.
  3. Update NSG rules to reference the ASG (instead of IP addresses).
  4. Verify that lab1/lab2 can access the Storage service and that lab3 cannot.

​
Step-by-step: Create ASG and enforce NSG rules

  1. Create an ASG
    • In the Azure portal search for “Application security groups” → Add → provide a name such as ASG-storage-servers.
  2. Add NICs to the ASG
    • Open the VM → Networking → Network interface → Application security groups → Add → select ASG-storage-servers.
    • Repeat for the second VM (lab2).
  3. Consider NIC-level NSGs
    • If a NIC-level NSG exists, it will be evaluated together with subnet-level NSGs. To ensure consistent behavior, either disassociate the NIC-level NSG or update its rules so they don’t conflict.
You can inspect the NSG and its current rules to confirm the configuration:

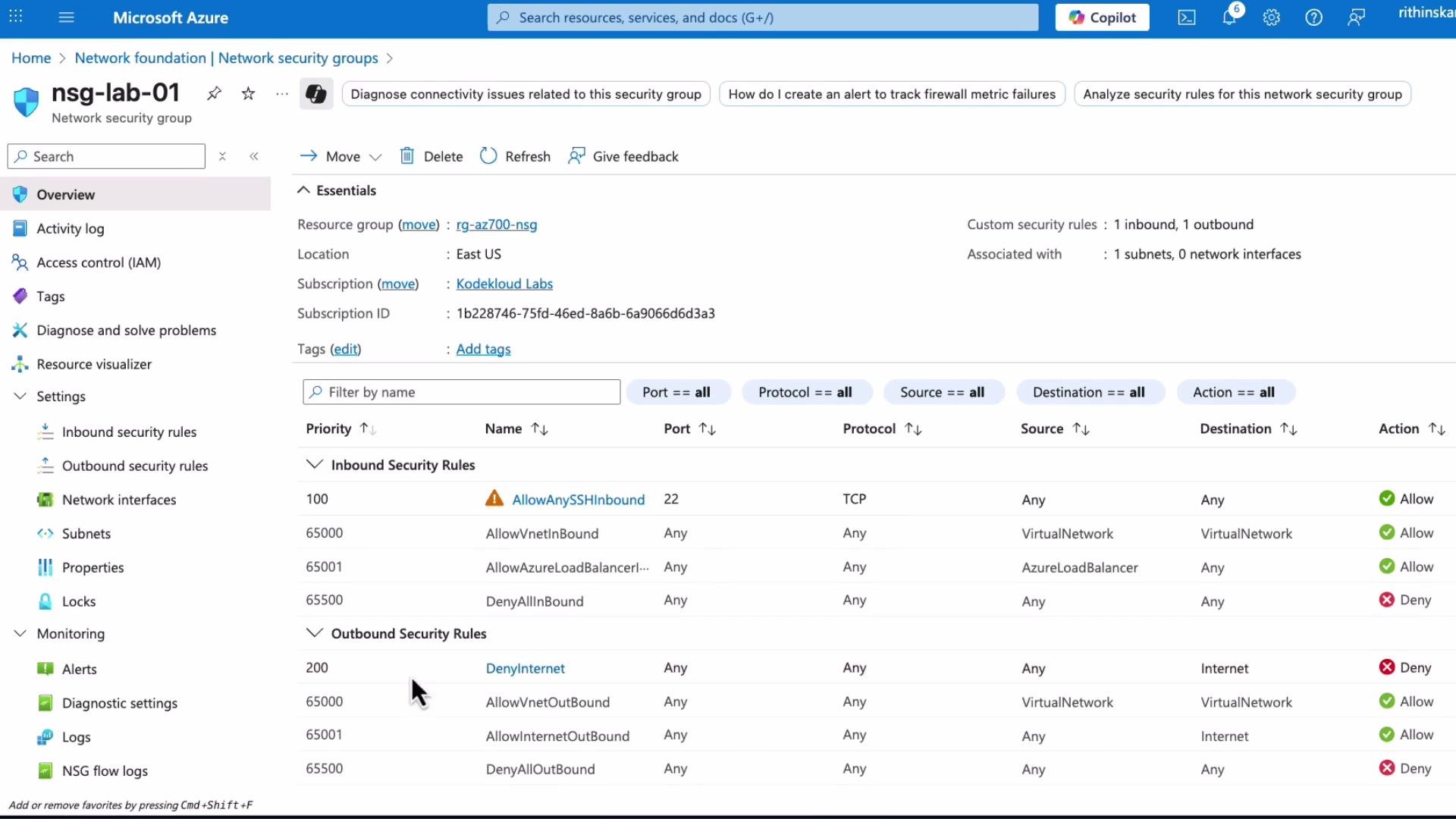

The image shows a Microsoft Azure interface displaying the security rules for a network security group named "nsg-lab-01," listing both inbound and outbound rules with their details such as priority, name, port, protocol, source, destination, and action.
  1. Create the NSG rule referencing the ASG
    • In the NSG outbound (or inbound) rules pane, click Add and set:
      • Source: ASG-storage-servers
      • Destination: Service tag Storage
      • Destination ports: 80, 443 (or ports required by your service)
      • Protocol: Any (or TCP to restrict)
      • Action: Allow
      • Priority: choose a lower numeric value than an existing deny rule (e.g., 100 if a Deny is 200)
Open the NSG outbound rules pane and click Add to configure the rule:

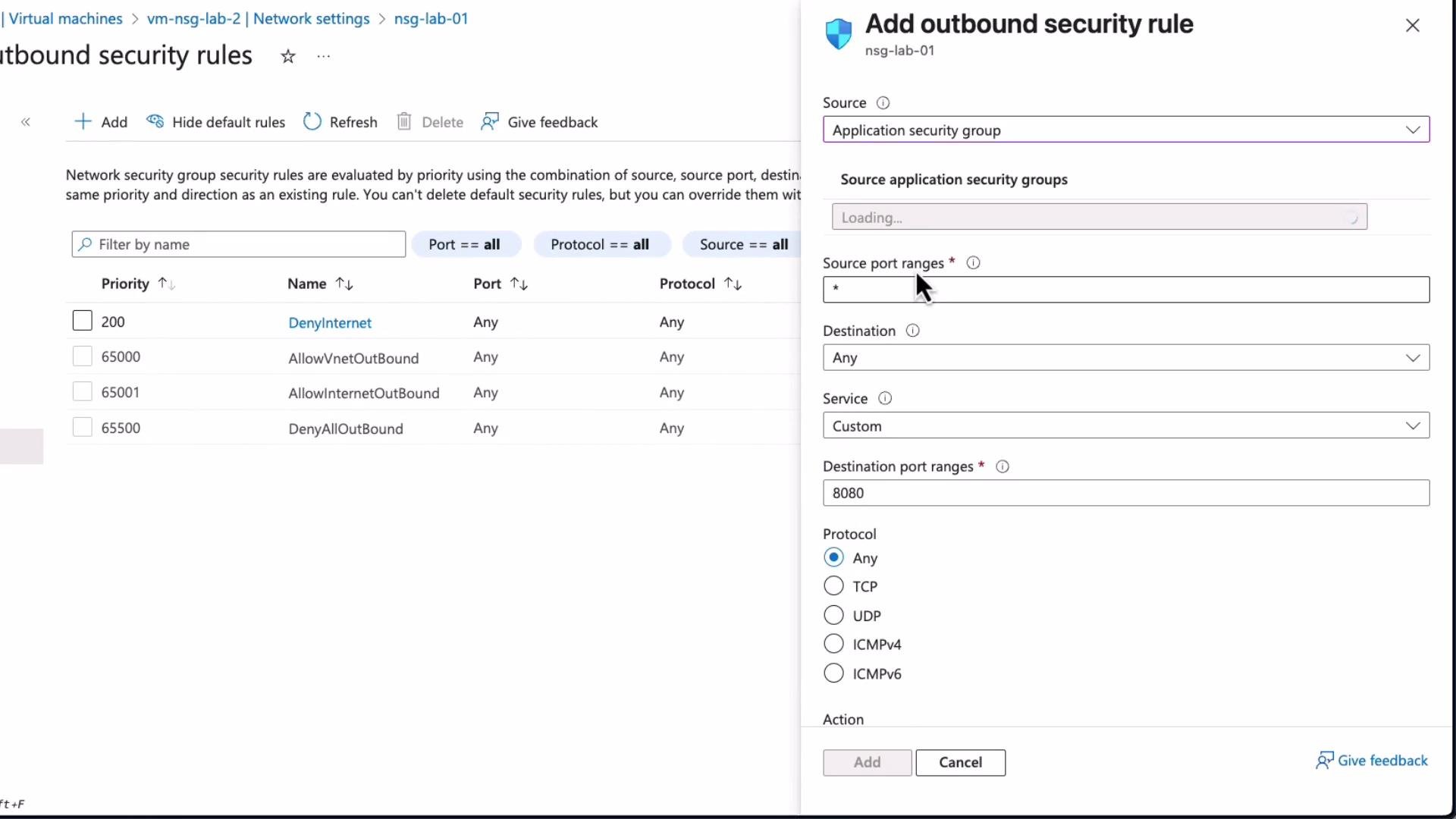

The image shows a network security group interface with outbound security rules listed on the left and a form to add a new outbound security rule on the right.
After adding the rule, the NSG should list the new allow rule (for example AllowStorage) that permits traffic from your ASG to the Storage service tag on the specified ports.

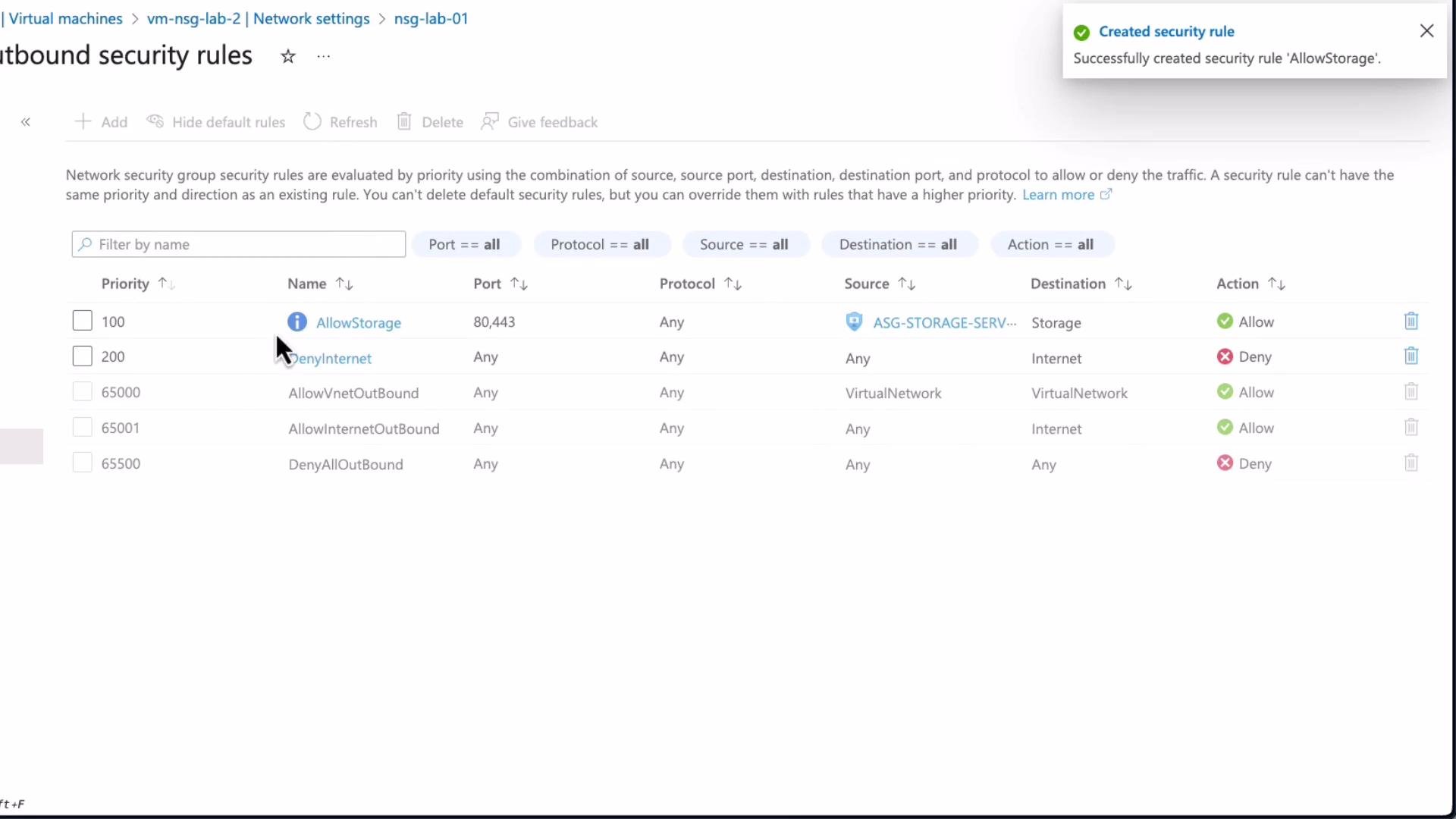

The image shows a list of outbound security rules in a network security group, detailing various rules with priorities, names, ports, protocols, sources, destinations, and actions (allow or deny). A notification indicates the successful creation of a security rule named 'AllowStorage'.

​
Verify connectivity from the VMs

  • From a VM in the ASG (lab1 or lab2), you should be able to reach the storage account.
  • From a VM not in the ASG (lab3), access should be blocked by the subnet-level deny rule or by the absence of the Allow condition.
Example commands (replace IP/hostnames with your environment values):
Expected outcomes:
  • From a VM that is allowed to access Storage:
  • From a VM blocked from Internet or Storage:
This confirms that NSG rules referencing the ASG permit only the intended VMs to reach the storage service while others remain blocked.

​
Quick reference table

Application Security Groups simplify NSG management by letting you add or remove VMs from logical groups instead of repeatedly editing IP-based rules. Reuse ASGs across multiple NSGs to enforce consistent, layered network security policies.

​
