High-level summary (at a glance)
| Capability | Purpose | Key Azure services |
|---|---|---|
| External connectivity | Allow selected resources to be reachable from the internet or to access the internet | Public IP, Azure Load Balancer, Application Gateway, NAT Gateway |
| Internal communication (east–west) | Private, low-latency communication between resources inside a VNet or peered VNets | Internal Load Balancer (ILB), VNet peering |
| Hybrid connectivity | Extend or integrate on-premises networks with Azure | VPN Gateway (site-to-site), ExpressRoute |
| Traffic control & security | Filter and inspect traffic, enforce access policies | NSGs, Azure Firewall, WAF (Application Gateway) |
| Custom routing & inspection | Direct traffic through appliances or on-premises for inspection/egress control | User-defined routes (UDRs), Network Virtual Appliances (NVAs), forced tunneling |
1. External connectivity (internet-facing scenarios)
Azure VNets let you expose resources to the internet when required and manage outbound internet access from private subnets. Key points:- Assign public IPs to VMs, or use a public-facing Load Balancer / Application Gateway in a front-end subnet for scalable, internet-facing services.
- For controlled outbound connectivity from private subnets, deploy NAT Gateway or Azure Firewall to provide stable SNAT addresses and logging.
- Use Application Gateway + WAF to protect HTTP/S workloads while exposing a secure public endpoint.

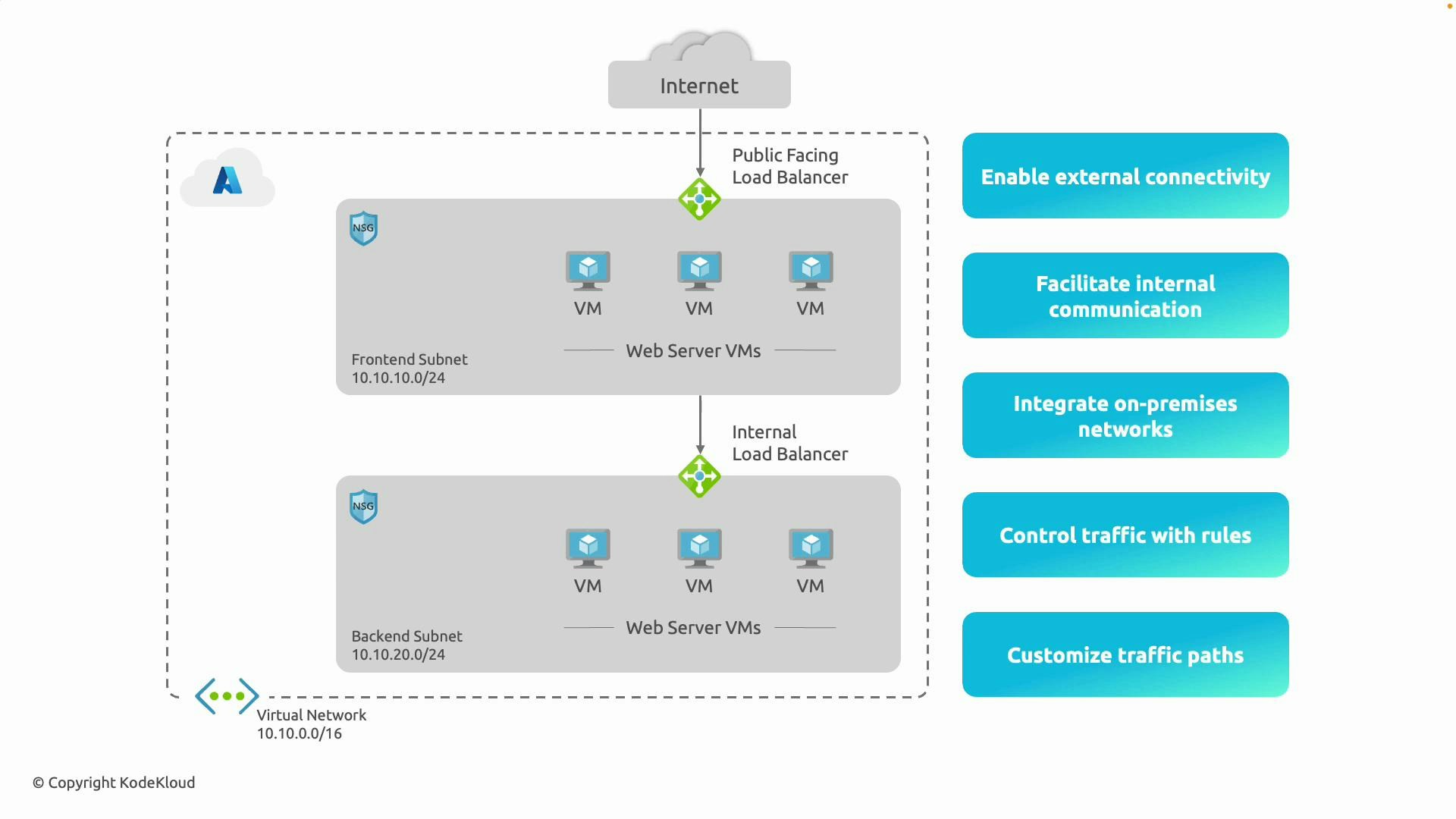

- Host web servers in a front-end subnet reachable via a public Load Balancer or Application Gateway.
- Use NAT Gateway or Azure Firewall to centralize outbound internet egress from private subnets for auditing and control.
- Create a VNet with a frontend subnet:
- Create a NAT Gateway and associate it with a subnet:
2. Internal communication (east–west traffic)
Not all resources should or need to be internet-facing. VNets (and peered VNets) enable secure, private communication using private IPs. Key points:- Subnets in the same VNet or in peered VNets communicate directly without traversing the internet.
- Internal Load Balancer (ILB) distributes traffic between tiered services (e.g., web -> app -> database) while keeping traffic private.
- Traffic stays on Microsoft’s backbone network, minimizing latency and exposure.
- Front-end VMs send requests to back-end application or database VMs through an ILB so traffic never leaves Azure’s private network.
3. Integration with on-premises networks (hybrid connectivity)
Azure supports hybrid cloud architectures with secure, routed connectivity to your data center. Options:- VPN Gateway for encrypted IPsec/IKE site-to-site tunnels over the public internet.
- ExpressRoute for a dedicated private circuit to Azure (lower latency, higher throughput, does not traverse the public internet).
- Once connected, you can manage routes so on-premises and Azure subnets communicate like a contiguous network while maintaining access controls.
- Host core services in an on-premises datacenter and extend application tiers to Azure. Use VPN Gateway for smaller deployments or ExpressRoute for production-grade, high-throughput workloads.
Plan IP addressing and routing carefully for hybrid setups. Overlapping IP ranges between on-premises and Azure or misconfigured UDRs can break connectivity or create security gaps. Validate CIDR ranges and route propagation before production rollouts.
4. Controlling traffic with security rules
Azure provides layered controls to filter and log traffic:- Network Security Groups (NSGs): stateful Access Control Lists you can apply to subnets or NICs to allow/deny traffic by port, protocol, and IP ranges.
- Azure Firewall: managed, stateful firewall with centralized policy, threat intelligence, and consolidated logging.
- Application Gateway WAF: protects HTTP/S workloads from common web exploits (SQL injection, XSS, etc.).
- Allow inbound HTTP (80) and HTTPS (443) to the web tier while blocking other inbound traffic.
- Restrict RDP/SSH access to specific bastion hosts or limited source IP ranges.
- Use Azure Firewall or an NVA to inspect outbound traffic and enforce application-level controls.
5. Customizing traffic paths (routing and appliances)
Control how traffic flows between subnets, to the internet, or back to on-premises.- User-defined routes (UDRs) let you override Azure’s system routes by applying custom route tables to subnets.
- Routes can direct traffic to virtual appliances (firewalls, proxies, NVAs) for inspection or to route traffic back on-premises (forced tunneling).
- Combine route tables and NVAs to build inspection paths before egress to the internet.
- Route all outbound traffic from a subnet through Azure Firewall or an NVA to enforce inspection and logging.
- Send traffic for specific destinations to an NVA for threat inspection, DPI, or WAN optimization.
Common terms (brief)
- NSG: Network Security Group — subnet or NIC-level, stateful filtering.
- UDR: User-Defined Route — custom route table attached to a subnet.
- ILB: Internal Load Balancer — load balancer that only handles internal/private traffic.
- VPN Gateway: Managed resource for site-to-site VPN connectivity.
- ExpressRoute: Dedicated private connection between your network and Azure datacenters.
Azure Virtual Networks let you expose only what you need, keep the rest private, connect on-premises and cloud resources securely, and apply routing/security controls to enforce your network design.
