Azure Private Link enables private access to Azure resources—such as Azure SQL, Storage, and partner PaaS services—directly from your virtual networks, on-premises networks, or peered VNets without exposing public IPs. Traffic flows over the Microsoft backbone, removing the need to traverse the public internet and significantly reducing attack surface.

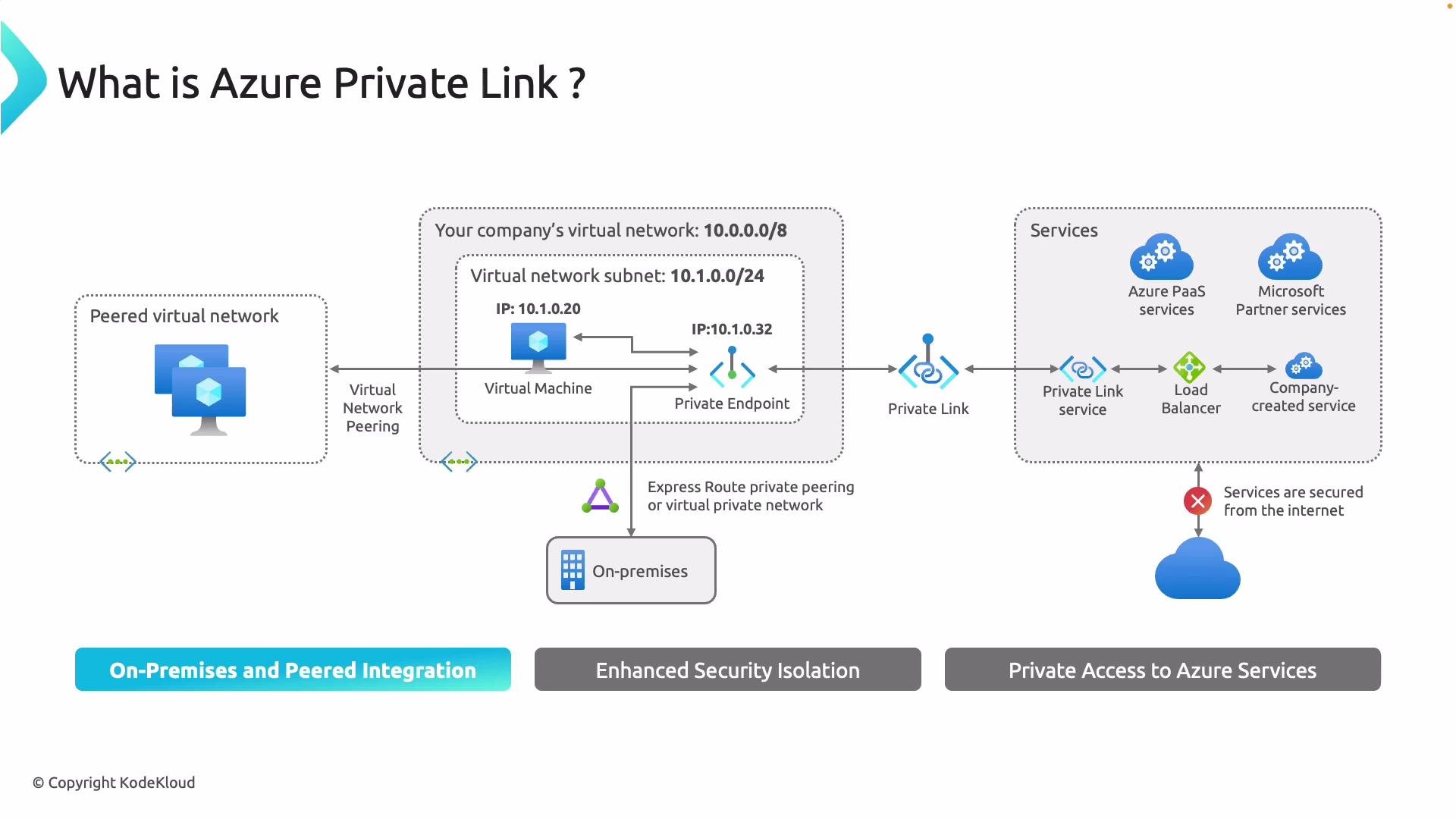

The image is a diagram explaining Azure Private Link, showcasing virtual network configurations, private endpoints, and secure access to services without internet exposure. It illustrates the integration of on-premises and virtual networks through private links and load balancing.
Read the diagram above from left to right: a VM in a peered VNet accesses a Private Endpoint by its private IP—traffic never requires a public IP. The Private Endpoint is deployed into a subnet and presents a private IP that maps to a single resource. Even if other parts of the virtual network are compromised, an attacker cannot pivot into the PaaS resource unless they gain access to that specific Private Endpoint, thereby reducing the attack surface. On the right side of the diagram you can see Azure PaaS and partner services accessed via Azure Private Link instead of the public internet. Internet traffic is blocked; communication occurs over the Microsoft backbone using private IP addresses.

​
What is a Private Endpoint?

A Private Endpoint projects an Azure service into your VNet by assigning a private IP address to that service inside a subnet. DNS resolves the service’s FQDN to the Private Endpoint’s private IP, so traffic between your compute resources and the service flows entirely over the Microsoft backbone.

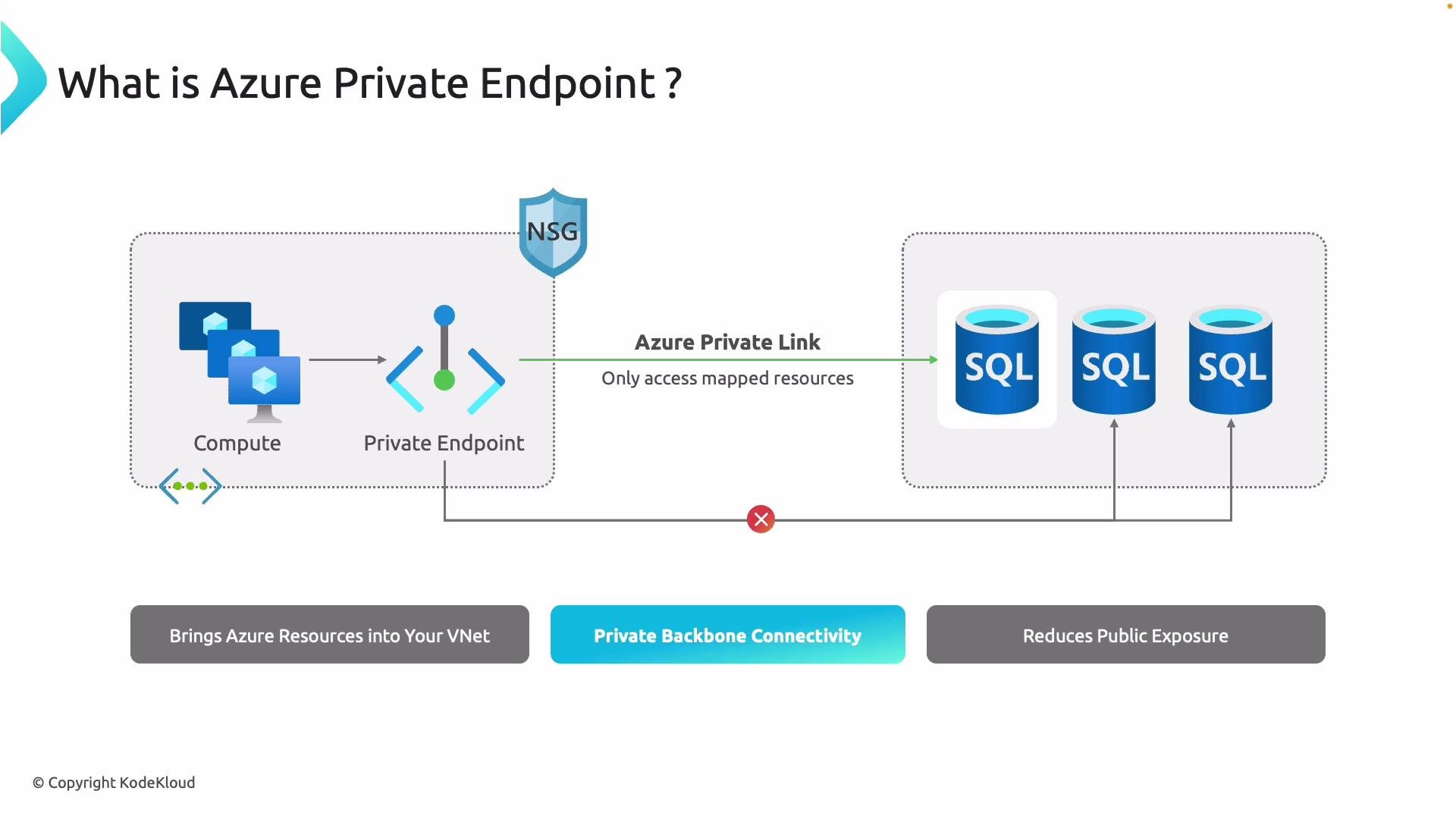

The image is a diagram explaining Azure Private Endpoint, showing how it connects compute resources to SQL databases using Azure Private Link, with key benefits highlighted in text.
With a Private Endpoint:
  • Access to the mapped resource is provided over a private IP.
  • External internet requests cannot reach your SQL servers or other services.
  • Exposure to brute-force or port-scan attacks is minimized while full functionality is preserved via private connectivity.
A Private Link service is how a provider privately publishes an application to consumers. Read the next diagram from left to right: the consumer network connects privately to the provider network over the Azure backbone (no public internet). The consumer creates a Private Endpoint (for example, 10.0.1.5)—a NIC in the consumer VNet. DNS resolves the service name to that private IP. A dotted line represents the Private Link, bridging the consumer’s Private Endpoint to the provider’s Private Link service. On the provider side, the Private Link service typically fronts a Standard Load Balancer and fans out to VMs or instances. The provider controls and approves which consumers can connect.

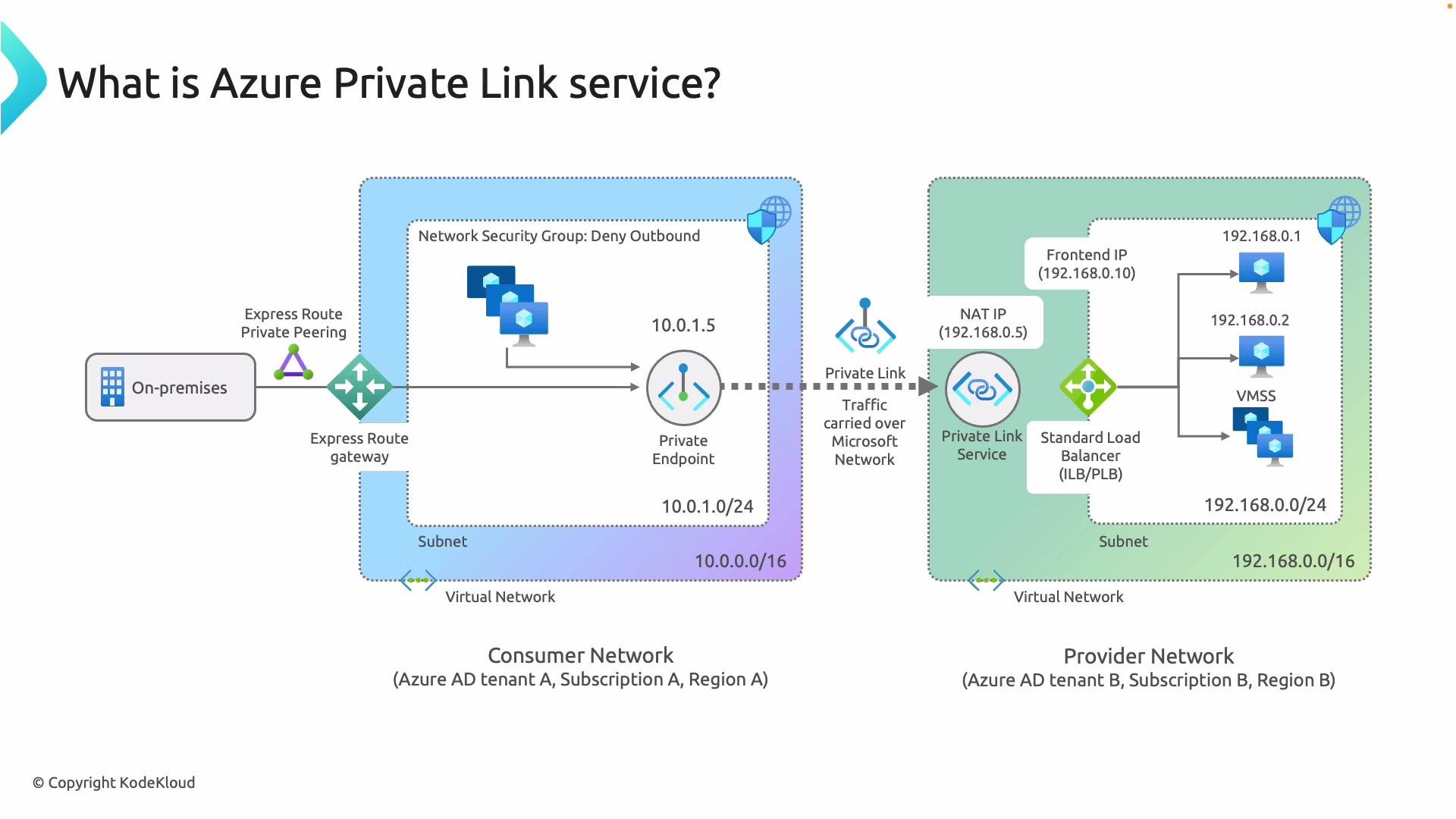

The image is a diagram explaining Azure Private Link service, showing the network setup with on-premises, consumer and provider networks, including elements like Express Route, Private Endpoint, and Load Balancer.

​
Quick concept summary

​
Demonstration: Private Endpoint in the Azure portal

The following demo reuses a VM that currently resolves a storage account to a public IP. We’ll create a Private Endpoint and show DNS and connectivity changes. First, observe the storage account resolving from the VM (public IP):
This resolves to a public IP. We want to restrict access so the storage account is reachable only via Private Endpoint. In the Storage Account’s Networking settings, disable public network access so only private connectivity is allowed. After disabling public access, attempts that still resolve to the public IP will fail because public access is blocked:

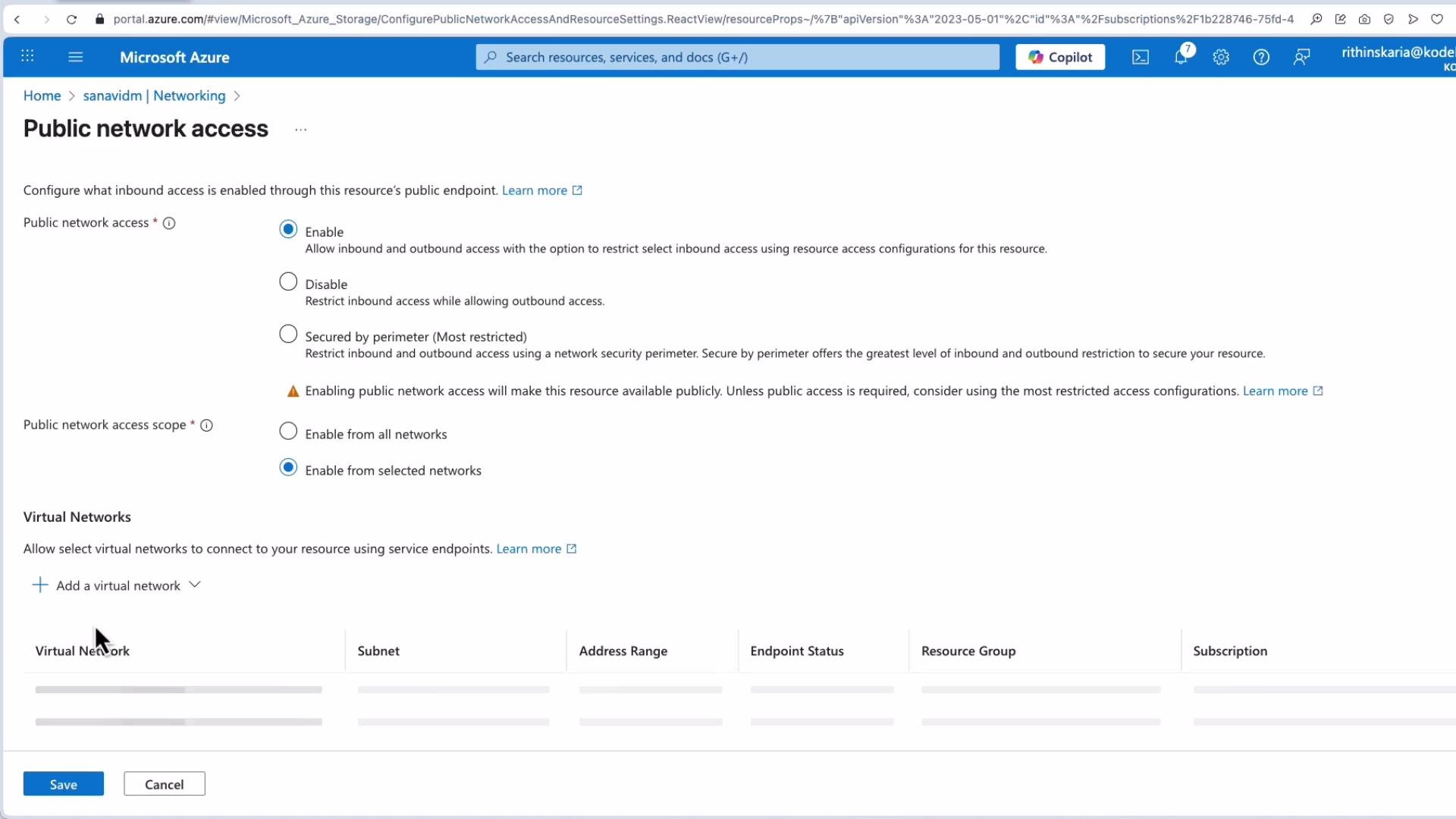

The image shows a Microsoft Azure portal screen for configuring public network access settings, including options to enable or disable access and set access scope for virtual networks.

​
Create a Private Endpoint

When creating a Private Endpoint for the storage account, use these typical settings:
  • Resource group: same RG as the VM (for demo convenience).
  • Name: e.g., pest (Azure will append -nic to create the network interface).
  • Region: choose your region (e.g., East US).
  • Resource: select the target storage account and the service (Blob).
  • Virtual network/subnet: you can reuse the VM subnet for labs; in production use a dedicated subnet for Private Endpoints.
  • IP allocation: dynamic is common for demos.
DNS is critical. Two common options:
  1. Integrate with Azure Private DNS zones (easiest for Azure-provided DNS).
  2. Manage DNS yourself (custom DNS server, conditional forwarders, or a Private Resolver), which requires extra configuration for on-premises access.

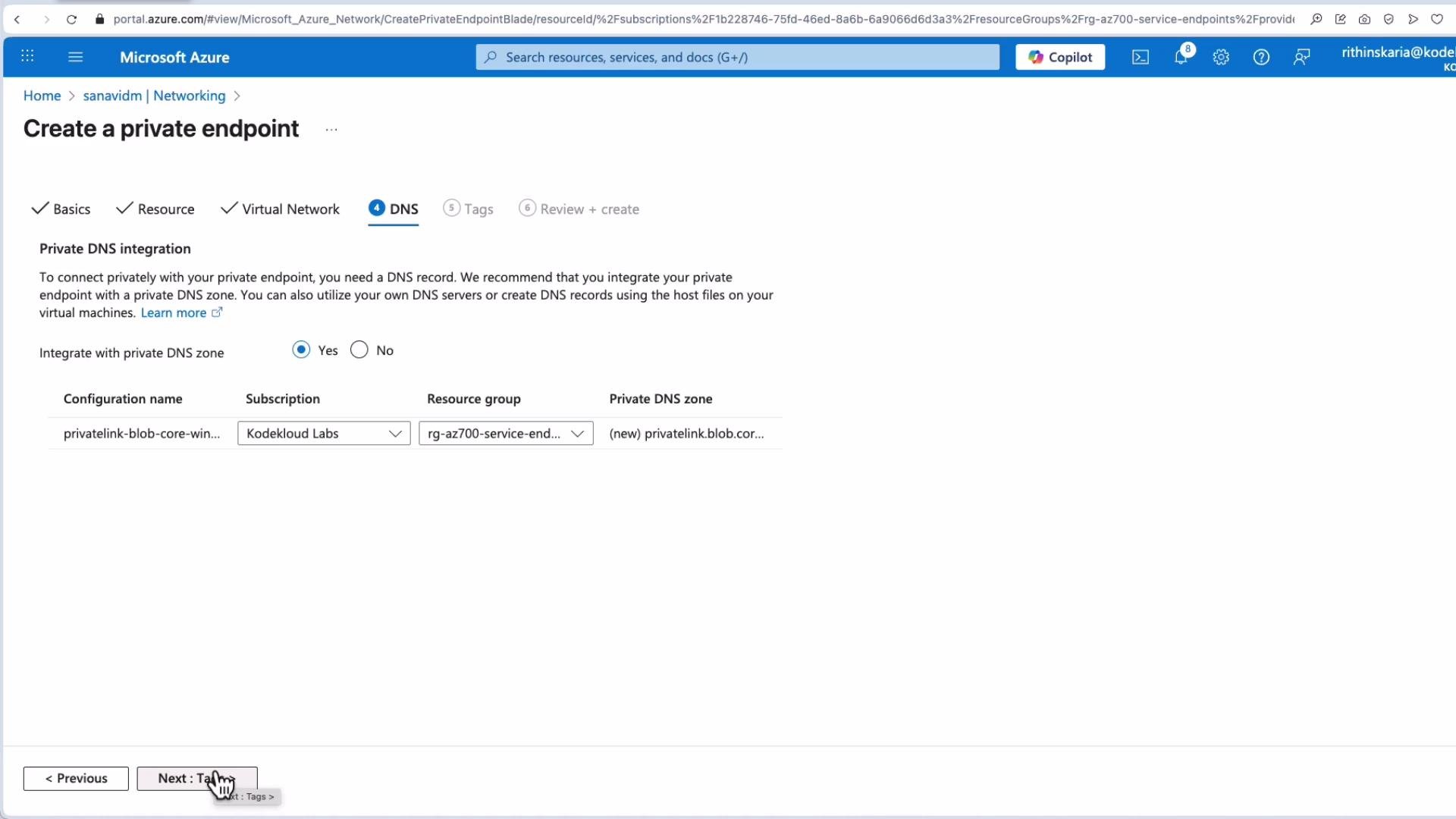

The image shows the "Create a private endpoint" page in the Microsoft Azure portal, specifically on the "DNS" tab where options for integrating with a private DNS zone are being configured. The user is about to click "Next: Tags >" to proceed.
For Azure VMs using Azure-provided DNS, integrating the Private Endpoint with an Azure Private DNS zone (for example, privatelink.blob.core.windows.net) is the simplest approach. On-premises access requires DNS forwarding or a Private Resolver and additional configuration.
Private Endpoints are implemented as NICs in your subnet and obey routing, NSGs, and UDRs. User-defined routes that force traffic to a firewall or on-premises (for example, forced tunneling) can break Private Endpoint connectivity. Ensure UDRs, firewalls/NVAs (including SNAT behavior), and NSGs permit traffic to and from the Private Endpoint and the Microsoft backbone.

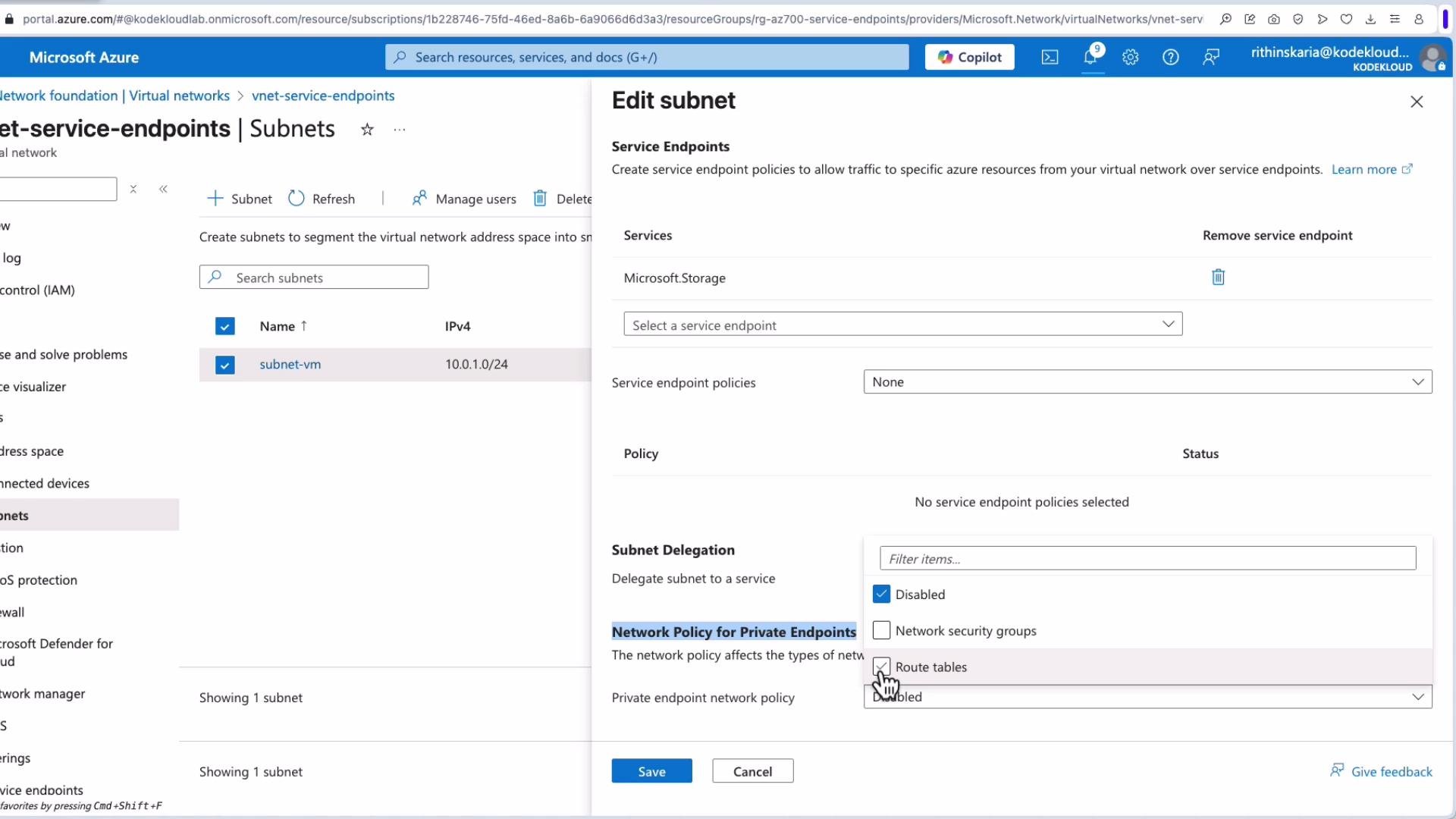

The image shows the Microsoft Azure portal interface, specifically the "Edit subnet" screen. It highlights options for configuring service endpoints, subnet delegation, and network policy for private endpoints within a virtual network.
When the Private Endpoint is provisioned it appears as a network interface tied to the Private Link resource (the storage account). The Private Endpoint overview shows provisioning state and connection status:

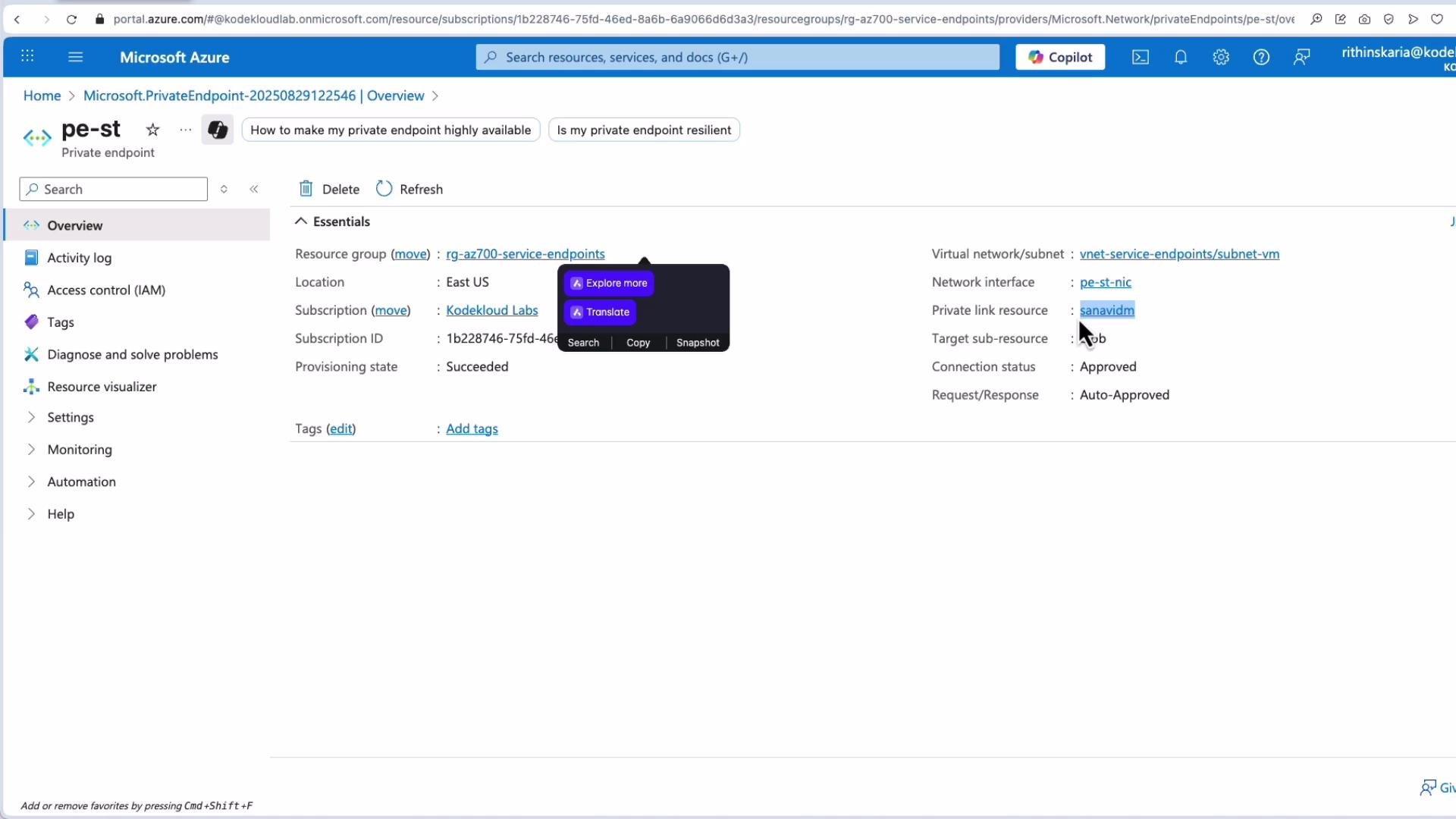

The image shows the Azure portal displaying a private endpoint's overview, detailing information such as resource group, location, subscription, provisioning state, and connection status. Various menu options are available on the left side, including activity log, access control, tags, and settings.
Under the Private Endpoint’s DNS configuration you will see the Azure Private DNS zone that was created or linked (for example, privatelink.blob.core.windows.net). After DNS integration completes, name resolution from the VM (which uses Azure DNS) should return the private IP allocated to the endpoint (e.g., 10.0.1.5):

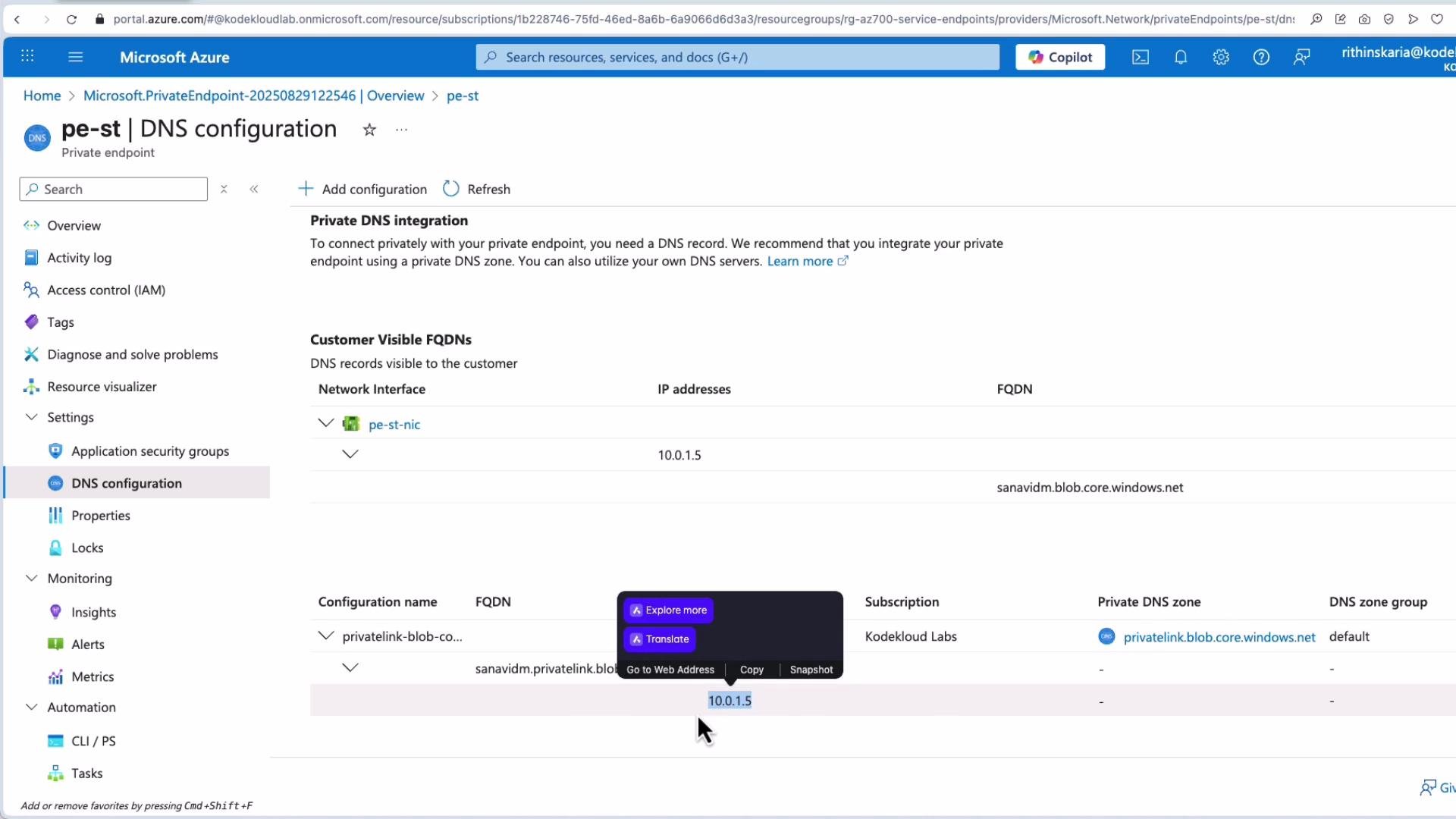

The image shows the DNS configuration page for a private endpoint in the Microsoft Azure portal, detailing private DNS integration, customer-visible FQDNs, and related settings.
From the VM, after DNS integration completes:
Now communication between the VM (10.0.1.4) and the storage account flows from the VM to the Private Endpoint IP (10.0.1.5) over the Microsoft backbone—no public IP is involved. If you use Azure Front Door (Premium) with backend origin groups, you can enable Private Link for origin groups so Front Door accesses your App Service via the Private Endpoint. This lets you disable public access to the App Service completely. Note: App Service Private Link is supported on Standard and higher SKUs (not on free tiers).

​
References and further reading

That concludes the Private Endpoint and Private Link demonstration: concepts, portal configuration, DNS implications, and how private connectivity replaces public exposure for PaaS services.
