In this lesson we demonstrate how to use Jenkins agents (nodes) with both Freestyle and Declarative Pipeline jobs. You will learn how to:
  • Run Freestyle jobs on an external agent using labels.
  • Pin specific pipeline stages to a particular agent.
  • Inspect workspace locations to verify where each stage or job executed.
Prerequisites: a running external agent registered with your Jenkins controller.

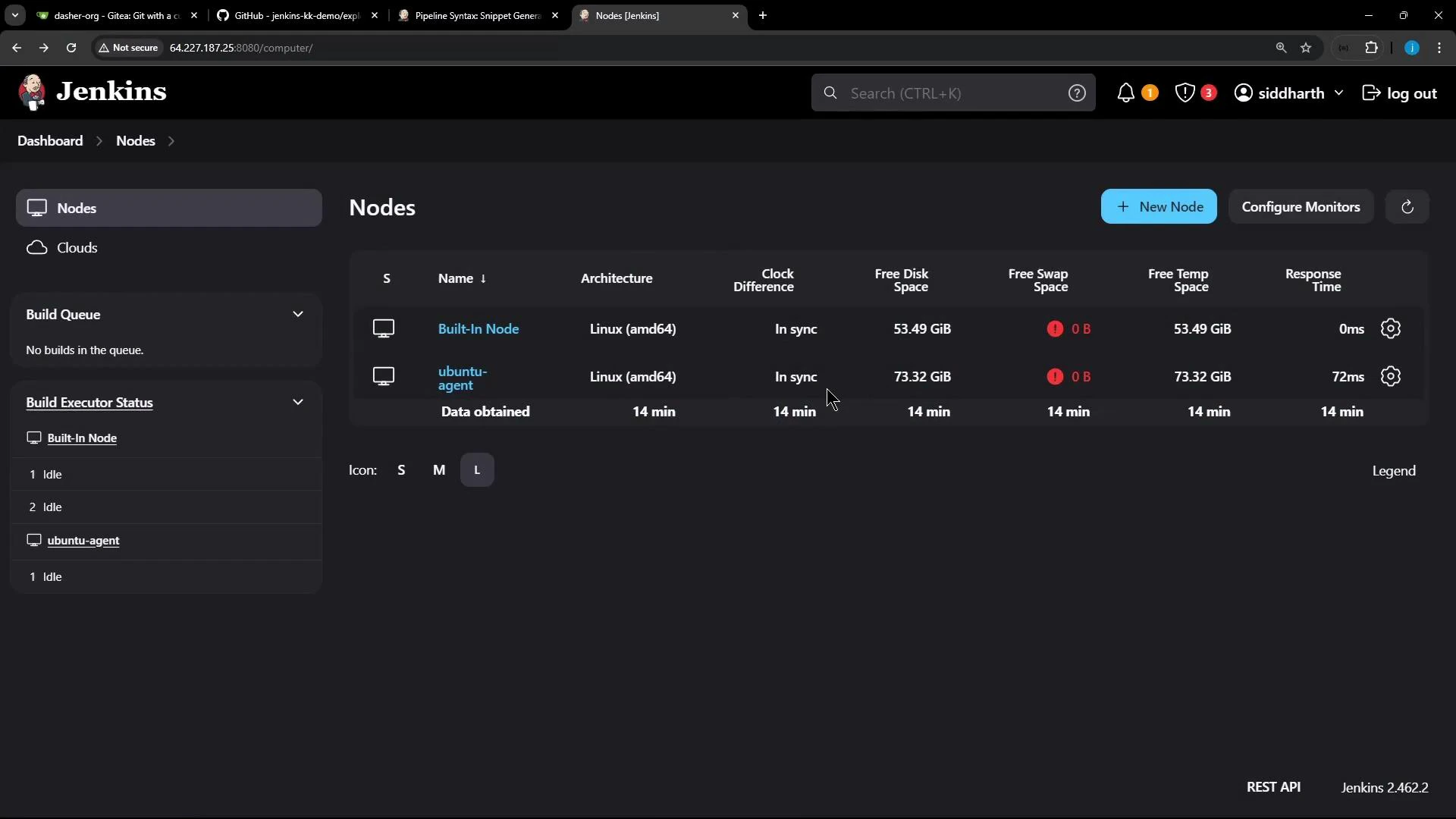

A screenshot of the Jenkins "Nodes" page showing two nodes (Built-In Node and ubuntu-agent) with architecture, free disk/swap/temp space, clock sync and response times. The left sidebar shows Build Queue and Build Executor Status and the top bar has the Jenkins header and user menu.

​
1) Freestyle Job on an External Agent

Create a new Freestyle job — for example, name it freestyle-external-agent.

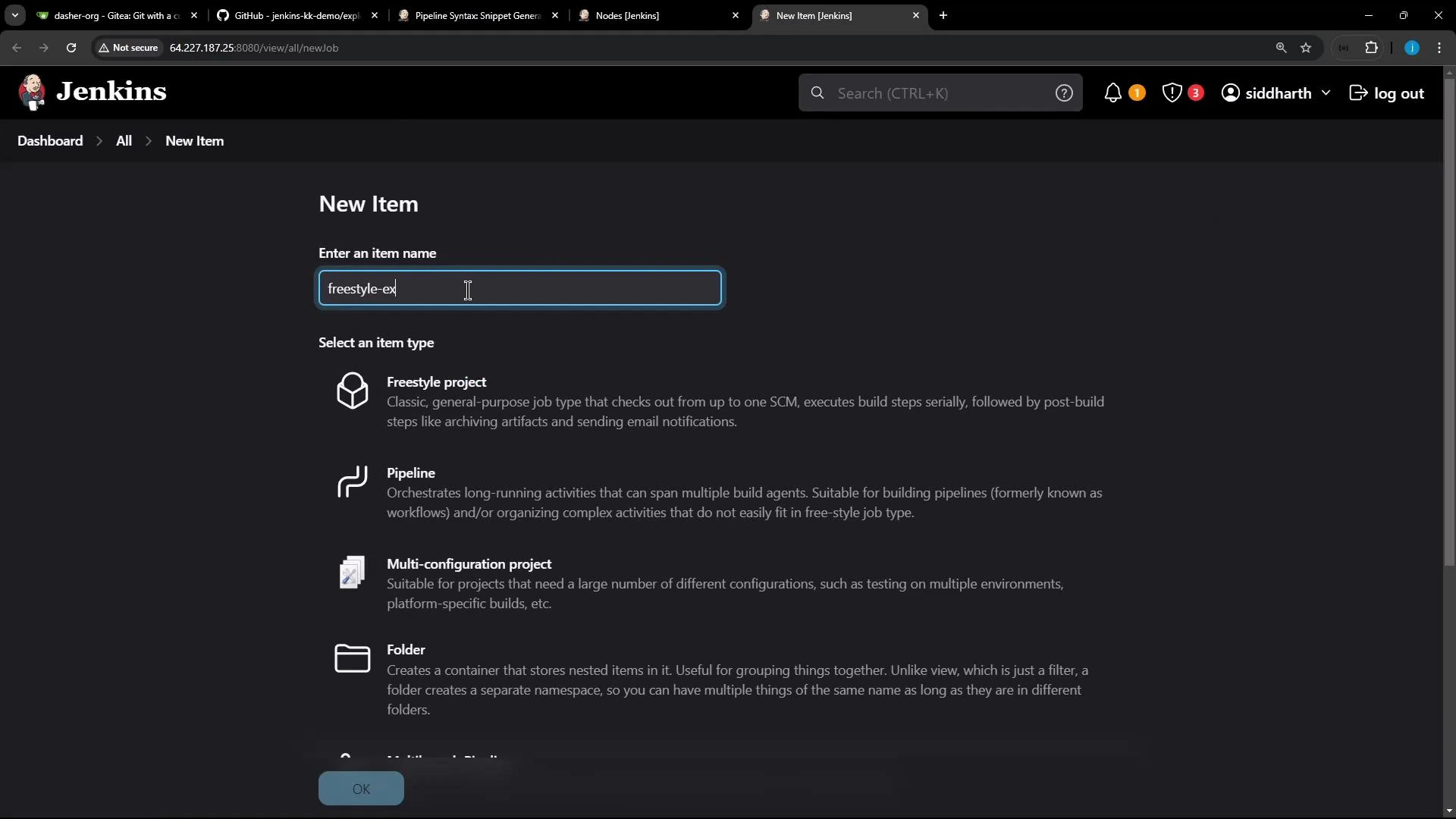

Screenshot of Jenkins' "New Item" page in dark mode. The item name field is filled with "freestyle-ex" and job-type options (Freestyle project, Pipeline, Multi-configuration project, Folder) are listed.
In the job configuration:
  • Add a build step “Execute shell” and include commands to print OS and Node/NPM versions:
cat /etc/os-release
node -v
npm -v
  • Under “Restrict where this project can be run”, paste the external agent’s label (for example ubuntu-docker-jdk17-node20) so the job executes on that agent.
After saving, the node should list the job as a project assigned to it.

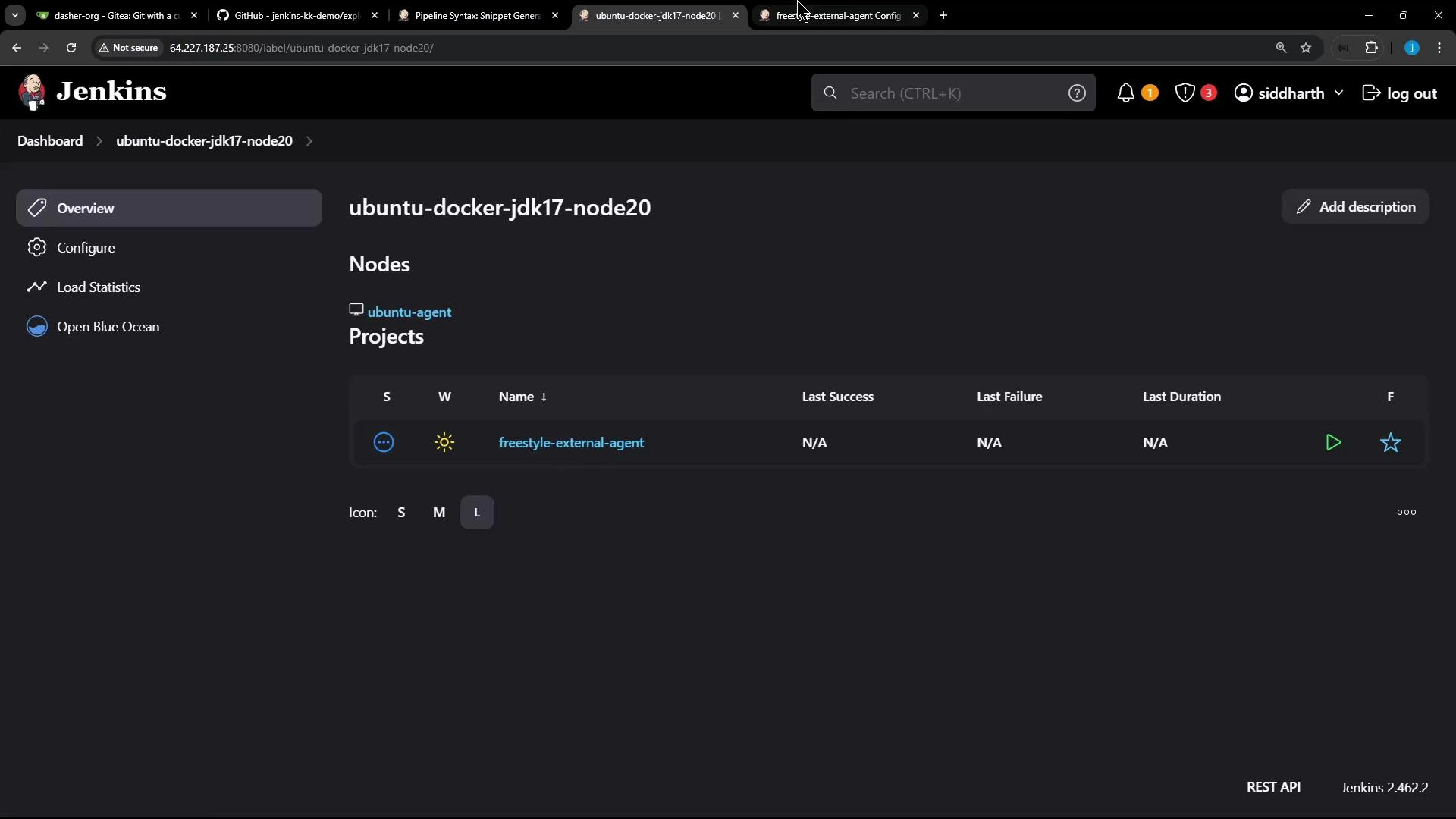

A Jenkins web UI screenshot showing the node "ubuntu-docker-jdk17-node20" with one project listed ("freestyle-external-agent") and columns for last success, failure, and duration. The left sidebar shows options like Overview, Configure, Load Statistics, and Open Blue Ocean.
Example console output from a successful Freestyle build on the Ubuntu agent (note the “Building remotely” message and the workspace path on the agent):
Started by user siddharth
Running as SYSTEM
Building remotely on ubuntu-agent (ubuntu-docker-jdk17-node20) in workspace /home/jenkins-agent/workspace/freestyle-external-agent
[freestyle-external-agent] $ /bin/sh -xe /tmp/jenkins17351491148126919661.sh
+ cat /etc/os-release
PRETTY_NAME="Ubuntu 24.04 LTS"
...
+ node -v
v22.11.0
+ npm -v
10.9.0
[Gitea] do not publish assets due to source being no GiteaSCMSource
Finished: SUCCESS
Running Freestyle jobs on labeled agents is an easy way to direct platform-specific or dependency-heavy builds to machines prepared with the required environment.

​
2) Pipeline Job with Stage-Level Agent Selection

Next, demonstrate the same checks using a Declarative Pipeline and show how to override the pipeline-level agent for a specific stage. Import or create a repository in your Git hosting (Gitea in this example) and include a Jenkinsfile in the repo. In the UI, create a Pipeline job (for example pipeline-external-agent) and point its Pipeline script to the Jenkinsfile stored in the repository.
A dark-themed screenshot of a Gitea organization page for "dasher-org" showing a list of repositories (like shared-libraries and solar-system), with buttons for "New Repository" and "New Migration" and panels for Members and Teams. The top-right menu is open showing options to create a new repository, migration, or organization.
If you need to import/migrate a repository, use your Git UI to clone or migrate into the desired organization (example below).

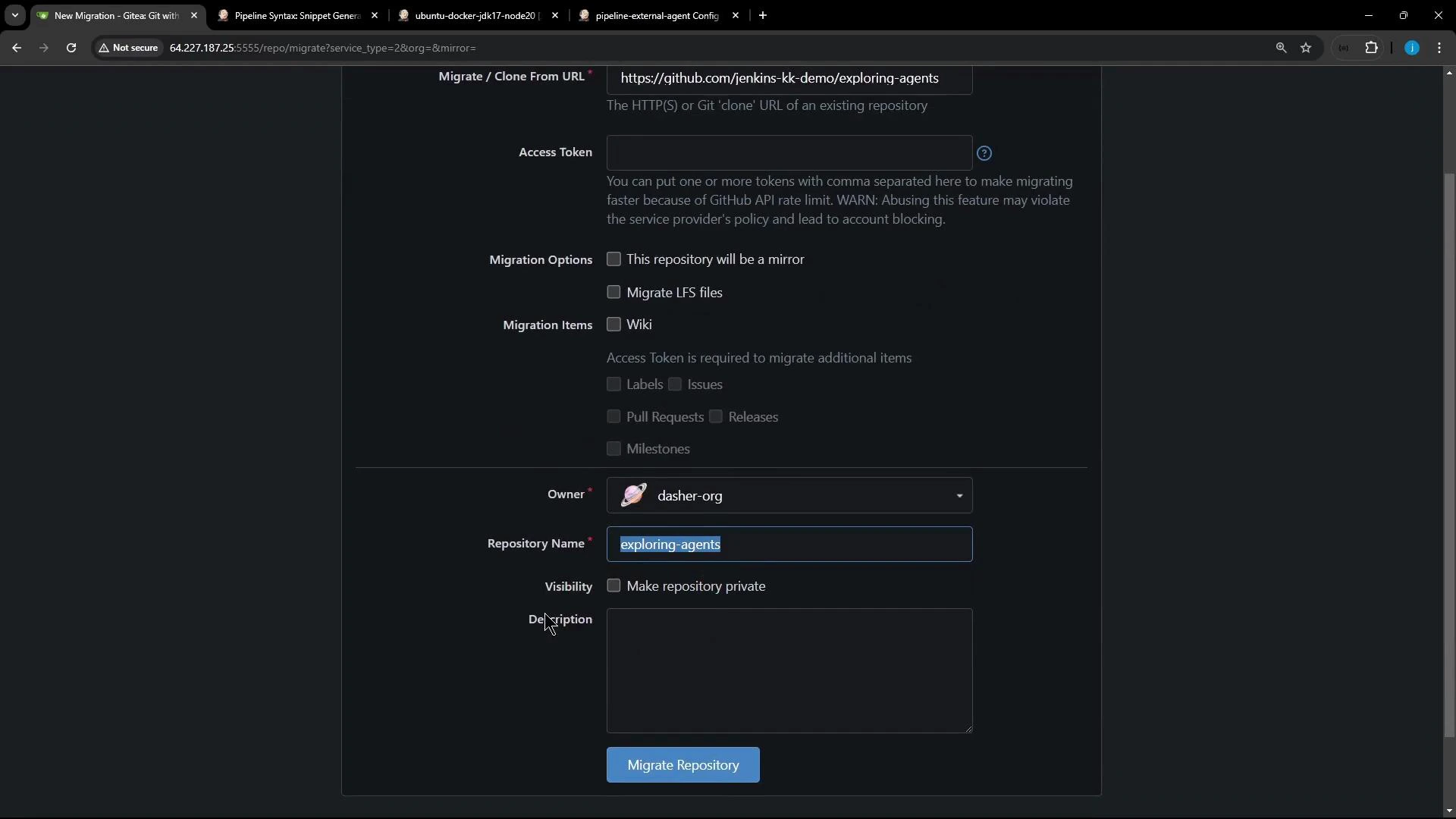

A screenshot of a web UI for migrating or cloning a Git repository. It shows fields for the source URL and access token, migration options, owner set to "dasher-org", repository name "exploring-agents", visibility and description inputs, and a "Migrate Repository" button.
A compact Declarative Jenkinsfile that demonstrates a global agent with a stage-level agent override:
pipeline {
    agent any

    stages {
        stage('S1-Any Agent') {
            steps {
                sh 'cat /etc/os-release'
                sh 'node -v'
                sh 'npm -v'
            }
        }

        stage('S2-Ubuntu Agent') {
            agent {
                label 'ubuntu-docker-jdk17-node20'
            }
            steps {
                sh 'cat /etc/os-release'
                sh 'node -v'
                sh 'npm -v'
            }
        }
    }
}
Defining an agent inside a stage overrides the pipeline-level agent for that stage — useful for running platform-specific builds or tests on dedicated machines.
Tip: Jenkins includes a Declarative Directive Generator (choose “agent” → “label”) which can produce the correct agent snippet for you.

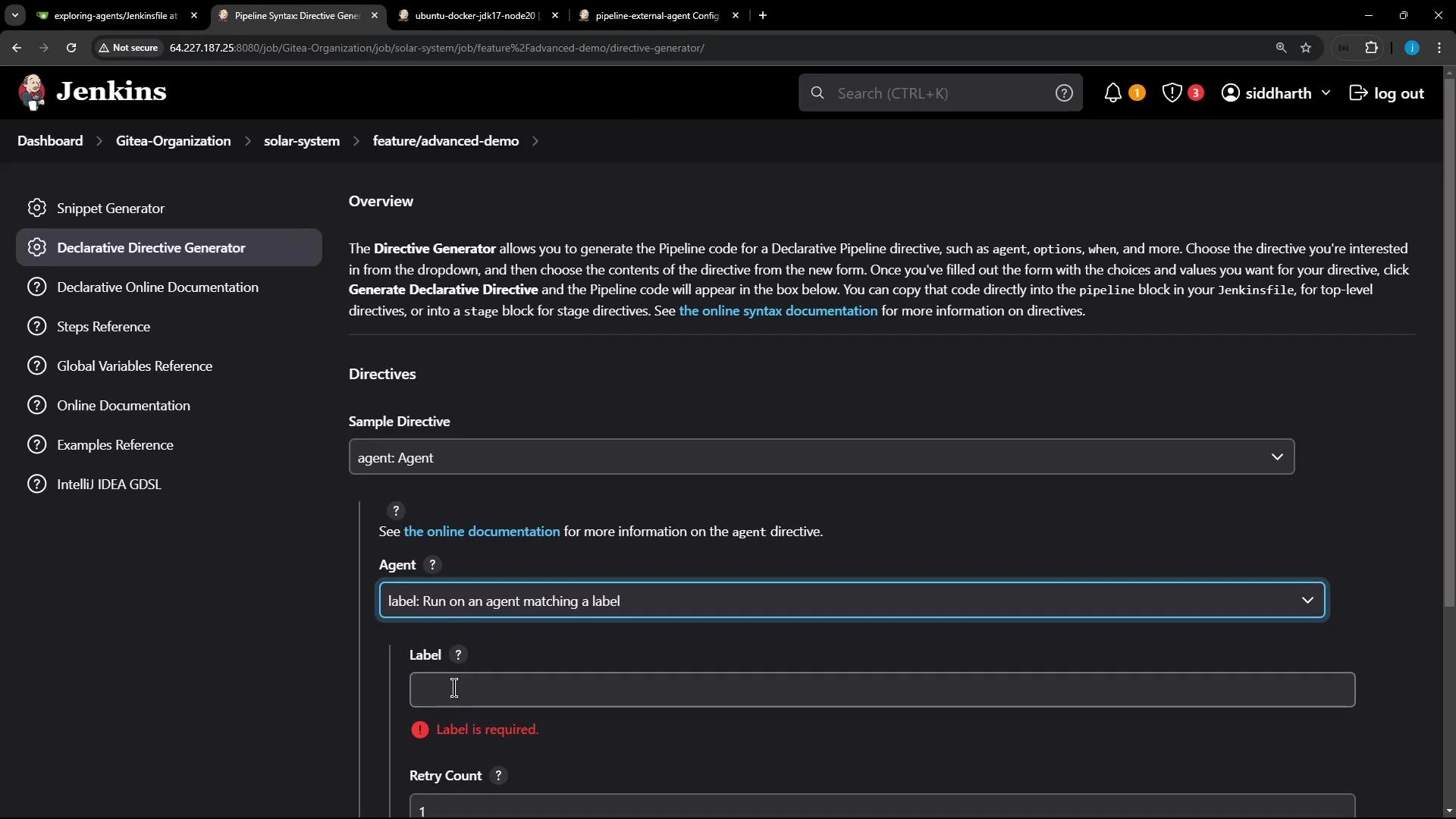

A screenshot of the Jenkins web UI showing the Declarative Directive Generator, with a form for configuring an agent (including a required label field) and a sidebar of documentation links. The top bar shows search, notifications and a user menu along with several browser tabs.
After configuring the Pipeline job to use the repository Jenkinsfile and running a build, Jenkins performs a checkout and then runs stage steps. The pipeline UI highlights each stage and shows where each executed.

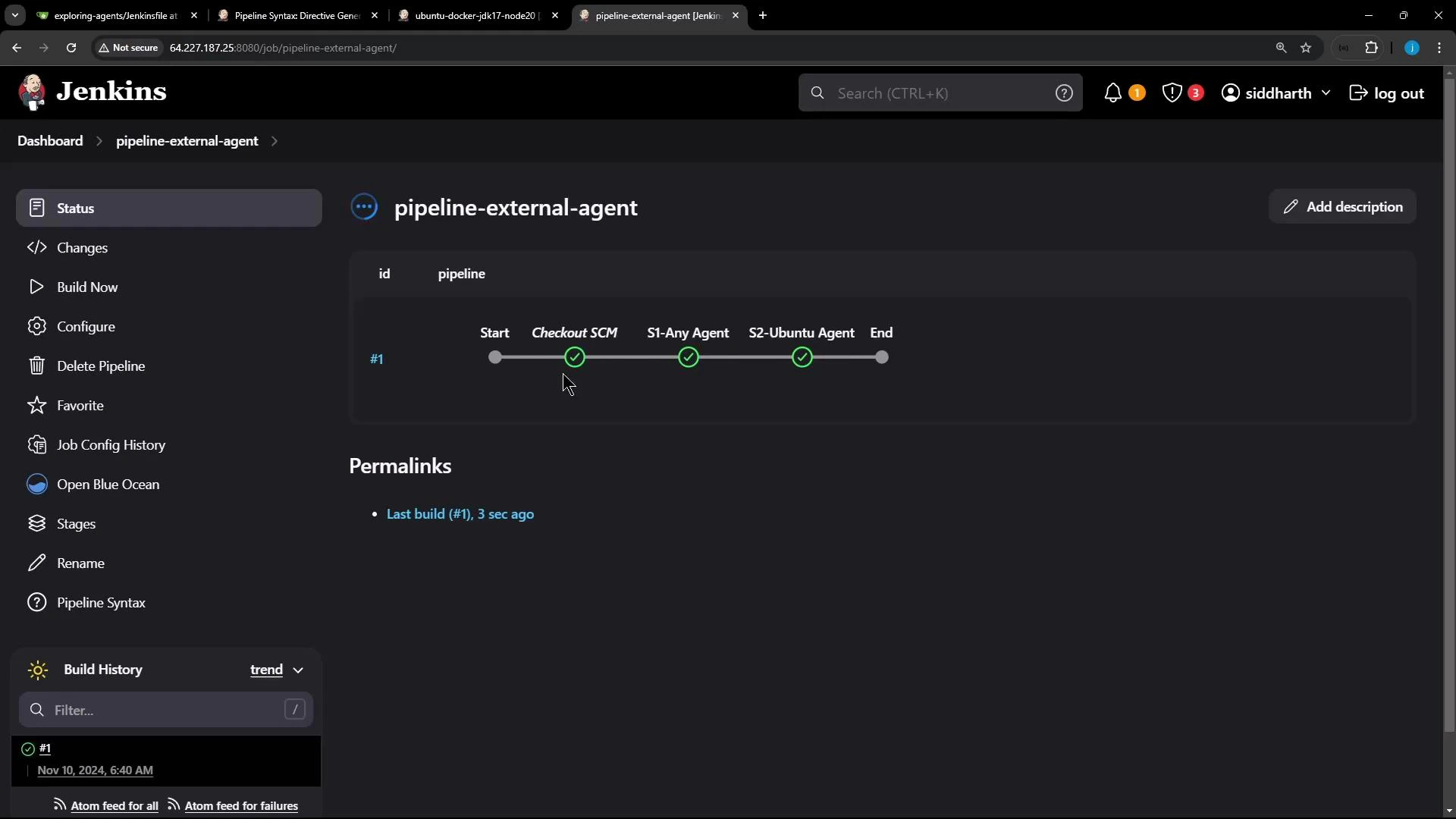

Screenshot of a Jenkins pipeline page for "pipeline-external-agent" showing a horizontal stage progress bar with completed stages (Checkout SCM, S1-Any Agent, S2-Ubuntu Agent) and the Jenkins left navigation menu.
Example console output snippets to illustrate agent selection and workspace locations:
  • Checkout and stage S1 run on the pipeline-level (global) agent — often the controller when agent any is satisfied there. Workspace example: /var/lib/jenkins/workspace/pipeline-external-agent.
Started by user siddharth
Obtained Jenkinsfile from git http://64.227.187.25:5555/dasher-org/exploring-agents
[Pipeline] Start of Pipeline
[Pipeline] node
Running on Jenkins in /var/lib/jenkins/workspace/pipeline-external-agent
...
+ node -v
v20.16.0
+ npm -v
10.8.1
  • Stage S2 uses the stage-level agent and runs on the specified Ubuntu agent. Workspace example on the agent: /home/jenkins-agent/workspace/pipeline-external-agent.
[Pipeline] stage
[Pipeline] { (S2-Ubuntu Agent)
[Pipeline] node
Running on ubuntu-agent in /home/jenkins-agent/workspace/pipeline-external-agent
...
+ cat /etc/os-release
PRETTY_NAME="Ubuntu 24.04 LTS"
...
+ node -v
v22.11.0
+ npm -v
10.9.0

​
Workspace and Agent Comparison

Agent scopeWhere it runsExample workspace pathUse case
Pipeline-level (agent any)Controller or any available agent/var/lib/jenkins/workspace/pipeline-external-agentGeneral pipeline steps and SCM checkout
Stage-level (stage { agent { label '...' } })Specified external agent/home/jenkins-agent/workspace/pipeline-external-agentPlatform-specific build/test or dependency-heavy tasks
Freestyle job with labelSpecified agent/home/jenkins-agent/workspace/freestyle-external-agentJobs targeted to agents with required tools
Avoid running long-running or resource-intensive builds on the controller (master). Use labels to route those builds to dedicated agents to keep the controller responsive.

​
Summary

  • Use “Restrict where this project can be run” to pin Freestyle jobs to an agent by label.
  • Use a stage-level agent in Declarative Pipeline to run a single stage on a specific node without affecting other stages.
  • Verify where stages executed by inspecting console logs and the workspace paths shown for each node.
Further reading and references: That’s all for now.
