Lab Solution Network Policies optional

This lab walks through a practical NetworkPolicy exercise: inspecting an existing policy that restricts access to a payroll pod, then creating a new NetworkPolicy to restrict egress from an internal pod. You’ll review the cluster state, interpret the active policy, implement a policy that limits egress, and validate the result.

1. Inspect the cluster

Start by listing pods and services to understand which workloads and endpoints exist. Pods:

root@controlplane:~# k get pods
NAME       READY   STATUS    RESTARTS   AGE
external   1/1     Running   0          2m20s
internal   1/1     Running   0          2m19s
mysql      1/1     Running   0          2m19s
payroll    1/1     Running   0          2m19s

Services:

root@controlplane:~# k get service
NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
db-service         ClusterIP   10.109.89.42    <none>        3306/TCP         2m42s
external-service   NodePort    10.108.170.44   <none>        8080:30080/TCP   2m42s
internal-service   NodePort    10.98.11.243    <none>        8080:30082/TCP   2m42s
kubernetes         ClusterIP   10.96.0.1       <none>        443/TCP          39m
payroll-service    NodePort    10.110.165.31   <none>        8080:30083/TCP   2m42s

Quick summary of key resources:

Resource	Purpose / Notes
`payroll` pod	Application listening on TCP 8080 (backed by `payroll-service`).
`internal` pod	Internal application that will be subject to egress restrictions.
`mysql` pod / `db-service`	MySQL database on TCP 3306.
`external` pod / `external-service`	External-facing app (NodePort).

2. Check for existing NetworkPolicies

List NetworkPolicies to see what’s already enforced:

root@controlplane:~# k get networkpolicies
NAME            POD-SELECTOR   AGE
payroll-policy  name=payroll   3m25s

There is one policy: payroll-policy, which targets pods with the label name=payroll. Describe that policy to see the exact rules:

root@controlplane:~# k describe netpol payroll-policy
Name:        payroll-policy
Namespace:   default
Created on:  2022-04-18 20:35:54 +0000 UTC
Labels:      <none>
Annotations: <none>
Spec:
  PodSelector:   name=payroll
  Allowing ingress traffic:
    To Port: 8080/TCP
    From:
      PodSelector: name=internal

  Not affecting egress traffic
  Policy Types: Ingress

Interpretation:

payroll-policy selects the payroll pod and defines Ingress rules only.
Because the policy selects the pod and includes Ingress rules, any ingress not explicitly allowed will be denied. In this case only traffic from pods labeled name=internal to TCP port 8080 is permitted.
There are no Egress rules for the payroll pod, so its egress remains unrestricted.

Note: By default, pods allow all ingress and egress. When a NetworkPolicy selects a pod and defines Ingress rules, it denies other ingress that is not explicitly allowed. Likewise, defining Egress rules denies other egress unless explicitly allowed. To restrict only egress (and leave ingress unchanged), set policyTypes to Egress only and omit ingress.

Connectivity (high-level):

internal → payroll on TCP 8080: allowed (policy explicitly permits).
external → payroll on TCP 8080: blocked/timeout (not allowed by policy).
ICMP (ping) is not covered by TCP rules — NetworkPolicies work at L3/L4 (TCP/UDP/SCTP).

3. Task: restrict egress from the internal pod

Goal

Create a NetworkPolicy named internal-policy.
Target the pod labeled name=internal.
Restrict egress so the internal pod can only initiate connections to:
- the payroll pod on TCP port 8080
- the mysql pod on TCP port 3306
Do not change ingress behavior for the internal pod (leave ingress unaffected).

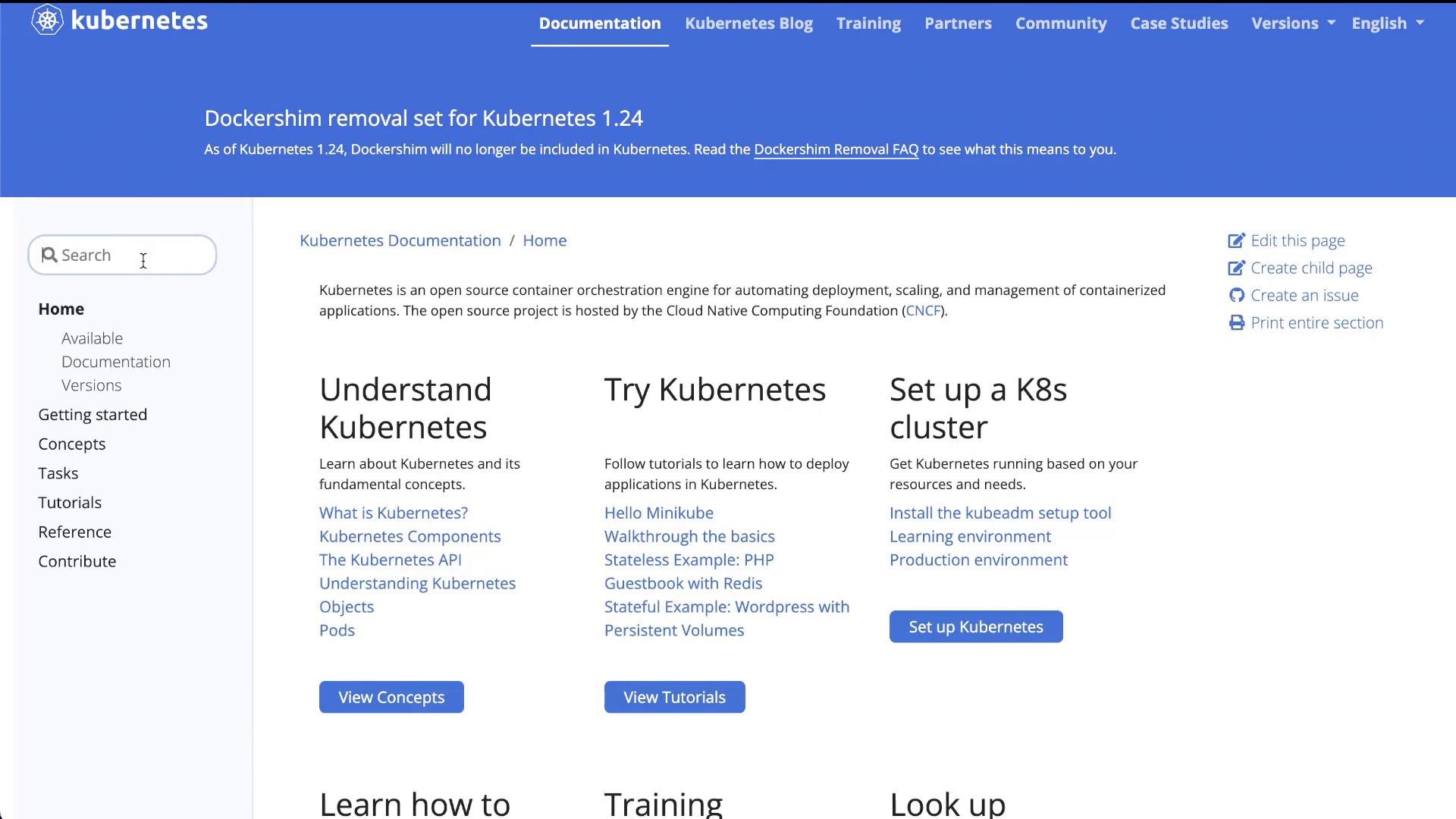

(Reference screenshot of Kubernetes docs used to get the template: https://kubernetes.io/docs/concepts/services-networking/network-policies/)

A screenshot of the Kubernetes documentation webpage, with a blue header announcing "Dockershim removal set for Kubernetes 1.24" and a left navigation pane. The main content shows three columns titled "Understand Kubernetes," "Try Kubernetes," and "Set up a K8s cluster" with links and action buttons.

Create internal-policy.yaml with the following content:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: internal-policy
  namespace: default
spec:
  podSelector:
    matchLabels:
      name: internal
  policyTypes:
  - Egress
  egress:
  - to:
    - podSelector:
        matchLabels:
          name: payroll
    ports:
    - protocol: TCP
      port: 8080

  - to:
    - podSelector:
        matchLabels:
          name: mysql
    ports:
    - protocol: TCP
      port: 3306

Apply the policy:

root@controlplane:~# k create -f internal-policy.yaml
networkpolicy.networking.k8s.io/internal-policy created

Verify the policy with describe:

root@controlplane:~# k describe netpol internal-policy
Name:        internal-policy
Namespace:   default
Created on:  2022-04-18 20:53:13 +0000 UTC
Labels:      <none>
Annotations: <none>
Spec:
  PodSelector:    name=internal
  Not affecting ingress traffic
  Allowing egress traffic:
    To Port: 8080/TCP
    To:
        PodSelector: name=payroll

    To Port: 3306/TCP
    To:
        PodSelector: name=mysql
Policy Types: Egress

Result

The internal pod can now only initiate outbound TCP connections to:
- payroll pods on port 8080
- mysql pods on port 3306
All other egress connections (to other pods or external IPs) are denied by default because the NetworkPolicy selects the pod and defines Egress rules.
Ingress to the internal pod remains unchanged by this policy.

Validation tips

Exec into the internal pod and test connectivity:
- Test allowed connections (e.g., curl or nc to payroll:8080 and mysql:3306).
- Test denied connections (e.g., try connecting to external-service or other cluster IPs).
Example validation commands (run from within the internal pod):
- # curl http://payroll-service:8080 (should succeed)
- # nc -zv payroll 8080 (should succeed)
- # nc -zv mysql 3306 (should succeed)
- # nc -zv external-service 8080 (should fail / timeout)

Links and references

Kubernetes NetworkPolicy docs: https://kubernetes.io/docs/concepts/services-networking/network-policies/
Kubernetes concepts overview: https://kubernetes.io/docs/concepts/overview/what-is-kubernetes/
CKA / networking resources: https://github.com/cncf/curriculum (useful for exam-style labs)
