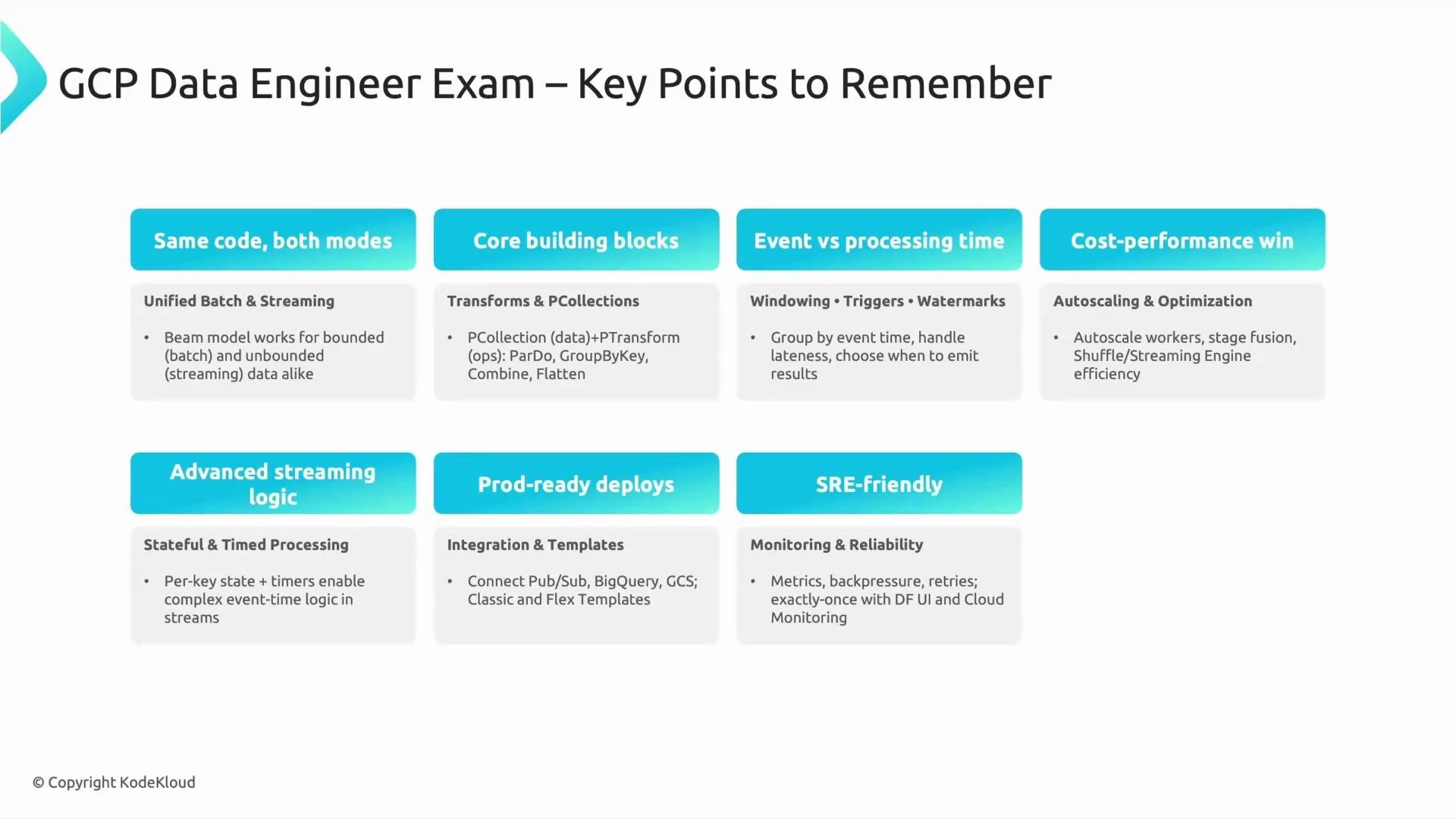

Dataflow Exam Summary

​

Unified programming model: batch and streaming

• Which Beam model feature allows the same code to be used for both batch and streaming pipelines?
• Answer: The unified model supporting both bounded and unbounded data.

import apache_beam as beam

def parse_line(line):
    # parse CSV or JSON and return dict-like object
    return {"customer_id": "cust1", "amount": 100}

with beam.Pipeline(options=options) as p:
    # For streaming:
    lines = p | 'Read' >> beam.io.ReadFromPubSub(topic='projects/PROJECT/topics/TOPIC')
    # For batch (uncomment to use):
    # lines = p | 'Read' >> beam.io.ReadFromText('gs://bucket/input/*.csv')

    results = (lines
        | 'Parse' >> beam.Map(parse_line)
        | 'KeyByCustomer' >> beam.Map(lambda x: (x['customer_id'], x['amount']))
        | 'SumPerCustomer' >> beam.CombinePerKey(sum))

    results | 'Write' >> beam.io.WriteToBigQuery('PROJECT:dataset.table')

​

Core building blocks of a Beam pipeline

​

Event time vs processing time, windowing, triggers, and watermarks

• Event time: when the event actually occurred (timestamp embedded in the event).
• Processing time: when the event is processed by the pipeline (system time).
• Windowing: groups events by event time (fixed windows, sliding windows, sessions).
• Triggers: decide when to emit results for a window (e.g., after watermark passes end-of-window, or after a processing-time delay).
• Watermarks: an estimate of event-time progress—used to decide when to close windows and emit results even with out-of-order arrivals.
• Allowed lateness: how long late events are accepted and processed for a closed window.

• What Beam concept helps manage out-of-order or late-arriving events?
• Answer: Watermarks (used along with windowing and triggers).

​

Autoscaling and cost management

• Dataflow autoscaling dynamically adjusts worker count according to pipeline load.
• Benefits: reduces cost, simplifies testing, allows stress-testing without provisioning a large static cluster, and helps pipelines recover from bursts.
• Consider autoscaling policies and worker types when optimizing cost and latency.

​

Advanced streaming logic: state and timers

• Per-key state: store small, bounded state per key (e.g., counts, last-seen timestamp).
• Timers: schedule a future callback for a key to implement time-driven behaviors (e.g., expire session after inactivity, send alerts after a delay).
• Use cases: sessionization, de-duplication, per-user activity windows, delayed actions (e.g., check for missing payment 10 minutes after checkout).

​

Deployment strategies and Dataflow templates

• Which type of Dataflow template allows runtime parameterization?
• Answer: Flex Template.

​

Integration and monitoring

• Pub/Sub — streaming ingestion: https://cloud.google.com/pubsub
• BigQuery — analytics and storage: https://cloud.google.com/bigquery
• Cloud Storage (GCS) — staging, batch inputs, templates: https://cloud.google.com/storage

• Key metrics: throughput, latency, system resource usage, worker CPU/memory, and backpressure.
• Backpressure occurs when downstream systems slow ingestion or processing; monitor and tune I/O and worker types.
• Use Cloud Monitoring / Logging and Dataflow job metrics to build alerts and dashboards.
