Welcome back. This lesson explains how a Google Cloud VPC can connect to other networks — on-premises data centers, other Google Cloud projects, or external clouds such as AWS. We cover the common connection options, how they work, trade-offs, and guidance for choosing the right solution for performance, cost, and security. Private Service Connect (overview)
  • Private Service Connect enables private consumption of Google services inside your VPC. Networks often need to communicate privately between environments; this article focuses on the main networking primitives and when to use each.

​
On-premises to Google Cloud: VPN and Interconnect

Scenario: Your organization runs workloads on-premises and in Google Cloud. You need secure, private IP connectivity between your on-prem network and a Google VPC. Common approaches:
  • Cloud VPN (site-to-site IPsec)
    • Creates encrypted tunnels over the public Internet.
    • Use HA VPN for higher availability and automatic redundancy across Google edge locations.
    • Best when cost and quick setup matter or for low/medium bandwidth requirements.
  • Cloud Interconnect
    • Provides private, dedicated connectivity into Google’s network.
    • Traffic enters Google’s global backbone and does not traverse the public Internet.
    • Ideal for very high throughput, lower latency, predictable performance, or strict compliance requirements.
Key distinction:
  • Interconnect = private connectivity into Google’s backbone (no traversal of the public Internet).
  • VPN = encrypted traversal of the public Internet (IPsec), but still provides private connectivity between on-prem and cloud resources.

​
VPC-to-VPC: VPC Network Peering

If you need private connectivity between multiple VPCs across projects or regions, VPC Network Peering is a common choice.
  • VPC Peering connects two VPCs directly over Google’s internal network.
  • Traffic remains on Google’s backbone and is not exposed to the public Internet.
  • Peering is one-to-one and non-transitive — you cannot route from VPC A to VPC C via VPC B.

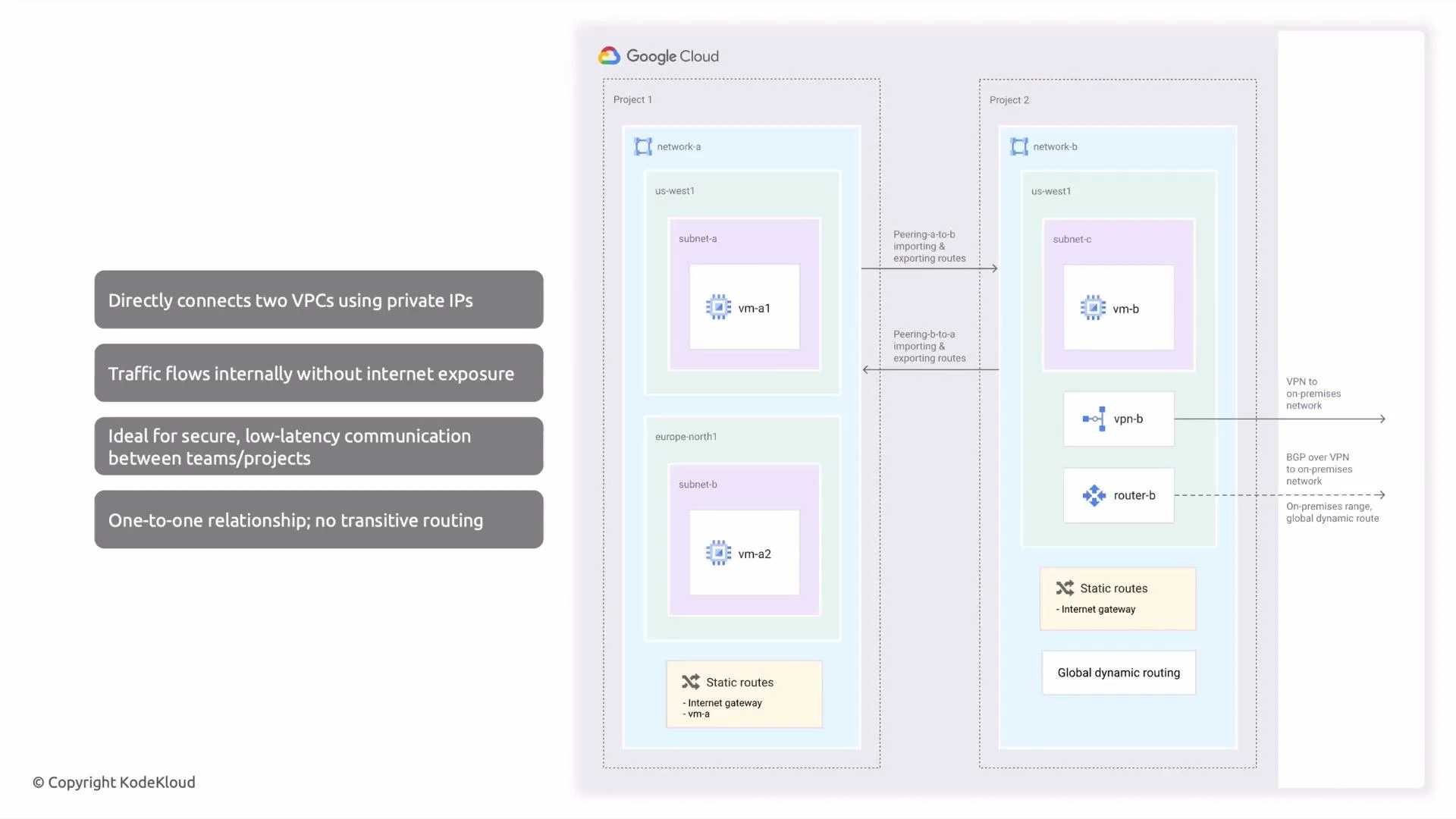

A Google Cloud diagram showing VPC peering between two projects with regions, subnets, VMs, and arrows for importing/exporting routes and VPN/router connections. Left-side callouts note private IP connectivity, internal traffic (no internet exposure), and that peering is one-to-one with no transitive routing.
Use VPC peering for low-latency, private communication between two VPCs when simple, direct connectivity is sufficient. For hub-and-spoke or centralized routing, consider Shared VPC, Cloud VPN with a hub, or network virtual appliances.

​
Interconnect options: Dedicated vs Partner

For high-bandwidth or low-latency requirements, Cloud Interconnect is preferable to VPN. Choose between Dedicated Interconnect and Partner Interconnect depending on location, bandwidth requirements, and operational preferences.
  • Dedicated Interconnect
    • A physically direct connection from your on-prem network to Google’s network at an interconnect location (colocation facility).
    • Provides very high bandwidth, low latency, and predictable performance because traffic enters Google’s backbone immediately.
    • Common for organizations that transfer large volumes of data frequently or require strict data-control guarantees.

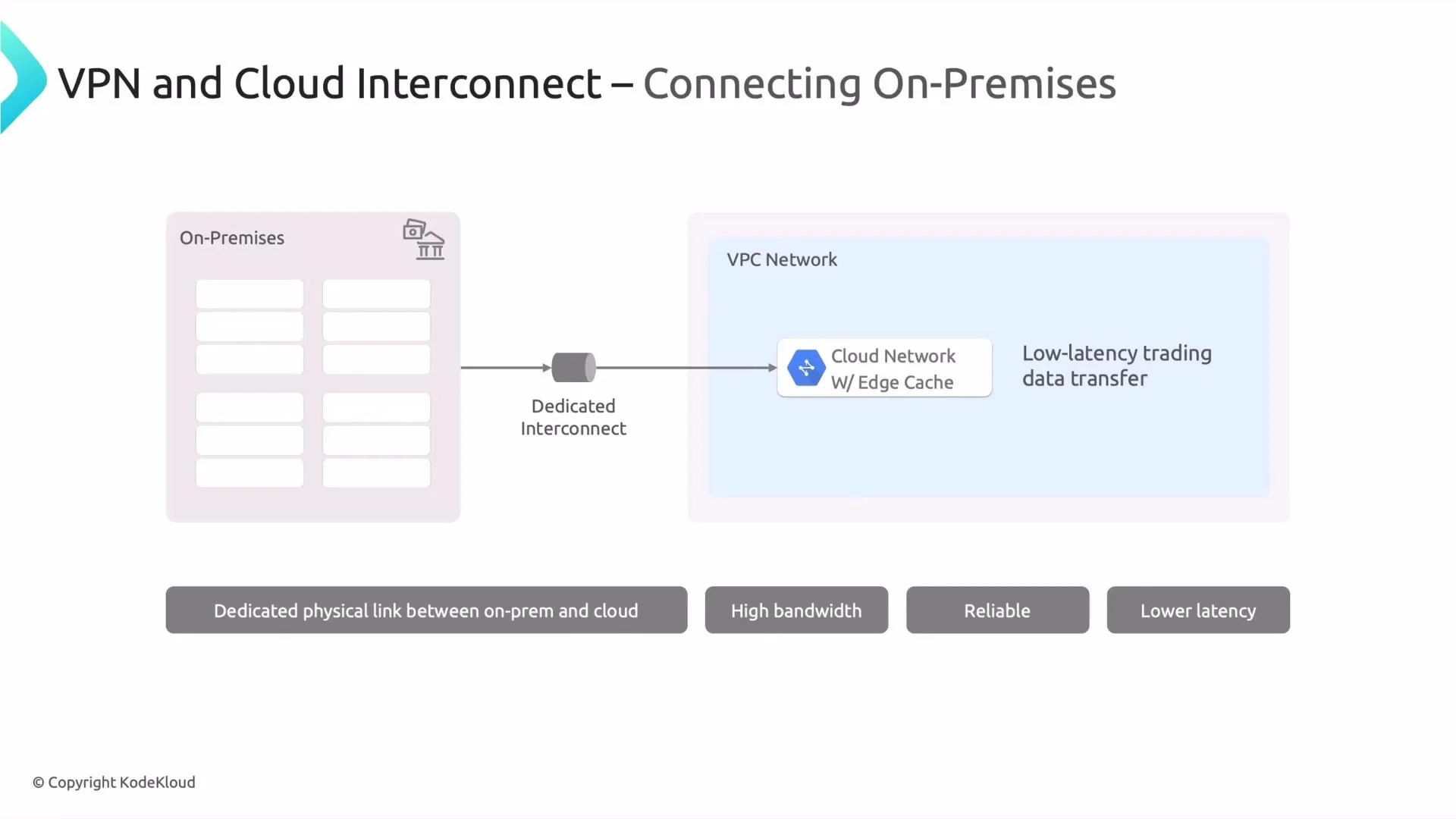

A simple network diagram showing an on-premises data center connected via a Dedicated Interconnect to a VPC/cloud network (with an edge cache) for low-latency data transfer. Labels at the bottom highlight benefits like high bandwidth, reliability, and lower latency.
  • Partner Interconnect
    • Use when Google lacks a direct presence at your data center location.
    • A supported service provider (telecom or colocation partner) delivers connectivity to Google at an interconnect location.
    • Provides Layer 3 connectivity into your VPC with multiple bandwidth options and greater geographic flexibility.

​
Multi-cloud and hybrid connectivity

  • Multi-cloud setups (for example, connecting Google Cloud to AWS) are common. Typical approaches include:
    • VPN tunnels between clouds for encrypted IP connectivity.
    • Provider-based dedicated connectivity or partner services that link cloud backbones.
    • Hybrid designs that combine Interconnect, VPN, and peering depending on latency and throughput needs.
Choose the method based on:
  • Latency and bandwidth requirements
  • Cost and operational overhead
  • Regulatory, compliance, or data residency constraints

​
Comparison table: connectivity options

Connection typeUse caseProsCons
Cloud VPN / HA VPNSite-to-site encrypted tunnels over the InternetQuick to set up; encrypted; HA VPN offers regional redundancyPerformance depends on Internet; not ideal for very high bandwidth
Dedicated InterconnectHigh-throughput on-prem to Google backboneVery high bandwidth, low latency, predictable performanceRequires colocation and physical setup; higher cost
Partner InterconnectWhere Google has no direct presenceFlexible locations; multiple bandwidth tiers; easier onboarding via providerSlightly higher latency than Dedicated; dependent on provider
VPC Network PeeringPrivate VPC-to-VPC connectivity across projects/regionsLow-latency, private traffic on Google backboneOne-to-one, non-transitive; not suitable for hub-and-spoke without other controls

​
Quick exam-style question

Which connection option provides the highest bandwidth and lowest latency to your on-prem environment?
  • Answer: Dedicated Interconnect.
Remember: VPC peering is non-transitive and does not allow route propagation through intermediate peers. For architectures that require centralized connectivity or transitive routing, consider alternatives such as Shared VPC, Cloud VPN in a hub-and-spoke topology, or a third-party network virtual appliance.

​
Summary

Google Cloud offers multiple secure ways to connect networks:
  • Cloud VPN: encrypted site-to-site tunnels over the Internet (HA VPN for higher availability).
  • Cloud Interconnect: dedicated private connectivity (Dedicated Interconnect and Partner Interconnect) for high performance.
  • VPC Network Peering: private, low-latency connectivity between VPCs (one-to-one, non-transitive).
Select the option that best balances performance, cost, and security for your workload.
