Amazon GuardDuty Threat Detection in AWS

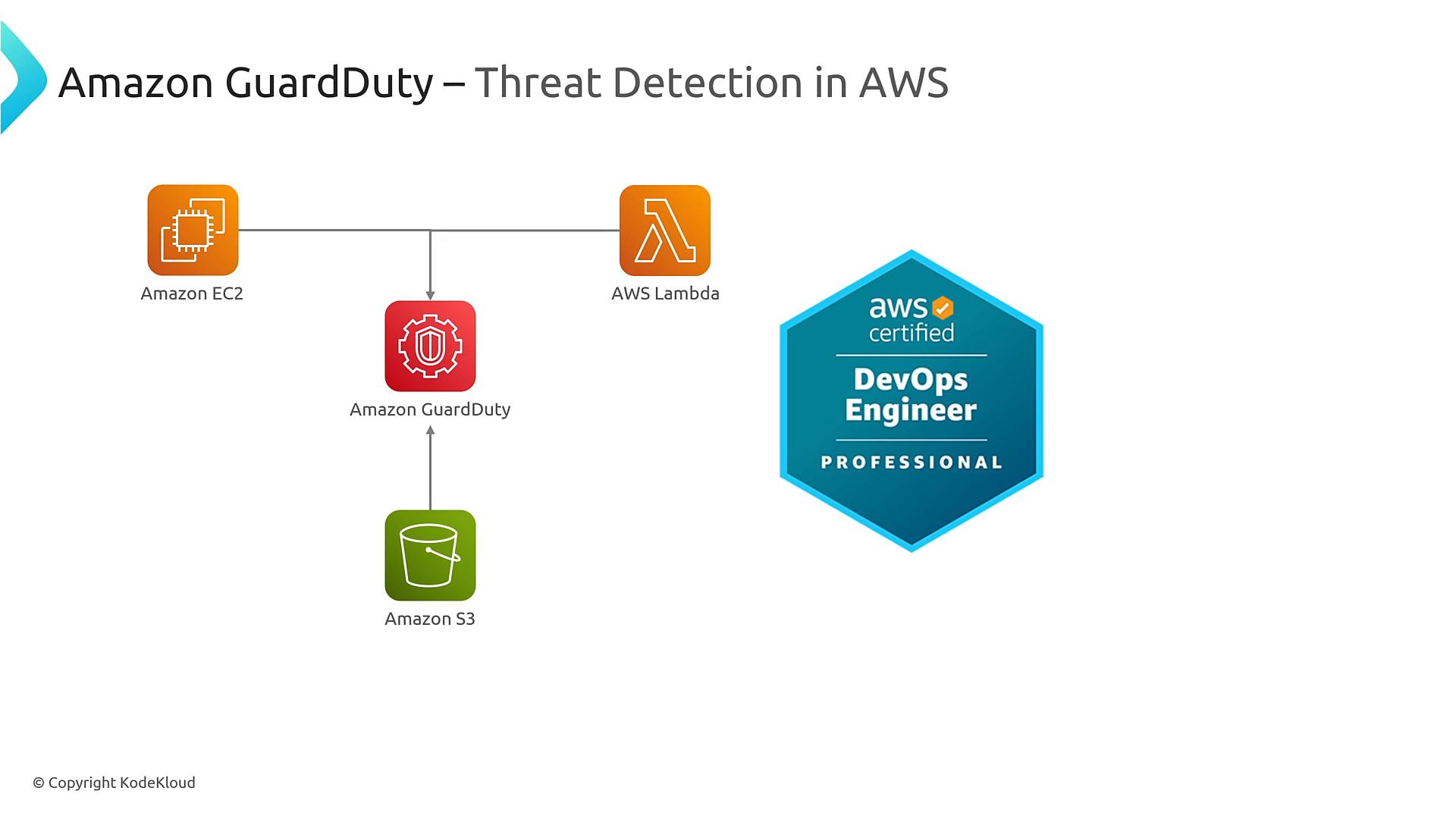

Welcome. This lesson covers Amazon GuardDuty for threat detection in AWS: how it works, multi-account deployment, operating patterns, common operational challenges, and practical best practices. Amazon GuardDuty is a managed threat detection service that continuously monitors accounts, workloads, and supported telemetry sources for suspicious or malicious activity. It ingests CloudTrail, VPC Flow Logs, DNS logs, S3 data events, and other audit data (including EKS and RDS via integrations), analyzes them with ML and threat intelligence feeds, and emits actionable findings with contextual metadata and remediation guidance.

Why cloud-native security controls are needed Cloud environments bring several detection challenges: highly dynamic infrastructure, large and growing log volumes, internet-exposed attack surfaces, and alert fatigue from noisy signals. Cloud-native security tools like GuardDuty are designed to be scalable, automated, and integrated with DevOps workflows — which makes them a recommended option for continuous threat detection in AWS.

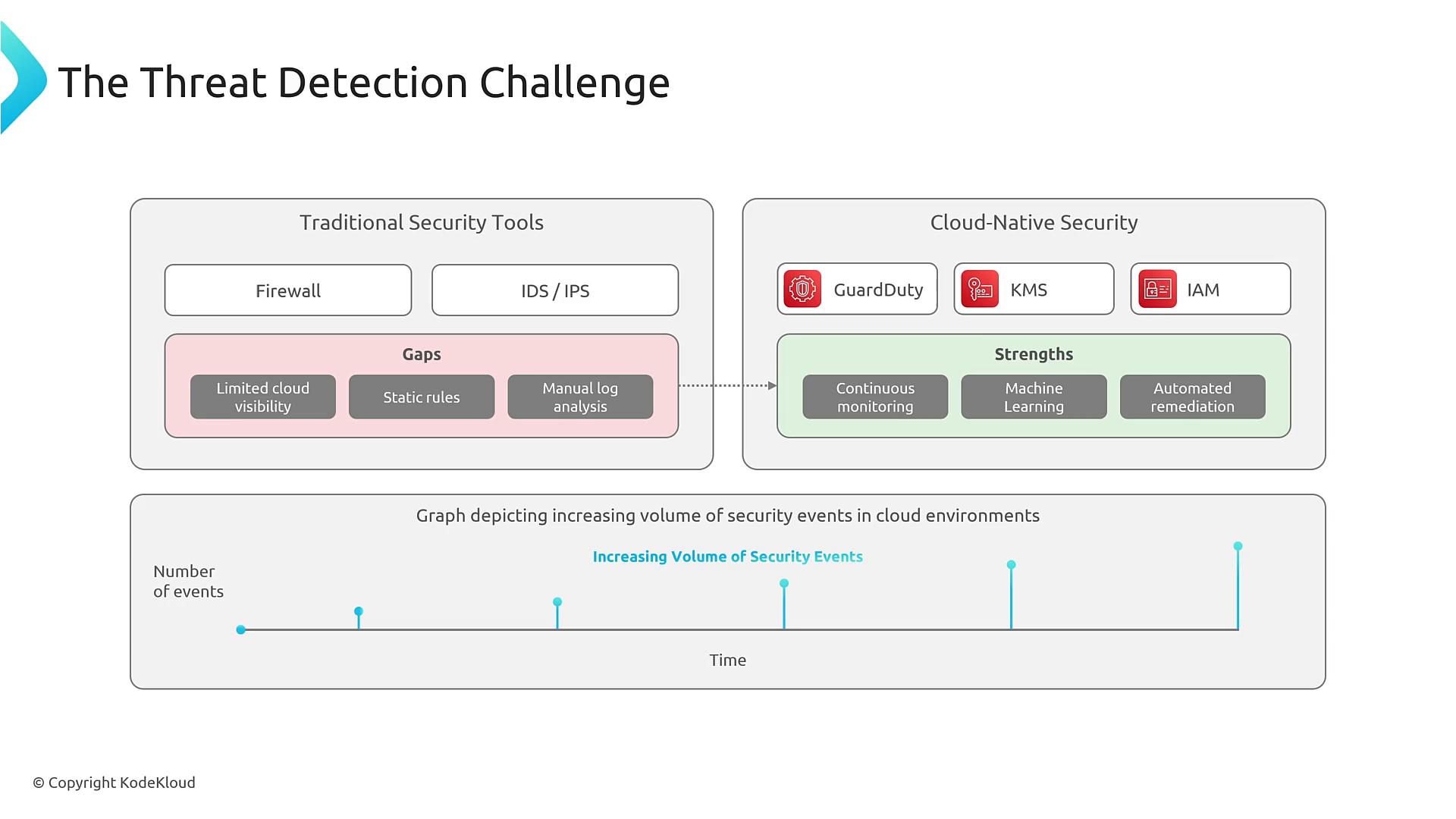

An infographic titled "The Threat Detection Challenge" comparing Traditional Security Tools (firewall, IDS/IPS and gaps like limited cloud visibility, static rules, manual log analysis) with Cloud‑Native Security (GuardDuty, KMS, IAM and strengths like continuous monitoring, machine learning, automated remediation). Below it is a simple timeline graph showing an increasing volume of security events over time.

Core concepts and pipeline GuardDuty’s processing pipeline has three stages:

Data collection — ingest telemetry (CloudTrail events, VPC Flow Logs, DNS logs, S3 data events, EKS/RDS audit logs).
Analysis — apply machine learning, behavioral analytics, and threat intelligence.
Finding generation — produce structured findings with severity, confidence, contextual metadata, and remediation guidance.

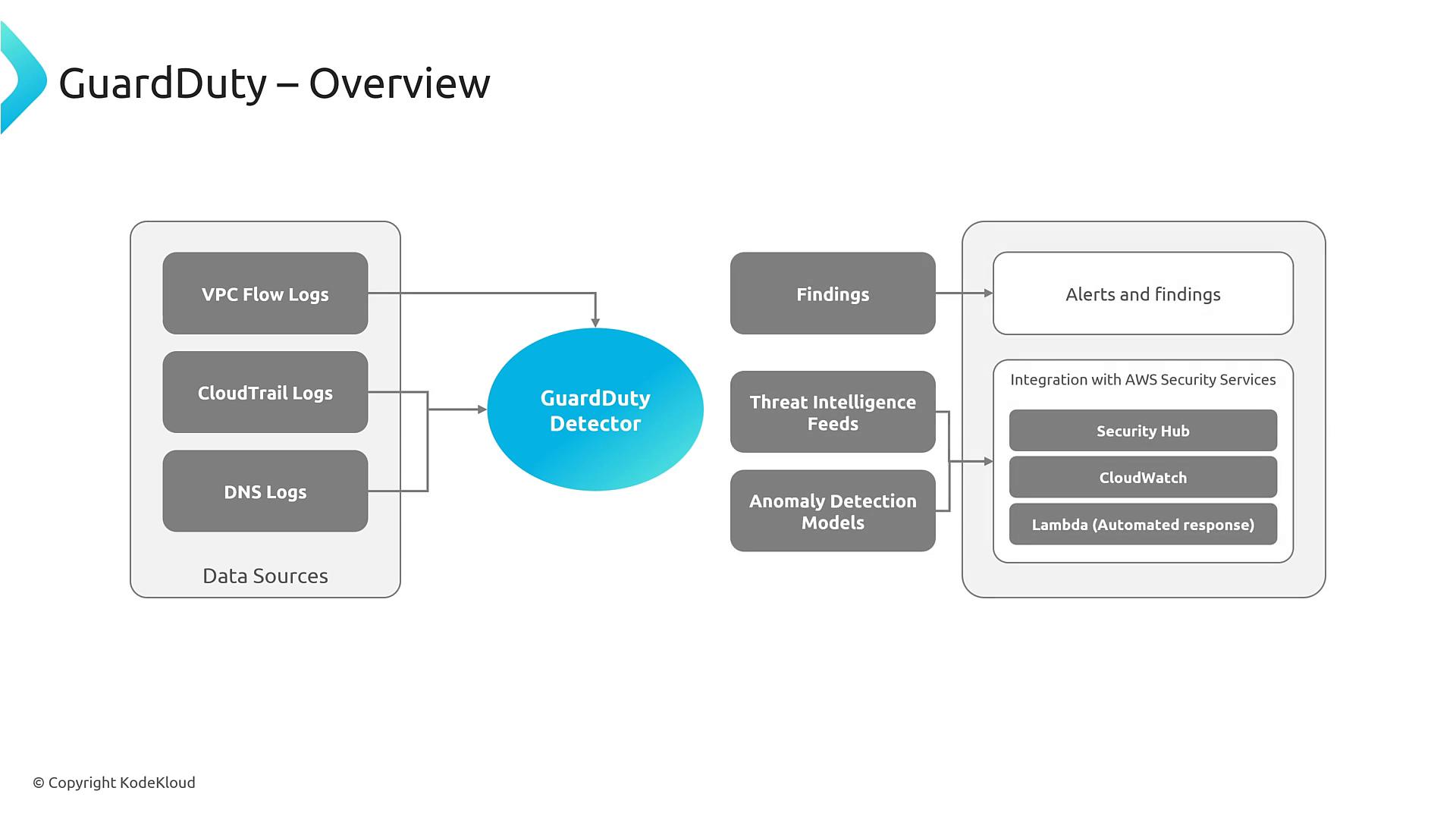

A diagram titled "GuardDuty – Overview" showing VPC Flow Logs, CloudTrail Logs, and DNS Logs feeding into a GuardDuty detector, which uses threat intelligence and anomaly detection to produce findings. The findings generate alerts and integrate with AWS services like Security Hub, CloudWatch, and Lambda for automated response.

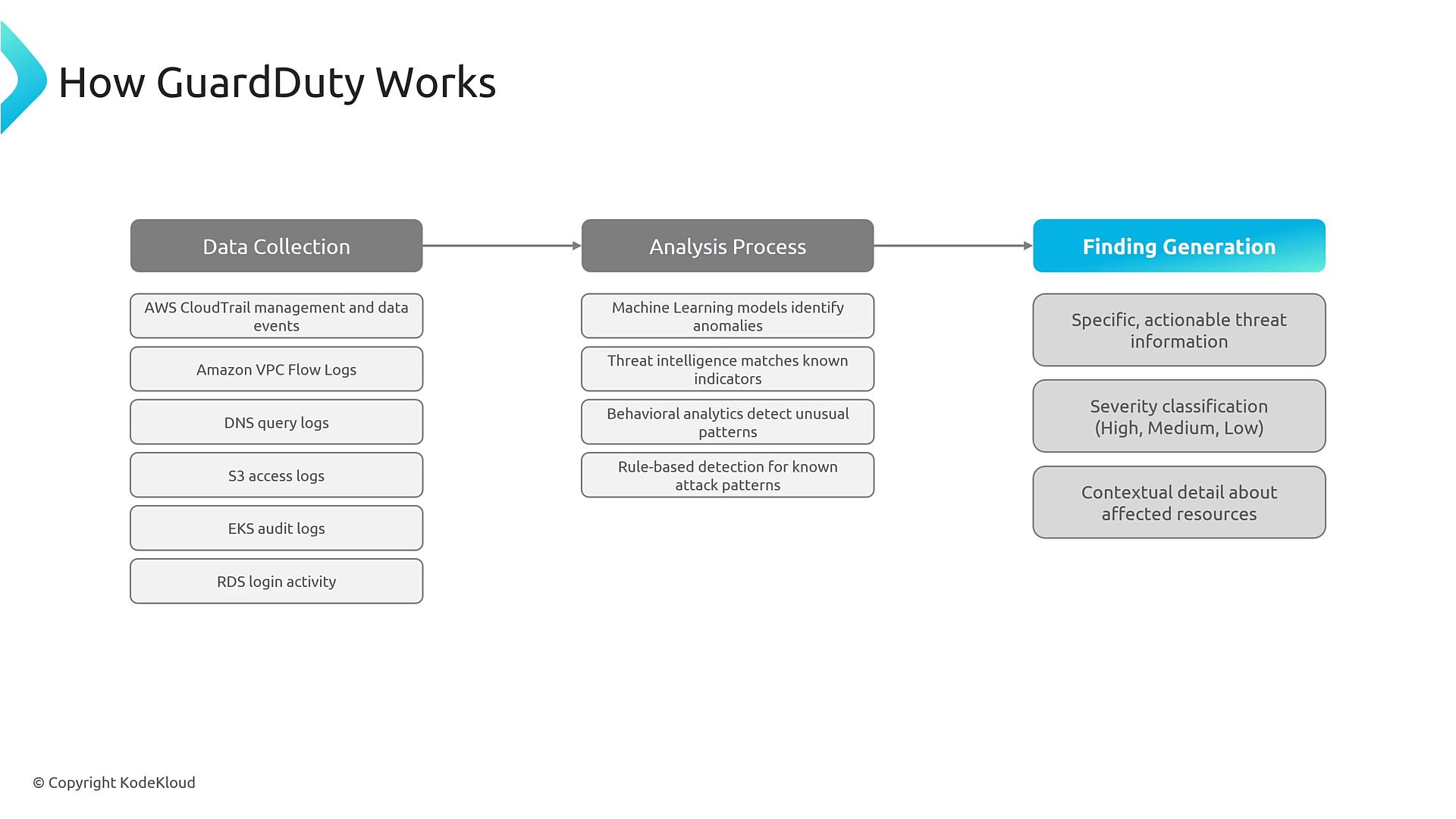

An infographic titled "How GuardDuty Works" showing a three-step pipeline: Data Collection, Analysis Process, and Finding Generation. It lists data sources (CloudTrail, VPC Flow Logs, DNS, S3, EKS, RDS), analysis methods (ML, threat intelligence, behavioral and rule-based detection), and resulting actionable findings with severity and context.

GuardDuty findings: structure and example Findings are delivered as structured JSON that includes fields such as the finding ARN, type, resource context, region, severity, confidence, timestamps, title, description, and recommended remediation links. These fields make it straightforward to route findings to automation, dashboards, or a SIEM. Representative GuardDuty finding (trimmed for clarity):

{
  "Id": "arn:aws:guardduty:us-east-1:123456789012:detector/abcd1234/finding/efgh5678",
  "Type": "Recon:EC2/Portscan",
  "Resource": {
    "InstanceDetails": {
      "InstanceId": "i-0123456789abcdef0",
      "InstanceType": "t3.medium"
    }
  },
  "Region": "us-east-1",
  "Severity": 5.0,
  "Confidence": 98,
  "CreatedAt": "2025-05-05T15:00:00Z",
  "Title": "Port scan detected on EC2 instance",
  "Description": "GuardDuty has detected a port scan on EC2 instance i-0123456789abcdef0 from a known malicious IP.",
  "Remediation": {
    "Recommendation": {
      "Text": "Investigate the source IP and restrict access if necessary.",
      "Url": "https://docs.aws.amazon.com/guardduty/latest/ug/guardduty_finding-types.html"
    }
  }
}

Findings are categorized (Reconnaissance, Instance Compromise, Account Compromise, Data Exfiltration, etc.) and assigned a numeric severity score so you can prioritize incident response.

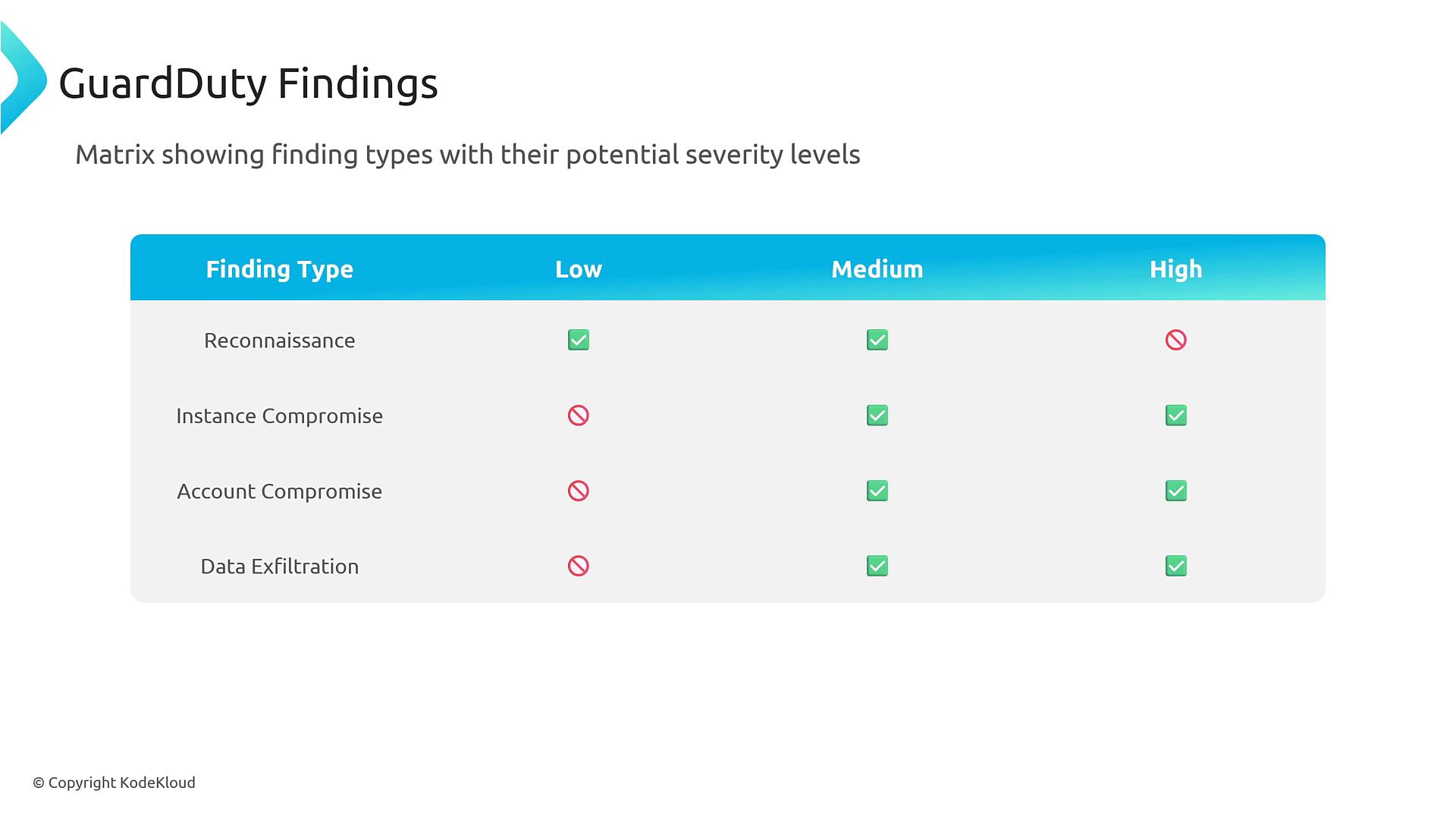

A slide titled "GuardDuty Findings" showing a table that maps finding types (Reconnaissance, Instance Compromise, Account Compromise, Data Exfiltration) to severity levels (Low, Medium, High) using green checkmarks and red forbidden icons. The matrix indicates which severities are possible for each finding type.

Key GuardDuty data sources (summary)

Data source	Purpose / value
CloudTrail Events	Detects suspicious API calls and account compromise indicators
VPC Flow Logs	Network traffic analysis, lateral movement, unusual connections
DNS Logs	Domain-based reconnaissance and command-and-control detection
S3 Data Events	Data exfiltration detection and object access anomalies
EKS / RDS Audit Logs	Workload/Audit-level detection via integrations

GuardDuty in multi-account AWS environments In production, GuardDuty is commonly deployed in a multi-account configuration using AWS Organizations. You designate an administrator account (often a security or management account) to centralize configuration, ingest findings from member accounts, and manage detectors, threat lists, and filters. AWS Control Tower can automate parts of this enrollment.

A slide titled "Multi-Account GuardDuty Implementation" showing an "Administrative Components" header linked to four connected boxes. The boxes are labeled "Administrative account designation," "Member account enrollment," "Delegation administration," and "Centralized configuration."

Common multi-account management strategies

Standardize detector and filter settings across member accounts.
Centralize finding aggregation (Security Hub or a SIEM) for unified alerting and correlation.
Implement cross-account remediation workflows (EventBridge + IAM roles).
Validate compliance via automated checks and guardrails.

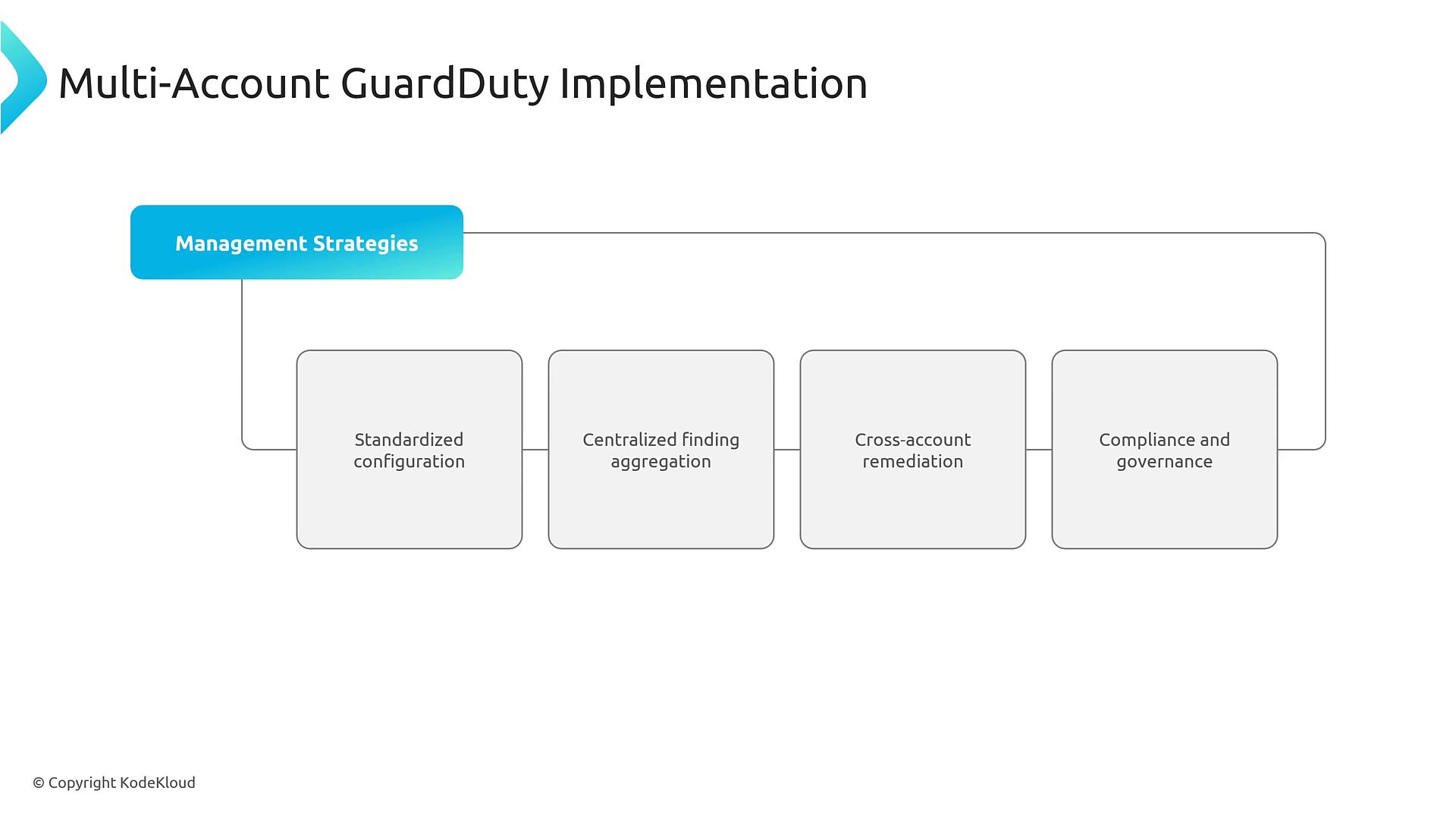

A slide titled "Multi-Account GuardDuty Implementation" showing a "Management Strategies" header linked to four boxes labeled: Standardized configuration, Centralized finding aggregation, Cross-account remediation, and Compliance and governance. The layout is a simple flow/diagram illustrating key management strategies.

Tip: Manage GuardDuty for multiple accounts from an Organizations administrator account. Configure auto-enrollment so new member accounts inherit centralized GuardDuty settings and filters automatically.

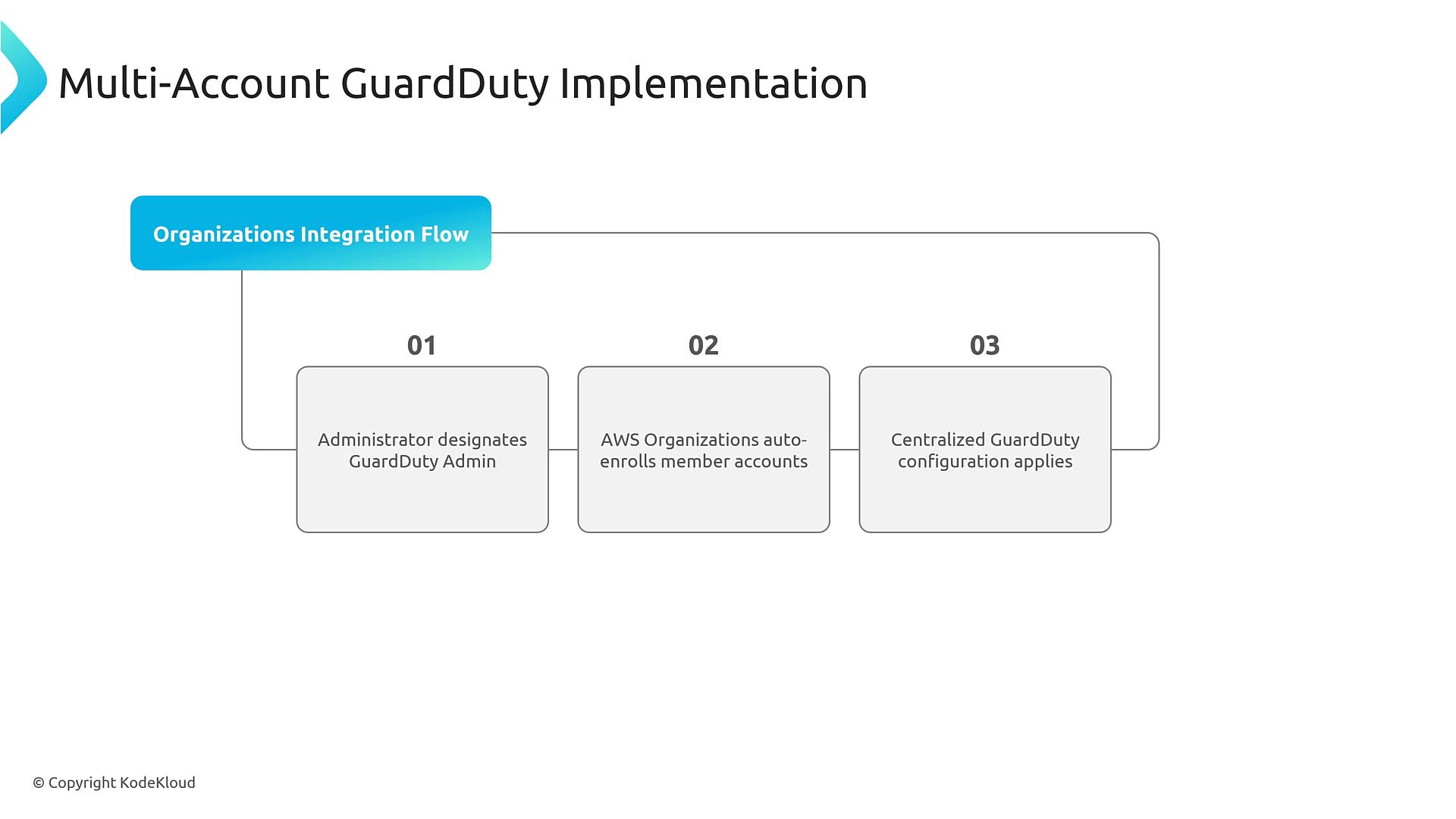

A presentation slide titled "Multi-Account GuardDuty Implementation" showing an "Organizations Integration Flow." It diagrams three steps: administrator designates GuardDuty admin, AWS Organizations auto-enrolls member accounts, and centralized GuardDuty configuration applies.

Automation and orchestration patterns GuardDuty findings can be routed to remediation workflows using Amazon EventBridge. Typical integrations include:

Systems Manager Automation runbooks (for documented playbooks),
AWS Lambda (for fast, targeted remediation),
AWS Step Functions (for orchestrated, multi-step playbooks),
Security Hub (for centralized alerts and compliance).

Example EventBridge rule pattern that matches GuardDuty findings with severity >= 7 and types prefixed with “Recon:”

{
  "source": ["aws.guardduty"],
  "detail-type": ["GuardDuty Finding"],
  "detail": {
    "severity": [{
      "numeric": [">=", 7]
    }],
    "type": [{
      "prefix": "Recon:"
    }]
  }
}

Integrations with AWS security services GuardDuty integrates with Security Hub, CloudWatch (metrics, dashboards), Amazon Detective (deep investigation), Macie (data discovery), and Inspector (vulnerability scanning). Use these integrations to centralize visibility, create alerts, and enrich investigations.

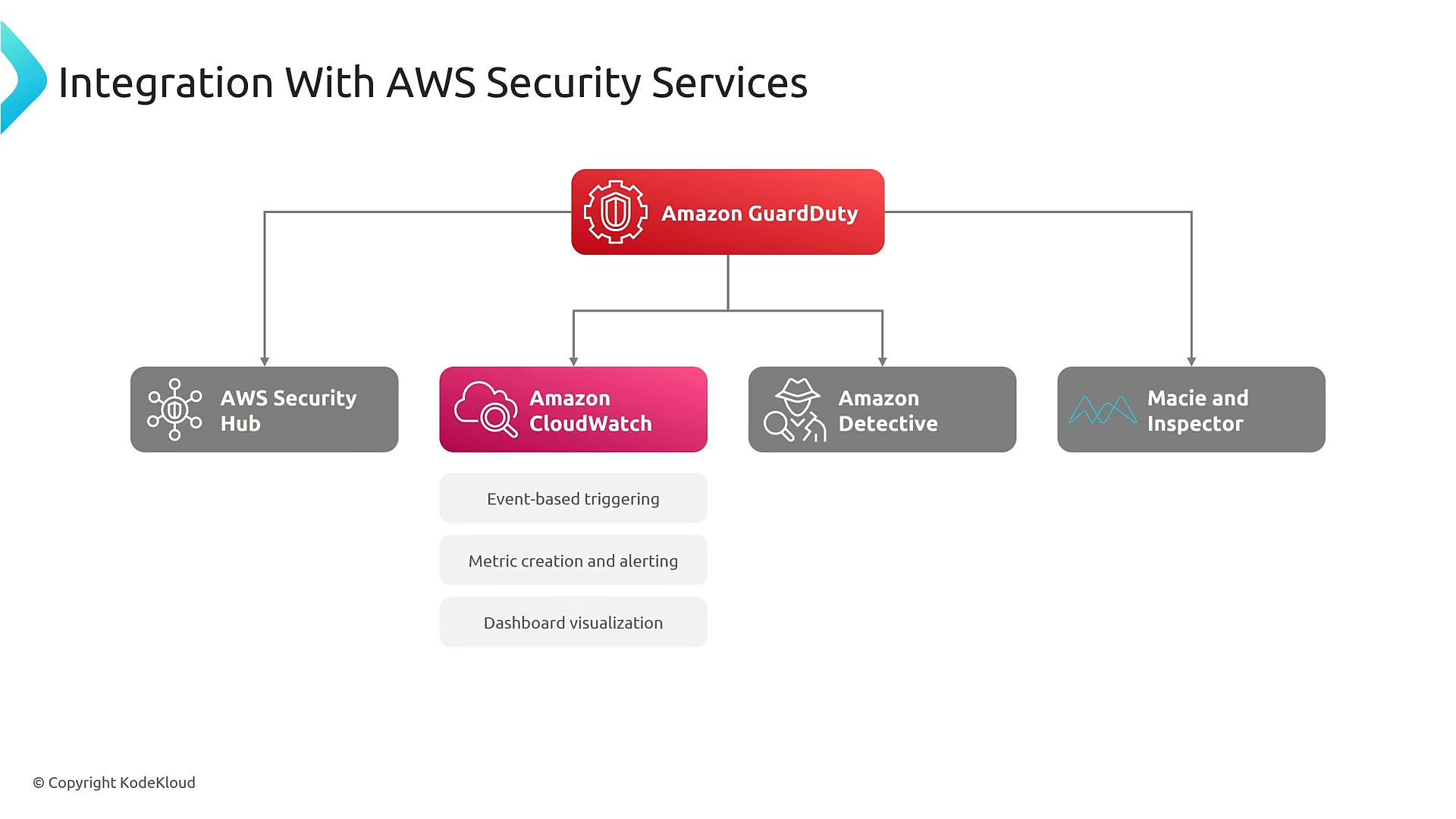

A slide titled "Integration With AWS Security Services" showing Amazon GuardDuty at the top branching to AWS Security Hub, Amazon CloudWatch, Amazon Detective, and Macie & Inspector. The CloudWatch box lists event-based triggering, metric creation and alerting, and dashboard visualization.

Infrastructure as Code (IaC) and deployment pipelines Include GuardDuty activation and configuration in IaC pipelines so detectors, IP sets, filters, and remediation automations are created and managed consistently (example: deploy via CloudFormation, Terraform, or CDK hosted in a CI/CD pipeline).

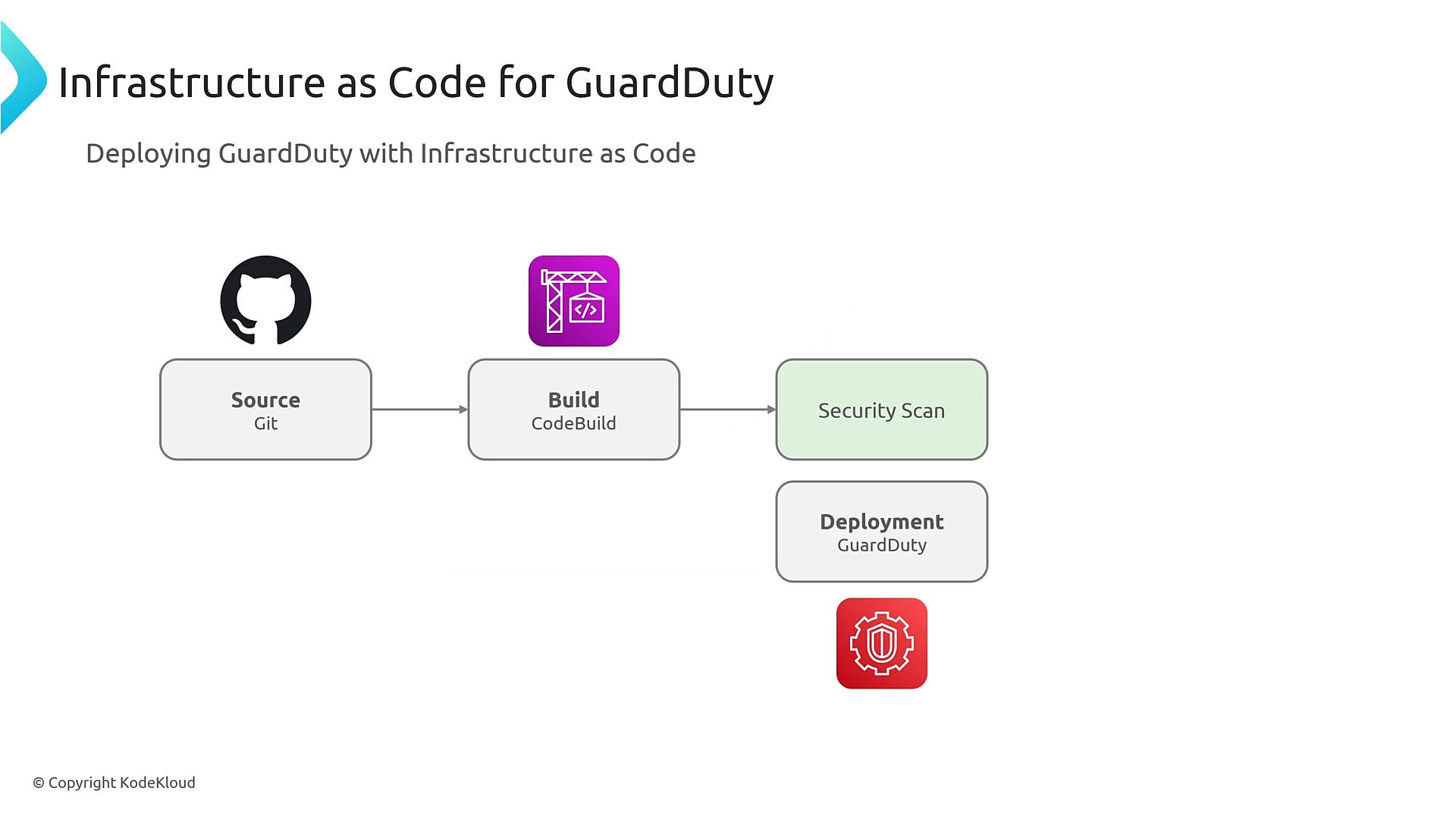

A presentation slide titled "Infrastructure as Code for GuardDuty." It shows a pipeline from Source (Git) to Build (CodeBuild), then a Security Scan and Deployment (GuardDuty), with matching icons.

Example CloudFormation (YAML) The example below provisions a GuardDuty detector, a trusted IP set, a saved filter for high-severity findings, and a simple remediation Lambda with an IAM role plus an EventBridge rule to invoke it. This demonstrates the common pattern; adapt to your environment and harden IAM permissions before production use.

Resources:
  GuardDutyDetector:
    Type: AWS::GuardDuty::Detector
    Properties:
      Enable: true
      FindingPublishingFrequency: SIX_HOURS

  TrustedIPs:
    Type: AWS::GuardDuty::IPSet
    Properties:
      Activate: true
      DetectorId: !Ref GuardDutyDetector
      Format: TXT
      Location: "https://example-bucket.s3.amazonaws.com/trusted-ips.txt"

  HighSeverityFilter:
    Type: AWS::GuardDuty::Filter
    Properties:
      DetectorId: !Ref GuardDutyDetector
      Name: "HighSeverityFindings"
      Description: "Filter for high severity GuardDuty findings"
      Action: NOOP
      Rank: 1
      FindingCriteria:
        Criterion:
          Severity:
            Gte: 7

  RemediationLambdaRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
      Path: "/"
      Policies:
        - PolicyName: GuardDutyRemediationPolicy
          PolicyDocument:
            Version: "2012-10-17"
            Statement:
              - Effect: Allow
                Action:
                  - ec2:ModifyInstanceAttribute
                Resource: "*"
              - Effect: Allow
                Action:
                  - logs:CreateLogGroup
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource: "arn:aws:logs:*:*:*"

  RemediationLambda:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: GuardDutyAutoRemediation
      Runtime: python3.12
      Role: !GetAtt RemediationLambdaRole.Arn
      Handler: index.lambda_handler
      Code:
        ZipFile: |
          import boto3
          import logging

          logger = logging.getLogger()
          logger.setLevel(logging.INFO)

          ec2 = boto3.client('ec2')

          def lambda_handler(event, context):
              detail = event.get('detail', {})
              resource = detail.get('resource', {}) or {}
              # GuardDuty sometimes uses camelCase keys; check both forms
              instance_details = resource.get('instanceDetails') or resource.get('InstanceDetails') or {}
              instance_id = instance_details.get('instanceId') or instance_details.get('InstanceId')

              if not instance_id:
                  logger.warning("No instance id found in GuardDuty event")
                  return {"status": "no_instance_id"}

              # Example remediation: modify instance security groups to isolate it
              ec2.modify_instance_attribute(
                  InstanceId=instance_id,
                  Groups=['sg-forensic']  # Replace with actual forensic SG ID
              )
              logger.info(f"Isolated instance {instance_id}")
              return {"status": "isolated", "instance_id": instance_id}

  GuardDutyEventRule:
    Type: AWS::Events::Rule
    Properties:
      Name: HighSeverityGuardDutyFindings
      EventPattern:
        source:
          - "aws.guardduty"
        detail-type:
          - "GuardDuty Finding"
        detail:
          severity:
            - numeric:
                - ">="
                - 7
      Targets:
        - Arn: !GetAtt RemediationLambda.Arn
          Id: RemediationLambdaTarget

  LambdaInvokePermission:
    Type: AWS::Lambda::Permission
    Properties:
      FunctionName: !GetAtt RemediationLambda.Arn
      Action: "lambda:InvokeFunction"
      Principal: "events.amazonaws.com"
      SourceArn: !GetAtt GuardDutyEventRule.Arn

Pattern summary: GuardDuty emits a finding → EventBridge rule matches → EventBridge invokes Lambda/runbook → remediation executes (example: isolate instance). Understand the pattern; customize code, IAM scope, and error handling before production use. Custom threat lists, suppression, and filters GuardDuty supports IPSet and ThreatIntelSet (custom threat lists), and Filter resources (suppression criteria and saved filters). Use custom lists to reduce noise, but apply them cautiously: whitelisting or broadly suppressing findings can hide genuine threats.

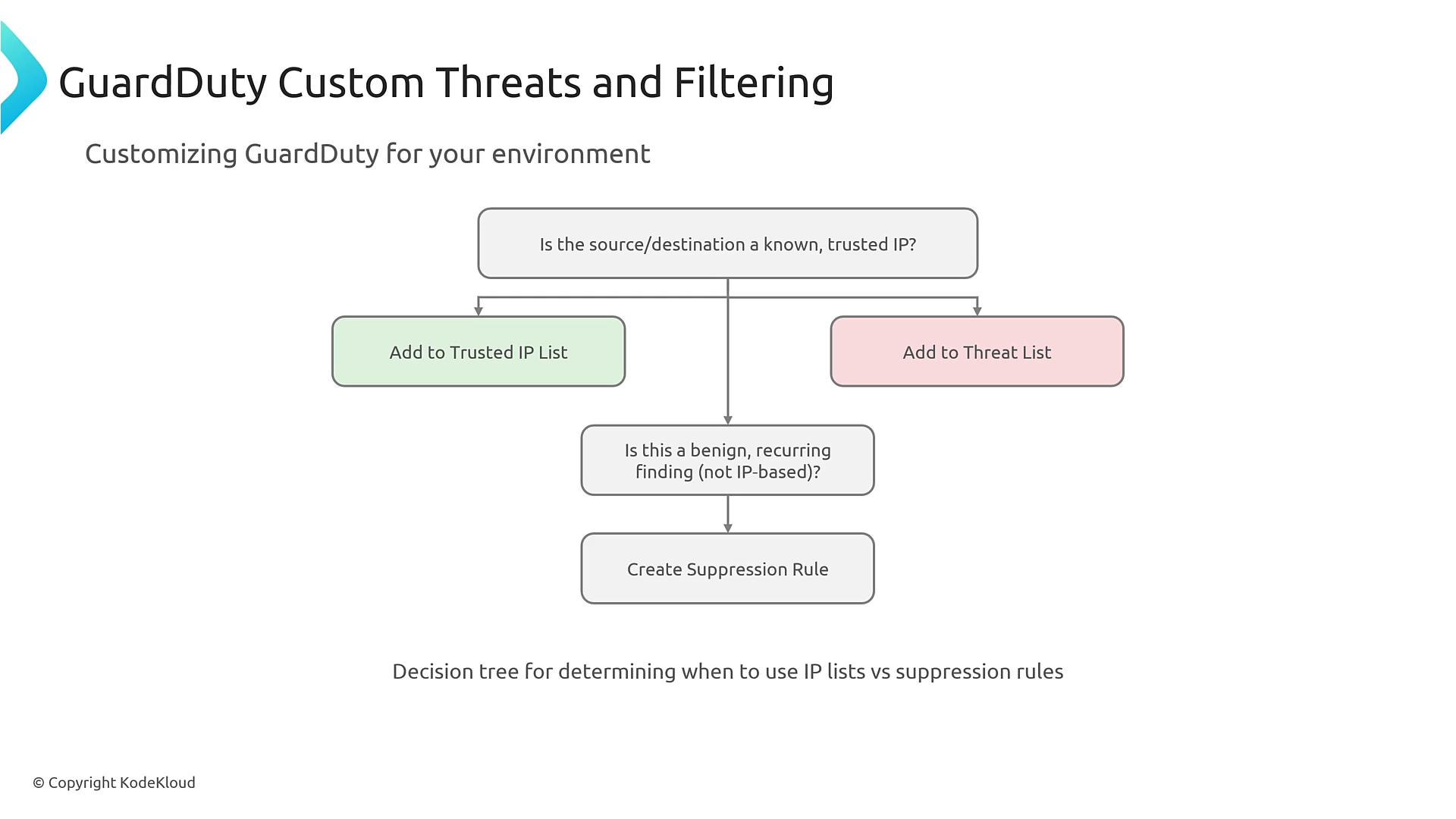

A slide titled "GuardDuty Custom Threats and Filtering" showing a decision tree for handling findings. It guides whether to add an IP to a Trusted IP List or a Threat List, and if a benign recurring (non‑IP) finding exists, to create a suppression rule.

Caution: Avoid broadly suppressing or whitelisting IPs or entire finding types without full investigation—benign-looking activity today may be malicious tomorrow.

Monitoring, metrics, and cost considerations

Visualize GuardDuty metrics and counts in CloudWatch dashboards or feed findings into Security Hub and external SIEMs for correlation.
Typical dashboards include counts by severity, finding types over time, and recent findings with timestamps and affected resources.
Enabling extra data sources (DNS logs, S3 data event protection, EKS audit logs) improves coverage but increases ingestion volume and cost. Start with a baseline (CloudTrail, VPC Flow Logs, DNS logs) and enable more sources based on risk profile.

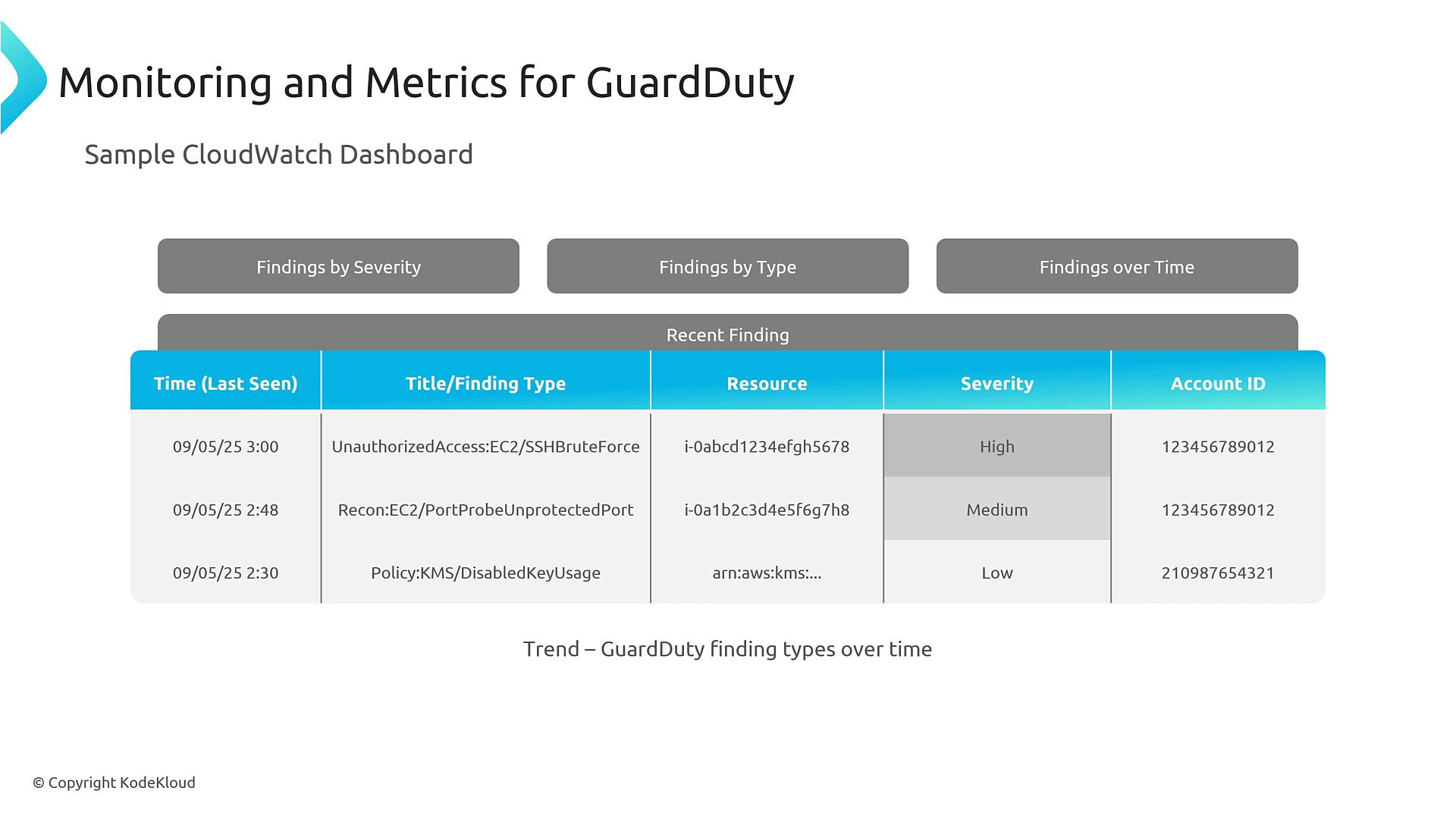

A sample CloudWatch dashboard titled "Monitoring and Metrics for GuardDuty." It shows controls for findings by severity/type/time and a "Recent Finding" table listing timestamps, finding types, resources, severities, and account IDs.

Scaling multi-account aggregation For large organizations, aggregate findings into Security Hub or a centralized SIEM. Design the architecture to scale across thousands of accounts while maintaining per-account context for incident response.

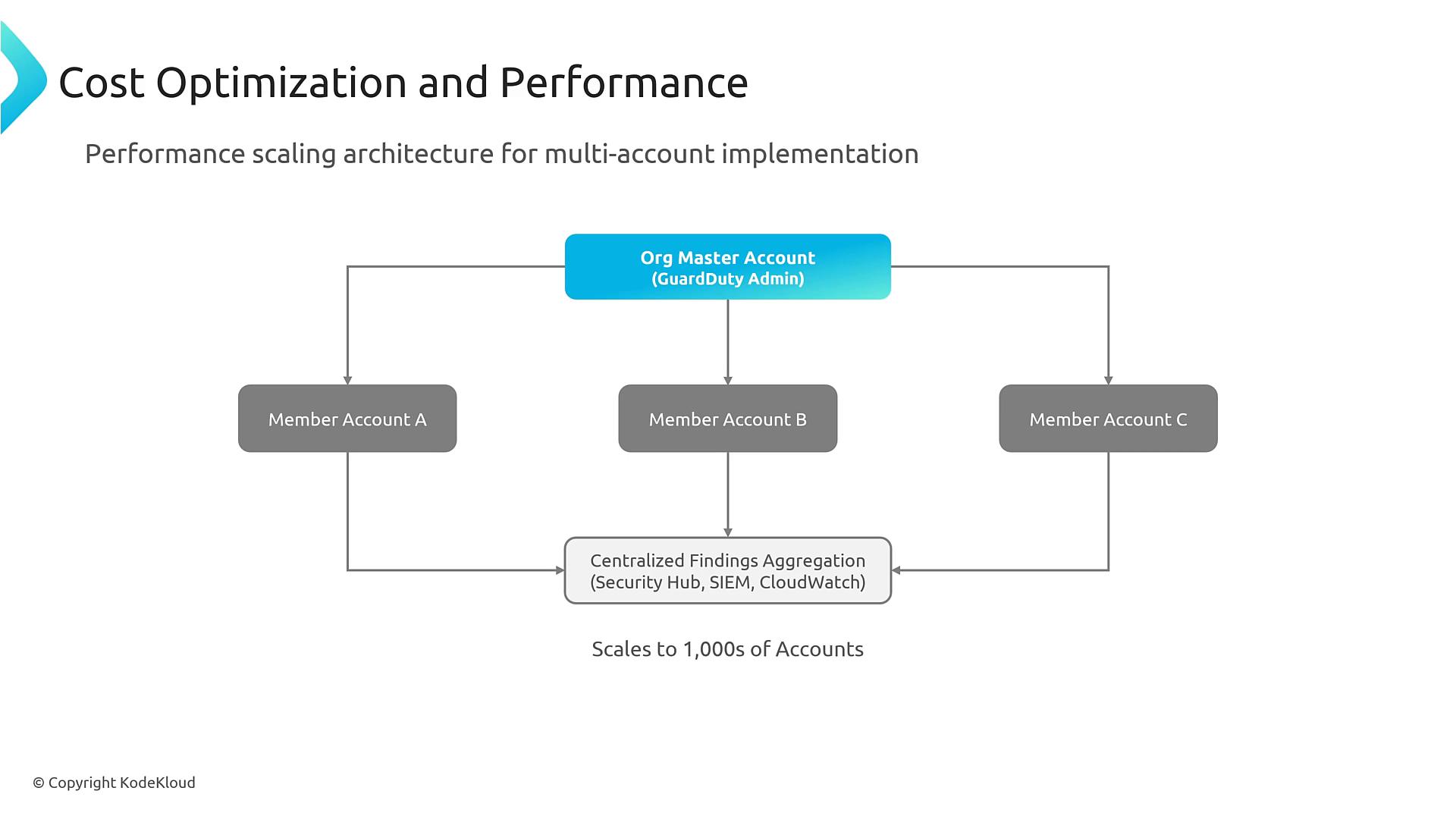

A diagram titled "Cost Optimization and Performance" showing an Org Master Account (GuardDuty Admin) at the top connected to three Member Accounts (A, B, C). All member accounts feed findings into a centralized aggregation (Security Hub, SIEM, CloudWatch) that scales to thousands of accounts.

Operational challenges and remediation Common operational issues and recommended mitigations:

Challenge	Possible cause	Recommended action
Missing data or findings	Permissions not configured, log sources not enabled	Verify IAM permissions, enable CloudTrail/VPC Flow Logs/DNS where needed
False positives	Internal scanners or automated jobs not excluded	Maintain trusted IPs/IPSet and suppression rules carefully
Remediation failures	Insufficient IAM permissions or bugs in automation	Harden IAM roles, test runbooks and Lambda code in staging
Alert fatigue	Overly broad rules or no prioritization	Use severity filters, saved filters, and aggregation to prioritize
Multi-account visibility gaps	Organizations integration not set up	Configure GuardDuty admin account and auto-enrollment for new accounts

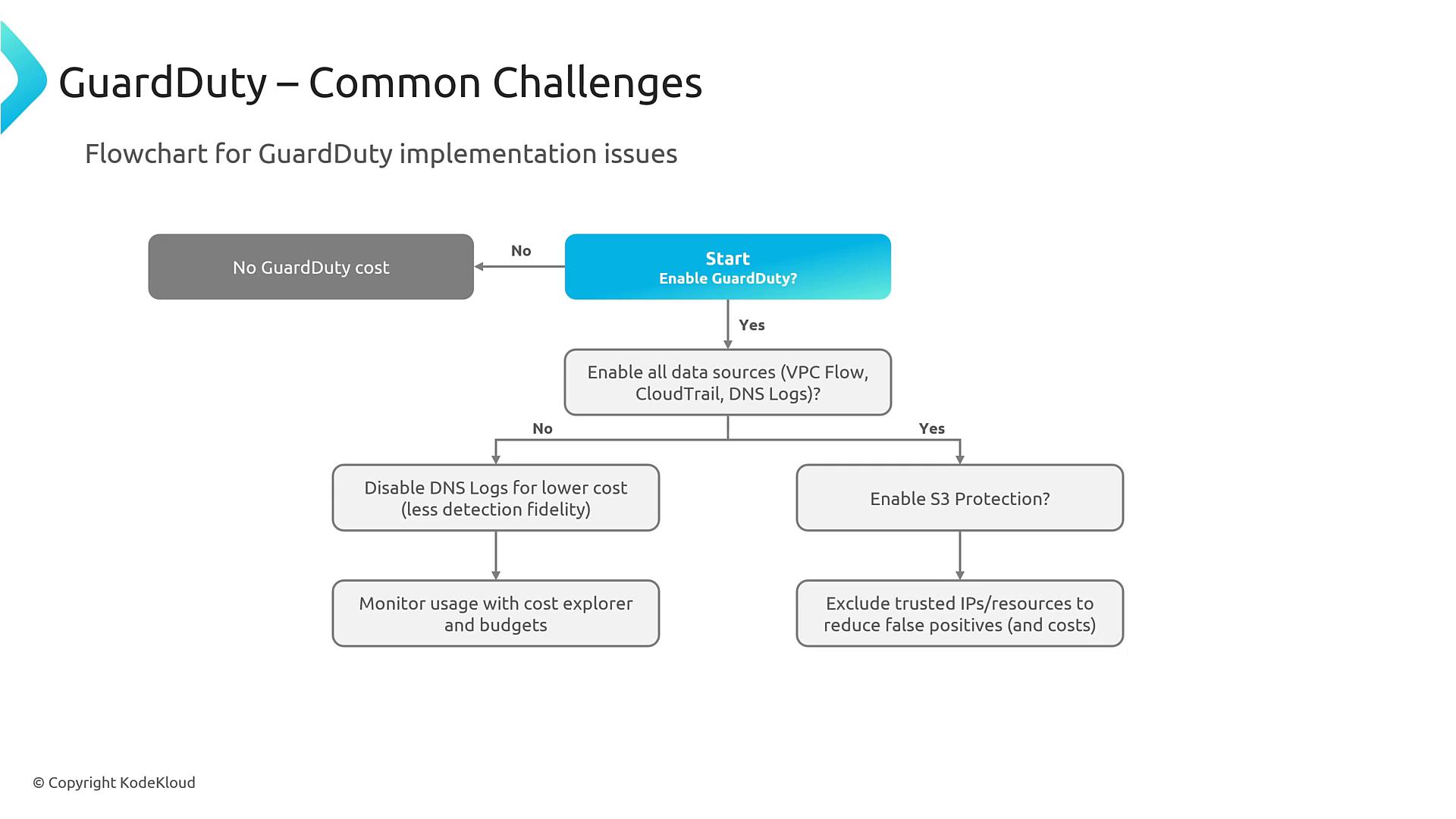

A slide showing a flowchart titled "GuardDuty – Common Challenges" that outlines decisions about enabling AWS GuardDuty, required data sources, and cost trade-offs. It branches to options like enabling VPC Flow/CloudTrail/DNS logs, S3 protection, disabling DNS logs for lower cost, and monitoring usage.

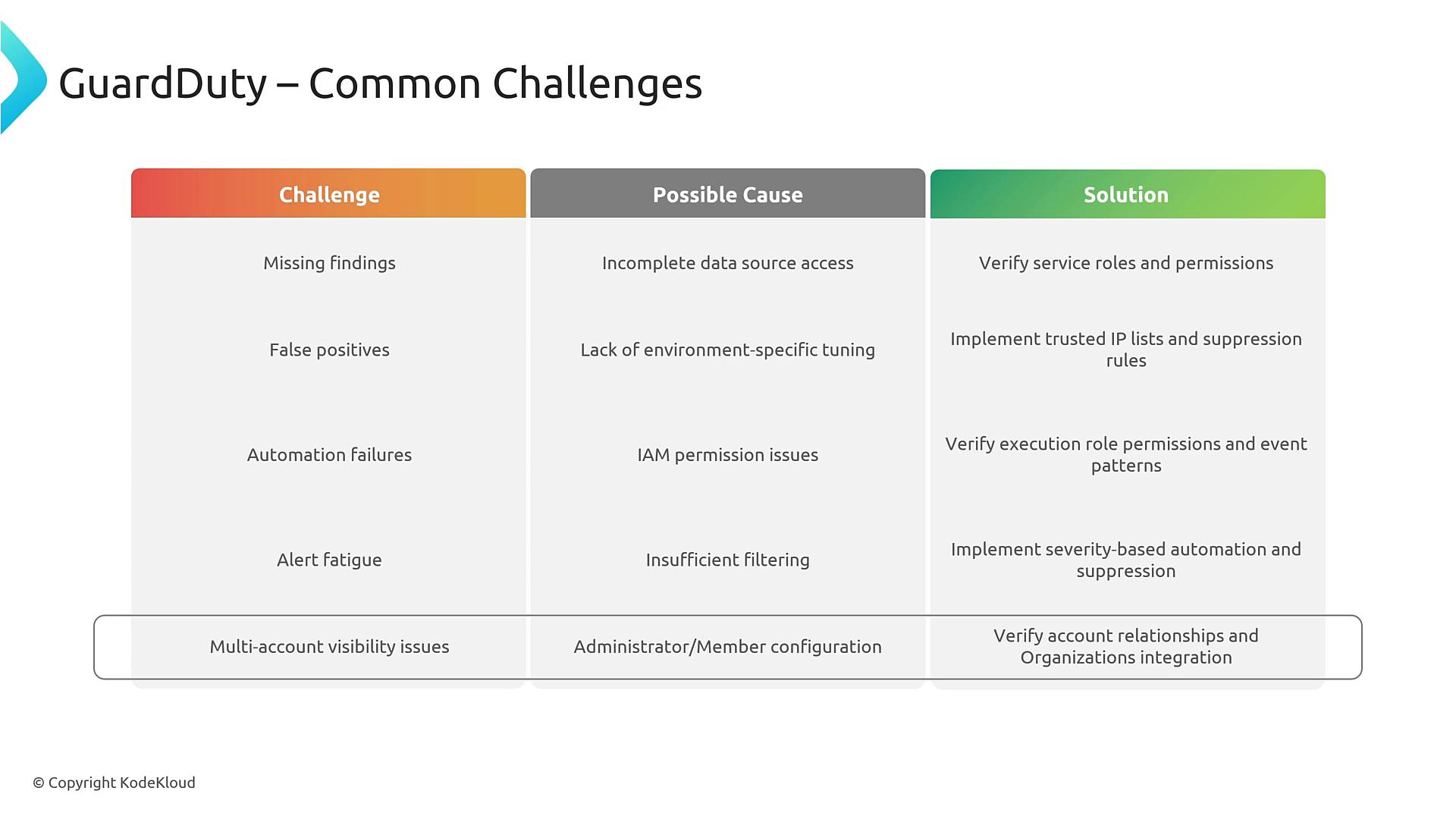

A presentation slide titled "GuardDuty – Common Challenges" showing a three-column table labeled Challenge, Possible Cause, and Solution. It lists issues like missing findings, false positives, automation failures, alert fatigue, and multi-account visibility problems with their causes and suggested fixes.

Best practices checklist

Enable GuardDuty in your management/administration account and enroll member accounts via AWS Organizations.
Start with core data sources: CloudTrail, VPC Flow Logs, and DNS logs.
Use IaC to manage detectors, IP sets, filters, and remediation automations.
Route findings to Security Hub and/or a SIEM for centralized triage.
Implement scoped IAM for remediation automations; prefer runbooks for repeatable tasks.
Tune suppression rules and trusted IP sets carefully; review them regularly.
Monitor costs and enable additional data sources progressively based on risk.

Conclusion GuardDuty provides continuous, managed threat detection in AWS using telemetry, ML, and threat intelligence. Deploy it via multi-account patterns, integrate with EventBridge and automation workflows, and apply careful tuning to reduce noise while preserving detection coverage. Links and references
